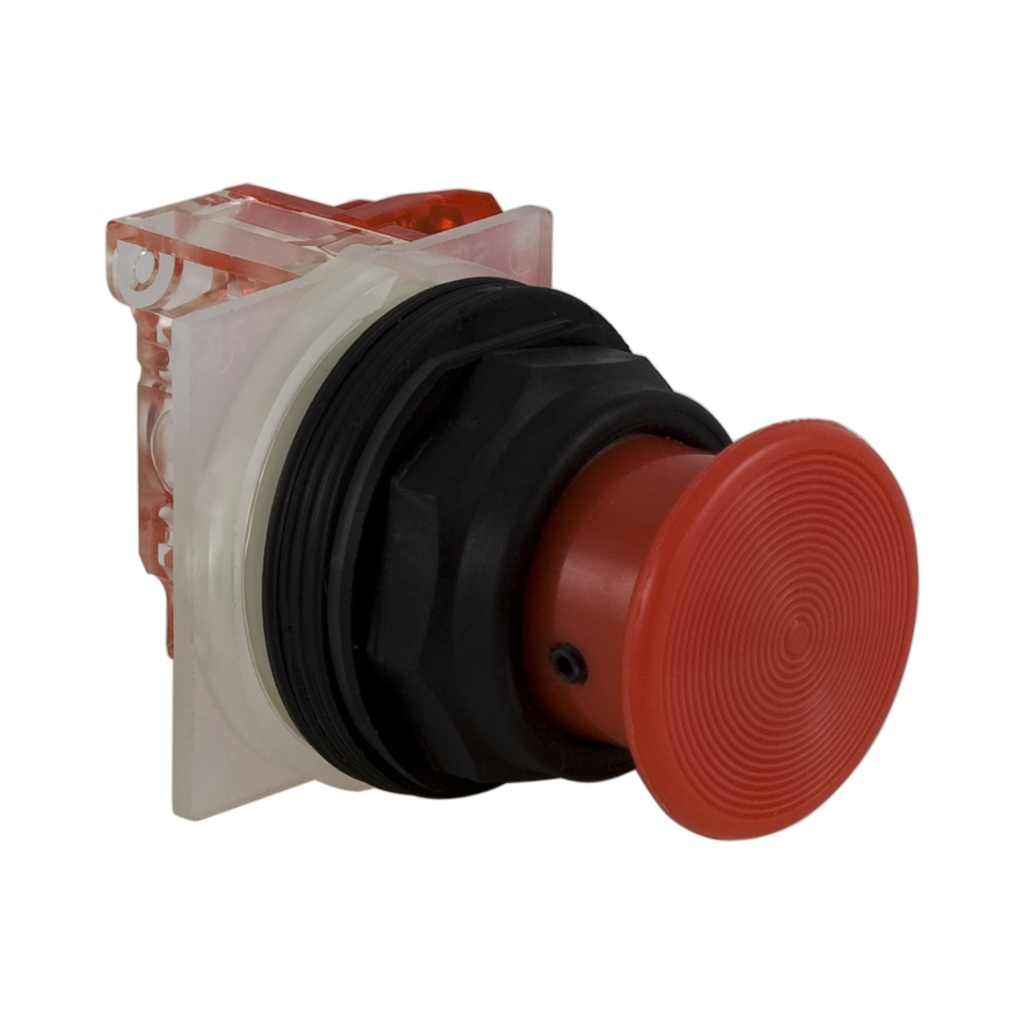

Push-button head, Harmony 9001SK, plastic, snap-in plastic mushroom 35mm, red, 30mm, spring return

PUSHBUTTON OPERATOR 30MM SK +O

SQD9001SKR4R 9001SKR4R 785901820895
86.98 / EACH
http://schema.org/OutOfStock
This Harmony 9001SK, modular flush red push button has 2 positions, operates with spring return mechanism. It has a double insulated plastic bezel. This flush push button provides an ergonomic interface for controlling your machines. It is easily installed into a standard 30mm diameter panel cut-outs and is easily connected to control circuits. Its schematic is clearly distinguishable thanks to clear colors, minimizing errors during initial wiring and later maintenance operations. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Impact and corrosion resistant plastic body ensures product continues to operate even after severe accidents.
QTY
  • Product Description
  • Specifications
This Harmony 9001SK, modular flush red push button has 2 positions, operates with spring return mechanism. It has a double insulated plastic bezel. This flush push button provides an ergonomic interface for controlling your machines. It is easily installed into a standard 30mm diameter panel cut-outs and is easily connected to control circuits. Its schematic is clearly distinguishable thanks to clear colors, minimizing errors during initial wiring and later maintenance operations. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Impact and corrosion resistant plastic body ensures product continues to operate even after severe accidents.
  • Specifications
    • Range Of Product : Harmony 9001SK
    • Bezel Material : plastic
    • Product Or Component Type : head for push-button
    • Device Short Name : 9001SK
  • Contractual warranty
    • Warranty : 18 months
  • Complementary
    • Product Certifications : CE || UL listed file E42259 CCN NKCR || CSA LR24590 class 3211 03
    • Contacts Type And Composition : without contact block
    • Light Source : without
    • Operator Additional Information : snap-in plastic
    • Nema Degree Of Protection : NEMA 1/2/3/3R/4/4X/6/12/13
    • Light Block Supply : without supply
    • Mounting Diameter : 30 mm
    • Shape Of Signaling Unit Head : octagonal
    • Ip Degree Of Protection : IP64
  • Offer Sustainability
    • China Rohs Regulation : X
    • Rohs Exemption Information : Yes
    • Mercury Free : Yes
    • Environmental Disclosure : EnvPEP120817EN
    • Sustainable Offer Status : Green Premium product
    • Toxic Heavy Metal Free : Yes
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Reach Free Of Svhc : Yes
    • Weee : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
