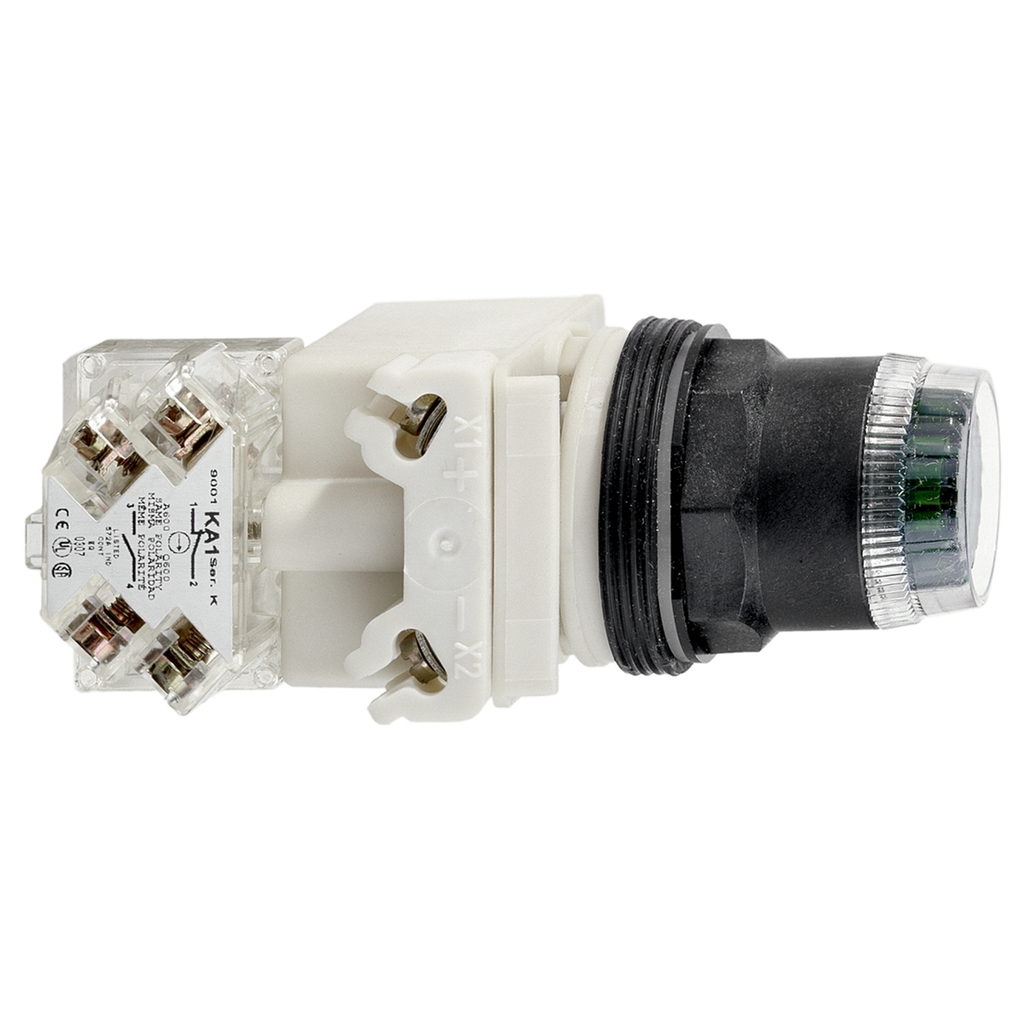

Illuminated push button head, Harmony 9001SK, plastic, plastic guard flush, green, 30mm, spring return, LED green, 24...28V

PUSHBUTTON OPERATOR 30MM SK +O

SQD9001SK1L35LGG 9001SK1L35LGG 785901811367
179.33 / EACH
http://schema.org/OutOfStock
  • Bezel Material: Plastic
  • Certifications: NEMA, UL 508
  • Net Weight: 0.181 kg
  • Standard: CSA C22.2 No 14, IEC 60947-1, IEC 60947-5-1, IEC 60947-5-4, JIS C 4520, JIS C 852, UL 508
  • Storage Temperature: -40-70 °C
  • Warranty Length: 18 mth
This Schneider Electric Harmony 9001SK modular illuminated flush green push-button is supplied with a full guard. It has a plastic bezel and is supplied with a 24Vac/dc integral LED and fits in a 30mm hole This illuminated push-button with integral LED and full guard provides an ergonomic and visual interface for controlling your machines. It is easily installed into a standard 30mm diameter panel cut-outs and is easily connected to control circuits. It is clearly distinguishable visually at a distance thanks to its illuminated head and clear color. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Plastic bezel. Ideal for applications requiring good resistance to chemical agents and/or double electrical insulation. Simple modular design facilitates post installation servicing, modification and adaption of machines by non-specialists. Designed to fit in a standard 30mm cutout, ensuring compatibility when installing in pre-existing machinery. Simple spring return mechanism is rugged and durable, high lifetime, less maintenance and replacement. Impact and corrosion resistant plastic body ensures product continues to operate even after severe accidents. High performance, International standards & certifications (Marine ABS certification, IP66, Type 1, 2, 3, 3R, 4, 4X, 12 and 13). High brightness for easy identification of function and operation mode, even in brightly lit environments.
QTY
  • Product Description
  • Specifications
This Schneider Electric Harmony 9001SK modular illuminated flush green push-button is supplied with a full guard. It has a plastic bezel and is supplied with a 24Vac/dc integral LED and fits in a 30mm hole This illuminated push-button with integral LED and full guard provides an ergonomic and visual interface for controlling your machines. It is easily installed into a standard 30mm diameter panel cut-outs and is easily connected to control circuits. It is clearly distinguishable visually at a distance thanks to its illuminated head and clear color. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Plastic bezel. Ideal for applications requiring good resistance to chemical agents and/or double electrical insulation. Simple modular design facilitates post installation servicing, modification and adaption of machines by non-specialists. Designed to fit in a standard 30mm cutout, ensuring compatibility when installing in pre-existing machinery. Simple spring return mechanism is rugged and durable, high lifetime, less maintenance and replacement. Impact and corrosion resistant plastic body ensures product continues to operate even after severe accidents. High performance, International standards & certifications (Marine ABS certification, IP66, Type 1, 2, 3, 3R, 4, 4X, 12 and 13). High brightness for easy identification of function and operation mode, even in brightly lit environments.
  • Environment
    • Product Certifications : NEMA || UL 508
    • Ambient Air Temperature For Operation : -25-70 °C
    • Standards : CSA C22.2 No 14 || IEC 60947-5-1 || UL 508 || IEC 60947-1 || IEC 60947-5-4 || JIS C 4520 || JIS C 852
    • Shock Resistance : 50 gn IEC 60068-2-27
    • Vibration Resistance : 7 gn 2-500 Hz)IEC 60068-2-6
    • Ip Degree Of Protection : IP66 IEC 60529
    • Ambient Air Temperature For Storage : -40-70 °C
    • Nema Degree Of Protection : NEMA 1 || NEMA 12 || NEMA 13 || NEMA 2 || NEMA 3 || NEMA 3R || NEMA 4 || NEMA 4X
    • Electrical Shock Protection Class : class II IEC 61140
    • Protective Treatment : TC
  • Contractual warranty
    • Warranty : 18 months
  • Offer Sustainability
    • Rohs Exemption Information : Yes
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP121005EN
    • Sustainable Offer Status : Green Premium product
    • Toxic Heavy Metal Free : Yes
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Reach Free Of Svhc : Yes
    • Weee : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • China Rohs Regulation : X
    • Circularity Profile : N/A
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
  • Complementary
    • [Us] Rated Supply Voltage : 24...28 V
    • [Us] Rated Supply Voltage : 24 V AC/DC
    • Short-Circuit Protection : 10 A cartridge fuse IEC 60947-5-1
    • Positive Opening : without
    • Mounting Diameter : 30 mm
    • Operator Profile : flush
    • [Ith] Conventional Free Air Thermal Current : 10 A
    • Rated Breaking Capacity : 1.2 kA 600 V AC-15, 720 VA || 1.5 kA 480 V AC-15, 720 VA || 3 kA 240 V AC-15, 720 VA || 6 kA 120 V AC-15, 720 VA || 0.1 kA 240 V DC-13 || 0.27 kA 250 V DC-13 || 0.55 kA 125 V DC-13
    • Shape Of Signaling Unit Head : octagonal
    • Cap/Operator Or Lens Colour : green
    • Net Weight : 0.181 kg
    • [Uimp] Rated Impulse Withstand Voltage : 2.5 kV IEC 60947-1
    • Device Presentation : basic element
    • [Icm] Rated Short-Circuit Making Capacity : 0.1 kA 240 V DC-13, 7200 VA || 12 kA 600 V AC-15, 7200 VA || 15 kA 480 V AC-15, 7200 VA || 30 kA 125 V DC-13, 7200 VA || 30 kA 240 V AC-15, 7200 VA || 60 kA 120 V AC-15, 7200 VA || 60 kA 250 V DC-13, 7200 VA
    • Contacts Type And Composition : without contact block
    • Light Source : Green LED
    • [Ui] Rated Insulation Voltage : 250 V 3)IEC 60947-1
    • Bezel Material : plastic
    • Connections - Terminals : screw clamp terminals 1 x 0.22...2 x 1.5 mm² IEC 60947-1
    • Light Source Colour : green
    • Mechanical Durability : 5000000 cycles
    • Type Of Operator : spring return
    • Operating Position : any position
    • Tightening Torque : 0.8-0.8 N.m IEC 60947-1
    • Shape Of Screw Head : cross slotted
    • Bulb Base : BA 9s
  • Specifications
    • Operator Additional Information : plastic guard
    • Range Of Product : Harmony 9001SK
    • Light Block Supply : direct 24 V AC/DC
    • Type Of Operator : spring return
    • Product Or Component Type : head for illuminated push-button
    • Operator Profile : green flush, unmarked
    • Device Short Name : 9001SK
