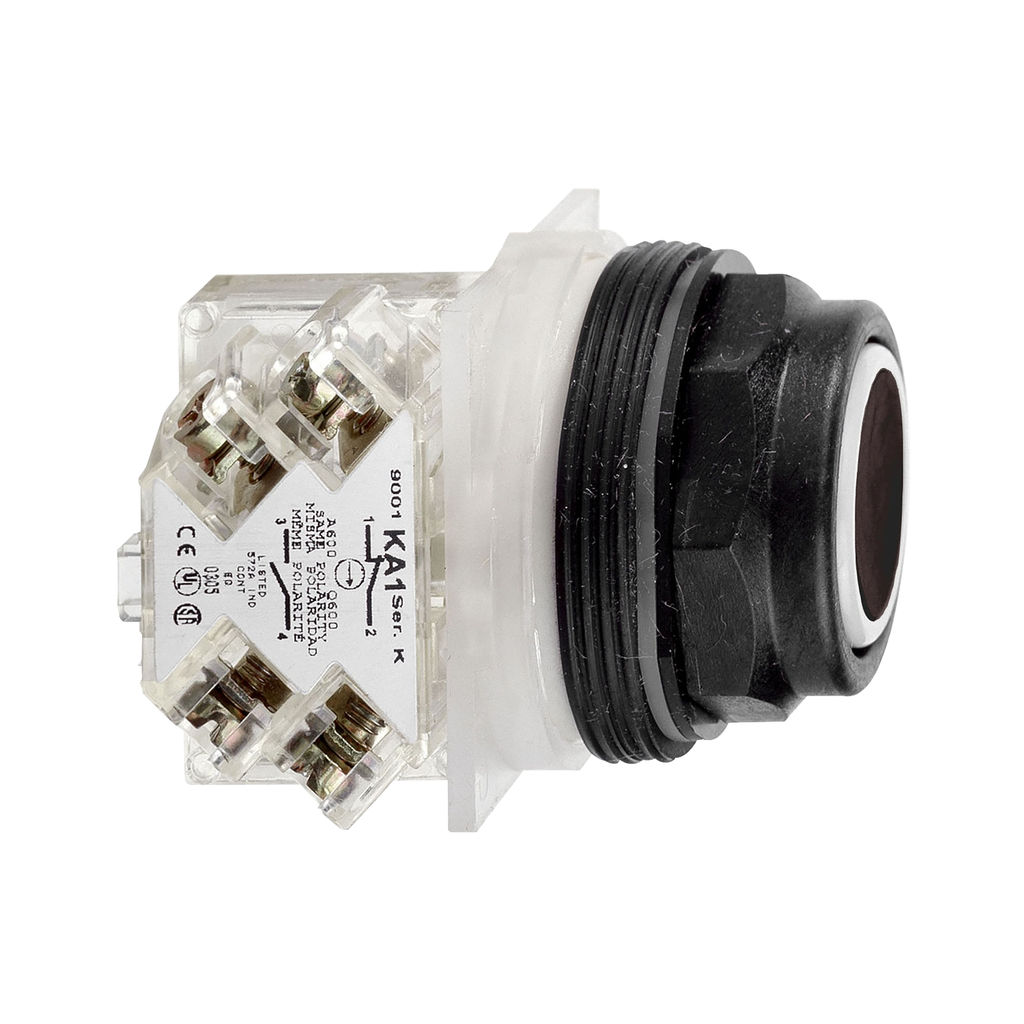

Push-button, Harmony 9001SK, plastic, flush, black, 30mm, spring return, 1 C/O

PUSHBUTTON 600VAC 10AMP 30MM S

SQD9001SKR1BH13 9001SKR1BH13 785901848813
86.98 / EACH
http://schema.org/OutOfStock
  • Bezel Material: Plastic
  • Certifications: NEMA, UL 508
  • Contact Material: Silver Alloy
  • Net Weight: 0.086 kg
  • Standard: CSA C22.2 No 14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, JIS C 4520, JIS C 852, UL 508
  • Storage Temperature: -40-70 °C
  • Warranty Length: 18 mth
This black push button is part of the range of control and signaling units, Harmony 9001SK diameter 30mm plastic. It has a double insulated bezel and is delivered with black flush operator. It uses screw-clamp terminals and has 1 x C/O contact. Thanks to its double insulated bezel it is adapted for applications requiring a high resistance to corrosion. It is easily installed into a standard 30mm diameter panel cut-outs. It weighs 86g. The 30 mm Harmony range offers a large choice of robust and reliable products to meet a great number of applications in heavy industries such as petrochemy, metallurgy, mining oil and gas wastewater treatment, automobile manufacturing. It is UL listed and CSA certified, CE declaration of conformity and RoHS compliant.
QTY
  • Product Description
  • Specifications
This black push button is part of the range of control and signaling units, Harmony 9001SK diameter 30mm plastic. It has a double insulated bezel and is delivered with black flush operator. It uses screw-clamp terminals and has 1 x C/O contact. Thanks to its double insulated bezel it is adapted for applications requiring a high resistance to corrosion. It is easily installed into a standard 30mm diameter panel cut-outs. It weighs 86g. The 30 mm Harmony range offers a large choice of robust and reliable products to meet a great number of applications in heavy industries such as petrochemy, metallurgy, mining oil and gas wastewater treatment, automobile manufacturing. It is UL listed and CSA certified, CE declaration of conformity and RoHS compliant.
  • Specifications
    • Operator Additional Information : plastic guard
    • Range Of Product : Harmony 9001SK
    • Type Of Operator : spring return
    • Product Or Component Type : push-button
    • Operator Profile : black flush, unmarked
    • Device Short Name : 9001SK
  • Contractual warranty
    • Warranty : 18 months
  • Complementary
    • Short-Circuit Protection : 10 A cartridge fuse EN/IEC 60947-5-1
    • Contacts Material : silver alloy contacts
    • Positive Opening : without
    • Mounting Diameter : 30 mm
    • [Ith] Conventional Free Air Thermal Current : 10 A
    • Rated Breaking Capacity : 3 kA 240 V AC-15, 720 VA || 6 kA 120 V AC-15, 720 VA || 6 kA 125 V DC-13, 720 VA || 1.2 kA 600 V AC-15, 720 VA || 1.5 kA 480 V AC-15, 720 VA || 0.1 kA 600 V DC-13 || 0.27 kA 250 V DC-13
    • Shape Of Signaling Unit Head : octagonal
    • Net Weight : 0.086 kg
    • [Uimp] Rated Impulse Withstand Voltage : 2.5 kV EN/IEC 60947-1
    • Device Presentation : complete product
    • [Icm] Rated Short-Circuit Making Capacity : 12 kA 600 V AC-15, 7200 VA || 15 kA 480 V AC-15, 7200 VA || 30 kA 240 V AC-15, 7200 VA || 60 kA 120 V AC-15, 7200 VA || 0.1 kA 600 V DC-13 || 0.27 kA 250 V DC-13 || 0.55 kA 125 V DC-13
    • Contacts Type And Composition : 1 C/O
    • [Ui] Rated Insulation Voltage : 250 V 3)EN/IEC 60947-1
    • Bezel Material : plastic
    • [Ie] Rated Operational Current : 3 A 240 V, AC-15, A600-Q600 || 0.55 A 125 V, DC-13, A600-Q600
    • Connections - Terminals : screw clamp terminals 1 x 0.22...2 x 1.5 mm² EN/IEC 60947-1
    • Contact Operation : standard
    • Mechanical Durability : 5000000 cycles
    • Operating Position : any position
    • Tightening Torque : 0.8-0.8 N.m EN/IEC 60947-1
    • Shape Of Screw Head : cross slotted
  • Offer Sustainability
    • Rohs Exemption Information : Yes
    • Mercury Free : Yes
    • Environmental Disclosure : EnvPEP120817EN
    • Sustainable Offer Status : Green Premium product
    • Toxic Heavy Metal Free : Yes
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Reach Free Of Svhc : Yes
    • Weee : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • China Rohs Regulation : X
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
  • Environment
    • Product Certifications : NEMA || UL 508
    • Ambient Air Temperature For Operation : -25-70 °C
    • Standards : EN/IEC 60947-5-4 || UL 508 || JIS C 4520 || CSA C22.2 No 14 || EN/IEC 60947-1 || EN/IEC 60947-5-1 || JIS C 852
    • Shock Resistance : 50 gn IEC 60068-2-27
    • Vibration Resistance : 7 gn 2-500 Hz)IEC 60068-2-6
    • Ip Degree Of Protection : IP66 IEC 60529
    • Ambient Air Temperature For Storage : -40-70 °C
    • Nema Degree Of Protection : NEMA 1 || NEMA 12 || NEMA 13 || NEMA 2 || NEMA 3 || NEMA 3R || NEMA 4 || NEMA 4X
    • Electrical Shock Protection Class : class II IEC 61140
    • Protective Treatment : TC
