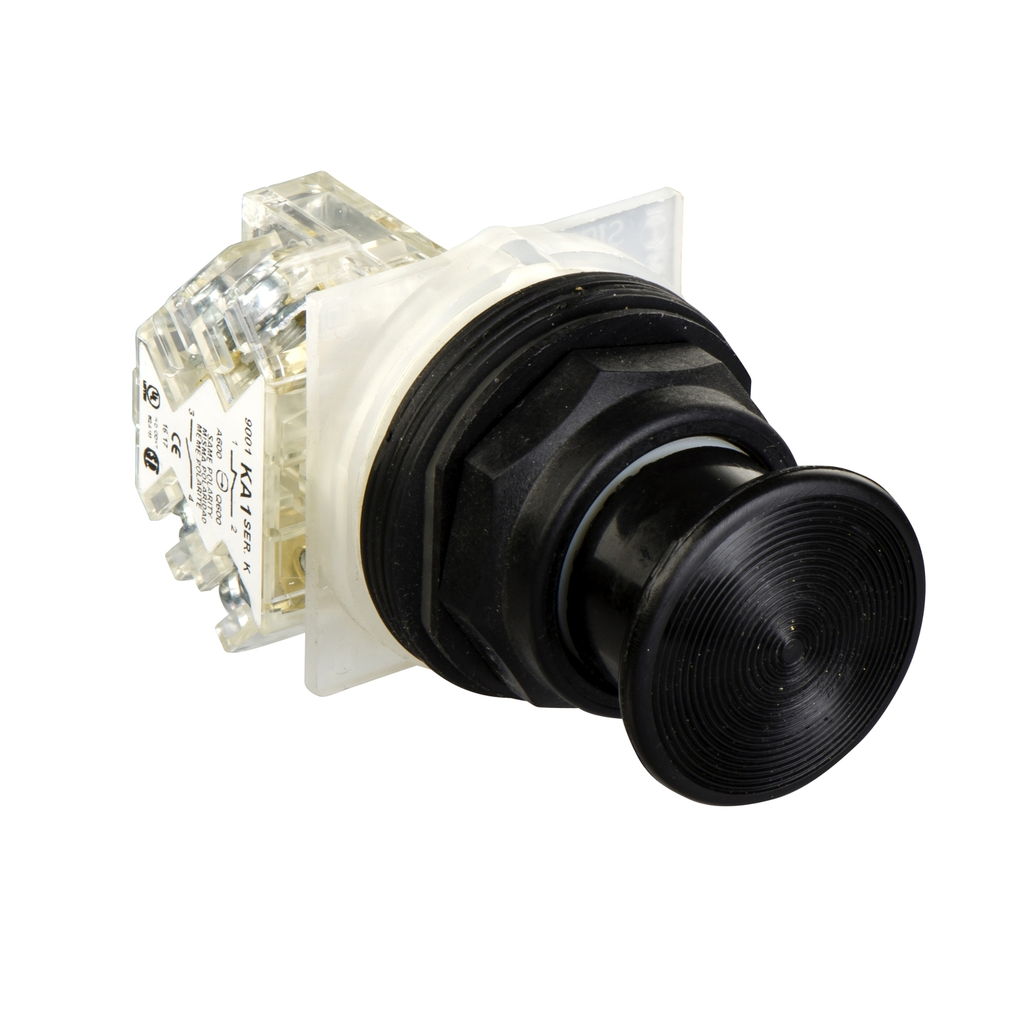

Push-button, Harmony 9001SK, plastic, mushroom 35mm, black, 30mm, spring return, 1 C/O

PUSHBUTTON 600VAC 10AMP 30MM S

SQD9001SKR24BH13 9001SKR24BH13 785901715368
148.18 / EACH
http://schema.org/OutOfStock
Mayer-DDS-Push-button, Harmony 9001SK, plastic, mushroom 35mm, black, 30mm, spring return, 1 C/O-1
  • Bezel Material: Plastic
  • Certifications: NEMA, UL 508
  • Contact Material: Silver Alloy
  • Net Weight: 0.095 kg
  • Standard: CSA C22.2 No 14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, JIS C 4520, JIS C 852, UL 508
  • Storage Temperature: -40-70 °C
  • Warranty Length: 18 mth
This Harmony 9001SK, modular black push button has 2 positions, operates with spring return mechanism. It has a double insulated plastic bezel, has a round shape and 35mm mushroom head and 1 x NO + 1 x NC contacts. This 35mm mushroom shaped push button head is ideal for situations where quick actions are required for a process or machine to function correctly or where operator movements require maximum ergonomy. It is easily combined with Harmony range of contact blocks to perform a large variety of control functions. It is clearly distinguishable visually at a distance thanks to a prominent mushroom shape. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Impact and corrosion resistant plastic body ensures product continues to operate even after severe accidents.
QTY
  • Product Description
  • Specifications
This Harmony 9001SK, modular black push button has 2 positions, operates with spring return mechanism. It has a double insulated plastic bezel, has a round shape and 35mm mushroom head and 1 x NO + 1 x NC contacts. This 35mm mushroom shaped push button head is ideal for situations where quick actions are required for a process or machine to function correctly or where operator movements require maximum ergonomy. It is easily combined with Harmony range of contact blocks to perform a large variety of control functions. It is clearly distinguishable visually at a distance thanks to a prominent mushroom shape. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Impact and corrosion resistant plastic body ensures product continues to operate even after severe accidents.
  • Environment
    • Product Certifications : UL 508 || NEMA
    • Ambient Air Temperature For Operation : -25-70 °C
    • Shock Resistance : 50 gn IEC 60068-2-27
    • Vibration Resistance : 7 gn 2-500 Hz)IEC 60068-2-6
    • Ip Degree Of Protection : IP66 IEC 60529
    • Standards : EN/IEC 60947-5-1 || EN/IEC 60947-1 || EN/IEC 60947-5-4 || JIS C 4520 || JIS C 852 || UL 508 || CSA C22.2 No 14
    • Ambient Air Temperature For Storage : -40-70 °C
    • Overvoltage Category : class II IEC 61140
    • Nema Degree Of Protection : NEMA 1 || NEMA 12 || NEMA 13 || NEMA 2 || NEMA 3 || NEMA 3R || NEMA 4 || NEMA 4X
    • Protective Treatment : TC
  • Contractual warranty
    • Warranty : 18 months
  • Offer Sustainability
    • Rohs Exemption Information : Yes
    • Mercury Free : Yes
    • Environmental Disclosure : EnvPEP120817EN
    • Sustainable Offer Status : Green Premium product
    • Toxic Heavy Metal Free : Yes
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Reach Free Of Svhc : Yes
    • Weee : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • China Rohs Regulation : X
    • Circularity Profile : N/A
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
  • Complementary
    • Contacts Type And Composition : 1 C/O
    • Short-Circuit Protection : 10 A cartridge fuse EN/IEC 60947-5-1
    • Contacts Material : silver alloy contacts
    • Positive Opening : without
    • Mounting Diameter : 30 mm
    • Operator Profile : mushroom Ø 35 mm
    • [Ith] Conventional Free Air Thermal Current : 10 A
    • Rated Breaking Capacity : 3 kA 240 V AC-15, 720 VA || 6 kA 120 V AC-15, 720 VA || 6 kA 125 V DC-13, 720 VA || 1.2 kA 600 V AC-15, 720 VA || 1.5 kA 480 V AC-15, 720 VA || 0.1 kA 600 V DC-13 || 0.27 kA 250 V DC-13
    • Shape Of Signaling Unit Head : round
    • Cap/Operator Or Lens Colour : black
    • Net Weight : 0.095 kg
    • [Uimp] Rated Impulse Withstand Voltage : 2.5 kV EN/IEC 60947-1
    • Size : 30 mm
    • Cad Overall Height : 45 mm
    • Device Presentation : complete product
    • Connections - Terminals : screw clamp terminals, 1 x 0.22...2 x 1.5 mm² EN/IEC 60947-1
    • [Icm] Rated Short-Circuit Making Capacity : 12 kA 600 V AC-15, 7200 VA || 15 kA 480 V AC-15, 7200 VA || 30 kA 240 V AC-15, 7200 VA || 60 kA 120 V AC-15, 7200 VA || 0.1 kA 600 V DC-13 || 0.27 kA 250 V DC-13 || 0.55 kA 125 V DC-13
    • [Ui] Rated Insulation Voltage : 250 V 3)EN/IEC 60947-1
    • Bezel Material : plastic
    • [Ie] Rated Operational Current : 3 A 240 V, AC-15, A600-Q600 NEMA || 0.55 A 125 V, DC-13, A600-Q600 NEMA
    • Mechanical Durability : 5000000 cycles
    • Compatibility Code : 9001SK
    • Type Of Operator : spring return
    • Operating Position : any position
    • Tightening Torque : 0.8-0.8 N.m EN/IEC 60947-1
    • Cad Overall Width : 48 mm
    • Cad Overall Depth : 69 mm
    • Shape Of Screw Head : cross slotted
  • Specifications
    • Operator Additional Information : screw-on plastic with set screw
    • Range Of Product : Harmony 9001SK
    • Type Of Operator : spring return
    • Product Or Component Type : push-button
    • Operator Profile : black mushroom Ø 35 mm, unmarked
    • Device Short Name : 9001SK
