Push button, Harmony 9001SK, plastic, mushroom 41mm, red, 30mm, 2 positions, push-pull, 1NC

PUSHBUTTON 600VAC 10AMP 30MM S

SQD9001SKR9RH6 9001SKR9RH6 785901319047
176.10 / EACH
http://schema.org/OutOfStock

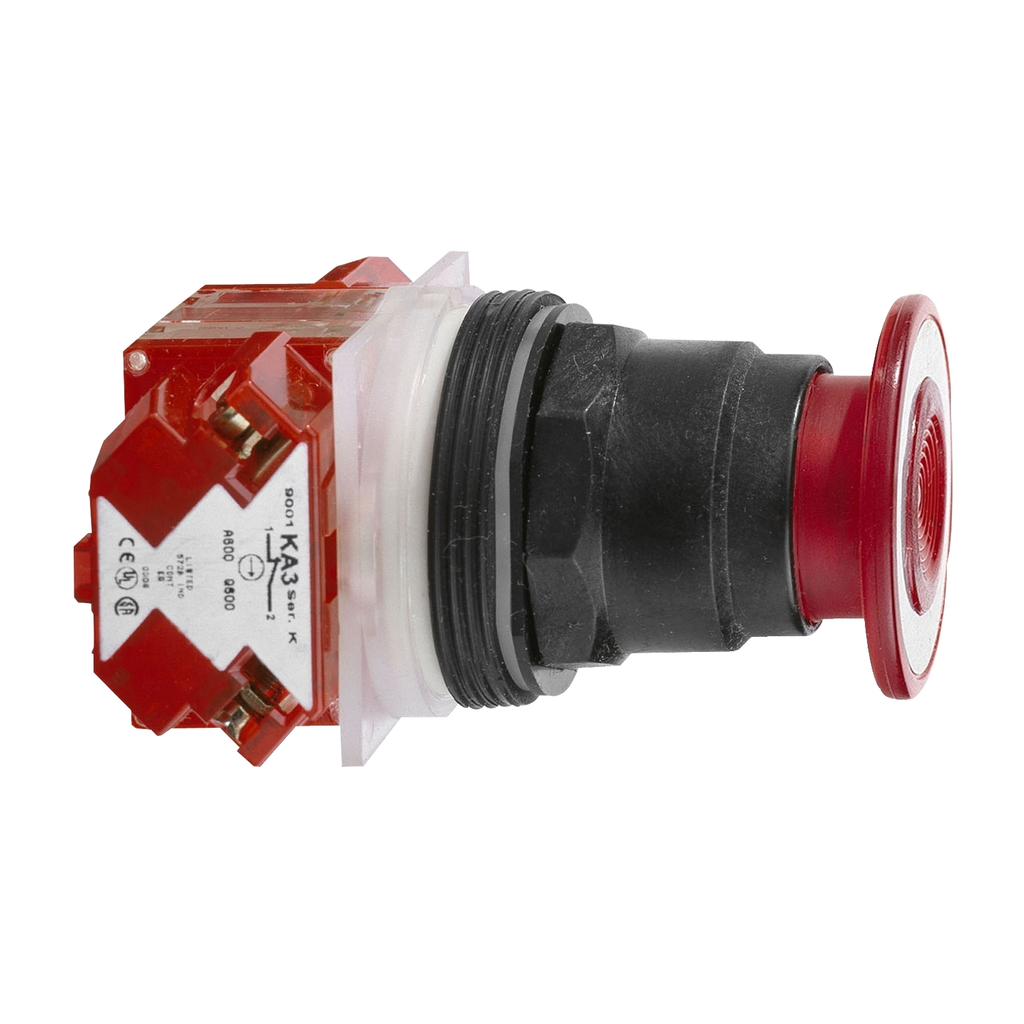

Mayer-DDS-Push button, Harmony 9001SK, plastic, mushroom 41mm, red, 30mm, 2 positions, push-pull, 1NC-1
  • Bezel Material: Plastic
  • Certifications: NEMA, UL 508
  • Contact Material: Silver Alloy
  • Net Weight: 0.159 kg
  • Standard: CSA C22.2 No 14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, JIS C 4520, JIS C 852, UL 508
  • Storage Temperature: -40-70 °C
  • Warranty Length: 18 mth
This Schneider Electric Harmony 9001SK modular red push-button has 2 positions and operates with a stay-put mechanism. It has a round shape and is supplied with contact block, 40mm mushroom head and 1 x NC contact. It fits in a 30mm hole. It has a plastic bezel. This 40mm mushroom shaped push-button heads ideal for situations where quick actions are required for a process or machine to function correctly or where operator movements require maximum ergonomic. It is easily combined with Harmony range of contact blocks to perform a large variety of control functions. It is clearly distinguishable visually at a distance thanks to a prominent mushroom shape. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Plastic bezel. Ideal for applications requiring good resistance to chemical agents and/or double electrical insulation. Simple modular design facilitates post installation servicing, modification and adaption of machines by non-specialists. Designed to fit in a standard 30mm cutout, ensuring compatibility when installing in pre-existing machinery. Impact and corrosion resistant plastic body ensures product continues to operate even after severe accidents. High performance, International standards & certifications (Marine ABS certification, IP66, Type 1, 2, 3, 3R, 4, 4X, 12 and 13). Highly ergonomic mushroom push-button shape, ideal for use in area where operator wear thick gloves or where users have impaired movements.
QTY
  • Product Description
  • Specifications
This Schneider Electric Harmony 9001SK modular red push-button has 2 positions and operates with a stay-put mechanism. It has a round shape and is supplied with contact block, 40mm mushroom head and 1 x NC contact. It fits in a 30mm hole. It has a plastic bezel. This 40mm mushroom shaped push-button heads ideal for situations where quick actions are required for a process or machine to function correctly or where operator movements require maximum ergonomic. It is easily combined with Harmony range of contact blocks to perform a large variety of control functions. It is clearly distinguishable visually at a distance thanks to a prominent mushroom shape. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Plastic bezel. Ideal for applications requiring good resistance to chemical agents and/or double electrical insulation. Simple modular design facilitates post installation servicing, modification and adaption of machines by non-specialists. Designed to fit in a standard 30mm cutout, ensuring compatibility when installing in pre-existing machinery. Impact and corrosion resistant plastic body ensures product continues to operate even after severe accidents. High performance, International standards & certifications (Marine ABS certification, IP66, Type 1, 2, 3, 3R, 4, 4X, 12 and 13). Highly ergonomic mushroom push-button shape, ideal for use in area where operator wear thick gloves or where users have impaired movements.
  • Environment
    • Product Certifications : UL 508 || NEMA
    • Ambient Air Temperature For Operation : -25-70 °C
    • Shock Resistance : 50 gn IEC 60068-2-27
    • Vibration Resistance : 7 gn 2-500 Hz)IEC 60068-2-6
    • Ip Degree Of Protection : IP66 IEC 60529
    • Standards : EN/IEC 60947-5-1 || EN/IEC 60947-1 || EN/IEC 60947-5-4 || JIS C 4520 || JIS C 852 || UL 508 || CSA C22.2 No 14
    • Ambient Air Temperature For Storage : -40-70 °C
    • Overvoltage Category : class II IEC 61140
    • Nema Degree Of Protection : NEMA 1 || NEMA 12 || NEMA 13 || NEMA 2 || NEMA 3 || NEMA 3R || NEMA 4 || NEMA 4X
    • Protective Treatment : TC
  • Contractual warranty
    • Warranty : 18 months
  • Offer Sustainability
    • Rohs Exemption Information : Yes
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP120816EN
    • Sustainable Offer Status : Green Premium product
    • Toxic Heavy Metal Free : Yes
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Reach Free Of Svhc : Yes
    • Weee : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • China Rohs Regulation : X
    • Circularity Profile : N/A
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
  • Complementary
    • Contacts Type And Composition : 1 NC
    • Short-Circuit Protection : 10 A cartridge fuse EN/IEC 60947-5-1
    • Contacts Material : silver alloy contacts
    • Positive Opening : with IEC 60947-5-2
    • Mounting Diameter : 30 mm
    • Operator Profile : mushroom Ø 41 mm
    • [Ith] Conventional Free Air Thermal Current : 10 A
    • Rated Breaking Capacity : 3 kA 120 V AC-15, 720 VA || 6 kA 600 V AC-15, 720 VA || 1.2 kA 480 V AC-15, 720 VA || 1.5 kA 240 V AC-15, 720 VA || 0.1 kA 125 V DC-13 || 0.27 kA 600 V DC-13 || 0.55 kA 250 V DC-13
    • Shape Of Signaling Unit Head : round
    • Cap/Operator Or Lens Colour : red
    • Net Weight : 0.159 kg
    • [Uimp] Rated Impulse Withstand Voltage : 2.5 kV EN/IEC 60947-1
    • Size : 30 mm
    • Cad Overall Height : 45 mm
    • Device Presentation : complete product
    • Connections - Terminals : screw clamp terminals, 1 x 0.22...2 x 1.5 mm² EN/IEC 60947-1
    • [Icm] Rated Short-Circuit Making Capacity : 12 kA 600 V AC-15, 7200 VA || 15 kA 480 V AC-15, 7200 VA || 30 kA 240 V AC-15, 7200 VA || 60 kA 120 V AC-15, 7200 VA || 0.1 kA 600 V DC-13 || 0.27 kA 250 V DC-13 || 0.55 kA 125 V DC-13
    • [Ui] Rated Insulation Voltage : 250 V 3)EN/IEC 60947-1
    • Bezel Material : plastic
    • [Ie] Rated Operational Current : 3 A 240 V, AC-15, A600-Q600 NEMA || 0.55 A 125 V, DC-13, A600-Q600 NEMA
    • Operator Position Information : 2 positions
    • Mechanical Durability : 5000000 cycles
    • Compatibility Code : 9001SK
    • Type Of Operator : push-pull
    • Operating Position : any position
    • Tightening Torque : 0.8-0.8 N.m EN/IEC 60947-1
    • Cad Overall Width : 46 mm
    • Cad Overall Depth : 69 mm
    • Shape Of Screw Head : cross slotted
  • Specifications
    • Operator Additional Information : screw-on plastic
    • Range Of Product : Harmony 9001SK
    • Type Of Operator : push-pull
    • Product Or Component Type : push-button
    • Operator Profile : red mushroom Ø 41 mm, unmarked
    • Device Short Name : 9001SK
