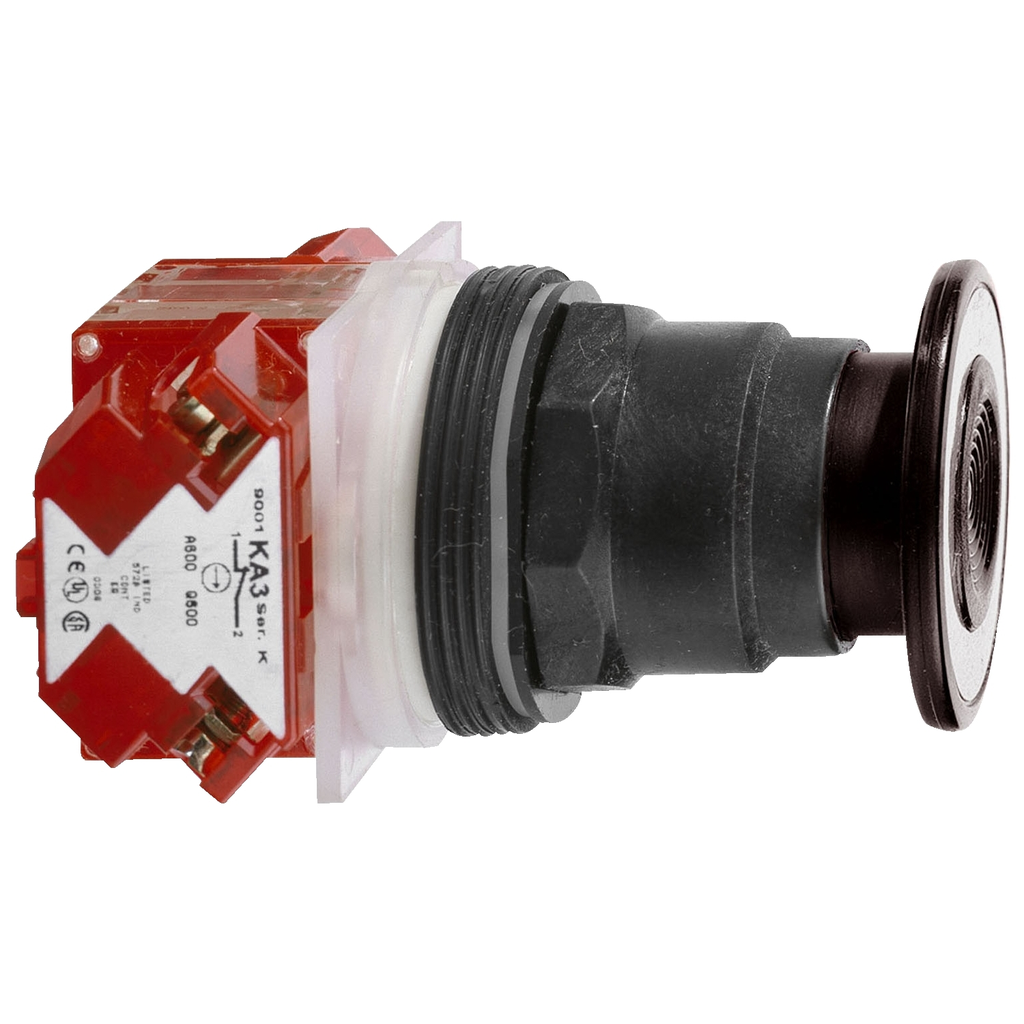

This Harmony 9001SK, modular black push button has 2 positions and operates with a stay-put mechanism. It has a double insulated plastic bezel, has a round shape and 40mm mushroom head and 1 x NO + 1 x NC contacts. This 40mm mushroom shaped push button h

• Connections Terminals
• screw clamp terminals, 1 x 0.22...2 x 1.5 mm² IEC 60947-1
• Overvoltage Category
• class II conforming to IEC 61140
• Uimp Rated Impulse Withstand Voltage
• 2.5 kV IEC 60947-1
• Prop 65
• WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• Standards
• IEC 60947-5-1
• IEC 60947-1
• IEC 60947-5-4
• JIS C 4520
• JIS C 852
• UL 508
• CSA C22.2 No 14
• Ui Rated Insulation Voltage
• 250 V 3)IEC 60947-1
• Icm Rated Short Circuit Making Capacity
• 12 kA 600 V AC-15, 7200 VA
• 15 kA 480 V AC-15, 7200 VA
• 30 kA 240 V AC-15, 7200 VA
• 30 kA 240 V
• Ip Degree Of Protection
• IP66 IEC 60529
• Nema Degree Of Protection
• NEMA 1
• NEMA 12
• NEMA 13
• NEMA 2
• NEMA 3
• NEMA 3R
• NEMA 4
• NEMA 4X
• Accessories
• 9001KA1
• 9001KA2
• 9001KA3
• 9001KA5
• Vibration Resistance
• 7 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
• Tightening Torque
• 0.8-0.8 N.m IEC 60947-1
• Short Circuit Protection
• 10 A cartridge fuse IEC 60947-5-1
• Ie Rated Operational Current
• 3 A 240 V, AC-15, A600-Q600 NEMA
• 0.55 A 125 V, DC-13, A600-Q600 NEMA
• 0.55 A 125 V, DC-
• Operator Profile
• black mushroom Ø 41 mm, unmarked
• Shock Resistance
• 50 gn IEC 60068-2-27
• Rated Breaking Capacity
• 3 kA 240 V AC-15, 720 VA
• 6 kA 120 V AC-15, 720 VA
• 1.2 kA 600 V AC-15, 720 VA
• Product Certifications
• UL 508
• NEMA

• Physical Attributes
• Cad Overall Depth : 69 mm
• Cad Overall Height : 45 mm
• Cad Overall Width : 46 mm
• Cap Operator Or Lens Color : black
• Size : 30 mm
• Important Information Attributes
• Country Id : US
• Local Data Status : Publishable
• Local Publishable Date : 2025-04-05
• ETIM 10 : EC002034
• Html Descr : Push-button, Harmony 9001SK, plastic, mushroom 41mm, black, 30mm, 2 positions, push-pull, 1 C/O
• Manufacturer : Square D
• Legacy WEEE Scope : In
• WEEE Product Category : 5
• Scope Perimeter : At least in Europe
• Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : CONTAINS_SVHC
• Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
• ROHS Eur In Scope : No
• ROHS Eur Status : Compliant
• ROHS Eur Conformity Date : 1930
• ROHS Eur Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
• ROHS Eur Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
• China ROHS In Scope : Yes
• China ROHS Label : 1
• With Recycled Cardboard : Yes
• Without Single Use Plastic : Yes
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : Y
• WD Status : 5 - INITIALIZED WITH DataSCAN OK (Migration)
• Bezel Material : plastic
• Cap Operator Or Lens Color : black
• Compatibility Code : 9001SK
• Contacts Material : silver alloy contacts
• Contacts Type And Composition : 1 C/O
• Device Short Name : 9001SK
• Mechanical Durability : 5000000 cycles
• Mounting Diameter : 30 mm
• Operating Position : any position
• Operator Additional Information : screw-on plastic
• Operator Position Information : 2 positions
• Package Weight Lbs : 226.796 g
• Positive Opening : without
• Product Availability : Non-Stock - Not normally stocked in distribution facility
• Product Or Component Type : push-button
• Protective Treatment : TC
• Range Of Product : Harmony 9001SK
• Returnability : Yes
• Shape Of Screw Head : cross slotted
• Shape Of Signaling Unit Head : round
• Sustainable Packaging : Yes
• Type Of Operator : push-pull
• Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• Ith Conventional Free Air Thermal Current : 10 A
• Relationshiptype : Compatible relationship
• General Attributes
• Product Or Component Type : push-button
• Range Of Product : Harmony 9001SK
• Environment Attributes
• ROHS Exemption Information : Yes
• China ROHS Url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=679958&lang=en-us
• Take Back : No
• Recycled Metal Content At Cr Level : 0 %
• China ROHS Regulation : X
• Toxic Heavy Metal Free : Yes
• Mercury Free : Yes
• Ambient Air Temperature For Operation : -25-70 °C
• Ambient Air Temperature For Storage : -40-70 °C
• Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
• Packaging Made With Recycled Cardboard : Yes
• Packaging Without Single Use Plastic : Yes
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• Contractual Warranty Attributes
• Warranty Period : 18 months
• Warranty : 18 months
• Specifications
• Country of Origin : Mexico
• Overview Attributes
• Device Presentation : complete product
