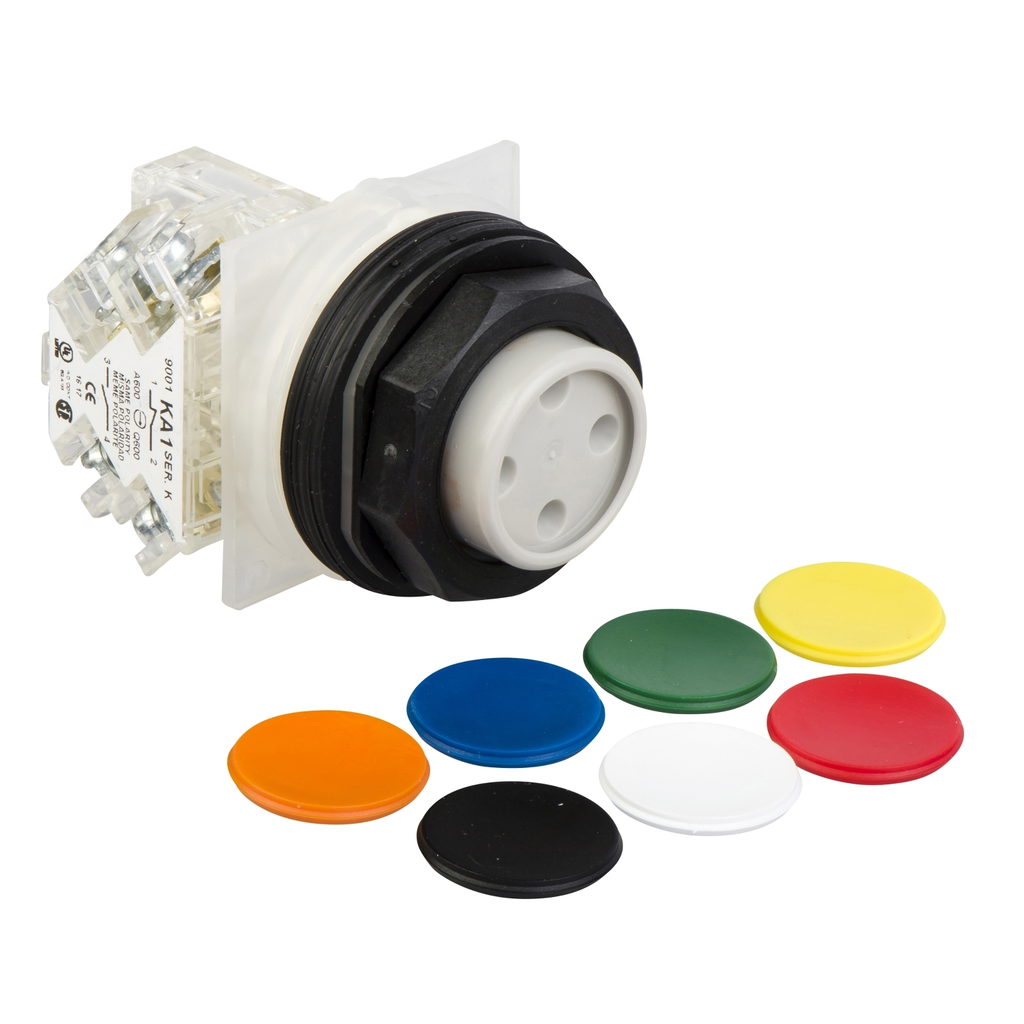

This Harmony 9001SK, modular projecting push button with set of 7 color caps has 2 positions, operates with spring return mechanism. It has a double insulated plastic bezel and has 1 x NO + 1 x NC contacts. This projecting push button with set of 7 color caps provides an ergonomic interface for controlling your machines. It is easily installed into a standard 30mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections. Its schematic is clearly distinguishable thanks to clear colors, minimizing errors during initial wiring and later maintenance operations. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Impact and corrosion resistant plastic body ensures product continues to operate even after severe accidents.

• Prop 65
• WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

• Complementary Attributes
• Rated Breaking Capacity : 3 kA 240 V AC-15, 720 VA, 3 kA 240 V AC-15, 720 VA, 3 kA 240 V AC-15, 720 VA, 3 kA 240 V AC-15, 720 VA, 6 kA 120 V AC-15, 720 VA, 6 kA 120 V AC-15, 720 VA, 6 kA 120 V AC-15, 720 VA, 6 kA 120 V AC-15, 720 VA, 1.2 kA 600 V AC-15, 720 VA, 1.2 kA 600 V AC-15, 720 VA, 1.2 kA 600 V AC-15, 720 VA, 1.2 kA 600 V AC-15, 720 VA, 1.5 kA 480 V AC-15, 720 VA, 1.5 kA 480 V AC-15, 720 VA, 1.5 kA 480 V AC-15, 720 VA, 1.5 kA 480 V AC-15, 720 VA, 0.1 kA 600 V DC-13, 0.1 kA 600 V DC-13, 0.1 kA 600 V DC-13, 0.27 kA 250 V DC-13, 0.27 kA 250 V DC-13, 0.27 kA 250 V DC-13, 0.55 kA 125 V DC-13, 0.55 kA 125 V DC-13, 0.55 kA 125 V DC-13
• ICM Rated Short Circuit Making Capacity : 12 kA 600 V AC-15, 7200 VA, 12 kA 600 V AC-15, 7200 VA, 12 kA 600 V AC-15, 7200 VA, 12 kA 600 V AC-15, 7200 VA, 15 kA 480 V AC-15, 7200 VA, 15 kA 480 V AC-15, 7200 VA, 15 kA 480 V AC-15, 7200 VA, 15 kA 480 V AC-15, 7200 VA, 30 kA 240 V AC-15, 7200 VA, 30 kA 240 V AC-15, 7200 VA, 30 kA 240 V AC-15, 7200 VA, 30 kA 240 V AC-15, 7200 VA, 60 kA 120 V AC-15, 7200 VA, 60 kA 120 V AC-15, 7200 VA, 60 kA 120 V AC-15, 7200 VA, 60 kA 120 V AC-15, 7200 VA, 0.1 kA 600 V DC-13, 0.1 kA 600 V DC-13, 0.1 kA 600 V DC-13, 0.27 kA 250 V DC-13, 0.27 kA 250 V DC-13, 0.27 kA 250 V DC-13, 0.55 kA 125 V DC-13, 0.55 kA 125 V DC-13, 0.55 kA 125 V DC-13
• IE Rated Operational Current : 3 A 240 V, AC-15, A600-Q600, 3 A 240 V, AC-15, A600-Q600, 3 A 240 V, AC-15, A600-Q600, 3 A 240 V, AC-15, A600-Q600, 0.55 A 125 V, DC-13, A600-Q600, 0.55 A 125 V, DC-13, A600-Q600, 0.55 A 125 V, DC-13, A600-Q600, 0.55 A 125 V, DC-13, A600-Q600
• UI Rated Insulation Voltage : 250 V 3)IEC 60947-1, 250 V 3)IEC 60947-1, 250 V 3)IEC 60947-1
• UIMP Rated Impulse Withstand Voltage : 2.5 kV IEC 60947-1, 2.5 kV IEC 60947-1
• Important Information Attributes
• Persona Type Ids : BM9, EU, LC, OM, OM8, PB, SC, SI, VR
• Persona Type Names : Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
• Market Segmentation Id : COMMERCIAL, INDUSTRIAL
• Market Segmentation : Commercial, Industrial
• Customizable : no, 1
• Electrical Shock Protection Class : class II conforming to IEC 61140, class II conforming to IEC 61140
• Operator Profile : 7 colours choice projecting, unmarked, 7 colours choice projecting, unmarked, 7 colours choice projecting, unmarked
• Shock Resistance : 50 gn IEC 60068-2-27, 50 gn IEC 60068-2-27
• Short Circuit Protection : 10 A cartridge fuse IEC 60947-5-1, 10 A cartridge fuse IEC 60947-5-1, 10 A cartridge fuse IEC 60947-5-1
• Tightening Torque : 0.8-0.8 N.m IEC 60947-1, 0.8-0.8 N.m IEC 60947-1
• Vibration Resistance : 7 gn (f= 2-500 Hz) conforming to IEC 60068-2-6, 7 gn (f= 2-500 Hz) conforming to IEC 60068-2-6, 7 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
• ICM Rated Short Circuit Making Capacity : 12 kA 600 V AC-15, 7200 VA, 12 kA 600 V AC-15, 7200 VA, 12 kA 600 V AC-15, 7200 VA, 12 kA 600 V AC-15, 7200 VA, 15 kA 480 V AC-15, 7200 VA, 15 kA 480 V AC-15, 7200 VA, 15 kA 480 V AC-15, 7200 VA, 15 kA 480 V AC-15, 7200 VA, 30 kA 240 V AC-15, 7200 VA, 30 kA 240 V AC-15, 7200 VA, 30 kA 240 V AC-15, 7200 VA, 30 kA 240 V AC-15, 7200 VA, 60 kA 120 V AC-15, 7200 VA, 60 kA 120 V AC-15, 7200 VA, 60 kA 120 V AC-15, 7200 VA, 60 kA 120 V AC-15, 7200 VA, 0.1 kA 600 V DC-13, 0.1 kA 600 V DC-13, 0.1 kA 600 V DC-13, 0.27 kA 250 V DC-13, 0.27 kA 250 V DC-13, 0.27 kA 250 V DC-13, 0.55 kA 125 V DC-13, 0.55 kA 125 V DC-13, 0.55 kA 125 V DC-13
• IE Rated Operational Current : 3 A 240 V, AC-15, A600-Q600, 3 A 240 V, AC-15, A600-Q600, 3 A 240 V, AC-15, A600-Q600, 3 A 240 V, AC-15, A600-Q600, 0.55 A 125 V, DC-13, A600-Q600, 0.55 A 125 V, DC-13, A600-Q600, 0.55 A 125 V, DC-13, A600-Q600, 0.55 A 125 V, DC-13, A600-Q600
• Connections Terminals : screw clamp terminals 1 x 0.22...2 x 1.5 mm² IEC 60947-1, screw clamp terminals 1 x 0.22...2 x 1.5 mm² IEC 60947-1, screw clamp terminals 1 x 0.22...2 x 1.5 mm² IEC 60947-1
• Local Data Status : Publishable
• Local Publishable Date : 2025-04-05
• Legacy WEEE Scope : In
• Scope Perimeter : At least in Europe
• EOLI Availability Display : Yes
• End Of Life Doc Ref : ENVEOLI2503027EN
• Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : CONTAINS_SVHC
• Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
• ROHS EUR In Scope : No
• ROHS EUR Status : Compliant
• ROHS EUR Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
• ROHS EUR Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
• China ROHS In Scope : Yes
• Green Premium Status For Reporting : Green Premium product
• With Recycled Cardboard : Yes
• Without Single Use Plastic : Yes
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : Y
• WD Status : 5 - INITIALIZED WITH DataSCAN OK (Migration)
• Function Option Id : STANDARD
• Function Option : Standard
• Bezel Material : plastic
• Compatibility Code : 9001SK
• Device Short Name : 9001SK
• Mounting Diameter : 30 mm
• Package Weight Lbs : 72.575 g
• Positive Opening : without
• Product Availability : Non-Stock - Not normally stocked in distribution facility
• Product Or Component Type : push-button
• Range Of Product : Harmony 9001SK
• Returnability : Yes
• Shape Of Signaling Unit Head : octagonal
• Sustainable Packaging : Yes
• Type Of Operator : spring return
• Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• ITH Conventional Free Air Thermal Current : 10 A
• Relationship Type : Compatible relationship
• Pep Code : ENVPEP2503027EN
• Product Kit Identifier : N
• Environment Attributes Main
• EU ROHS Directive : Compliant​, Pro-active compliance (Product out of EU RoHS legal scope)
• IP Degree Of Protection : IP66 IEC 60529, IP66 IEC 60529
• Nema Degree Of Protection : NEMA 1, NEMA 12, NEMA 13, NEMA 2, NEMA 3, NEMA 3R, NEMA 4, NEMA 4X
• ROHS Exemption Information : Yes
• Take Back : No
• Recycled Metal Content At Cr Level : 0 %
• China ROHS Regulation : X
• Toxic Heavy Metal Free : Yes
• Mercury Free : Yes
• Circularity Profile : ENVEOLI2503027EN
• Environmental Disclosure : ENVPEP2503027EN
• Packaging Made With Recycled Cardboard : Yes
• Packaging Without Single Use Plastic : Yes
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• Pep Code : ENVPEP2503027EN
• General Attributes
• Product Or Component Type : push-button
• Range Of Product : Harmony 9001SK
• Contractual Warranty Attributes
• Warranty Period : 18 months
• Warranty : 18 months
• Overview Attributes
• Device Presentation : complete product
