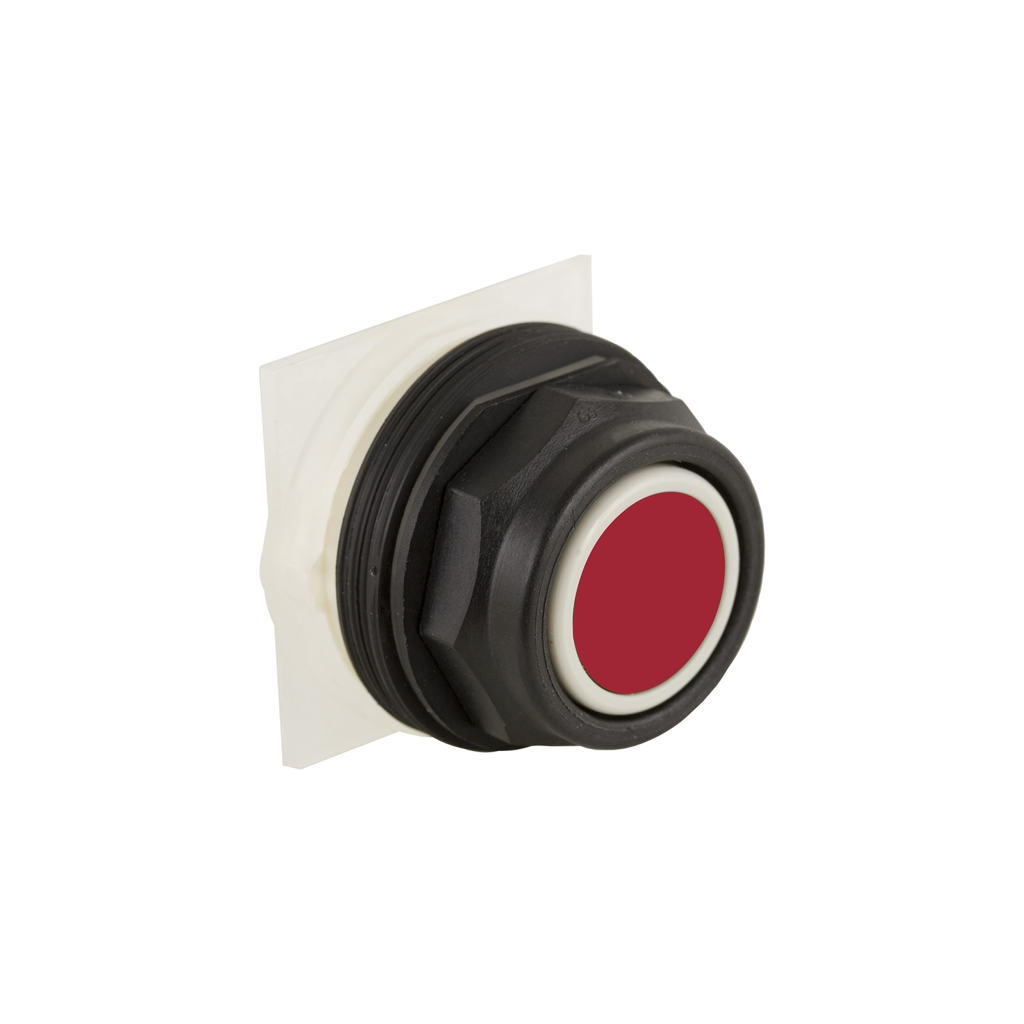

Push-button, Harmony 9001SK, plastic, flush, red, 30mm, spring return, 1 NC

PUSHBUTTON 600VAC 10AMP 30MM S

SQD9001SKR1RH6 9001SKR1RH6 785901042099
78.47 / EACH
http://schema.org/OutOfStock
Mayer-DDS-Push-button, Harmony 9001SK, plastic, flush, red, 30mm, spring return, 1 NC-1
  • Bezel Material: Plastic
  • Country of Origin: USA
  • Warranty Length: 18 mth
This Harmony 9001SK, modular flush red push button with full guard has 2 positions, operates with spring return mechanism. It has a double insulated plastic bezel and has 1 x NC contact. This flush push button with full guard provides an ergonomic interface for controlling your machines. It is easily installed into a standard 30mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections. Its schematic is clearly distinguishable thanks to clear colors, minimizing errors during initial wiring and later maintenance operations. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Impact and corrosion resistant plastic body ensures product continues to operate even after severe accidents.
QTY
  • Product Description
  • Features
  • Specifications
This Harmony 9001SK, modular flush red push button with full guard has 2 positions, operates with spring return mechanism. It has a double insulated plastic bezel and has 1 x NC contact. This flush push button with full guard provides an ergonomic interface for controlling your machines. It is easily installed into a standard 30mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections. Its schematic is clearly distinguishable thanks to clear colors, minimizing errors during initial wiring and later maintenance operations. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Impact and corrosion resistant plastic body ensures product continues to operate even after severe accidents.
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Environment
    • Standards : IEC 60947-1 || IEC 60947-5-4 || JIS C 852 || IEC 60947-5-1 || CSA C22.2 No 14 || JIS C 4520
    • Ip Degree Of Protection : IP66
    • Nema Degree Of Protection : NEMA 1/2/3/3R/4/4X/6/12/13
  • Contractual warranty
    • Warranty : 18 months
  • Environmental data
    • Rohs Exemption Information : Yes
    • Packaging Made With Recycled Cardboard : Yes
    • Mercury Free : Yes
    • Packaging Without Single Use Plastic : Yes
    • Toxic Heavy Metal Free : Yes
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Weee : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • Minimum Percentage Of Recycled Plastic Content : 0
    • Take-Back : No
    • Sustainable Packaging : Yes
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
  • Complementary
    • Mounting Diameter : 30 mm
    • Operator Profile : flush
    • Cap/Operator Or Lens Colour : red
    • Size : 30 mm
    • Device Presentation : complete product
    • Contacts Type And Composition : 1 NC
    • Bezel Material : plastic
    • Contact Operation : standard
    • Mechanical Durability : 5000000 cycles
    • Type Of Operator : spring return
  • Specifications
    • Country of Origin : United States
    • Operator Additional Information : plastic guard
    • Range Of Product : Harmony 9001SK
    • Type Of Operator : spring return
    • Product Or Component Type : push-button
    • Operator Profile : red flush
    • Device Short Name : 9001SK
