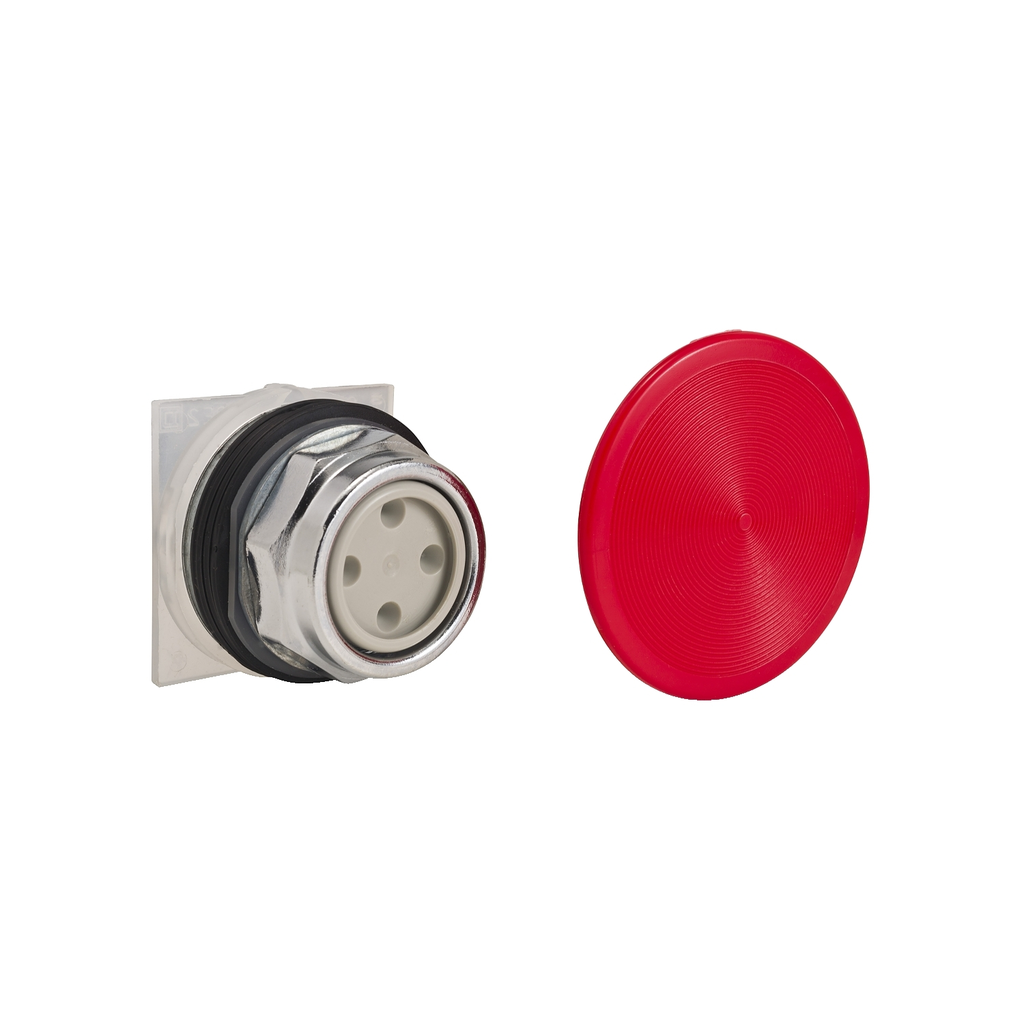

Push-button, Harmony 9001K, metal, snap-in plastic mushroom 57mm, red, 30mm, spring return, 1 C/O

PUSHBUTTON 600VAC 10A 30MM TYP

SQD9001KR5RH13 9001KR5RH13 785901033981
129.49 / EA
http://schema.org/OutOfStock
Mayer-DDS-Push-button, Harmony 9001K, metal, snap-in plastic mushroom 57mm, red, 30mm, spring return, 1 C/O-1
  • Bezel Material: Metal
  • Warranty Length: 18 mth
This Harmony 9001K, modular red push button has 2 positions, operates with spring return mechanism. It has a chromium-plated metal bezel, a round shape and 57mm mushroom head and 1 x NO + 1 x NC contacts. This 57mm mushroom shaped push button head is ideal for situations where quick actions are required for a process or machine to function correctly or where operator movements require maximum ergonomy. It is easily combined with Harmony range of contact blocks to perform a large variety of control functions. It is clearly distinguishable visually at a distance thanks to a prominent mushroom shape. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Impact and corrosion resistant metal bezel and body ensures product continues to operate even after severe accidents.
QTY
  • Product Description
  • Features
  • Specifications
This Harmony 9001K, modular red push button has 2 positions, operates with spring return mechanism. It has a chromium-plated metal bezel, a round shape and 57mm mushroom head and 1 x NO + 1 x NC contacts. This 57mm mushroom shaped push button head is ideal for situations where quick actions are required for a process or machine to function correctly or where operator movements require maximum ergonomy. It is easily combined with Harmony range of contact blocks to perform a large variety of control functions. It is clearly distinguishable visually at a distance thanks to a prominent mushroom shape. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Impact and corrosion resistant metal bezel and body ensures product continues to operate even after severe accidents.
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Complementary Attributes
    • IE Rated Operational Current : 10 A, AC-15, 10 A, AC-15, 10 A, DC-13, 10 A, DC-13
  • Important Information Attributes
    • Operator Profile : red mushroom Ø 57 mm, red mushroom Ø 57 mm
    • IE Rated Operational Current : 10 A, AC-15, 10 A, AC-15, 10 A, DC-13, 10 A, DC-13
    • Local Data Status : Publishable
    • Local Publishable Date : 2024-02-20
    • Legacy WEEE Scope : In
    • Scope Perimeter : At least in Europe
    • EOLI Availability Display : Yes
    • End Of Life Doc Ref : ENVEOLI2503027EN
    • Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : CONTAINS_SVHC
    • Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
    • ROHS EUR In Scope : No
    • ROHS EUR Status : Compliant with Exemptions
    • ROHS EUR Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
    • ROHS EUR Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
    • China ROHS In Scope : Yes
    • Green Premium Status For Reporting : Green Premium product
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : Yes
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : N
    • WD Status : 5 - INITIALIZED WITH DataSCAN OK (Migration)
    • Bezel Material : metal
    • Device Short Name : K
    • Light Block Supply : without supply
    • Light Source : without
    • Mounting Diameter : 30 mm
    • Package Weight Lbs : 145.15 g
    • Product Availability : Non-Stock - Not normally stocked in distribution facility
    • Product Or Component Type : push-button
    • Range Of Product : Harmony 9001K
    • Returnability : No
    • Sustainable Packaging : Yes
    • Type Of Operator : spring return
    • Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • Connections Terminals : screw clamp terminals
    • Relationship Type : Compatible relationship
    • Pep Code : ENVPEP2503027EN
    • Product Kit Identifier : N
  • Environment Attributes Main
    • EU ROHS Directive : Compliant By Exemption​, Pro-active compliance (Product out of EU RoHS legal scope)
    • ROHS Exemption Information : Yes
    • Take Back : No
    • Recycled Metal Content At Cr Level : 0 %
    • China ROHS Regulation : X
    • Mercury Free : Yes
    • Circularity Profile : ENVEOLI2503027EN
    • Environmental Disclosure : ENVPEP2503027EN
    • Nema Degree Of Protection : NEMA 1/2/3/3R/4/6/12/13
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : Yes
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • Pep Code : ENVPEP2503027EN
  • General Attributes
    • Product Or Component Type : push-button
    • Range Of Product : Harmony 9001K
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
  • Overview Attributes
    • Device Presentation : complete product
