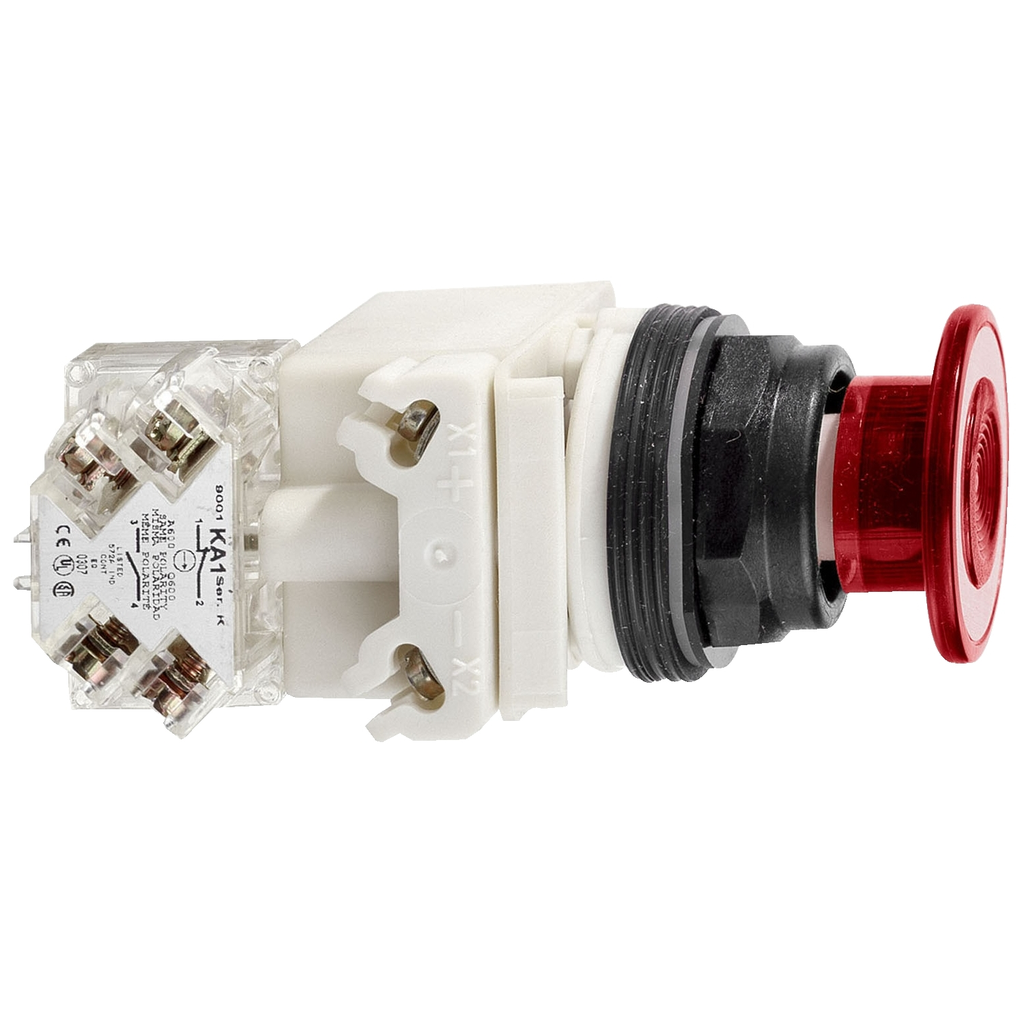

Illuminated push-button head, Harmony 9001SK, plastic, mushroom 41mm, red, 30mm, 2 positions, push-pull, LED red, 120V

PUSHBUTTON 120V 30MM SK +OPTIO

SQD9001SKR9P38LRR 9001SKR9P38LRR 785901176794
318.52 / EACH
http://schema.org/OutOfStock
Mayer-DDS-Illuminated push-button head, Harmony 9001SK, plastic, mushroom 41mm, red, 30mm, 2 positions, push-pull, LED red, 120V-1
  • Bezel Material: Plastic
  • Country of Origin: Mexico
  • Light Source: Incandescent
  • Warranty Length: 18 mth
This Harmony 9001SK, illuminated mushroom head pushbutton, with a super bright LED, is supplied with 120V AC. It has 2 positions and operates with a push-pull mechanism. This illuminated pushbutton provides an ergonomic and visual interface for your machines. It is easily installed into standard 30mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections. This plastic pushbutton has a 41 mm diameter red mushroom head. Harmony 9001SK is a range of heavy-duty plastic pushbuttons, selector switches, pilot lights, and specialty operators. The Harmony 9001SK units, with a double insulated bezel, are designed for applications requiring high resistance to corrosion.
QTY
  • Product Description
  • Features
  • Specifications
This Harmony 9001SK, illuminated mushroom head pushbutton, with a super bright LED, is supplied with 120V AC. It has 2 positions and operates with a push-pull mechanism. This illuminated pushbutton provides an ergonomic and visual interface for your machines. It is easily installed into standard 30mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections. This plastic pushbutton has a 41 mm diameter red mushroom head. Harmony 9001SK is a range of heavy-duty plastic pushbuttons, selector switches, pilot lights, and specialty operators. The Harmony 9001SK units, with a double insulated bezel, are designed for applications requiring high resistance to corrosion.
  • US Rated Supply Voltage
    • 120 V AC/DC
  • CAD
    • https://download.schneider-electric.com/files?p_Doc_Ref=9001SKR9P38LRR_CAD&p_File_name=9001SKR9P38LRR_3D.stp
    • https://download.schneider-electric.com/files?p_Doc_Ref=9001SKR9P38LRR_CAD&p_File_name=9001SKR9P38LRR_2D Front View.dwg
    • https://download.schneider-electric.com/files?p_Doc_Ref=9001SKR9P38LRR_CAD&p_File_name=9001SKR9P38LRR_2D Front View.dxf
    • https://download.schneider-electric.com/files?p_Doc_Ref=9001SKR9P38LRR_CAD&p_File_name=9001SKR9P38LRR_2D Right Side View.dwg
    • https://download.schneider-electric.com/files?p_Doc_Ref=9001SKR9P38LRR_CAD&p_File_name=9001SKR9P38LRR_2D Right Side View.dxf
    • https://download.schneider-electric.com/files?p_Doc_Ref=9001SKR9P38LRR_2D&p_File_name=9001SKR9P38LRR_2D.dwg
    • https://download.schneider-electric.com/files?p_Doc_Ref=9001SKR9P38LRR_2D&p_File_name=9001SKR9P38LRR_2D.dxf
  • IP Degree Of Protection
    • IP66 IEC 60529
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Carbon Footprint Of The Installation Phase A5
    • 0.0221734633
    • 0 kg CO2 eq.
  • Carbon Footprint Of The End Of Life Phase C1 To C4
    • 0.1 kg CO2 eq.
    • 0.0903676381
  • Carbon Footprint Of The Manufacturing Phase A1 To A3
    • 0.7 kg CO2 eq.
    • 0.7014514718
  • Electrical Shock Protection Class
    • class II conforming to IEC 61140
  • Nema Degree Of Protection
    • NEMA 1
    • NEMA 12
    • NEMA 13
    • NEMA 2
    • NEMA 3
    • NEMA 3R
    • NEMA 4
    • NEMA 4X
  • Vibration Resistance
    • 7 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
  • Market Segmentation
    • Commercial
    • Industrial
  • Persona Type Names
    • Charge Point Operator
    • End User
    • Contractor
    • Original Equipment Manufacturer
    • OEM - Control Panelbuilder
    • Panel Builder
    • Electrician
    • System Integrator
    • IT Channel Partner
  • Carbon Footprint Of The Use Phase B2 B3 B4 B6
    • 0.2 kg CO2 eq.
    • 0.2393733333
  • Persona Type Ids
    • BM9
    • EU
    • LC
    • OM
    • OM8
    • PB
    • SC
    • SI
    • VR
  • Carbon Footprint Of The Distribution Phase A4
    • 0.0140406043
    • 0 kg CO2 eq.
  • Market Segmentation Id
    • COMMERCIAL
    • INDUSTRIAL
  • Operator Profile
    • red mushroom Ø 41 mm, unmarked
  • Shock Resistance
    • 50 gn IEC 60068-2-27
  • Important Information Attributes
    • Local Data Status : Publishable
    • Local Publishable Date : 2025-09-16
    • Manufacturing Carbon Footprint : 0.7014514718
    • Distribution Carbon Footprint : 0.0140406043
    • Installation Carbon Footprint : 0.0221734633
    • Use Carbon Footprint : 0.2393733333
    • End Of Life Carbon Footprint : 0.0903676381
    • Legacy WEEE Scope : In
    • WEEE Product Category : 5
    • Scope Perimeter : At least in Europe
    • EOLI Availability Display : Yes
    • End Of Life Doc Ref : ENVEOLI2503027EN
    • Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : CONTAINS_SVHC
    • Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
    • ROHS EUR In Scope : No
    • ROHS EUR Status : Compliant
    • ROHS EUR Conformity Date : 1930
    • ROHS EUR Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
    • ROHS EUR Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
    • China ROHS In Scope : Yes
    • China ROHS Label : 1
    • Green Premium Status For Reporting : Green Premium product
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : Yes
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : N
    • WD Status : 5 - INITIALIZED WITH DataSCAN OK (Migration)
    • Tier Id : 2
    • Tier : 2
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Bezel Material : plastic
    • Bulb Base : BA 9s
    • Compatibility Code : 9001SK
    • Device Short Name : 9001SK
    • Light Block Supply : direct
    • Light Source : incandescent
    • Mounting Diameter : 30 mm
    • Operator Position Information : 2 positions
    • Package Weight Lbs : 104.326 g
    • Product Availability : Non-Stock - Not normally stocked in distribution facility
    • Product Or Component Type : head for illuminated push-button
    • Range Of Product : Harmony 9001SK
    • Returnability : No
    • Shape Of Signaling Unit Head : round
    • Sustainable Packaging : Yes
    • Total Lifecycle Carbon Footprint : 1 kg CO2 eq.
    • Type Of Operator : stay put
    • Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • Carbon Footprint Kg Co2 Eq Total Life Cycle : 1.0674065108
    • Relationship Type : Spare part relationship
    • Pep Code : ENVPEP2503027EN
    • Pep Verification Date : 2023-12-07
    • PCR Version : PEP-PCR-ed4-2021 09 06
    • PSR Version : PSR-0005-ed2-2016 03 29
    • Type Of Verification For The Pep : Independent internal review
    • Product Weight In G : 104.326
    • Functional Unit Description : The 9001 K metal 30mm push buttons are automatic self grounding operators requiring no additional wiring and are ABS Certified. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments and it is robust and offers long term reliability in heavy duty industrial applications and extreme environments
    • Functional Unit Quantity : 1
    • Functional Unit Unit : Unit
    • Reference Lifetime In Y : 10
    • Energy Consumption On Product Lifetime In Kwh : 0.45552
    • Recyclability Potential In : 15
    • Nbr Of Units In Pkg : 1
    • Warranty In Months : 18
    • Energy Model Manufacturing A1 A3 : Energy model used: Electricity Mix; Production mix; Low voltage; MX
    • Energy Model Installation A5 : Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; BR / Electricity Mix; Production mix; Low voltage; APAC
    • Energy Model Use B6 : Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; BR / Electricity Mix; Production mix; Low voltage; APAC
    • Energy Model End Of Life C1 C4 : Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; BR / Electricity Mix; Production mix; Low voltage; APAC
    • Acidification Ap Mole Of H Equiv Total Life Cycle : 0.0075604056
    • Acidification Ap Mole Of H Equiv Manufacturing A1 A3 : 0.0059003587
    • Acidification Ap Mole Of H Equiv Distribution A4 : 0.0000903067
    • Acidification Ap Mole Of H Equiv Installation A5 : 0.0000880146
    • Acidification Ap Mole Of H Equiv Maintenance B2 : 0
    • Acidification Ap Mole Of H Equiv Repair B3 : 0
    • Acidification Ap Mole Of H Equiv Replacement B4 : 0
    • Acidification Ap Mole Of H Equiv Operational Energy Use B6 : 0.0012930859
    • Acidification Ap Mole Of H Equiv End Of Life C1 C4 : 0.0001886397
    • Acidification Ap Mole Of H Equiv Benefits Loads Beyond System Boundaries D : -0.0004856033
    • Climate Change Biogenics Kg Co2 Eq Total Life Cycle : 0.007876214
    • Climate Change Biogenics Kg Co2 Eq Manufacturing A1 A3 : 0.0066157914
    • Climate Change Biogenics Kg Co2 Eq Distribution A4 : 0
    • Climate Change Biogenics Kg Co2 Eq Installation A5 : 0.0009856142
    • Climate Change Biogenics Kg Co2 Eq Maintenance B2 : 0
    • Climate Change Biogenics Kg Co2 Eq Repair B3 : 0
    • Climate Change Biogenics Kg Co2 Eq Replacement B4 : 0
    • Climate Change Biogenics Kg Co2 Eq Operational Energy Use B6 : 0.0002534711
    • Climate Change Biogenics Kg Co2 Eq End Of Life C1 C4 : 0.0000213373
    • Climate Change Biogenics Kg Co2 Eq Benefits Loads Beyond System Boundaries D : -0.0010651152
    • Climate Change Fossil Fuels Kg Co2 Eq Total Life Cycle : 1.0595304429
    • Climate Change Fossil Fuels Kg Co2 Eq Manufacturing A1 A3 : 0.6948340051
    • Climate Change Fossil Fuels Kg Co2 Eq Distribution A4 : 0.0140406043
    • Climate Change Fossil Fuels Kg Co2 Eq Installation A5 : 0.0211880775
    • Climate Change Fossil Fuels Kg Co2 Eq Maintenance B2 : 0
    • Climate Change Fossil Fuels Kg Co2 Eq Repair B3 : 0
    • Climate Change Fossil Fuels Kg Co2 Eq Replacement B4 : 0
    • Climate Change Fossil Fuels Kg Co2 Eq Operational Energy Use B6 : 0.239122963
    • Climate Change Fossil Fuels Kg Co2 Eq End Of Life C1 C4 : 0.090344793
    • Climate Change Fossil Fuels Kg Co2 Eq Benefits Loads Beyond System Boundaries D : -0.0864991996
    • Climate Change Total Kg Co2 Eq Total Life Cycle : 1.0674065108
    • Climate Change Total Kg Co2 Eq Manufacturing A1 A3 : 0.7014514718
    • Climate Change Total Kg Co2 Eq Distribution A4 : 0.0140406043
    • Climate Change Total Kg Co2 Eq Installation A5 : 0.0221734633
    • Climate Change Total Kg Co2 Eq Maintenance B2 : 0
    • Climate Change Total Kg Co2 Eq Repair B3 : 0
    • Climate Change Total Kg Co2 Eq Replacement B4 : 0
    • Climate Change Total Kg Co2 Eq Operational Energy Use B6 : 0.2393733333
    • Climate Change Total Kg Co2 Eq End Of Life C1 C4 : 0.0903676381
    • Climate Change Total Kg Co2 Eq Benefits Loads Beyond System Boundaries D : -0.0875653047
    • Components For Re Use Kg Total Life Cycle : 0
    • Components For Re Use Kg Manufacturing A1 A3 : 0
    • Components For Re Use Kg Distribution A4 : 0
    • Components For Re Use Kg Installation A5 : 0
    • Components For Re Use Kg Maintenance B2 : 0
    • Components For Re Use Kg Repair B3 : 0
    • Components For Re Use Kg Replacement B4 : 0
    • Components For Re Use Kg Operational Energy Use B6 : 0
    • Components For Re Use Kg End Of Life C1 C4 : 0
    • Components For Re Use Kg Benefits Loads Beyond System Boundaries D : 0
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Total Life Cycle : 0.0004668972
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Manufacturing A1 A3 : 0.0004668627
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Distribution A4 : 0.0000000006
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Installation A5 : 0.0000000007
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Maintenance B2 : 0
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Repair B3 : 0
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Replacement B4 : 0
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Operational Energy Use B6 : 0.0000000102
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb End Of Life C1 C4 : 0.000000023
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Benefits Loads Beyond System Boundaries D : -0.0000141221
    • Depletion Of Abiotic Resources Fossil Fuels Mj Total Life Cycle : 20.6010052566
    • Depletion Of Abiotic Resources Fossil Fuels Mj Manufacturing A1 A3 : 12.0820169051
    • Depletion Of Abiotic Resources Fossil Fuels Mj Distribution A4 : 0.1956150575
    • Depletion Of Abiotic Resources Fossil Fuels Mj Installation A5 : 0.2308041412
    • Depletion Of Abiotic Resources Fossil Fuels Mj Maintenance B2 : 0
    • Depletion Of Abiotic Resources Fossil Fuels Mj Repair B3 : 0
    • Depletion Of Abiotic Resources Fossil Fuels Mj Replacement B4 : 0
    • Depletion Of Abiotic Resources Fossil Fuels Mj Operational Energy Use B6 : 5.0707703704
    • Depletion Of Abiotic Resources Fossil Fuels Mj End Of Life C1 C4 : 3.0217987825
    • Depletion Of Abiotic Resources Fossil Fuels Mj Benefits Loads Beyond System Boundaries D : -1.3605785708
    • Ecotoxicity Fresh Water Ctue Total Life Cycle : 91.5885103784
    • Ecotoxicity Fresh Water Ctue Manufacturing A1 A3 : 88.3877286131
    • Ecotoxicity Fresh Water Ctue Distribution A4 : 0.0094487373
    • Ecotoxicity Fresh Water Ctue Installation A5 : 0.1513183902
    • Ecotoxicity Fresh Water Ctue Maintenance B2 : 0
    • Ecotoxicity Fresh Water Ctue Repair B3 : 0
    • Ecotoxicity Fresh Water Ctue Replacement B4 : 0
    • Ecotoxicity Fresh Water Ctue Operational Energy Use B6 : 2.8628888889
    • Ecotoxicity Fresh Water Ctue End Of Life C1 C4 : 0.1771257489
    • Ecotoxicity Fresh Water Ctue Benefits Loads Beyond System Boundaries D : -1.7415588467
    • Emission Of Fine Particles Incidence Of Diseases Total Life Cycle : 0.0000000663
    • Emission Of Fine Particles Incidence Of Diseases Manufacturing A1 A3 : 0.0000000552
    • Emission Of Fine Particles Incidence Of Diseases Distribution A4 : 0.0000000007
    • Emission Of Fine Particles Incidence Of Diseases Installation A5 : 0.0000000006
    • Emission Of Fine Particles Incidence Of Diseases Maintenance B2 : 0
    • Emission Of Fine Particles Incidence Of Diseases Repair B3 : 0
    • Emission Of Fine Particles Incidence Of Diseases Replacement B4 : 0
    • Emission Of Fine Particles Incidence Of Diseases Operational Energy Use B6 : 0.0000000088
    • Emission Of Fine Particles Incidence Of Diseases End Of Life C1 C4 : 0.000000001
    • Emission Of Fine Particles Incidence Of Diseases Benefits Loads Beyond System Boundaries D : -0.0000000255
    • Exported Energy Mj By Energy Vector Total Life Cycle : 0
    • Exported Energy Mj By Energy Vector Manufacturing A1 A3 : 0
    • Exported Energy Mj By Energy Vector Distribution A4 : 0
    • Exported Energy Mj By Energy Vector Installation A5 : 0
    • Exported Energy Mj By Energy Vector Maintenance B2 : 0
    • Exported Energy Mj By Energy Vector Repair B3 : 0
    • Exported Energy Mj By Energy Vector Replacement B4 : 0
    • Exported Energy Mj By Energy Vector Operational Energy Use B6 : 0
    • Exported Energy Mj By Energy Vector End Of Life C1 C4 : 0
    • Exported Energy Mj By Energy Vector Benefits Loads Beyond System Boundaries D : 0
    • Freshwater Eutrophication Kg P Eq Total Life Cycle : 0.0000081965
    • Freshwater Eutrophication Kg P Eq Manufacturing A1 A3 : 0.0000068947
    • Freshwater Eutrophication Kg P Eq Distribution A4 : 0.0000000053
    • Freshwater Eutrophication Kg P Eq Installation A5 : 0.0000001602
    • Freshwater Eutrophication Kg P Eq Maintenance B2 : 0
    • Freshwater Eutrophication Kg P Eq Repair B3 : 0
    • Freshwater Eutrophication Kg P Eq Replacement B4 : 0
    • Freshwater Eutrophication Kg P Eq Operational Energy Use B6 : 0.0000003697
    • Freshwater Eutrophication Kg P Eq End Of Life C1 C4 : 0.0000007667
    • Freshwater Eutrophication Kg P Eq Benefits Loads Beyond System Boundaries D : -0.0000004023
    • Hazardous Waste Disposed Of Kg Total Life Cycle : 2.5309123461
    • Hazardous Waste Disposed Of Kg Manufacturing A1 A3 : 2.3755867854
    • Hazardous Waste Disposed Of Kg Distribution A4 : 0
    • Hazardous Waste Disposed Of Kg Installation A5 : 0.0002621172
    • Hazardous Waste Disposed Of Kg Maintenance B2 : 0
    • Hazardous Waste Disposed Of Kg Repair B3 : 0
    • Hazardous Waste Disposed Of Kg Replacement B4 : 0
    • Hazardous Waste Disposed Of Kg Operational Energy Use B6 : 0.004712163
    • Hazardous Waste Disposed Of Kg End Of Life C1 C4 : 0.1503512806
    • Hazardous Waste Disposed Of Kg Benefits Loads Beyond System Boundaries D : -1.0928338876
    • Human Toxicity Carcinogenic Effects Ctuh Total Life Cycle : 0.0000002932
    • Human Toxicity Carcinogenic Effects Ctuh Manufacturing A1 A3 : 0.0000002852
    • Human Toxicity Carcinogenic Effects Ctuh Distribution A4 : 0
    • Human Toxicity Carcinogenic Effects Ctuh Installation A5 : 0.0000000079
    • Human Toxicity Carcinogenic Effects Ctuh Maintenance B2 : 0
    • Human Toxicity Carcinogenic Effects Ctuh Repair B3 : 0
    • Human Toxicity Carcinogenic Effects Ctuh Replacement B4 : 0
    • Human Toxicity Carcinogenic Effects Ctuh Operational Energy Use B6 : 0
    • Human Toxicity Carcinogenic Effects Ctuh End Of Life C1 C4 : 0
    • Human Toxicity Carcinogenic Effects Ctuh Benefits Loads Beyond System Boundaries D : -0.0000001686
    • Human Toxicity Non Carcinogenic Effects Ctuh Total Life Cycle : 0.0000003575
    • Human Toxicity Non Carcinogenic Effects Ctuh Manufacturing A1 A3 : 0.0000003551
    • Human Toxicity Non Carcinogenic Effects Ctuh Distribution A4 : 0
    • Human Toxicity Non Carcinogenic Effects Ctuh Installation A5 : 0.0000000001
    • Human Toxicity Non Carcinogenic Effects Ctuh Maintenance B2 : 0
    • Human Toxicity Non Carcinogenic Effects Ctuh Repair B3 : 0
    • Human Toxicity Non Carcinogenic Effects Ctuh Replacement B4 : 0
    • Human Toxicity Non Carcinogenic Effects Ctuh Operational Energy Use B6 : 0.0000000012
    • Human Toxicity Non Carcinogenic Effects Ctuh End Of Life C1 C4 : 0.0000000011
    • Human Toxicity Non Carcinogenic Effects Ctuh Benefits Loads Beyond System Boundaries D : -0.000000003
    • Impacts Related To Land Use Soil Quality Total Life Cycle : 0.011482062
    • Impacts Related To Land Use Soil Quality Manufacturing A1 A3 : 0.0062431877
    • Impacts Related To Land Use Soil Quality Distribution A4 : 0
    • Impacts Related To Land Use Soil Quality Installation A5 : 0
    • Impacts Related To Land Use Soil Quality Maintenance B2 : 0
    • Impacts Related To Land Use Soil Quality Repair B3 : 0
    • Impacts Related To Land Use Soil Quality Replacement B4 : 0
    • Impacts Related To Land Use Soil Quality Operational Energy Use B6 : 0.0032746519
    • Impacts Related To Land Use Soil Quality End Of Life C1 C4 : 0.0019642225
    • Impacts Related To Land Use Soil Quality Benefits Loads Beyond System Boundaries D : 0
    • Ionizing Radiation Human Health Kbq Of U235 Equiv Total Life Cycle : 1.3604723603
    • Ionizing Radiation Human Health Kbq Of U235 Equiv Manufacturing A1 A3 : 1.1561909912
    • Ionizing Radiation Human Health Kbq Of U235 Equiv Distribution A4 : 0.0000341542
    • Ionizing Radiation Human Health Kbq Of U235 Equiv Installation A5 : 0.0010395286
    • Ionizing Radiation Human Health Kbq Of U235 Equiv Maintenance B2 : 0
    • Ionizing Radiation Human Health Kbq Of U235 Equiv Repair B3 : 0
    • Ionizing Radiation Human Health Kbq Of U235 Equiv Replacement B4 : 0
    • Ionizing Radiation Human Health Kbq Of U235 Equiv Operational Energy Use B6 : 0.2015674074
    • Ionizing Radiation Human Health Kbq Of U235 Equiv End Of Life C1 C4 : 0.0016402789
    • Ionizing Radiation Human Health Kbq Of U235 Equiv Benefits Loads Beyond System Boundaries D : -0.0373700301
    • Marine Aquatic Eutrophication Kg Of N Equiv Total Life Cycle : 0.001162249
    • Marine Aquatic Eutrophication Kg Of N Equiv Manufacturing A1 A3 : 0.0009032195
    • Marine Aquatic Eutrophication Kg Of N Equiv Distribution A4 : 0.0000424112
    • Marine Aquatic Eutrophication Kg Of N Equiv Installation A5 : 0.0000233089
    • Marine Aquatic Eutrophication Kg Of N Equiv Maintenance B2 : 0
    • Marine Aquatic Eutrophication Kg Of N Equiv Repair B3 : 0
    • Marine Aquatic Eutrophication Kg Of N Equiv Replacement B4 : 0
    • Marine Aquatic Eutrophication Kg Of N Equiv Operational Energy Use B6 : 0.0001521905
    • Marine Aquatic Eutrophication Kg Of N Equiv End Of Life C1 C4 : 0.0000411189
    • Marine Aquatic Eutrophication Kg Of N Equiv Benefits Loads Beyond System Boundaries D : -0.0000669179
    • Materials For Energy Recovery Kg Total Life Cycle : 0
    • Materials For Energy Recovery Kg Manufacturing A1 A3 : 0
    • Materials For Energy Recovery Kg Distribution A4 : 0
    • Materials For Energy Recovery Kg Installation A5 : 0
    • Materials For Energy Recovery Kg Maintenance B2 : 0
    • Materials For Energy Recovery Kg Repair B3 : 0
    • Materials For Energy Recovery Kg Replacement B4 : 0
    • Materials For Energy Recovery Kg Operational Energy Use B6 : 0
    • Materials For Energy Recovery Kg End Of Life C1 C4 : 0
    • Materials For Energy Recovery Kg Benefits Loads Beyond System Boundaries D : 0
    • Materials For Recycling Kg Total Life Cycle : 0.026078454
    • Materials For Recycling Kg Manufacturing A1 A3 : 0
    • Materials For Recycling Kg Distribution A4 : 0
    • Materials For Recycling Kg Installation A5 : 0.0121848199
    • Materials For Recycling Kg Maintenance B2 : 0
    • Materials For Recycling Kg Repair B3 : 0
    • Materials For Recycling Kg Replacement B4 : 0
    • Materials For Recycling Kg Operational Energy Use B6 : 0
    • Materials For Recycling Kg End Of Life C1 C4 : 0.0138936341
    • Materials For Recycling Kg Benefits Loads Beyond System Boundaries D : 0
    • Net Use Of Fresh Water M3 Total Life Cycle : 0.0089803455
    • Net Use Of Fresh Water M3 Manufacturing A1 A3 : 0.0080978298
    • Net Use Of Fresh Water M3 Distribution A4 : 0.0000012398
    • Net Use Of Fresh Water M3 Installation A5 : 0.0002204401
    • Net Use Of Fresh Water M3 Maintenance B2 : 0
    • Net Use Of Fresh Water M3 Repair B3 : 0
    • Net Use Of Fresh Water M3 Replacement B4 : 0
    • Net Use Of Fresh Water M3 Operational Energy Use B6 : 0.0002003926
    • Net Use Of Fresh Water M3 End Of Life C1 C4 : 0.0004604432
    • Net Use Of Fresh Water M3 Benefits Loads Beyond System Boundaries D : -0.0009920108
    • Non Hazardous Waste Disposed Of Kg Total Life Cycle : 0.5866323722
    • Non Hazardous Waste Disposed Of Kg Manufacturing A1 A3 : 0.4634435061
    • Non Hazardous Waste Disposed Of Kg Distribution A4 : 0.0004922055
    • Non Hazardous Waste Disposed Of Kg Installation A5 : 0.0721311487
    • Non Hazardous Waste Disposed Of Kg Maintenance B2 : 0
    • Non Hazardous Waste Disposed Of Kg Repair B3 : 0
    • Non Hazardous Waste Disposed Of Kg Replacement B4 : 0
    • Non Hazardous Waste Disposed Of Kg Operational Energy Use B6 : 0.0354755556
    • Non Hazardous Waste Disposed Of Kg End Of Life C1 C4 : 0.0150899563
    • Non Hazardous Waste Disposed Of Kg Benefits Loads Beyond System Boundaries D : -0.3530863972
    • Ozone Depletion Kg Equivalent Cfc 11 Total Life Cycle : 0.0000001372
    • Ozone Depletion Kg Equivalent Cfc 11 Manufacturing A1 A3 : 0.0000001338
    • Ozone Depletion Kg Equivalent Cfc 11 Distribution A4 : 0
    • Ozone Depletion Kg Equivalent Cfc 11 Installation A5 : 0.0000000015
    • Ozone Depletion Kg Equivalent Cfc 11 Maintenance B2 : 0
    • Ozone Depletion Kg Equivalent Cfc 11 Repair B3 : 0
    • Ozone Depletion Kg Equivalent Cfc 11 Replacement B4 : 0
    • Ozone Depletion Kg Equivalent Cfc 11 Operational Energy Use B6 : 0.000000001
    • Ozone Depletion Kg Equivalent Cfc 11 End Of Life C1 C4 : 0.0000000009
    • Ozone Depletion Kg Equivalent Cfc 11 Benefits Loads Beyond System Boundaries D : -0.0000000143
    • Photochemical Ozone Formation Kg Of Nmvoc Equiv Total Life Cycle : 0.0038178728
    • Photochemical Ozone Formation Kg Of Nmvoc Equiv Manufacturing A1 A3 : 0.0030033704
    • Photochemical Ozone Formation Kg Of Nmvoc Equiv Distribution A4 : 0.0001175381
    • Photochemical Ozone Formation Kg Of Nmvoc Equiv Installation A5 : 0.0000469749
    • Photochemical Ozone Formation Kg Of Nmvoc Equiv Maintenance B2 : 0
    • Photochemical Ozone Formation Kg Of Nmvoc Equiv Repair B3 : 0
    • Photochemical Ozone Formation Kg Of Nmvoc Equiv Replacement B4 : 0
    • Photochemical Ozone Formation Kg Of Nmvoc Equiv Operational Energy Use B6 : 0.0005022044
    • Photochemical Ozone Formation Kg Of Nmvoc Equiv End Of Life C1 C4 : 0.000147785
    • Photochemical Ozone Formation Kg Of Nmvoc Equiv Benefits Loads Beyond System Boundaries D : -0.0002155512
    • Radioactive Waste Disposed Of Kg Total Life Cycle : 0.0001359108
    • Radioactive Waste Disposed Of Kg Manufacturing A1 A3 : 0.0001181625
    • Radioactive Waste Disposed Of Kg Distribution A4 : 0.0000003506
    • Radioactive Waste Disposed Of Kg Installation A5 : 0.0000096825
    • Radioactive Waste Disposed Of Kg Maintenance B2 : 0
    • Radioactive Waste Disposed Of Kg Repair B3 : 0
    • Radioactive Waste Disposed Of Kg Replacement B4 : 0
    • Radioactive Waste Disposed Of Kg Operational Energy Use B6 : 0.0000065886
    • Radioactive Waste Disposed Of Kg End Of Life C1 C4 : 0.0000011266
    • Radioactive Waste Disposed Of Kg Benefits Loads Beyond System Boundaries D : -0.000032501
    • Terrestrial Eutrophication Mole Of N Equiv Total Life Cycle : 0.012712409
    • Terrestrial Eutrophication Mole Of N Equiv Manufacturing A1 A3 : 0.0097525772
    • Terrestrial Eutrophication Mole Of N Equiv Distribution A4 : 0.000465294
    • Terrestrial Eutrophication Mole Of N Equiv Installation A5 : 0.0001759302
    • Terrestrial Eutrophication Mole Of N Equiv Maintenance B2 : 0
    • Terrestrial Eutrophication Mole Of N Equiv Repair B3 : 0
    • Terrestrial Eutrophication Mole Of N Equiv Replacement B4 : 0
    • Terrestrial Eutrophication Mole Of N Equiv Operational Energy Use B6 : 0.0018562074
    • Terrestrial Eutrophication Mole Of N Equiv End Of Life C1 C4 : 0.0004624002
    • Terrestrial Eutrophication Mole Of N Equiv Benefits Loads Beyond System Boundaries D : -0.0006649754
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 20.6010052566
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 12.0820169051
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0.1956150575
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0.2308041412
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 5.0707703704
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 3.0217987825
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : -1.3605785708
    • Total Use Of Primary Energy During The Life Cycle Mj Total Life Cycle : 21.6520123084
    • Total Use Of Primary Energy During The Life Cycle Mj Manufacturing A1 A3 : 12.3614887445
    • Total Use Of Primary Energy During The Life Cycle Mj Distribution A4 : 0.1958739688
    • Total Use Of Primary Energy During The Life Cycle Mj Installation A5 : 0.2473592305
    • Total Use Of Primary Energy During The Life Cycle Mj Maintenance B2 : 0
    • Total Use Of Primary Energy During The Life Cycle Mj Repair B3 : 0
    • Total Use Of Primary Energy During The Life Cycle Mj Replacement B4 : 0
    • Total Use Of Primary Energy During The Life Cycle Mj Operational Energy Use B6 : 5.8245777778
    • Total Use Of Primary Energy During The Life Cycle Mj End Of Life C1 C4 : 3.0227125869
    • Total Use Of Primary Energy During The Life Cycle Mj Benefits Loads Beyond System Boundaries D : -1.457441835
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 1.0512397673
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 0.2797383657
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0.0002610435
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0.0165604199
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0.7538074074
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0.0008725309
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : -0.0968251891
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 0.7144884143
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 0.7144884143
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : 0
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 19.8867148333
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 11.3677264818
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0.1956150575
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0.2308041412
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 5.0707703704
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 3.0217987825
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : -1.3605785708
    • Use Of Non Renewable Secondary Fuels Mj Total Life Cycle : 0
    • Use Of Non Renewable Secondary Fuels Mj Manufacturing A1 A3 : 0
    • Use Of Non Renewable Secondary Fuels Mj Distribution A4 : 0
    • Use Of Non Renewable Secondary Fuels Mj Installation A5 : 0
    • Use Of Non Renewable Secondary Fuels Mj Maintenance B2 : 0
    • Use Of Non Renewable Secondary Fuels Mj Repair B3 : 0
    • Use Of Non Renewable Secondary Fuels Mj Replacement B4 : 0
    • Use Of Non Renewable Secondary Fuels Mj Operational Energy Use B6 : 0
    • Use Of Non Renewable Secondary Fuels Mj End Of Life C1 C4 : 0
    • Use Of Non Renewable Secondary Fuels Mj Benefits Loads Beyond System Boundaries D : 0
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 0.2375891387
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 0.2375891387
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : -0.2193206661
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 0.8136529131
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 0.0421515115
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0.0002610435
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0.0165604199
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0.7538074074
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0.0008725309
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : 0.1224954771
    • Use Of Renewable Secondary Fuels Mj Total Life Cycle : 0
    • Use Of Renewable Secondary Fuels Mj Manufacturing A1 A3 : 0
    • Use Of Renewable Secondary Fuels Mj Distribution A4 : 0
    • Use Of Renewable Secondary Fuels Mj Installation A5 : 0
    • Use Of Renewable Secondary Fuels Mj Maintenance B2 : 0
    • Use Of Renewable Secondary Fuels Mj Repair B3 : 0
    • Use Of Renewable Secondary Fuels Mj Replacement B4 : 0
    • Use Of Renewable Secondary Fuels Mj Operational Energy Use B6 : 0
    • Use Of Renewable Secondary Fuels Mj End Of Life C1 C4 : 0
    • Use Of Renewable Secondary Fuels Mj Benefits Loads Beyond System Boundaries D : 0
    • Use Of Secondary Materials Kg Total Life Cycle : 0.0001810323
    • Use Of Secondary Materials Kg Manufacturing A1 A3 : 0.0001810323
    • Use Of Secondary Materials Kg Distribution A4 : 0
    • Use Of Secondary Materials Kg Installation A5 : 0
    • Use Of Secondary Materials Kg Maintenance B2 : 0
    • Use Of Secondary Materials Kg Repair B3 : 0
    • Use Of Secondary Materials Kg Replacement B4 : 0
    • Use Of Secondary Materials Kg Operational Energy Use B6 : 0
    • Use Of Secondary Materials Kg End Of Life C1 C4 : 0
    • Use Of Secondary Materials Kg Benefits Loads Beyond System Boundaries D : 0
  • General Attributes
    • Product Or Component Type : head for illuminated push-button
    • Range Of Product : Harmony 9001SK
  • Environment Attributes
    • ROHS Exemption Information : Yes
    • China ROHS url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=679940&lang=en-us
    • Take Back : No
    • Recycled Metal Content At Cr Level : 0 %
    • China ROHS Regulation : X
    • Toxic Heavy Metal Free : Yes
    • Mercury Free : Yes
    • Carbon Footprint : 1.0674065108
    • Circularity Profile : ENVEOLI2503027EN
    • Environmental Disclosure : ENVPEP2503027EN
    • EU ROHS Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : Yes
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • Pep Code : ENVPEP2503027EN
    • Pep Verification Date : 2023-12-07
    • PCR Version : PEP-PCR-ed4-2021 09 06
    • PSR Version : PSR-0005-ed2-2016 03 29
    • Type Of Verification For The Pep : Independent internal review
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
  • Specifications
    • Country of Origin : Mexico
