Illuminated push button head, Harmony 9001K, metal, mushroom 41mm, red, 30mm, 2 positions, push-pull, LED red, 24...28V

PUSHBOTTON PILOT LIGHT 30MM

SQD9001KR9P35LRR 9001KR9P35LRR 785901177609
280.93 / EA
http://schema.org/OutOfStock

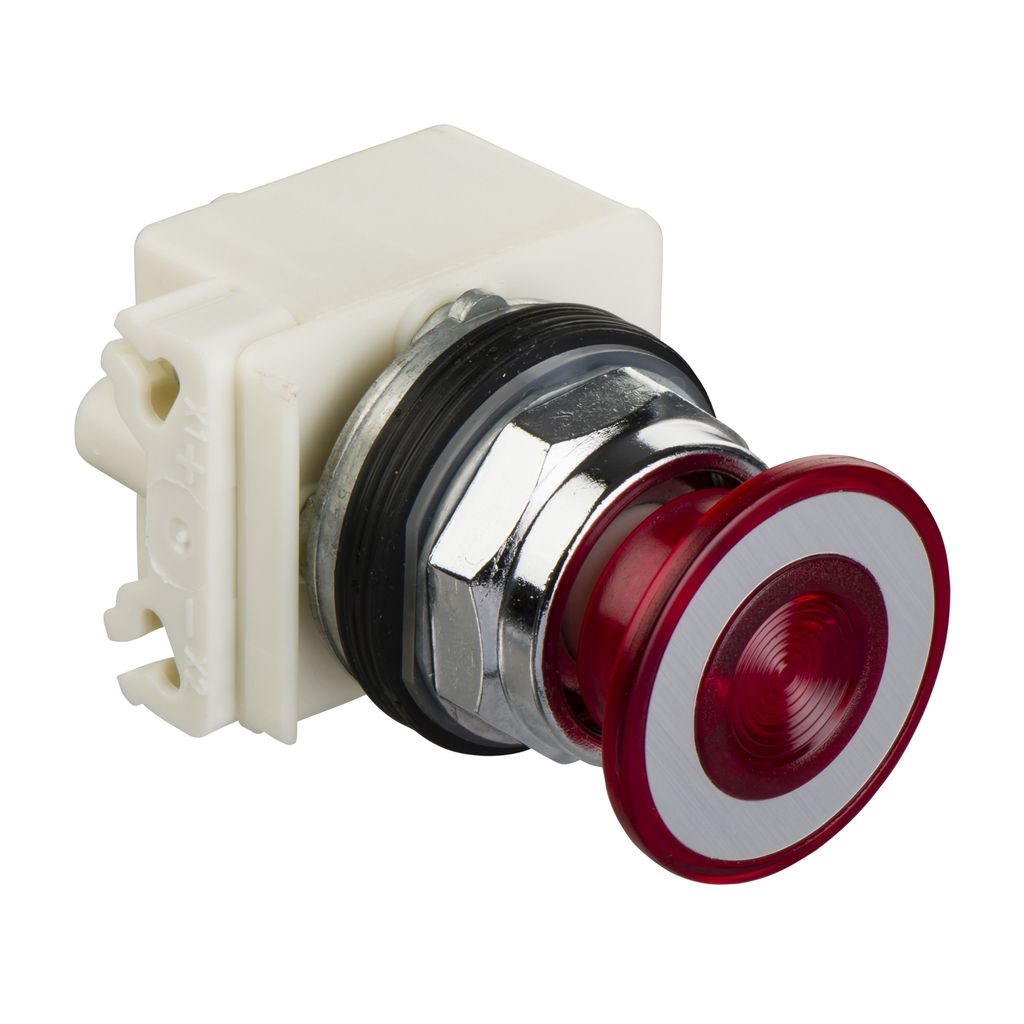

Mayer-DDS-Illuminated push button head, Harmony 9001K, metal, mushroom 41mm, red, 30mm, 2 positions, push-pull, LED red, 24...28V-1
  • Bezel Material: Metal
  • Light Source: LED, Incandescent
  • Operating Position: Any Position
  • Warranty Length: 18 mth
This red illuminated push button is part of the range of control and signaling units, Harmony 9001K diameter 30mm metal. It has a chromium-plated metal bezel. It is supplied with a red mushroom diameter 41mm, unmarked It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. It is easily installed into a standard 30mm diameter panel cut-outs. It features 2 positions stay put operator and it is supplied with 24V AC/DC and with super bright LED, included. It weighs 186g. The 30 mm Harmony range offers a large choice of robust and reliable products to meet a great number of applications in heavy industries such as petrochemy, metallurgy, mining oil and gas wastewater treatment, automobile manufacturing. It is UL listed and CSA certified, CE declaration of conformity and RoHS compliant.
QTY
  • Product Description
  • Features
  • Specifications
This red illuminated push button is part of the range of control and signaling units, Harmony 9001K diameter 30mm metal. It has a chromium-plated metal bezel. It is supplied with a red mushroom diameter 41mm, unmarked It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. It is easily installed into a standard 30mm diameter panel cut-outs. It features 2 positions stay put operator and it is supplied with 24V AC/DC and with super bright LED, included. It weighs 186g. The 30 mm Harmony range offers a large choice of robust and reliable products to meet a great number of applications in heavy industries such as petrochemy, metallurgy, mining oil and gas wastewater treatment, automobile manufacturing. It is UL listed and CSA certified, CE declaration of conformity and RoHS compliant.
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Assets
    • Cad : https://download.schneider-electric.com/files?p_Doc_Ref=9001KR9P35LRR_CAD&p_File_name=9001KR9P35LRR_3D.stp, https://download.schneider-electric.com/files?p_Doc_Ref=9001KR9P35LRR_CAD&p_File_name=9001KR9P35LRR_2D Front View.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=9001KR9P35LRR_CAD&p_File_name=9001KR9P35LRR_2D Front View.dxf, https://download.schneider-electric.com/files?p_Doc_Ref=9001KR9P35LRR_CAD&p_File_name=9001KR9P35LRR_2D Right Side View.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=9001KR9P35LRR_CAD&p_File_name=9001KR9P35LRR_2D Right Side View.dxf
  • Physical Attributes
    • Size : 30 mm
    • Cap Operator Or Lens Color : red
    • Light Source Color : red
  • Conformance Attributes
    • Product Certifications : NEMA, UL 508
    • Standards : IEC 60947-5-4, UL 508, CSA C22.2 No 14, IEC 60947-5-1, JIS C 852, IEC 60947-1, JIS C 4520
  • Complementary Attributes
    • Us Rated Supply Voltage : 24...28 V, 24 V AC/DC
  • Important Information Attributes
    • Light Source : LED, incandescent
    • Operator Profile : mushroom Ø 41 mm, red mushroom Ø 41 mm, unmarked
    • Type Of Operator : push-pull, stay put
    • Medium Desc : Illuminated push button head, Harmony 9001K, metal, mushroom 41mm, red, 30mm, 2 positions, push-pull, LED red, 24...28V
    • Local Data Status : Publishable
    • Local Publishable Date : 2026-01-12
    • Global Commercial Status : Commercialised
    • Html Descr : Harmony 9001K Pushbutton Pilot LightMounting Diameter: 30mmLight Block Supply: DirectLight Source: IncandescentRated Supply Voltage: 24V AC/DCDegree of Protection: NEMA 1, 2, 3, 3R, 4, 12, 13
    • Return Indicator : Y
    • Stocking Flag : Y
    • Manufacturer : Square D
    • Legacy Weee Scope : In
    • Scope Perimeter : At least in Europe
    • Eoli Availability Display : Yes
    • End Of Life Doc Ref : ENVEOLI2503027EN
    • Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : CONTAINS_SVHC
    • Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
    • Rohs Eur In Scope : No
    • Rohs Eur Status : Compliant By Exemption
    • Rohs Eur Full Compliance Status : Compliant By Exemption
    • China Rohs In Scope : Yes
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : Yes
    • Product Contributes To Saved And Avoided Emissions : No
    • Product Kit Identifier : N
    • Bezel Material : metal
    • Bulb Base : BA 9s
    • Compatibility Code : 9001K
    • Contacts Type And Composition : without contact block
    • Device Short Name : 9001K
    • Electrical Shock Protection Class : class II conforming to IEC 60536
    • Light Block Supply : direct
    • Mechanical Durability : 5000000 cycles
    • Mounting Diameter : 30 mm
    • Operating Position : any position
    • Operator Additional Information : screw-on plastic
    • Operator Position Information : 2 positions
    • Overvoltage Category : class II conforming to IEC 60536
    • Product Availability : Non-Stock - Not normally stocked in distribution facility
    • Product Or Component Type : head for illuminated push-button
    • Protective Treatment : TC
    • Range Of Product : Harmony 9001K
    • Returnability : Yes
    • Shape Of Signaling Unit Head : round
    • Shock Resistance : 50 gn IEC 60068-2-27
    • Sustainable Packaging : Yes
    • Vibration Resistance : 7 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
    • Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • Cap Operator Or Lens Color : red
    • Light Source Color : red
    • Pep Code : ENVPEP2503027EN
  • Environment Attributes Main
    • Nema Degree Of Protection : NEMA 1, NEMA 12, NEMA 13, NEMA 2, NEMA 3, NEMA 3R, NEMA 4
    • Take Back : Nej
    • Recycled Metal Content At Cr Level : 0 %
    • China Rohs Regulation : X
    • Mercury Free : Yes
    • Ambient Air Temperature For Operation : -25-70 °C
    • Ambient Air Temperature For Storage : -40-70 °C
    • Circularity Profile : ENVEOLI2503027EN
    • Environmental Disclosure : ENVPEP2503027EN
    • Eu Rohs Directive : Compliant By Exemption
    • Ip Degree Of Protection : IP66 IEC 60529
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : Yes
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • Pep Code : ENVPEP2503027EN
  • General Attributes
    • Product Or Component Type : head for illuminated push-button
    • Range Of Product : Harmony 9001K
  • ETIM
    • ETIM 8 : EC001028
    • ETIM 9 : EC001028
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
