Illuminated push button, Harmony 9001K, metal, mushroom 41mm, red, 30mm, 3 positions, return to center, 110...120V, 1NC late + 1NC

PUSH BUTTON 600VAC 10A 30MM T-

SQD9001KR8P1RH25 9001KR8P1RH25 785901821076
308.69 / EACH
http://schema.org/OutOfStock

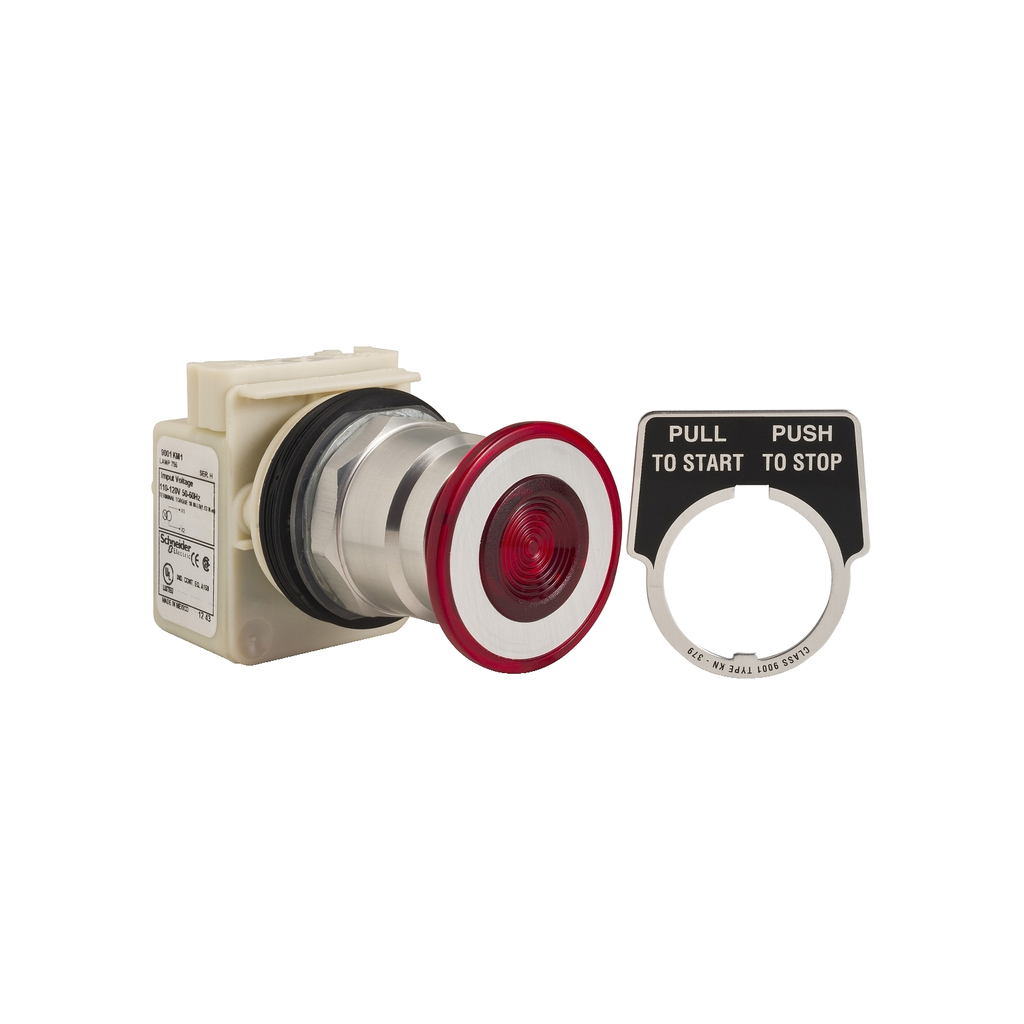

Mayer-DDS-Illuminated push button, Harmony 9001K, metal, mushroom 41mm, red, 30mm, 3 positions, return to center, 110...120V, 1NC late + 1NC-1
  • Bezel Material: Metal
  • Country of Origin: USA
  • Light Source: Incandescent Bulb
  • Warranty Length: 18 mth
This red illuminated push button is part of the range of control and signaling units, Harmony 9001K diameter 30mm metal. It has a chromium-plated metal bezel. It uses screw-clamp terminals and has 2 x NC contact. It is easily installed into a standard 30mm diameter panel cut-outs. The 30 mm Harmony range offers a large choice of robust and reliable products to meet a great number of applications in heavy industries such as petrochemy, metallurgy, mining oil and gas wastewater treatment, automobile manufacturing. It is UL listed and CSA certified, CE declaration of conformity and RoHS compliant.
QTY
  • Product Description
  • Features
  • Specifications
This red illuminated push button is part of the range of control and signaling units, Harmony 9001K diameter 30mm metal. It has a chromium-plated metal bezel. It uses screw-clamp terminals and has 2 x NC contact. It is easily installed into a standard 30mm diameter panel cut-outs. The 30 mm Harmony range offers a large choice of robust and reliable products to meet a great number of applications in heavy industries such as petrochemy, metallurgy, mining oil and gas wastewater treatment, automobile manufacturing. It is UL listed and CSA certified, CE declaration of conformity and RoHS compliant.
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Environment
    • Product Certifications : CSA LR 25490 class 3211 03 || UL listed file E42259 CCN NKCR || CE || NEMA
    • Nema Degree Of Protection : NEMA 1/2/3/3R/4/6/12/13
  • Contractual warranty
    • Warranty : 18 months
  • Environmental data
    • Rohs Exemption Information : Yes
    • Packaging Made With Recycled Cardboard : Yes
    • Mercury Free : Yes
    • Packaging Without Single Use Plastic : Yes
    • Scip Number : ae0c4eb9-0bfb-40a4-851f-5c619fbe777d
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Weee : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • Minimum Percentage Of Recycled Plastic Content : 0
    • Take-Back : No
    • Sustainable Packaging : Yes
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
  • Complementary
    • [Us] Rated Supply Voltage : 110...120 V
    • Light Source : incandescent bulb
    • Mounting Diameter : 30 mm
    • Light Block Supply : via integral transformer
    • Operator Profile : mushroom Ø 41 mm
    • Cap/Operator Or Lens Colour : red
    • Size : 30 mm
    • Device Presentation : complete product
    • Contacts Type And Composition : 1 NC late break + 1 NC
    • Bezel Material : metal
    • [Ie] Rated Operational Current : 10 A, AC-15 || 10 A, DC-13
    • Contact Operation : late-break
    • Operator Position Information : 3 positions
    • Type Of Operator : pull : spring return, center : stay put, push : spring return
    • Supply Frequency : 50...60 Hz
    • Bulb Base : BA 9s
  • Specifications
    • Country of Origin : United States
    • Operator Additional Information : screw-on plastic
    • Range Of Product : Harmony 9001K
    • Product Or Component Type : illuminated push-button
    • Device Short Name : K
