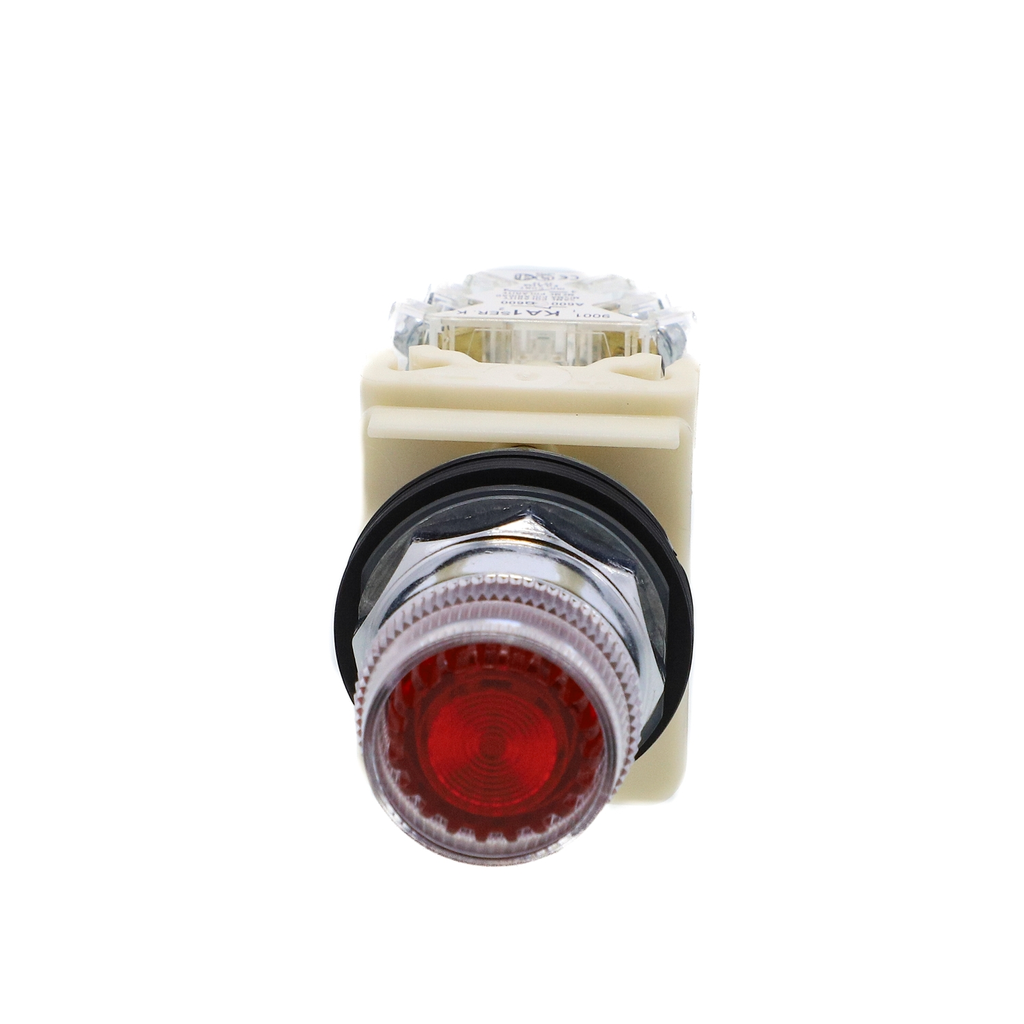

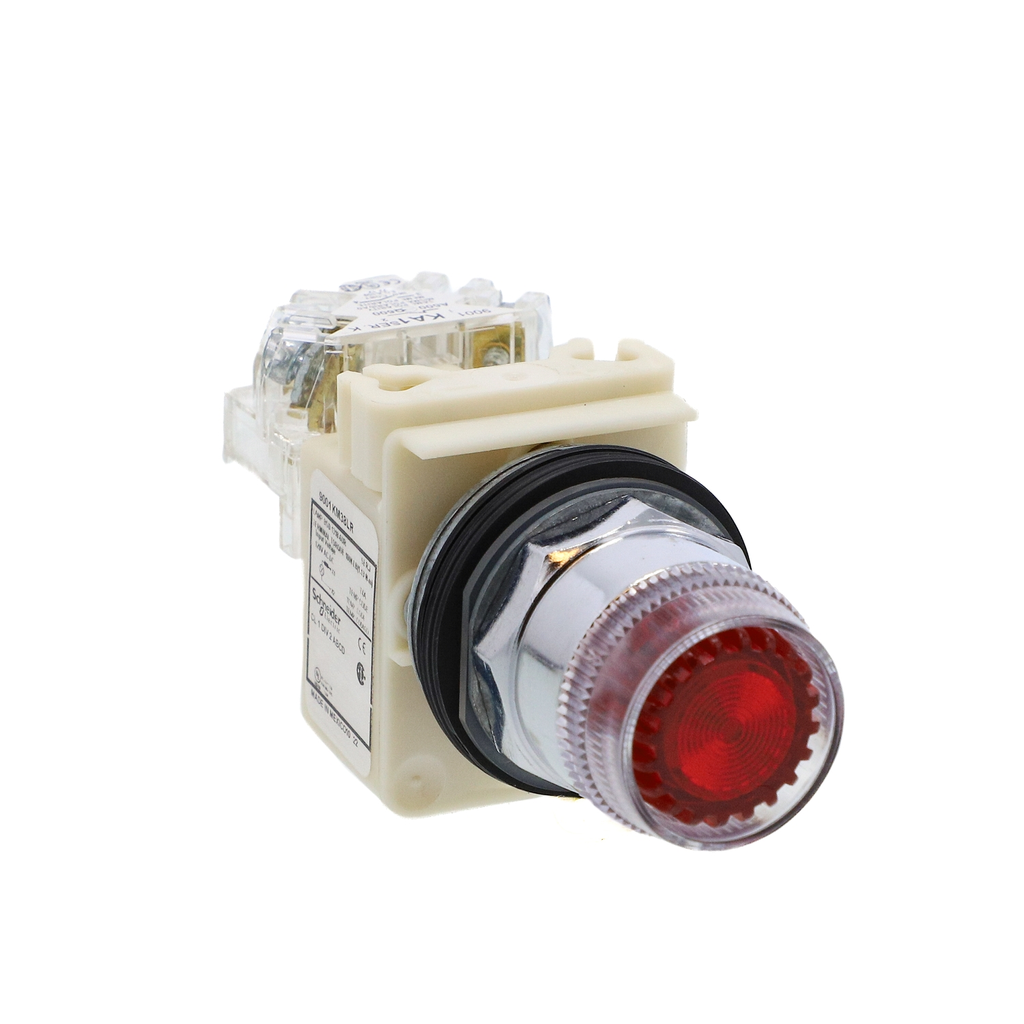

Illuminated push-button, Harmony 9001K, metal, plastic guard flush, red, 30mm, spring return, LED red, 120V, 1 C/O

PUSH BUTTON 600VAC 10A 30MM T-

SQD9001K1L38LRRH13 9001K1L38LRRH13 785901733874
241.70 / EACH
http://schema.org/OutOfStock
Illuminated push-button, Harmony 9001K, metal, plastic guard flush, red, 30mm, spring return, LED red, 120V, 1 C/O
  • Bezel Material: Metal
  • Certifications: NEMA, UL 508
  • Contact Material: Silver Alloy
  • Net Weight: 0.166 kg
  • Standard: CSA C22.2 No 14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, JIS C 4520, JIS C 852, UL 508
  • Warranty Length: 18 mth
This Harmony 9001K, modular illuminated flush red push button is supplied with a full guard. It has a chromium-plated metal bezel, is supplied with a 110V AC/DC integral LED and has 1 x NO + 1 x NC contacts. This illuminated push button with integral LED and full guard provides an ergonomic and visual interface for controlling your machines. It is easily installed into a standard 30mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections. It is clearly distinguishable visually at a distance thanks to its illuminated head and clear color. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Impact and corrosion resistant metal bezel and body ensures product continues to operate even after severe accidents.
QTY
  • Product Description
  • Specifications
This Harmony 9001K, modular illuminated flush red push button is supplied with a full guard. It has a chromium-plated metal bezel, is supplied with a 110V AC/DC integral LED and has 1 x NO + 1 x NC contacts. This illuminated push button with integral LED and full guard provides an ergonomic and visual interface for controlling your machines. It is easily installed into a standard 30mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections. It is clearly distinguishable visually at a distance thanks to its illuminated head and clear color. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Impact and corrosion resistant metal bezel and body ensures product continues to operate even after severe accidents.
  • Specifications
    • Operator Additional Information : plastic guard
    • Range Of Product : Harmony 9001K
    • Operator Profile : red flush, unmarked
    • Type Of Operator : spring return
    • Product Or Component Type : illuminated push-button
    • Device Short Name : 9001K
  • Contractual warranty
    • Warranty : 18 months
  • Complementary
    • [Us] Rated Supply Voltage : 120 V AC/DC
    • [Icm] Rated Short-Circuit Making Capacity : 12 kA 600 V AC-15, 7200 VA || 15 kA 480 V AC-15, 7200 VA || 30 kA 240 V AC-15, 7200 VA || 60 kA 120 V AC-15, 7200 VA
    • Contacts Type And Composition : 1 C/O
    • Light Source : LED
    • [Ui] Rated Insulation Voltage : 250 V 3)IEC 60947-1
    • Short-Circuit Protection : 10 A cartridge fuse IEC 60947-5-1
    • Bezel Material : metal
    • [Ie] Rated Operational Current : 0.55 A 125 V, DC-13, A600-Q600 NEMA
    • Connections - Terminals : screw clamp terminals 1 x 0.22...2 x 1.5 mm² IEC 60947-1
    • Contact Operation : standard
    • Contacts Material : silver alloy contacts
    • Mechanical Durability : 5000000 cycles
    • Light Block Supply : direct
    • Positive Opening : without
    • Mounting Diameter : 30 mm
    • Operating Position : any position
    • [Ith] Conventional Free Air Thermal Current : 10 A
    • Rated Breaking Capacity : 1.2 kA 600 V AC-15, 720 VA || 1.5 kA 480 V AC-15, 720 VA || 3 kA 240 V AC-15, 720 VA || 6 kA 120 V AC-15, 720 VA || 0.1 kA 600 V DC-13 || 0.27 kA 250 V DC-13 || 0.55 kA 125 V DC-13
    • Shape Of Signaling Unit Head : octagonal
    • Tightening Torque : 0.8-0.8 N.m IEC 60947-1
    • Shape Of Screw Head : cross slotted
    • Net Weight : 0.166 kg
    • [Uimp] Rated Impulse Withstand Voltage : 2.5 kV IEC 60947-1
    • Bulb Base : BA 9s
    • Device Presentation : complete product
  • Offer Sustainability
    • China Rohs Regulation : X
    • Rohs Exemption Information : Yes
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP121006EN
    • Sustainable Offer Status : Green Premium product
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Weee : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
  • Environment
    • Product Certifications : UL 508 || NEMA
    • Ambient Air Temperature For Operation : -25-70 °C
    • Ambient Air Temperature For Storage : -40-70 °C
    • Overvoltage Category : class II IEC 61140
    • Standards : CSA C22.2 No 14 || JIS C 852 || EN/IEC 60947-5-4 || EN/IEC 60947-1 || EN/IEC 60947-5-1 || UL 508 || JIS C 4520
    • Nema Degree Of Protection : NEMA 1 || NEMA 12 || NEMA 13 || NEMA 2 || NEMA 3 || NEMA 3R || NEMA 4
    • Shock Resistance : 50 gn IEC 60068-2-27
    • Vibration Resistance : 7 gn 2-500 Hz)IEC 60068-2-6
    • Protective Treatment : TC
    • Ip Degree Of Protection : IP66 IEC 60529
