Schneider Electric at Mayer

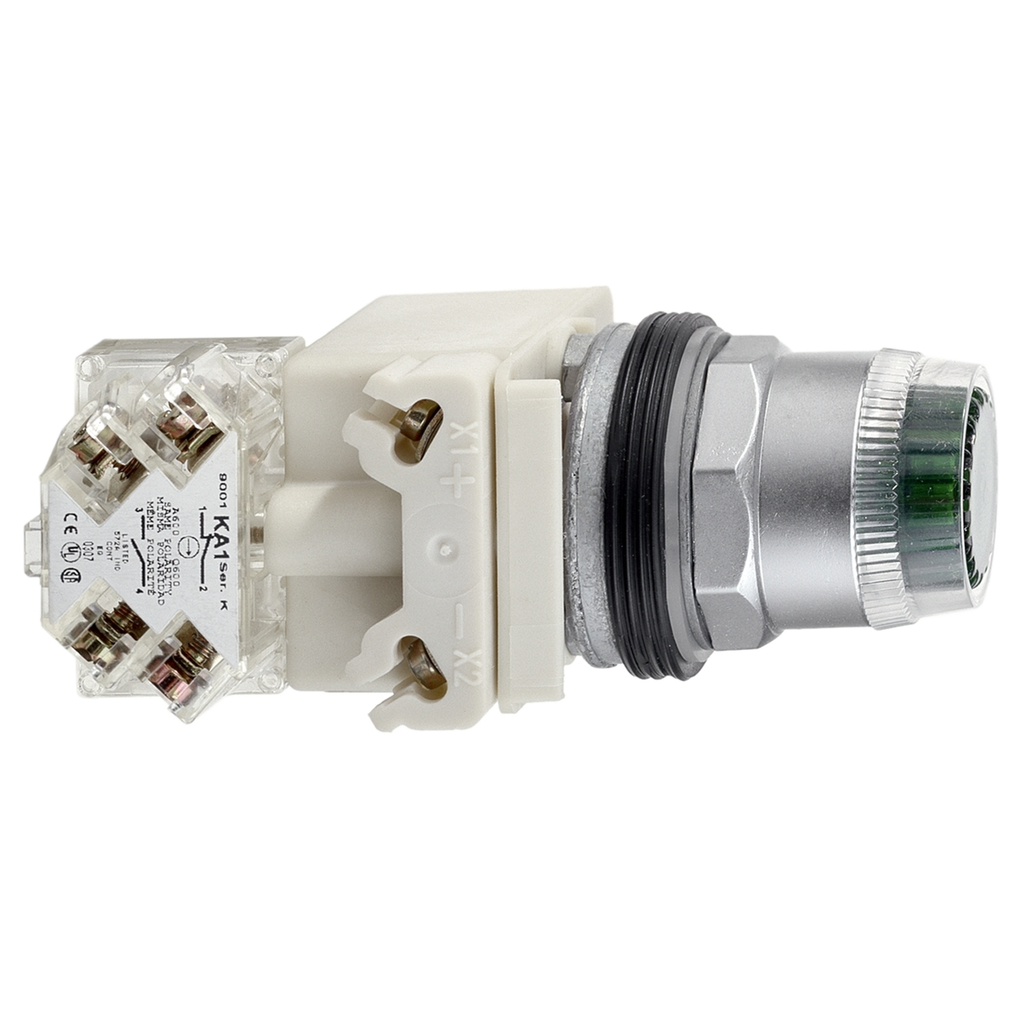

Illuminated push-button, Harmony 9001K, metal, plastic guard flush, green, 30mm, spring return, LED green, 24-28V, 1 C/O

PUSH BUTTON 600VAC 10A 30MM T-

SQD9001K1L35LGGH13 9001K1L35LGGH13 785901347590
241.70 / EACH
http://schema.org/OutOfStock
  • Bezel Material: Metal
  • Certifications: NEMA, UL 508
  • Contact Material: Silver Alloy
  • Net Weight: 0.166 kg
  • Standard: CSA C22.2 No 14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, JIS C 4520, JIS C 852, UL 508
  • Storage Temperature: -40-70 °C
  • Warranty Length: 18 mth
This Harmony 9001K, modular illuminated flush green push button is supplied with a full guard. It has a chromium-plated metal bezel and is supplied with a 24V AC/DC integral LED and has 1 x NO + 1 x NC contacts. This illuminated push button with integral LED and full guard provides an ergonomic and visual interface for controlling your machines. It is easily installed into a standard 30mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections. It is clearly distinguishable visually at a distance thanks to its illuminated head and clear color. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Impact and corrosion resistant metal bezel and body ensures product continues to operate even after severe accidents.
QTY
  • Product Description
  • Specifications
This Harmony 9001K, modular illuminated flush green push button is supplied with a full guard. It has a chromium-plated metal bezel and is supplied with a 24V AC/DC integral LED and has 1 x NO + 1 x NC contacts. This illuminated push button with integral LED and full guard provides an ergonomic and visual interface for controlling your machines. It is easily installed into a standard 30mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections. It is clearly distinguishable visually at a distance thanks to its illuminated head and clear color. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Impact and corrosion resistant metal bezel and body ensures product continues to operate even after severe accidents.
  • Environment
    • Product Certifications : NEMA || UL 508
    • Ambient Air Temperature For Operation : -25-70 °C
    • Standards : EN/IEC 60947-1 || JIS C 4520 || EN/IEC 60947-5-1 || CSA C22.2 No 14 || UL 508 || JIS C 852 || EN/IEC 60947-5-4
    • Shock Resistance : 50 gn IEC 60068-2-27
    • Vibration Resistance : 7 gn 2-500 Hz)IEC 60068-2-6
    • Ip Degree Of Protection : IP66 IEC 60529
    • Ambient Air Temperature For Storage : -40-70 °C
    • Overvoltage Category : class II IEC 61140
    • Nema Degree Of Protection : NEMA 1 || NEMA 12 || NEMA 13 || NEMA 2 || NEMA 3 || NEMA 3R || NEMA 4
    • Protective Treatment : TC
  • Contractual warranty
    • Warranty : 18 months
  • Offer Sustainability
    • Rohs Exemption Information : Yes
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP121006EN
    • Sustainable Offer Status : Green Premium product
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Weee : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • China Rohs Regulation : X
    • Circularity Profile : N/A
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
  • Complementary
    • [Us] Rated Supply Voltage : 24...28 V
    • [Us] Rated Supply Voltage : 24...28 V AC/DC
    • Short-Circuit Protection : 10 A cartridge fuse IEC 60947-5-1
    • Contacts Material : silver alloy contacts
    • Light Source : LED
    • Light Block Supply : direct
    • Positive Opening : without
    • Mounting Diameter : 30 mm
    • Operator Profile : flush
    • [Ith] Conventional Free Air Thermal Current : 10 A
    • Rated Breaking Capacity : 1.2 kA 600 V AC-15, 720 VA || 1.5 kA 480 V AC-15, 720 VA || 3 kA 240 V AC-15, 720 VA || 6 kA 120 V AC-15, 720 VA || 0.1 kA 600 V DC-13 || 0.27 kA 250 V DC-13 || 0.55 kA 125 V DC-13
    • Shape Of Signaling Unit Head : octagonal
    • Cap/Operator Or Lens Colour : green
    • Net Weight : 0.166 kg
    • [Uimp] Rated Impulse Withstand Voltage : 2.5 kV IEC 60947-1
    • Size : 30 mm
    • Device Presentation : complete product
    • [Icm] Rated Short-Circuit Making Capacity : 12 kA 600 V AC-15, 7200 VA || 15 kA 480 V AC-15, 7200 VA || 30 kA 240 V AC-15, 7200 VA || 60 kA 120 V AC-15, 7200 VA
    • Contacts Type And Composition : 1 C/O
    • [Ui] Rated Insulation Voltage : 250 V 3)IEC 60947-1
    • Bezel Material : metal
    • Connections - Terminals : screw clamp terminals 1 x 0.22...2 x 1.5 mm² IEC 60947-1
    • Contact Operation : standard
    • Light Source Colour : green
    • Mechanical Durability : 5000000 cycles
    • Type Of Operator : spring return
    • Operating Position : any position
    • Tightening Torque : 0.8-0.8 N.m IEC 60947-1
    • Shape Of Screw Head : cross slotted
    • Bulb Base : BA 9s
  • Specifications
    • Operator Additional Information : plastic guard
    • Range Of Product : Harmony 9001K
    • Type Of Operator : spring return
    • Product Or Component Type : illuminated push-button
    • Operator Profile : green flush, unmarked
    • Device Short Name : 9001K
