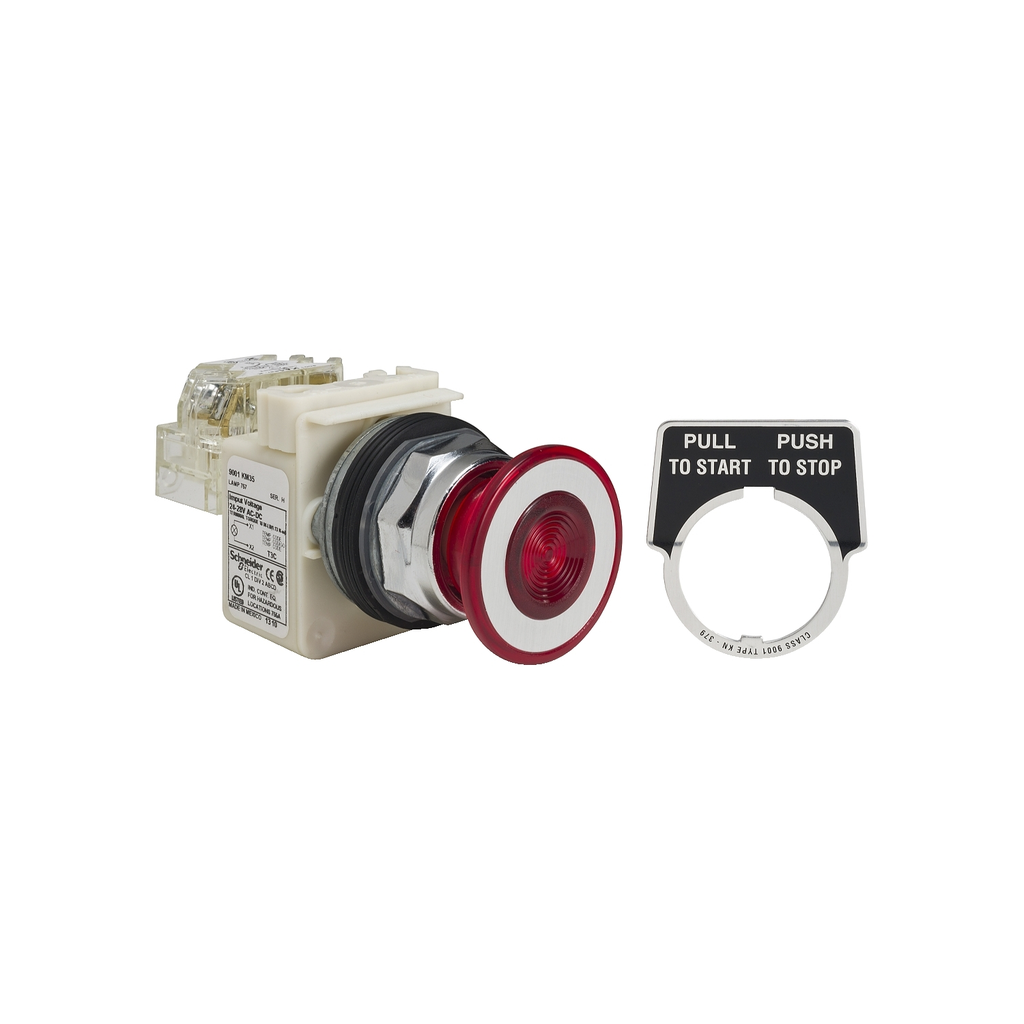

Illuminated push button, Harmony 9001K, metal, mushroom 41mm, red, 30mm, 2 positions, push pull, 24...28V, 1 CO

PUSH BUTTON 600VAC 10A 30MM T-

SQD9001KR9P35RH13 9001KR9P35RH13 785901034278
339.24 / EACH
http://schema.org/OutOfStock
Mayer-DDS-Illuminated push button, Harmony 9001K, metal, mushroom 41mm, red, 30mm, 2 positions, push pull, 24...28V, 1 CO-1
  • Bezel Material: Metal
  • Country of Origin: Mexico
  • Light Source: Incandescent
  • Warranty Length: 18 mth
This Harmony 9001K, modular illuminated red push button with screw-in head has 2 positions and operates with a stay-put mechanism. It has a chromium-plated metal bezel and is supplied with a 24V AC/DC integral LED, it has 40mm mushroom head with 1 x NO + 1 x NC contacts. This mushroom shaped push button with integral LED is ideal for situations where quick actions are required for a process or machine to function correctly or where operator movements require maximum ergonomy. It is easily installed into a standard 30mm diameter panel cut-outs and connected with simple screw-clamp connections. It is clearly distinguishable visually at a distance thanks to its illuminated head and a prominent 40mm mushroom shape. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65, making it ideal for operation in harsh environments. Impact and corrosion resistant metal bezel and body ensures product continues to operate even after severe accidents.
QTY
  • Product Description
  • Features
  • Specifications
This Harmony 9001K, modular illuminated red push button with screw-in head has 2 positions and operates with a stay-put mechanism. It has a chromium-plated metal bezel and is supplied with a 24V AC/DC integral LED, it has 40mm mushroom head with 1 x NO + 1 x NC contacts. This mushroom shaped push button with integral LED is ideal for situations where quick actions are required for a process or machine to function correctly or where operator movements require maximum ergonomy. It is easily installed into a standard 30mm diameter panel cut-outs and connected with simple screw-clamp connections. It is clearly distinguishable visually at a distance thanks to its illuminated head and a prominent 40mm mushroom shape. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65, making it ideal for operation in harsh environments. Impact and corrosion resistant metal bezel and body ensures product continues to operate even after severe accidents.
  • US Rated Supply Voltage
    • 24...28 V AC/DC
  • IE Rated Operational Current
    • 10 A, AC-15
    • 10 A, DC-13
  • CAD
    • https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0005248_3D-CAD&p_File_name=MCADID0005248_3D-simplified.stp
    • https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0005248_3D-CAD&p_File_name=MCADID0005248_2D-back.dwg
    • https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0005248_3D-CAD&p_File_name=MCADID0005248_2D-back.dxf
    • https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0005248_3D-CAD&p_File_name=MCADID0005248_2D-bottom.dwg
    • https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0005248_3D-CAD&p_File_name=MCADID0005248_2D-bottom.dxf
    • https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0005248_3D-CAD&p_File_name=MCADID0005248_2D-front.dwg
    • https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0005248_3D-CAD&p_File_name=MCADID0005248_2D-front.dxf
    • https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0005248_3D-CAD&p_File_name=MCADID0005248_2D-isometric.dwg
    • https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0005248_3D-CAD&p_File_name=MCADID0005248_2D-isometric.dxf
    • https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0005248_3D-CAD&p_File_name=MCADID0005248_2D-left.dwg
    • https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0005248_3D-CAD&p_File_name=MCADID0005248_2D-left.dxf
    • https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0005248_3D-CAD&p_File_name=MCADID0005248_2D-right.dwg
    • https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0005248_3D-CAD&p_File_name=MCADID0005248_2D-right.dxf
    • https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0005248_3D-CAD&p_File_name=MCADID0005248_2D-top.dwg
    • https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0005248_3D-CAD&p_File_name=MCADID0005248_2D-top.dxf
    • https://download.schneider-electric.com/files?p_Doc_Ref=9001KR9P35RH13_2D&p_File_name=9001KR9P35RH13_2D.dwg
    • https://download.schneider-electric.com/files?p_Doc_Ref=9001KR9P35RH13_2D&p_File_name=9001KR9P35RH13_2D.dxf
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Accessories
    • 9001KN201
    • 9001KN202
  • Market Segmentation
    • Commercial
    • Industrial
  • Persona Type Names
    • Charge Point Operator
    • End User
    • Contractor
    • Original Equipment Manufacturer
    • OEM - Control Panelbuilder
    • Panel Builder
    • Electrician
    • System Integrator
    • IT Channel Partner
  • Persona Type Ids
    • BM9
    • EU
    • LC
    • OM
    • OM8
    • PB
    • SC
    • SI
    • VR
  • Market Segmentation Id
    • COMMERCIAL
    • INDUSTRIAL
  • Operator Profile
    • red mushroom Ø 41 mm
  • Important Information Attributes
    • Local Data Status : Publishable
    • Local Publishable Date : 2025-07-09
    • Legacy WEEE Scope : In
    • WEEE Product Category : 5
    • Scope Perimeter : At least in Europe
    • EOLI Availability Display : Yes
    • End Of Life Doc Ref : ENVEOLI2503027EN
    • Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : CONTAINS_SVHC
    • Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
    • ROHS EUR In Scope : No
    • ROHS EUR Status : Compliant with Exemptions
    • ROHS EUR Conformity Date : 1930
    • ROHS EUR Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
    • ROHS EUR Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
    • China ROHS In Scope : Yes
    • China ROHS Label : 7
    • Green Premium Status For Reporting : Green Premium product
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : Yes
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : Y
    • WD Status : 1 - GSC certified
    • Tier Id : 1
    • Tier : 1
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Bezel Material : metal
    • Bulb Base : BA 9s
    • Device Short Name : K
    • Light Block Supply : direct
    • Light Source : incandescent
    • Mounting Diameter : 30 mm
    • Operator Position Information : 2 positions
    • Package Weight Lbs : 184.000 g
    • Product Availability : Stock - Normally stocked in distribution facility
    • Product Or Component Type : illuminated push-button
    • Range Of Product : Harmony 9001K
    • Returnability : Yes
    • Sustainable Packaging : Yes
    • Type Of Operator : push-pull
    • Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • Connections Terminals : screw clamp terminals
    • Relationship Type : Compatible relationship
    • Pep Code : ENVPEP2503027EN
    • Nbr Of Units In Pkg : 1
    • Warranty In Months : 18
  • General Attributes
    • Product Or Component Type : illuminated push-button
    • Range Of Product : Harmony 9001K
  • Environment Attributes
    • ROHS Exemption Information : Yes
    • China ROHS url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=680306&lang=en-us
    • Take Back : No
    • Recycled Metal Content At Cr Level : 0 %
    • China ROHS Regulation : X
    • Mercury Free : Yes
    • Circularity Profile : ENVEOLI2503027EN
    • Environmental Disclosure : ENVPEP2503027EN
    • EU ROHS Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • Nema Degree Of Protection : NEMA 1/2/3/3R/4/6/12/13
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : Yes
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • Pep Code : ENVPEP2503027EN
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
  • Specifications
    • Country of Origin : Mexico
  • Overview Attributes
    • Device Presentation : complete product
