Mushroom head push button, Harmony 9001K, metal, mushroom 35mm, black, 30mm, spring return, 1 CO

Mushroom head push button, Harmony 9001K, metal, mushroom 35mm, black, 30mm, spring return, 1 CO

SQD9001KR24BH13 9001KR24BH13 785901033455
165.42 / EACH
http://schema.org/OutOfStock

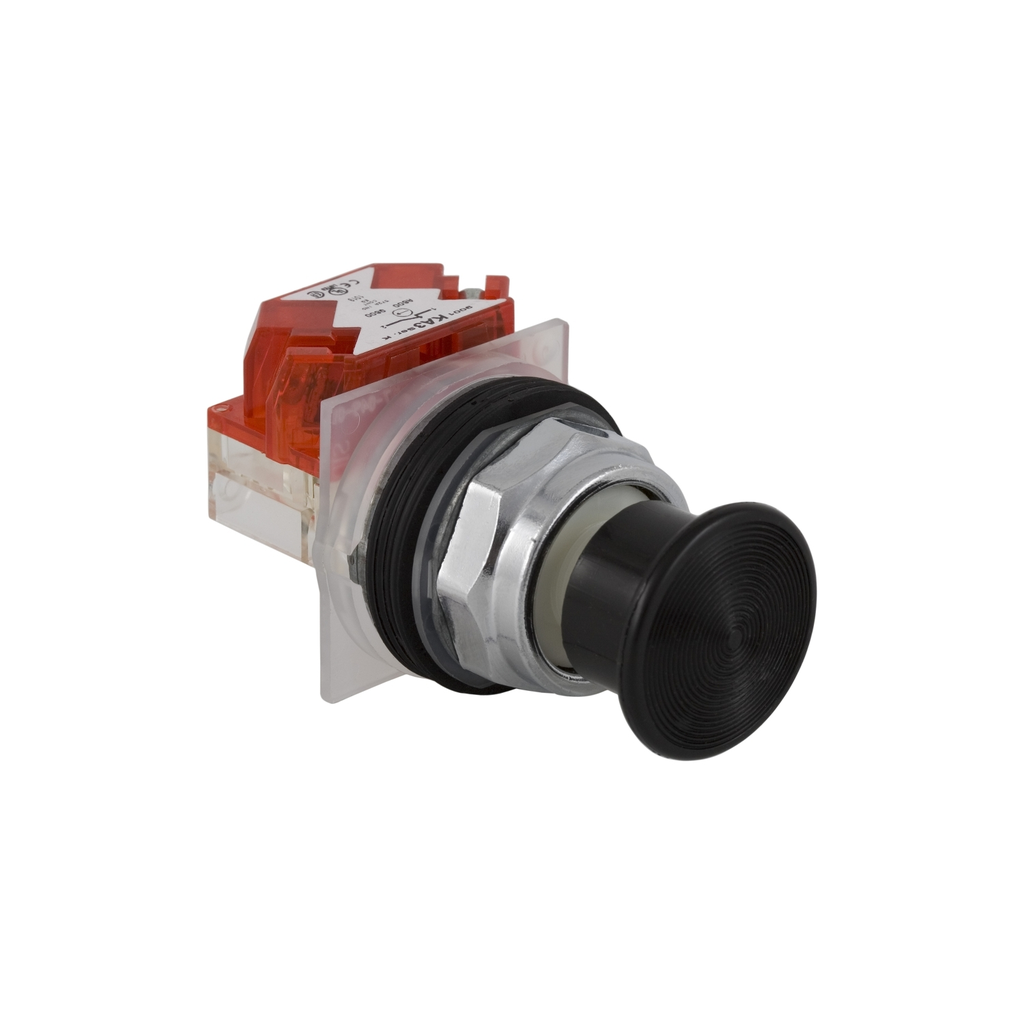

Mayer-DDS-Mushroom head push button, Harmony 9001K, metal, mushroom 35mm, black, 30mm, spring return, 1 CO-1
  • Bezel Material: Metal
  • Country of Origin: USA
  • Operating Position: Any Position
  • Warranty Length: 18 mth
This Harmony 9001K, modular black push button has 2 positions, operates with spring return mechanism. It has a chromium-plated metal bezel, a round shape and 35mm mushroom head and 1 x NO + 1 x NC contacts. This 35mm mushroom shaped push button head is ideal for situations where quick actions are required for a process or machine to function correctly or where operator movements require maximum ergonomy. It is easily combined with Harmony range of contact blocks to perform a large variety of control functions. It is clearly distinguishable visually at a distance thanks to a prominent mushroom shape. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Impact and corrosion resistant metal bezel and body ensures product continues to operate even after severe accidents.
QTY
  • Product Description
  • Features
  • Specifications
This Harmony 9001K, modular black push button has 2 positions, operates with spring return mechanism. It has a chromium-plated metal bezel, a round shape and 35mm mushroom head and 1 x NO + 1 x NC contacts. This 35mm mushroom shaped push button head is ideal for situations where quick actions are required for a process or machine to function correctly or where operator movements require maximum ergonomy. It is easily combined with Harmony range of contact blocks to perform a large variety of control functions. It is clearly distinguishable visually at a distance thanks to a prominent mushroom shape. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Impact and corrosion resistant metal bezel and body ensures product continues to operate even after severe accidents.
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Assets
    • Cad : https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0005242_3D-CAD&p_File_name=MCADID0005242_3D-simplified.stp, https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0005242_3D-CAD&p_File_name=MCADID0005242_2D-back.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0005242_3D-CAD&p_File_name=MCADID0005242_2D-back.dxf, https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0005242_3D-CAD&p_File_name=MCADID0005242_2D-bottom.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0005242_3D-CAD&p_File_name=MCADID0005242_2D-bottom.dxf, https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0005242_3D-CAD&p_File_name=MCADID0005242_2D-front.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0005242_3D-CAD&p_File_name=MCADID0005242_2D-front.dxf, https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0005242_3D-CAD&p_File_name=MCADID0005242_2D-isometric.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0005242_3D-CAD&p_File_name=MCADID0005242_2D-isometric.dxf, https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0005242_3D-CAD&p_File_name=MCADID0005242_2D-left.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0005242_3D-CAD&p_File_name=MCADID0005242_2D-left.dxf, https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0005242_3D-CAD&p_File_name=MCADID0005242_2D-right.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0005242_3D-CAD&p_File_name=MCADID0005242_2D-right.dxf, https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0005242_3D-CAD&p_File_name=MCADID0005242_2D-top.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0005242_3D-CAD&p_File_name=MCADID0005242_2D-top.dxf, https://download.schneider-electric.com/files?p_Doc_Ref=9001KR24BH13_2D&p_File_name=9001KR24BH13_2D.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=9001KR24BH13_2D&p_File_name=9001KR24BH13_2D.dxf
  • Physical Attributes
    • Cad Overall Depth : 70 mm
    • Cad Overall Height : 45 mm
    • Cad Overall Width : 46 mm
    • Size : 30 mm
    • Cap Operator Or Lens Color : black
  • Conformance Attributes
    • Product Certifications : NEMA, UL 508
    • Standards : IEC 60947-5-1, IEC 60947-1, IEC 60947-5-4, JIS C 4520, JIS C 852, UL 508, CSA C22.2 No 14
  • Complementary Attributes
    • Rated Breaking Capacity : 3 kA 240 V AC-15, 720 VA, 6 kA 120 V AC-15, 720 VA, 1.2 kA 600 V AC-15, 720 VA, 1.5 kA 480 V AC-15, 720 VA, 0.1 kA 600 V DC-13, 0.27 kA 250 V DC-13, 0.55 kA 125 V DC-13
    • Icm Rated Short Circuit Making Capacity : 15 kA 480 V AC-15, 7200 VA, 15 kA 600 V AC-15, 7200 VA, 30 kA 125 V DC-13, 7200 VA, 30 kA 240 V AC-15, 7200 VA, 60 kA 120 V AC-15, 7200 VA, 60 kA 250 V DC-13, 7200 VA, 0.1 kA 600 V DC-13
    • Ie Rated Operational Current : 3 A 240 V, AC-15, A600-Q600 NEMA, 0.55 A 125 V, DC-13, A600-Q600 NEMA
    • Ui Rated Insulation Voltage : 250 V 3)IEC 60947-1
    • Uimp Rated Impulse Withstand Voltage : 2.5 kV IEC 60947-1
  • Important Information Attributes
    • Persona Type Ids : BM9, EU, LC, OM, OM8, PB, SC, SI, VR
    • Persona Type Names : Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
    • Market Segmentation Id : COMMERCIAL, INDUSTRIAL
    • Market Segmentation : Commercial, Industrial
    • Operator Profile : mushroom Ø 35 mm, black mushroom Ø 35 mm, unmarked
    • Terminals Description Iso N 1 : (13-14-11-12)OF, (13-14-11-12)OF
    • Icm Rated Short Circuit Making Capacity : 15 kA 480 V AC-15, 7200 VA, 15 kA 600 V AC-15, 7200 VA, 30 kA 125 V DC-13, 7200 VA, 30 kA 240 V AC-15, 7200 VA, 60 kA 120 V AC-15, 7200 VA, 60 kA 250 V DC-13, 7200 VA, 0.1 kA 600 V DC-13
    • Ie Rated Operational Current : 3 A 240 V, AC-15, A600-Q600 NEMA, 0.55 A 125 V, DC-13, A600-Q600 NEMA
    • Carbon Footprint Of The Distribution Phase A4 : 0.0196492555, 0 kg CO2 eq.
    • Carbon Footprint Of The End Of Life Phase C1 To C4 : 0.1 kg CO2 eq., 0.1264658394
    • Carbon Footprint Of The Installation Phase A5 : 0.0310308613, 0 kg CO2 eq.
    • Carbon Footprint Of The Manufacturing Phase A1 To A3 : 1 kg CO2 eq., 0.9816528467
    • Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 0 kg CO2 eq., 0
    • Medium Desc : Mushroom head push button, Harmony 9001K, metal, mushroom 35mm, black, 30mm, spring return, 1 CO
    • Local Data Status : Publishable
    • Local Publishable Date : 2026-01-12
    • Global Commercial Status : Commercialised
    • Return Indicator : N
    • Stocking Flag : Y
    • Legacy Weee Scope : In
    • Scope Perimeter : At least in Europe
    • Eoli Availability Display : Yes
    • End Of Life Doc Ref : ENVEOLI2503027EN
    • Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : CONTAINS_SVHC
    • Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
    • Rohs Eur In Scope : No
    • Rohs Eur Status : Compliant By Exemption
    • Rohs Eur Full Compliance Status : Compliant By Exemption
    • China Rohs In Scope : Yes
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : Yes
    • Product Contributes To Saved And Avoided Emissions : No
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Product Kit Identifier : N
    • Bezel Material : metal
    • Compatibility Code : 9001K
    • Contacts Material : silver alloy contacts
    • Contacts Type And Composition : 1 C/O
    • Device Short Name : 9001K
    • Head Material : plastic
    • Mechanical Durability : 5000000 cycles
    • Mounting Diameter : 30 mm
    • Operating Position : any position
    • Operator Additional Information : screw-on plastic with set screw
    • Overvoltage Category : class II conforming to IEC 61140
    • Positive Opening : without
    • Product Availability : Non-Stock - Not normally stocked in distribution facility
    • Product Or Component Type : push-button
    • Protective Treatment : TC
    • Range Of Product : Harmony 9001K
    • Returnability : No
    • Shape Of Screw Head : cross slotted
    • Shape Of Signaling Unit Head : round
    • Shock Resistance : 50 gn IEC 60068-2-27
    • Short Circuit Protection : 10 A cartridge fuse IEC 60947-5-1
    • Software Version : v5.9.4
    • Sustainable Packaging : Yes
    • Tightening Torque : 0.8-0.8 N.m IEC 60947-1
    • Total Lifecycle Carbon Footprint : 1 kg CO2 eq.
    • Type Of Operator : spring return
    • Vibration Resistance : 7 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
    • Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • Cap Operator Or Lens Color : black
    • Connections Terminals : screw clamp terminals, 1 x 0.22...2 x 1.5 mm² IEC 60947-1
    • Ith Conventional Free Air Thermal Current : 10 A
    • Pep Code : ENVPEP2503027EN
    • Database Version : 2022-01
    • Pep Verification Date : 2023-12-07
    • Pcr Version : PEP-PCR-ed4-2021 09 06
    • Psr Version : PSR-0005-ed2-2016 03 29
    • Type Of Verification For The Pep : Independent internal review
    • Data Source : extrapolated product
    • Functional Unit Description : The 9001 K metal 30mm push buttons are automatic self grounding operators requiring no additional wiring and are ABS Certified. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments and it is robust and offers long term reliability in heavy duty industrial applications and extreme environments
    • Functional Unit Unit : Unit
    • Energy Model Manufacturing A1 A3 2 : Energy model used: Electricity Mix; Production mix; Low voltage; MX
    • Energy Model Installation A5 2 : Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; BR / Electricity Mix; Production mix; Low voltage; APAC
    • Energy Model Use B6 2 : Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; BR / Electricity Mix; Production mix; Low voltage; APAC
    • Energy Model End Of Life C1 C4 2 : Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; BR / Electricity Mix; Production mix; Low voltage; APAC
  • Environment Attributes Main
    • Ip Degree Of Protection : IP66 IEC 60529, IP65/IP66
    • Nema Degree Of Protection : NEMA 1, NEMA 12, NEMA 13, NEMA 2, NEMA 3, NEMA 3R, NEMA 4, NEMA 6
    • Take Back : Nej
    • Recycled Metal Content At Cr Level : 0 %
    • China Rohs Regulation : X
    • Mercury Free : Yes
    • Carbon Footprint : 1.1587988029
    • Ambient Air Temperature For Operation : -25-70 °C
    • Ambient Air Temperature For Storage : -40-70 °C
    • Circularity Profile : ENVEOLI2503027EN
    • Environmental Disclosure : ENVPEP2503027EN
    • Eu Rohs Directive : Compliant By Exemption
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : Yes
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • Pep Code : ENVPEP2503027EN
    • Pep Verification Date : 2023-12-07
    • Pcr Version : PEP-PCR-ed4-2021 09 06
    • Psr Version : PSR-0005-ed2-2016 03 29
    • Type Of Verification For The Pep : Independent internal review
  • General Attributes
    • Product Or Component Type : push-button
    • Range Of Product : Harmony 9001K
  • ETIM
    • ETIM 8 : EC001028
    • ETIM 9 : EC001028
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
  • Specifications
    • Country of Origin : United States
  • Overview Attributes
    • Device Presentation : complete product
