Illuminated push-button, Harmony 9001K, metal, metal guard flush, red, 30mm, spring return, 110-120V, 1 C/O

PUSH BUTTON 600VAC 10A 30MM T-

SQD9001K3L1RH13 9001K3L1RH13 785901028444
276.90 / EACH
http://schema.org/OutOfStock

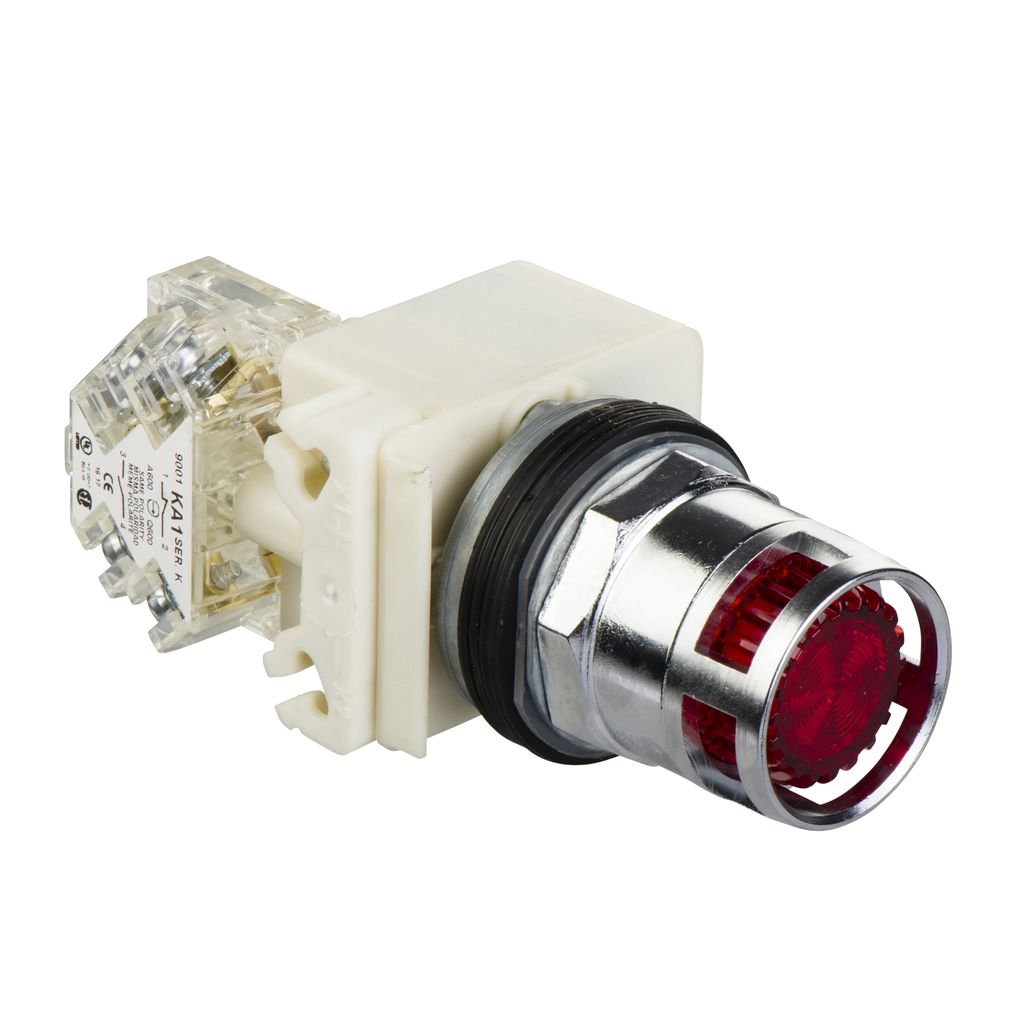

Mayer-DDS-Illuminated push-button, Harmony 9001K, metal, metal guard flush, red, 30mm, spring return, 110-120V, 1 C/O-1
  • Bezel Material: Metal
  • Light Source: Incandescent Bulb, Incandescent
  • Operating Position: Any Position
  • Warranty Length: 18 mth
This Harmony 9001K, modular illuminated flush red push button is supplied with a full guard. It has a chromium-plated metal bezel, is supplied with a 110V AC transformer and has 1 x NO + 1 x NC contacts. This illuminated push button with transformer and full guard provides an ergonomic and visual interface for controlling your machines. It is easily installed into a standard 30mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections. It is clearly distinguishable visually at a distance thanks to its illuminated head and clear color. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Impact and corrosion resistant metal bezel and body ensures product continues to operate even after severe accidents.
QTY
  • Product Description
  • Features
  • Specifications
This Harmony 9001K, modular illuminated flush red push button is supplied with a full guard. It has a chromium-plated metal bezel, is supplied with a 110V AC transformer and has 1 x NO + 1 x NC contacts. This illuminated push button with transformer and full guard provides an ergonomic and visual interface for controlling your machines. It is easily installed into a standard 30mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections. It is clearly distinguishable visually at a distance thanks to its illuminated head and clear color. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Impact and corrosion resistant metal bezel and body ensures product continues to operate even after severe accidents.
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Physical Attributes
    • Cap Operator Or Lens Color : red
    • Size : 30 mm
  • Conformance Attributes
    • Product Certifications : UL 508, NEMA
    • Standards : IEC 60947-1, JIS C 4520, IEC 60947-5-1, CSA C22.2 No 14, JIS C 852, IEC 60947-5-4
  • Complementary Attributes
    • Rated Breaking Capacity : 1.2 kA 600 V AC-15, 720 VA, 1.5 kA 480 V AC-15, 720 VA, 3 kA 240 V AC-15, 720 VA, 6 kA 120 V AC-15, 720 VA, 0.1 kA 600 V DC-13, 0.27 kA 250 V DC-13, 0.55 kA 125 V DC-13
  • Important Information Attributes
    • Persona Type Ids : BM9, EU, LC, OM, OM8, PB, SC, SI, VR
    • Persona Type Names : Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
    • Market Segmentation Id : COMMERCIAL, INDUSTRIAL
    • Market Segmentation : Commercial, Industrial
    • Light Block Supply : via integral transformer 6 V, via integral transformer
    • Light Source : incandescent bulb, incandescent
    • Operator Profile : flush, red flush, unmarked
    • Icm Rated Short Circuit Making Capacity2 : 12 kA 600 V AC-15, 7200 VA, 15 kA 480 V AC-15, 7200 VA, 30 kA 240 V AC-15, 7200 VA, 60 kA 120 V AC-15, 7200 VA
    • Us Rated Supply Voltage2 : 110...120 V, 110...120 V AC
    • Icm Rated Short Circuit Making Capacity5 : 12 kA 600 V AC-15, 7200 VA, 15 kA 480 V AC-15, 7200 VA, 30 kA 240 V AC-15, 7200 VA, 60 kA 120 V AC-15, 7200 VA
    • Local Data Status : Publishable
    • Local Publishable Date : 2026-01-12
    • Legacy WEEE Scope : In
    • Scope Perimeter : At least in Europe
    • EOLI Availability Display : Yes
    • End Of Life Doc Ref : ENVEOLI2503027EN
    • Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : CONTAINS_SVHC
    • Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
    • ROHS EUR In Scope : No
    • ROHS EUR Status : Compliant with Exemptions
    • ROHS EUR Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
    • ROHS EUR Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
    • China ROHS In Scope : Yes
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : Yes
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : N
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Bezel Material : metal
    • Bulb Base : BA 9s
    • Cap Operator Or Lens Color : red
    • Compatibility Code : 9001K
    • Contact Operation : standard
    • Contacts Material : silver alloy contacts
    • Contacts Type And Composition : 1 C/O
    • Device Short Name : 9001K
    • Mechanical Durability : 5000000 cycles
    • Mounting Diameter : 30 mm
    • Operating Position : any position
    • Operator Additional Information : metal guard
    • Overvoltage Category : class II conforming to IEC 61140
    • Package Weight Lbs : 281.200 g
    • Positive Opening : without
    • Product Availability : Non-Stock - Not normally stocked in distribution facility
    • Product Or Component Type : illuminated push-button
    • Protective Treatment : TC
    • Range Of Product : Harmony 9001K
    • Returnability : No
    • Shape Of Screw Head : cross slotted
    • Shape Of Signaling Unit Head : octagonal
    • Shock Resistance : 50 gn IEC 60068-2-27
    • Short Circuit Protection : 10 A cartridge fuse IEC 60947-5-1
    • Supply Frequency : 50...60 Hz
    • Sustainable Packaging : Yes
    • Tightening Torque : 0.8-0.8 N.m IEC 60947-1
    • Type Of Operator : spring return
    • Vibration Resistance : 7 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
    • Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • Ie Rated Operational Current2 : 0.55 A 125 V, DC-13, A600-Q600 NEMA
    • Ith Conventional Free Air Thermal Current2 : 10 A
    • Ui Rated Insulation Voltage2 : 250 V 3)IEC 60947-1
    • Uimp Rated Impulse Withstand Voltage2 : 2.5 kV IEC 60947-1
    • Connections Terminals : screw clamp terminals 1 x 0.22...2 x 1.5 mm² IEC 60947-1
    • Medium Desc : Illuminated push-button, Harmony 9001K, metal, metal guard flush, red, 30mm, spring return, 110-120V, 1 C/O
    • Stocking Flag : Y
    • Product Kit Identifier : N
    • Pep Code : ENVPEP2503027EN
    • Global Commercial Status : Commercialised
    • Connections Terminals3 : screw clamp terminals 1 x 0.22...2 x 1.5 mm² IEC 60947-1
    • Ie Rated Operational Current5 : 0.55 A 125 V, DC-13, A600-Q600 NEMA
    • Ith Conventional Free Air Thermal Current5 : 10 A
    • Ui Rated Insulation Voltage5 : 250 V 3)IEC 60947-1
    • Uimp Rated Impulse Withstand Voltage5 : 2.5 kV IEC 60947-1
    • Us Rated Supply Voltage5 : 110...120 V AC
  • Environment Attributes Main
    • Take Back : No, Nej
    • EU ROHS Directive : Compliant By Exemption , Pro-active compliance (Product out of EU RoHS legal scope)
    • Nema Degree Of Protection : NEMA 1, NEMA 12, NEMA 13, NEMA 2, NEMA 3, NEMA 3R, NEMA 4
    • ROHS Exemption Information : Yes
    • Recycled Metal Content At Cr Level : 0 %
    • China ROHS Regulation : X
    • Mercury Free : Yes
    • Ambient Air Temperature For Operation : -25-70 °C
    • Ambient Air Temperature For Storage : -40-70 °C
    • Circularity Profile : ENVEOLI2503027EN
    • Environmental Disclosure : ENVPEP2503027EN
    • IP Degree Of Protection : IP66 IEC 60529
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : Yes
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • Pep Code : ENVPEP2503027EN
  • General Attributes
    • Product Or Component Type : illuminated push-button
    • Range Of Product : Harmony 9001K
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
  • Overview Attributes
    • Device Presentation : complete product
