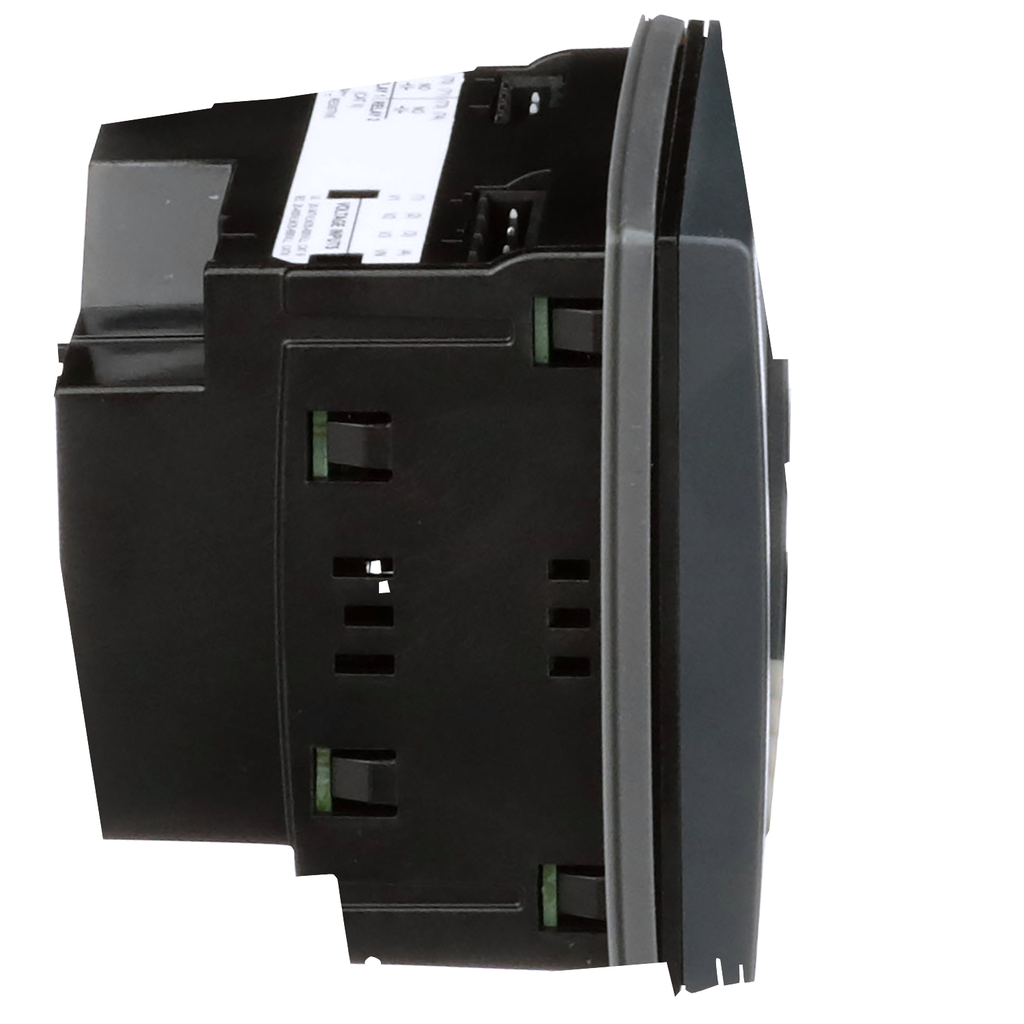

This device is a flush-mount energy meter with a 96mm by 96mm backlit LCD display. The meter provides Class 0.5S accuracy per IEC 62053-22 standard and 64 samples per cycle. The meter will measure Energy, Active and Reactive Power, Voltage, Current, Frequency, Power Factor and up to the 31st Harmonic. Include 256 kiloBytes of memory for two fixed parameters, active and reactive energy. The meter will function in a 50Hz or 60Hz network and accepts supply voltage ranging from 100 to 415 VAC and 125 to 250 VDC. Line rated current for this meter is 1A or 5A input and will support Single Phase and Neutral, Three Phase, or Three Phase and Neutral configurations. The range of measurement voltage between Phases is 35 to 690 VAC at 47 to 63 Hz. Measurement range between Phase and Neutral is 20 to 400VAC at 47 to 63 Hz. Communication protocol are Modbus TCP/IP and BACnet/IP based on 10/100 Mbit/s, Ethernet with RJ45 port support. The meter also has two digital inputs or digital outputs, configurable, and dual relay outputs. There are 35 configurable alarms and it supports four tariff schedules. Product dimensions are as follows: width 3.78 inches (96 millimetres), depth 2.83 inches (72 millimetres), height 3.78 inches (96 millimetres) and product weight 15.2 onces (430 g).

• Prop 65
• WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

• Communications & Management Attributes
• Communication Port Protocol : Modbus TCP/IP 10/100 Mbit/s 2500 V, BACnet IP
• Communication Port Support : ETHERNET
• Complementary Attributes
• Line Rated Current : 5 A, 1 A
• Maximum Power Consumption In Va : 11 VA 415 V
• Important Information Attributes
• Persona Type Ids : EU, LC, OM, OM8, PB, SI
• Persona Type Names : End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
• Market Segmentation Id : RESIDENTIAL, COMMERCIAL, INDUSTRIAL
• Market Segmentation : Residential, Commercial, Industrial
• Data Recording : data logs, alarm logs, time stamping, event logs, min/max of instantaneous values, maintenance logs
• Device Application : multi-tariff, power monitoring
• Electromagnetic Compatibility : limits for harmonic current emissions class A conforming to IEC 61000-3-2, electrostatic discharge level 4 conforming to IEC 61000-4-2, conducted RF disturbances level 3 conforming to IEC 61000-4-6magnetic field at power frequency level 4 conforming to IEC 61000-4-8, conducted and radiated emissions class B conforming to EN 55022
• Market Segment : buildings medium building cost management: billing: sub feederbuildings large building cost management: billing: sub feederbuildings multi-site cost management: billing: sub feederdata center cost management: billing: sub feederhealthcare cost management: billing: sub feederindustry cost management: billing: sub feederbuildings small building cost management: cost allocation: sub feeder, buildings medium building cost management: cost allocation: main incomer, buildings medium building cost management: cost allocation: sub feeder, buildings large building cost management: cost allocation: main incomer, buildings large building cost management: cost allocation: sub feeder, buildings multi-site cost management: cost allocation: main incomer, buildings multi-site cost management: cost allocation: sub feederdata center cost management: cost allocation: main incomerdata center cost management: cost allocation: sub feederhealthcare cost management: cost allocation: main incomerhealthcare cost management: cost allocation: sub feederindustry cost management: cost allocation: main incomerindustry cost management: cost allocation: sub feederbuildings small building network management: sub feederbuildings medium building network management: main incomerbuildings medium building network management: sub feederbuildings large building network management: sub feederbuildings multi-site network management: sub feeder, data center network management: sub feeder, healthcare network management: sub feeder, industry network management: sub feederbuildings small building cost management: billing: main incomer, buildings small building cost management: billing: sub feeder, buildings medium building cost management: billing: main incomer, buildings large building cost management: billing: main incomer, buildings multi-site cost management: billing: main incomer, data center cost management: billing: main incomer, healthcare cost management: billing: main incomer, industry cost management: billing: main incomer, buildings small building cost management: cost allocation: main incomer, buildings small building network management: main incomer
• Measurement Accuracy : active energy +/- 0.5 %reactive energy +/- 2 %, active power +/- 0.5 %, apparent power +/- 0.5 %frequency +/- 0.05 %power factor +/- 0.5, current +/- 0.5 %, voltage +/- 0.5 %, apparent energy +/- 0.5 %, reactive power +/- 2 %
• Network Frequency : 60 Hz, 50 Hz
• Number Of Poles : 3P, 1P + N, 3P + N
• Type Of Measurement : current, voltage, frequency, power factor, energy, active and reactive power
• Connections - Terminals : voltage circuit screw terminal block4control circuit screw terminal block2current transformer screw terminal block6, input/output circuit screw terminal block6, relay output screw terminal block4Ethernet network RJ45 connector
• Ride-through Time : 100 ms 120 V AC typical400 ms 230 V AC typical, 50 ms 125 V DC typical
• Carbon Footprint Of The Distribution Phase [A4] : 0.06468366293780521, 0.1 kg CO2 eq.
• Carbon Footprint Of The End-of-life Phase [C1 To C4] : 1.0097374787289033, 1 kg CO2 eq.
• Carbon Footprint Of The Installation Phase [A5] : 0 kg CO2 eq., 0.027104465221511866
• Carbon Footprint Of The Manufacturing Phase [A1 To A3] : 14 kg CO2 eq., 13.57565980110084
• Carbon Footprint Of The Use Phase [B2 B3 B4 B6] : 172 kg CO2 eq., 171.68554083633026
• Other Technical Guide Name : PLSED310197EN_Web, PLSED310198EN_Web
• Local Data Status : Publishable
• Local Publishable Date : 2025-06-18
• Return Indicator : Y
• Stocking Flag : N
• Stock Policy : 2
• Device Type : Relay, Control & Measurement - measuring, monitoring device
• Serviceability : Yes
• Traceability : Yes
• Field Service Division : DPIBS
• Average Life Duration : 15 year(s)
• Weee Scope : In
• Weee Product Category : 5
• Scope Perimeter : At least in Europe
• Eoli Availability Display : Yes
• End Of Life Doc Ref : ENVEOLI1305025_V3
• Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : CONTAINS_SVHC
• Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
• Rohs Eur In Scope : Yes
• Rohs Eur Status : Compliant By Exemption
• Rohs Eur Conformity Date : 2031
• Rohs Eur Full Compliance Status : Compliant By Exemption
• China Rohs In Scope : Yes
• China Rohs Label : 7
• With Recycled Cardboard : Yes
• Without Single Use Plastic : No
• Product Contributes To Saved And Avoided Emissions : No
• Tier Id : 1
• Tier : 1
• Function Option Id : STANDARD
• Function Option : Standard
• Product Kit Identifier : N
• Compatibility Code : PM5340
• Device Short Name : PM5340
• Display Resolution : 128 x 128 pixels
• Display Type : monochrome graphic LCD
• Energy Efficiency Optimized : False
• Frequency Measurement Range : 45-65 Hz
• Information Displayed : tariff 4)
• Measurement Current : 5-9000 mA
• Measurement Voltage : 35-760 V AC 45...65 Hz between phases20-400 V AC 45...65 Hz between phase and neutral
• Memory Capacity : 256 kB
• Mounting Mode : flush-mounted
• Mounting Support : framework
• Power Quality Analysis : up to the 31st harmonic
• Product Availability : Stock - Normally stocked in distribution facility
• Product Name : PowerLogic PM5000
• Product Or Component Type : power meter
• Range : PowerLogic
• Returnability : Yes
• Sampling Rate : 64 samples/cycle
• Software Version : v6.2.4
• Sustainable Packaging : No
• Total Lifecycle Carbon Footprint : 186 kg CO2 eq.
• Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• Pep Code : ENVPEP1305025EN
• Database Version : 2024-01
• Pep Verification Date : 2025-09-24
• Pcr Version : PEP-PCR-ed4-2021 09 06
• Psr Version : PSR-0005-ed3.1-EN-2023 12 08
• Type Of Verification For The Pep : Independent external review
• Data Source : extrapolated product
• Functional-unit Description : To measure and monitor electrical parameters over a 10-year period, the device consumes 3.25 watts in active mode (39.50% time) and 2.6 watts in standby mode (60% time), resulting in a total energy consumption of 249.11 kWh. It operates within a supply voltage range of 90-450V AC and 100-300V DC, with a network frequency of 50Hz or 60Hz. The device can measure current (5-8500mA), voltage (35-760V AC, 20-400V DC), and frequency (45-65Hz), ensuring accurate and reliable monitoring in accordance with relevant standards.
• Functional-unit Quantity : 1
• Functional-unit Unit : unit
• Reference Lifetime In Y : 10
• Energy Consumption On Product Lifetime In Kwh : 257.1717
• Energy Model - Manufacturing [A1-a3] : Electricity Mix; Low voltage; 2020; India, IN
• Energy Model - Installation [A5] : No energy used
• Energy Model - Use [B6] : Electricity Mix; Low voltage; 2020; Europe, EU-27
• Energy Model - End Of Life [C1-c4] : Global, European and French datasets are used.
• Recyclability Potential In % : 4
• Height Nominal : 96 mm
• Width Nominal : 96 mm
• Certificate Agency : CE conforming to IEC 61010-1cULus conforming to UL 61010-1
• [Us] Rated Supply Voltage : 90...450 V AC 45...65 Hz100...300 V DC
• Nbr. Of Units In Pkg. : 1
• Package Weight(Lbs) : 502.000 g
• Take-back : No
• Warranty (In Months) : 18
• Customs Code : 9028300000
• Environment Attributes Main
• Ambient Air Temperature For Operation : -25-70 °C meter, -25-70 °C meter, -20-70 °C display, -20-70 °C display, -25--20 °C with reduced performance) display, -25--20 °C with reduced performance) display, -25--20 °C with reduced performance) display-25-70 °C meter, -25-70 °C meter, -20-70 °C display, -20-70 °C display, -25--20 °C with reduced performance) display
• Ambient Air Temperature For Storage : -40-85 °C, -40-85 °C
• Take Back : No
• Recycled Metal Content At Cr Level : 0 %
• China Rohs Regulation : X
• Mercury Free : Yes
• Carbon Footprint : 186.36272624431933
• Circularity Profile : ENVEOLI1305025_V3
• Environmental Disclosure : ENVPEP1305025EN
• Eu Rohs Directive : Compliant By Exemption
• Ip Degree Of Protection : IP51 display: conforming to IEC 60529IP30 rear: conforming to IEC 60529
• Operating Altitude : <= 9842.52 ft (3000 m)<= 9842.52 ft (3000 m)
• Packaging Made With Recycled Cardboard : Yes
• Packaging Without Single Use Plastic : No
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• Relative Humidity : 5-95 % 50-50 °C non-condensing
• Pep Code : ENVPEP1305025EN
• Pep Verification Date : 2025-09-24
• Pcr Version : PEP-PCR-ed4-2021 09 06
• Psr Version : PSR-0005-ed3.1-EN-2023 12 08
• Type Of Verification For The Pep : Independent external review
• General Attributes
• Product Or Component Type : power meter
• ETIM
• ETIM 8 : EC002301
• ETIM 9 : EC002301
• Output Attributes
• Number Of Outputs : 2 relay, 2 digital
• Input Attributes
• Analogue Input Type : voltage (impedance 10 MOhm)current (impedance <= 0.3 mOhm)
• Number Of Inputs : 2 digital
• Specifications
• Country of Origin : India, United States
• Depth : 72 mm
