PM5330 Meter, modbus, up to 31st H, 256K 2DI/2DO 35 alarms

PM5330 Meter, modbus, up to 31st H, 256K 2DI/2DO 35 alarms

SQDMETSEPM5330 METSEPM5330 785901860662
1178.00 / EA
  • Amperage: 1 A
  • Certifications: CE Conforming To IEC 61010-1, CULus Conforming To UL 61010-1
  • Country of Origin: India
  • Depth: 72 mm
  • Height: 3.78 in, 96 mm
  • Mounting Type: Flush-Mounted
  • Number of Outputs: 2
  • Standard: EN 50470-1, EN 50470-3, IEC 60529, IEC 61557-12, IEC 62053-22, IEC 62053-24, UL 61010-1
  • Weight: 15.17 oz, 430 g
  • Width: 3.78 in, 96 mm

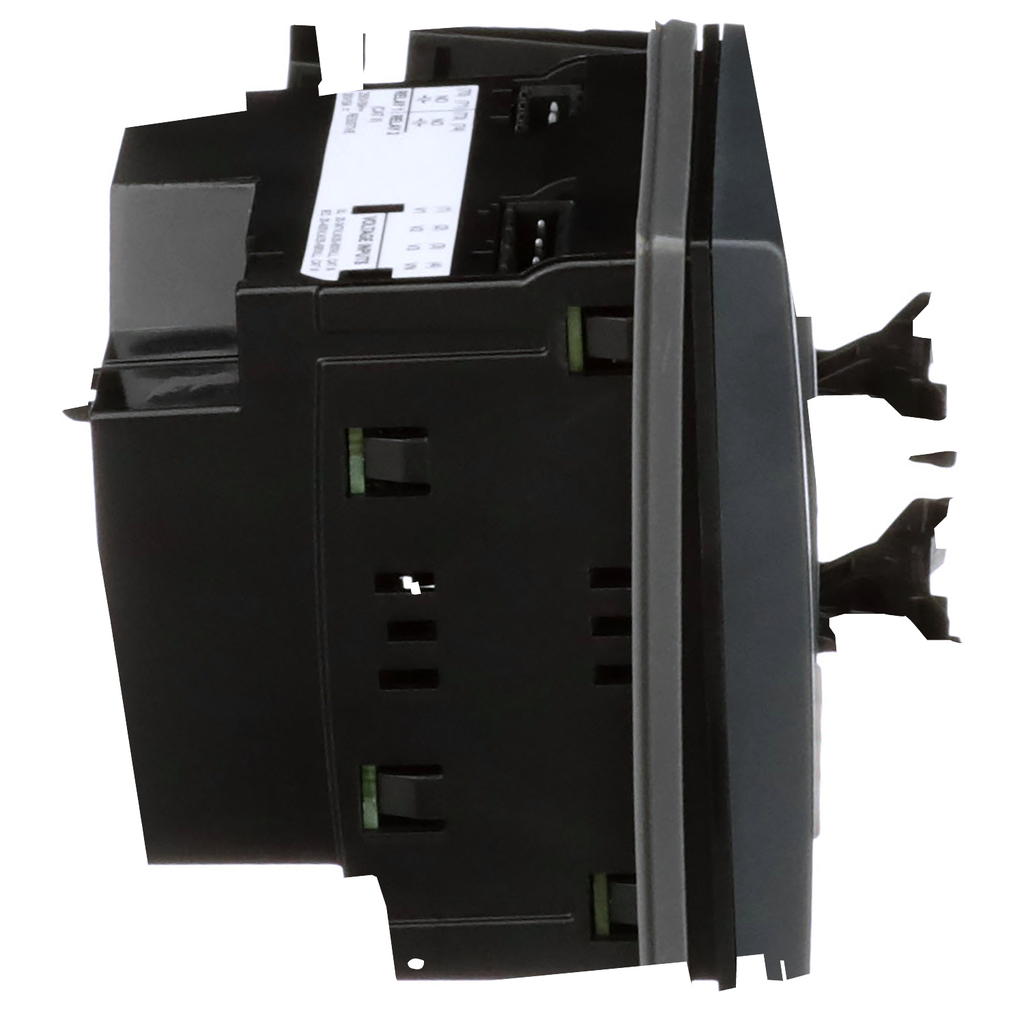

This device is a flush-mount energy meter with a 96mm by 96mm backlit LCD display. The meter provides Class 0.5S accuracy per IEC 62053-22 standard and 64 samples per cycle. The meter will measure Energy, Active and Reactive Power, Voltage, Current, Frequency, Power Factor and up to the 31st Harmonic. Include 256 kiloBytes of memory for two fixed parameters, active and reactive energy. The meter will function in a 50Hz or 60Hz network and accepts supply voltage ranging from 100 to 415 VAC and 125 to 250 VDC. Line rated current for this meter is 1A or 5A input and will support Single Phase and Neutral, Three Phase, or Three Phase and Neutral configurations. The range of measurement voltage between Phases is 35 to 690 VAC at 47 to 63 Hz. Measurement range between Phase and Neutral is 20 to 400VAC at 47 to 63 Hz. Communication protocol is Modbus RTU and ASCII 2 wires with RS485 port support. The meter also has two digital inputs or digital outputs, configurable, and dual relay outputs. There are 35 configurable alarms and it supports four tariff schedules. Product dimensions are as follows: width 3.78 inches (96 millimetres), depth 2.83 inches (72 millimetres), height 3.78 inches (96 millimetres) and product weight 15.2 onces (430 g).
  • Product Description
  • Specifications
This device is a flush-mount energy meter with a 96mm by 96mm backlit LCD display. The meter provides Class 0.5S accuracy per IEC 62053-22 standard and 64 samples per cycle. The meter will measure Energy, Active and Reactive Power, Voltage, Current, Frequency, Power Factor and up to the 31st Harmonic. Include 256 kiloBytes of memory for two fixed parameters, active and reactive energy. The meter will function in a 50Hz or 60Hz network and accepts supply voltage ranging from 100 to 415 VAC and 125 to 250 VDC. Line rated current for this meter is 1A or 5A input and will support Single Phase and Neutral, Three Phase, or Three Phase and Neutral configurations. The range of measurement voltage between Phases is 35 to 690 VAC at 47 to 63 Hz. Measurement range between Phase and Neutral is 20 to 400VAC at 47 to 63 Hz. Communication protocol is Modbus RTU and ASCII 2 wires with RS485 port support. The meter also has two digital inputs or digital outputs, configurable, and dual relay outputs. There are 35 configurable alarms and it supports four tariff schedules. Product dimensions are as follows: width 3.78 inches (96 millimetres), depth 2.83 inches (72 millimetres), height 3.78 inches (96 millimetres) and product weight 15.2 onces (430 g).
  • Offer Sustainability
    • WEEE : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • Green Premium Status : Green Premium product
    • EU RoHs Directive : Compliant
    • California Proposition 65 : WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
    • Mercury Free : Yes
  • Ordering And Shipping Details
    • Nbr. Of Units In Pkg. : 1
    • Country Of Origin : IN
    • GTIN : 00785901860662
    • Category : 09777 - POWERLOGIC PM5000 HARDWARE
    • Returnability : Yes
    • Discount Schedule : PL1
  • Environment
    • Ambient Air Temp For Op : -13…158 °F (-25…70 °C)
    • Pollution Degree : 2
    • Ambient Air Temp For Storage : -40…185 °F (-40…85 °C)
    • IP Degree Of Protection : IP52 front: conforming to IEC 60529 || IP30 body: conforming to IEC 60529
    • Relative Humidity : 5…95 % at 50 °C
    • Operating Altitude : 6561.68 ft (2000 m)
    • Electromagnetic Compatibility : Limits for harmonic current emissionsclass A IEC 61000-3-2 || Electrostatic discharge level 4 conforming to IEC 61000-4-2 || Conducted RF disturbanceslevel 3 IEC 61000-4-6 || Magnetic field at power frequency level 4 conforming to IEC 61000-4-8 || Conducted and radiated emissions class B conforming to EN 55022
  • Complementary
    • Frequency Measurement Range : 45…65 Hz
    • Height : 3.78 in (96 mm)
    • Device Application : Power monitoring || Multi-tariff
    • Analogue Input Type : voltage 5 MOhm) || Current (impedance 0.3 MOhm)
    • Measurement Accuracy : Active energy +/- 0.5 % || Reactive energy +/- 2 % || Active power +/- 0.5 % || Apparent power +/- 0.5 % || Frequency +/- 0.05 % || Power factor +/- 0.005 || Current +/- 0.5 % || Voltage +/- 0.5 %
    • Number Of Outputs : 2 relay || 2 digital
    • Supply Voltage : 100...415 V AC 45...65 Hz || 125...250 V DC
    • Depth : 72 mm
    • Display Resolution : 128 x 128 pixels
    • Memory Capacity : 256 kB
    • Power Quality Analysis : up to the 31st harmonic
    • Product Weight : 15.17 oz (430 g)
    • Sampling Rate : 64 samples/cycle
    • Number Of Inputs : 2 digital
    • Network Frequency : 50 Hz || 60 Hz
    • Data Recording : Maintenance logs || Time stamping || Alarm logs || Data logs || Min/max of instantaneous values || Event logs
    • Ride-Through Time : 80 ms 120 V AC typical || 100 ms 230 V AC typical || 100 ms 415 V AC typical
    • Product Certifications : CE conforming to IEC 61010-1 || CULus conforming to UL 61010-1
    • Information Displayed : Tariff (4)
    • Standards : UL 61010-1 || IEC 62053-22 || IEC 61557-12 || EN 50470-3 || IEC 60529 || IEC 62053-24 || EN 50470-1
    • Communication Port Protocol : Modbus RTU and ASCII at 9.6, 19.2 and 38.4 kbauds even/odd or none - 2 wires, insulation 2500 V || JBUS
    • Communication Port Support : RS485
    • Measurement Voltage : 35…690 V AC 45...65 Hz between phases || 20…400 V AC 45...65 Hz between phase and neutral
    • Measurement Current : 10…9000 mA
    • Mounting Support : Framework
    • Type Of Measurement : Current || Voltage || Frequency || Power factor || Energy || Active and reactive power
    • Accuracy Class : Class 0.5S active energy IEC 62053-22
    • Power Consumption In Va : 10 VA at 415 V
    • Width : 3.78 in (96 mm)
    • Display Type : Backlit LCD
    • In Rated Current : 1 A || 5 A
    • Type Of Network : 3P + N || 3P || 1P + N
    • Connections - Terminals : Voltage circuit: screw terminal block4 || Control circuit: screw terminal block2 || Current transformer: screw terminal block6 || Input/output circuit: screw terminal block6 || Relay output: screw terminal block4 || Ethernet network: RJ45 connector
    • Mounting Mode : Flush-mounted
  • Main
    • Product Name : PowerLogic PM5000
    • Product Or Component Type : Power meter
    • Range : PowerLogic
    • Device Short Name : PM5330
