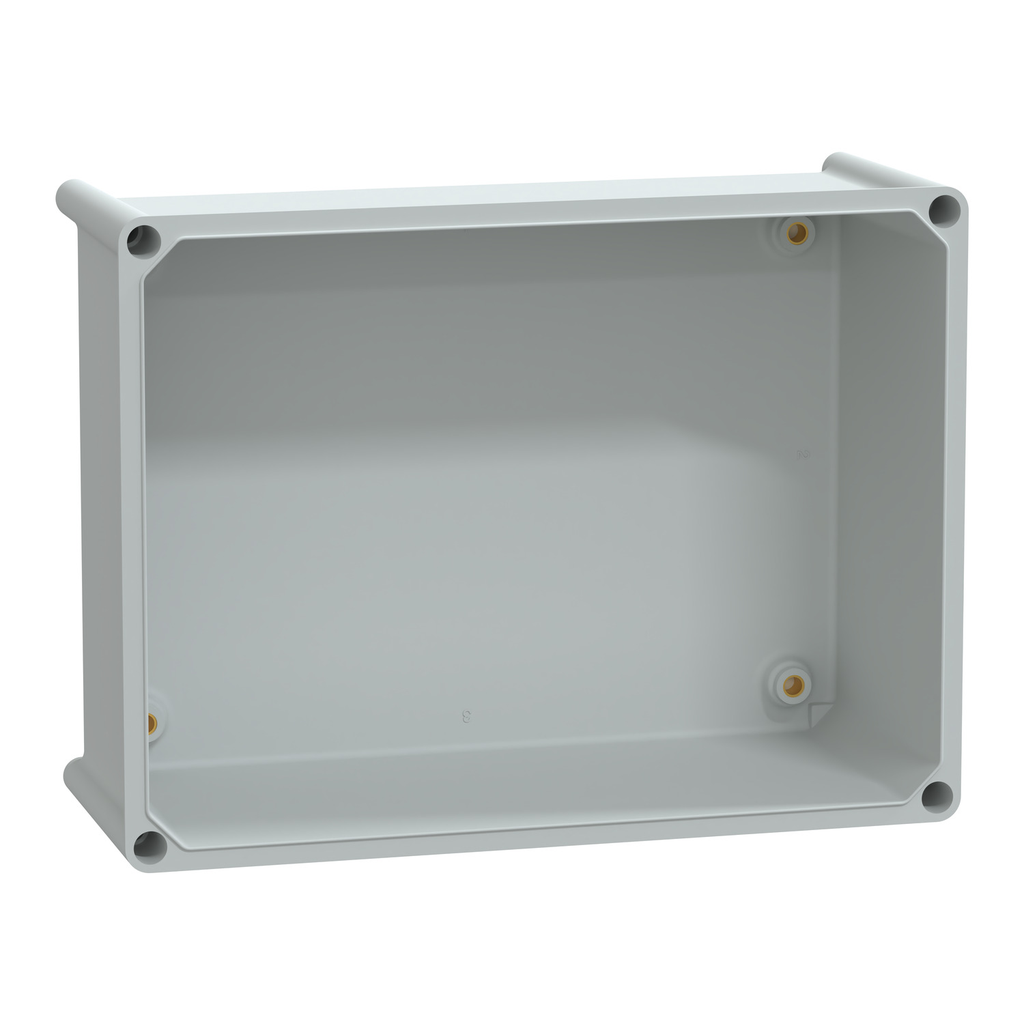

PLS box, polyester rear, transparent PC cover IP66 27x36x18cm

PLS box, polyester rear, transparent PC cover IP66 27x36x18cm

SQDNSYPLS2736G NSYPLS2736G 360648077687
0.00 / EA
  • Certifications: UL
  • Country of Origin: Spain
  • Material: Cover Polycarbonate, Rear Polyester Reinforced With Fibreglass
  • Standard: IEC 62208, NEMA 4X, NEMA Classification 13
Thalassa PLS box polyester rear with transparent PC cover. 270 x 360 x 180 mm. Insulating modular box. One piece moulded body. Wall mounted. High transparent cover, cover locking screw removable. Polyester reinforced with fibreglass rear, polycarbonate cover. Grey RAL 7035. IP65, IK09, NEMA (13,4X) 960°C fire resistance. Insulation Class II.
  • Product Description
  • Specifications
Thalassa PLS box polyester rear with transparent PC cover. 270 x 360 x 180 mm. Insulating modular box. One piece moulded body. Wall mounted. High transparent cover, cover locking screw removable. Polyester reinforced with fibreglass rear, polycarbonate cover. Grey RAL 7035. IP65, IK09, NEMA (13,4X) 960°C fire resistance. Insulation Class II.
  • Complementary
    • Product Certifications : UL
    • Removable Parts : Cover locking screw
    • Material : Cover polycarbonate || Rear polyester reinforced with fibreglass
    • Colour : Body Gray RAL 7035)
    • Standards : NEMA classification 13 || IEC 62208 || NEMA 4X
  • Ordering And Shipping Details
    • Category : 80034 - ENCLOSURE SYSTEMS WALL MOUNT METAL
    • Discount Schedule : ES1
    • GTIN : 03606480776878
    • Nbr. Of Units In Pkg. : 1
    • Returnability : No
    • Country Of Origin : ES
  • Environment
    • Fire Resistance : 1760 °F (960 °C) IEC 62208
    • Ambient Air Temp For Storage : -22…158 °F (-30…70 °C)
    • Electrical Insulation Class : Class II
    • IP Degree Of Protection : IP66 IEC 60529
    • IK Degree Of Protection : IK09 IEC 62262
  • Offer Sustainability
    • EU RoHs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • Green Premium Status : Green Premium product
    • Mercury Free : Yes
  • Main
    • Type Of Front Cover : Low transparent cover
    • Enclosure Type : Multi-purpose
    • Product Name : Thalassa PLS
    • Nominal Height : 10.63 in (270 mm)
    • Enclosure Mounting : Wall mounted
    • Nominal Depth : 7.09 in (180 mm)
    • Device Composition : 1 cover on enclosure || 1 rear part on enclosure || locking screws
    • Nominal Width : 14.17 in (360 mm)
    • Body Type : One piece moulded
    • Lock Type : Slot screw
    • Category : Insulating modular box
    • Range : Thalassa
    • Device Short Name : PLS
