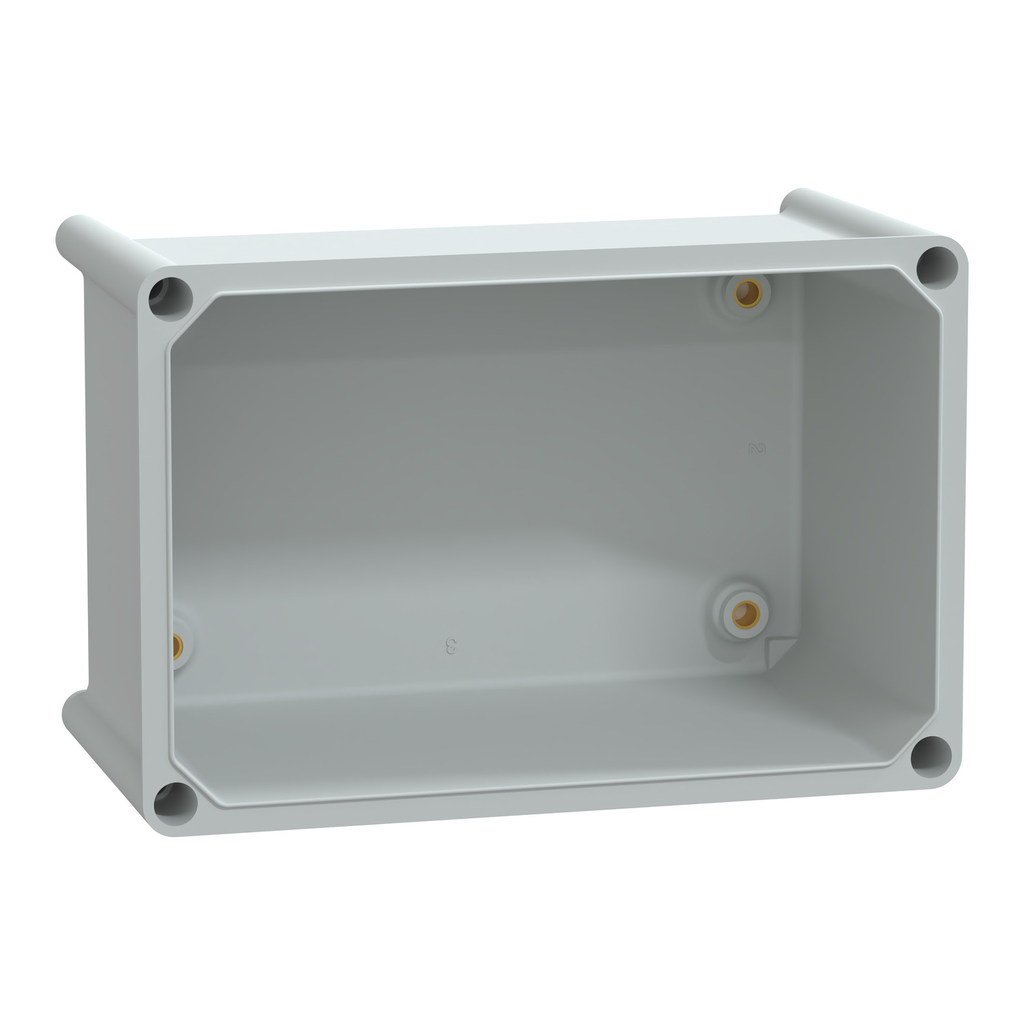

PLS box, polyester rear, transparent PC cover IP66 18x27x18cm

7035 Transp PLS box18x27x18

SQDNSYPLS1827G NSYPLS1827G 3606480776816
46.91 / EA
http://schema.org/OutOfStock
PLS box, polyester rear, transparent PC cover IP66 18x27x18cm
  • Body Type: One Piece Moulded
  • Country of Origin: Spain
  • Enclosure Depth: 180 mm
  • Enclosure Height: 180 mm
  • Enclosure Width: 270 mm
  • Height: 180 mm
  • Lock Type: Slot Screw
  • Warranty Length: 18 mth
  • Width: 270 mm
Thalassa PLS box polyester rear with transparent PC cover. 180 x 270 x 180 mm. Insulating modular box. One piece moulded body. Wall mounted. High transparent cover, cover locking screw removable. Polyester reinforced with fibreglass rear, polycarbonate cover. Grey RAL 7035. IP65, IK09, NEMA (13,4X) 960°C fire resistance. Insulation Class II.
QTY
  • Product Description
  • Specifications
Thalassa PLS box polyester rear with transparent PC cover. 180 x 270 x 180 mm. Insulating modular box. One piece moulded body. Wall mounted. High transparent cover, cover locking screw removable. Polyester reinforced with fibreglass rear, polycarbonate cover. Grey RAL 7035. IP65, IK09, NEMA (13,4X) 960°C fire resistance. Insulation Class II.
  • Environment
    • Ik Degree Of Protection : IK09 IEC 62262
    • Electrical Insulation Class : class II
    • Ambient Air Temperature For Storage : -30-70 °C
    • Ip Degree Of Protection : IP66 IEC 60529
    • Fire Resistance : 960 °C IEC 62208
  • Contractual warranty
    • Warranty : 18 months
  • Environmental data
    • Rohs Exemption Information : Yes
    • Packaging Made With Recycled Cardboard : No
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP110704EN
    • Packaging Without Single Use Plastic : No
    • Scip Number : a18cb304-12b9-4d34-8ea6-7f2f757726a8
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • Minimum Percentage Of Recycled Plastic Content : 0
    • Circularity Profile : N/A
    • Take-Back : No
    • Global Warming ; Total Life Cycle​ : 13 kg CO2 eq.
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • Carbon Footprint (Kg Co2 Eq, Total Life Cycle) : 13.478066432177506
  • Complementary
    • Product Certifications : UL
    • Removable Parts : cover locking screw
    • Standards : NEMA classification 13 || IEC 62208 || NEMA 4X
    • Material : Cover polycarbonate || rear polyester reinforced with fibreglass
    • Color : body Gray RAL 7035)
  • Specifications
    • Country of Origin : Spain
    • Width : 270 mm
    • Height : 180 mm
    • Product Or Component Type : insulating modular box
    • Product Name : PanelSeT PLS
    • Device Composition : 1 cover on enclosure || 1 rear part on enclosure || locking screws
    • Enclosure Nominal Height : 180 mm
    • Type Of Front Cover : low transparent cover
    • Lock Type : slot screw
    • Range : PanelSeT
    • Body Type : one piece moulded
    • Enclosure Mounting : wall mounted
    • Enclosure Nominal Depth : 180 mm
    • Device Application : multi-purpose
    • Device Short Name : PLS
    • Enclosure Nominal Width : 270 mm
