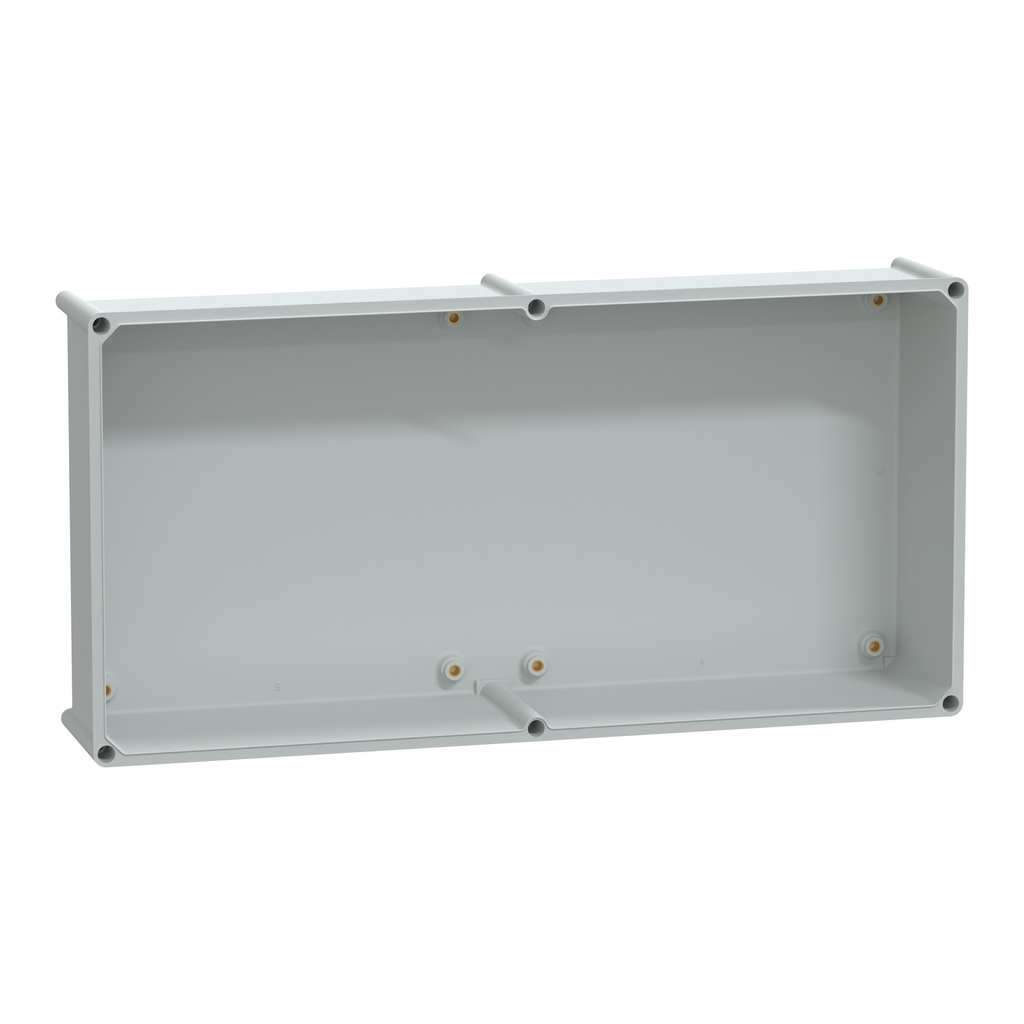

PLS box, polyester rear, opaque PC cover IP66 36x72x23cm

PLS box, polyester rear, opaque PC cover IP66 36x72x23cm

SQDNSYPLSC3672AG NSYPLSC3672AG 3606480777196
160.11 / EA
http://schema.org/OutOfStock
  • Body Type: One Piece Moulded
  • Country of Origin: Spain
  • Enclosure Depth: 230 mm
  • Enclosure Height: 360 mm
  • Enclosure Width: 720 mm
  • Height: 360 mm
  • Lock Type: Slot Screw
  • Warranty Length: 18 mth
  • Width: 720 mm
Thalassa PLS box polyester rear with opaque PC cover. 360 x 720x 230 mm. Insulating modular box. One piece moulded body. Wall mounted. High plain cover, cover locking screw removable. Polyester reinforced with fibreglass rear, polycarbonate cover. Grey RAL 7035. IP65, IK09, NEMA (13,4X) 960°C fire resistance. Insulation Class II.
QTY
  • Product Description
  • Specifications
Thalassa PLS box polyester rear with opaque PC cover. 360 x 720x 230 mm. Insulating modular box. One piece moulded body. Wall mounted. High plain cover, cover locking screw removable. Polyester reinforced with fibreglass rear, polycarbonate cover. Grey RAL 7035. IP65, IK09, NEMA (13,4X) 960°C fire resistance. Insulation Class II.
  • Environment
    • Ik Degree Of Protection : IK09 IEC 62262
    • Electrical Insulation Class : class II
    • Ambient Air Temperature For Storage : -30-70 °C
    • Ip Degree Of Protection : IP66 IEC 60529
    • Fire Resistance : 960 °C IEC 62208
  • Contractual warranty
    • Coverage : Core product
    • Warranty : 18 months
  • Environmental data
    • Rohs Exemption Information : Yes
    • Packaging Made With Recycled Cardboard : No
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP110704EN
    • Packaging Without Single Use Plastic : No
    • Scip Number : a18cb304-12b9-4d34-8ea6-7f2f757726a8
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • Circularity Profile : N/A
    • Take-Back : No
    • Global Warming ; Total Life Cycle​ : 55 kg CO2 eq.
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • Carbon Footprint (Kg Co2 Eq, Total Life Cycle) : 54.62057252319382
  • Complementary
    • Product Certifications : UL
    • Removable Parts : cover locking screw
    • Standards : NEMA 4X || NEMA classification 13 || IEC 62208
    • Material : Cover polycarbonate || rear polyester reinforced with fibreglass
    • Color : body Gray RAL 7035)
  • Specifications
    • Country of Origin : Spain
    • Width : 720 mm
    • Height : 360 mm
    • Product Or Component Type : insulating modular box
    • Product Name : Thalassa PLS
    • Device Composition : 1 cover on enclosure || 1 rear part on enclosure || locking screws
    • Enclosure Nominal Height : 360 mm
    • Type Of Front Cover : high plain cover
    • Lock Type : slot screw
    • Range : Thalassa
    • Body Type : one piece moulded
    • Enclosure Mounting : wall mounted
    • Enclosure Nominal Depth : 230 mm
    • Device Application : multi-purpose
    • Device Short Name : PLS
    • Enclosure Nominal Width : 720 mm
