Schneider Electric at Mayer

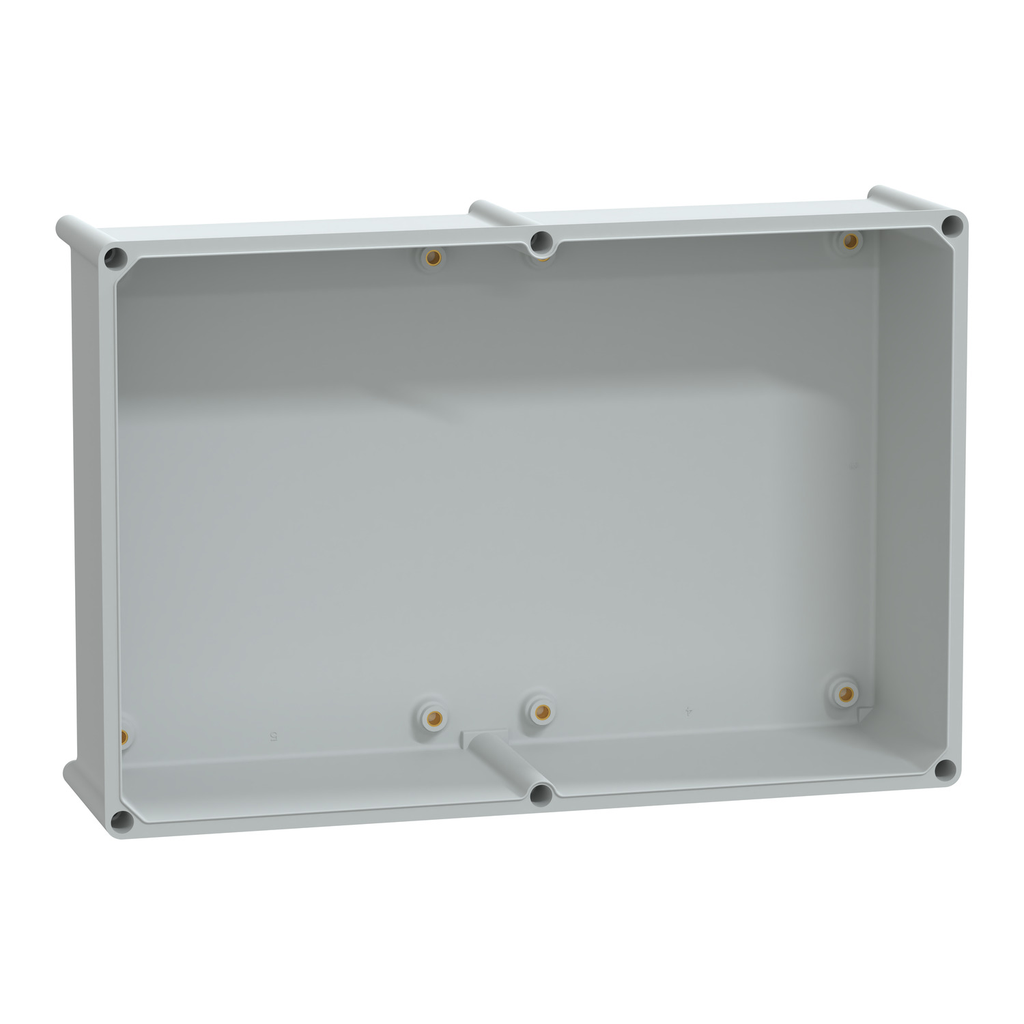

PLS box, polyester rear, opaque PC cover IP66 36x54x23cm

7035 opaq PC PLS box36x54x23

SQDNSYPLSC3654AG NSYPLSC3654AG 3606480777189
121.92 / EA
http://schema.org/OutOfStock
Mayer-DDS-PLS box, polyester rear, opaque PC cover IP66 36x54x23cm-2
  • Body Type: One Piece Moulded
  • Country of Origin: Spain
  • Enclosure Height: 360 mm
  • Enclosure Width: 540 mm
  • Lock Type: Slot Screw
  • Warranty Length: 18 mth
QTY
  • Features
  • Specifications
  • Carbon Footprint Of The Installation Phase A5
    • 0.5346894573332377
    • 0.5 kg CO2 eq.
  • Carbon Footprint Of The End Of Life Phase C1 To C4
    • 9 kg CO2 eq.
    • 8.817542942171285
  • Standards
    • NEMA 4X
    • NEMA classification 13
    • IEC 62208
  • Ip Degree Of Protection
    • IP66 IEC 60529
  • Material
    • Cover polycarbonate
    • rear polyester reinforced with fibreglass
  • Carbon Footprint Of The Manufacturing Phase A1 To A3
    • 24 kg CO2 eq.
    • 24.010752109064125
  • Removable Parts
    • cover locking screw
  • Accessories
    • NSYFPLS3654G
    • NSYTPLS3654A
    • NSYTPLSC3654AG
    • NSYPMM3654
    • NSYPMR3654
    • NSYPMA3654G
    • NSYPF27X
    • NSYATM27
    • NSYUM27360
    • NSYTL27360G
  • Market Segmentation
    • Commercial
    • Industrial
  • Persona Type Names
    • Contractor
    • Original Equipment Manufacturer
    • OEM - Control Panelbuilder
    • Panel Builder
    • System Integrator
  • Device Composition
    • 1 cover on enclosure
    • 1 rear part on enclosure
    • locking screws
  • Fire Resistance
    • 960 °C IEC 62208
  • Carbon Footprint Of The Use Phase B2 B3 B4 B6
    • 0 kg CO2 eq.
    • 0
  • Persona Type Ids
    • LC
    • OM
    • OM8
    • PB
    • SI
  • Carbon Footprint Of The Distribution Phase A4
    • 8.143793648182193
    • 8 kg CO2 eq.
  • Market Segmentation Id
    • COMMERCIAL
    • INDUSTRIAL
  • Color
    • body Gray RAL 7035)
  • Physical Attributes
    • Enclosure Nominal Height : 360 mm
    • Enclosure Nominal Width : 540 mm
  • Conformance Attributes
    • Product Certifications : UL
  • Important Information Attributes
    • Country Id : US
    • Local Data Status : Publishable
    • Local Publishable Date : 2025-03-11
    • ETIM 10 : EC000058
    • Manufacturing Carbon Footprint : 24.0107521090641
    • Distribution Carbon Footprint : 8.14379364818219
    • Installation Carbon Footprint : 0.534689457333238
    • Use Carbon Footprint : 0
    • End Of Life Carbon Footprint : 8.81754294217128
    • Legacy WEEE Scope : Out
    • Scope Perimeter : At least in Europe
    • EOLI Availability Display : No need of specific recycling operations
    • Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : CONTAINS_SVHC
    • Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
    • ROHS Eur In Scope : No
    • ROHS Eur Status : Compliant with Exemptions
    • ROHS Eur Conformity Date : 2051
    • ROHS Eur Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
    • ROHS Eur Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
    • China ROHS In Scope : No
    • Green Premium Status For Reporting : Green Premium product
    • With Recycled Cardboard : No
    • Without Single Use Plastic : No
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : N
    • WD Status : 1 - GSC certified
    • Tier Id : 2
    • Tier : 2
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Body Type : one piece moulded
    • Device Application : multi-purpose
    • Device Short Name : PLS
    • Electrical Insulation Class : class II
    • Enclosure Mounting : wall mounted
    • Energy Efficiency Optimized : False
    • Lock Type : slot screw
    • Package Weight Lbs : 4.102 kg
    • Product Availability : Non-Stock - Not normally stocked in distribution facility
    • Product Or Component Type : insulating modular box
    • Range : PanelSeT
    • Returnability : No
    • Sustainable Packaging : No
    • Total Lifecycle Carbon Footprint : 42 kg CO2 eq.
    • Type Of Front Cover : high plain cover
    • Carbon Footprint Kg Co2 Eq Total Life Cycle : 41.50677815675084
    • Relationshiptype : Compatible relationship
  • General Attributes
    • Product Or Component Type : insulating modular box
  • Environment Attributes
    • ROHS Exemption Information : Yes
    • China ROHS Url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=421416302&lang=en-us
    • Take Back : No
    • Recycled Metal Content At Cr Level : 0 %
    • China ROHS Regulation : Product out of China RoHS scope. Substance declaration for your information.
    • Mercury Free : Yes
    • Carbon Footprint : 41.5067781567508
    • Ambient Air Temperature For Storage : -30-70 °C
    • Environmental Disclosure : ENVPEP110704EN
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • Packaging Made With Recycled Cardboard : No
    • Packaging Without Single Use Plastic : No
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
  • Specifications
    • Country of Origin : Spain
