PILOT LIGHT 48V 30MM TYPE K +OPTIONS

PILOT LIGHT 48V 30MM TYPE K +OPTIONS

SQD9001KP36LGG9 9001KP36LGG9 338911804115
0.00 / EA
  • Bezel Material: Chromium Plated Metal
  • Certifications: NEMA, UL 508
  • Country of Origin: Mexico
  • Lens Type: Domed Plastic
  • Standard: CSA C22.2 No 14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, JIS C 852, JIS C8201-1, JIS C8201-5-1, UL 508
  • Warranty Length: 18 mth
  • Weight: 0.134 kg, 0.30 lb

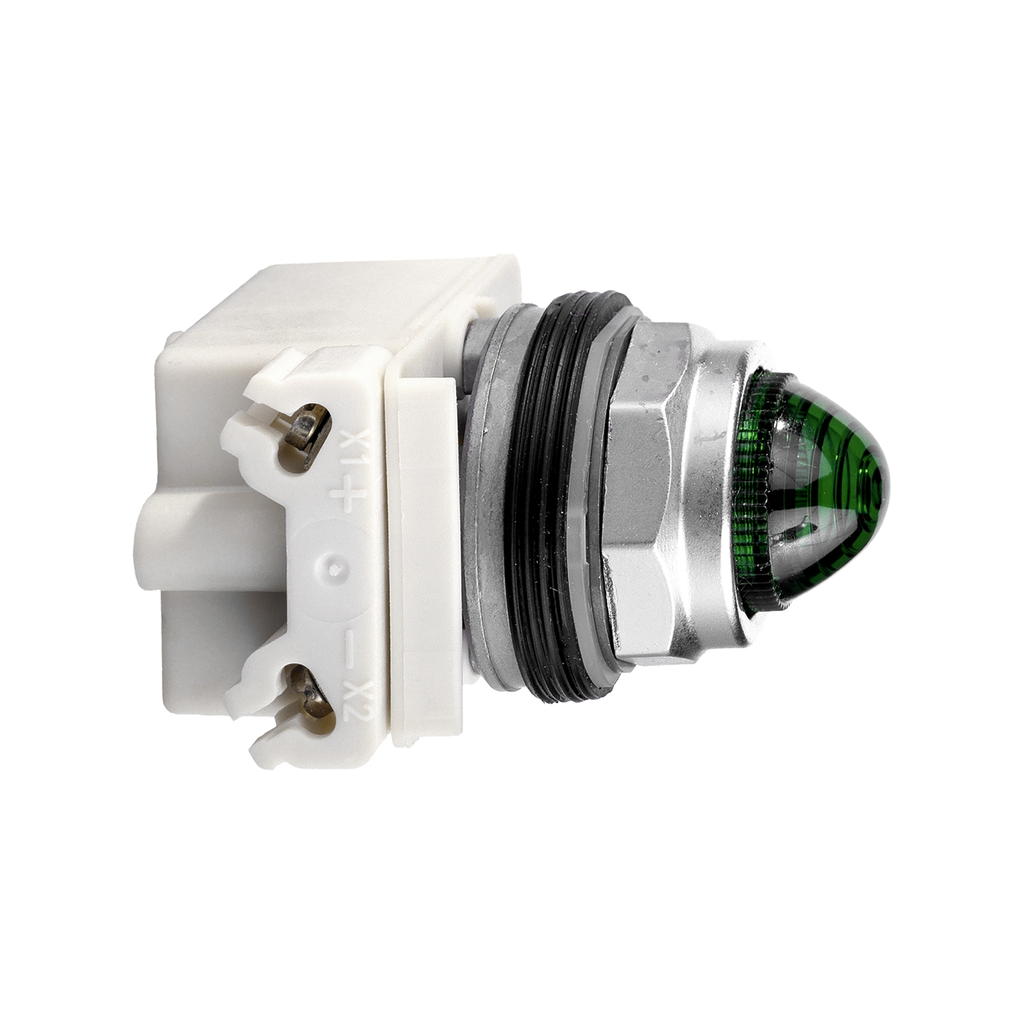

This Harmony 9001K, green pilot light is supplied with 48V AC/DC. It has a chromium-plated metal bezel. This single component pilot light provides clear visual feedback on the status of your machines. It is easily installed into a standard 30mm diameter panel cut-outs and connected with simple screw-clamp connections. It is clearly distinguishable visually at a distance due to clear colors and illumination via integral LED, enabling complex machine statuses to be read at a glance. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Impact and corrosion resistant metal bezel and body ensures product continues to operate even after severe accidents.
  • Product Description
  • Specifications
This Harmony 9001K, green pilot light is supplied with 48V AC/DC. It has a chromium-plated metal bezel. This single component pilot light provides clear visual feedback on the status of your machines. It is easily installed into a standard 30mm diameter panel cut-outs and connected with simple screw-clamp connections. It is clearly distinguishable visually at a distance due to clear colors and illumination via integral LED, enabling complex machine statuses to be read at a glance. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Impact and corrosion resistant metal bezel and body ensures product continues to operate even after severe accidents.
  • Environment
    • Protective Treatment : TC
    • Overvoltage Category : Class II conforming to IEC 61140
    • Product Certifications : UL 508 || NEMA
    • Vibration Resistance : 7 gn 2…500 Hz)IEC 60068-2-6
    • IP Degree Of Protection : IP66 IEC 60529
    • Nema Degree Of Protection : NEMA 1 || NEMA 12 || NEMA 13 || NEMA 2 || NEMA 3 || NEMA 3R || NEMA 4 || NEMA 6
    • Standards : EN/IEC 60947-1 || EN/IEC 60947-5-1 || JIS C8201-5-1 || EN/IEC 60947-5-4 || UL 508 || CSA C22.2 No 14 || JIS C 852 || JIS C8201-1
    • Ambient Air Temp For Op : -13…158 °F (-25…70 °C)
    • Ambient Air Temp For Storage : -40…158 °F (-40…70 °C)
    • Shock Resistance : 50 gn IEC 60068-2-27
  • Ordering And Shipping Details
    • Category : 21426 - 9001 K (NOT KA,KM,KX)
    • GTIN : 03389118041158
    • Discount Schedule : CS1
    • Country Of Origin : MX
    • Nbr. Of Units In Pkg. : 1
    • Returnability : No
  • Complementary
    • Light Block Supply : Direct 48 V AC/DC
    • Device Presentation : Complete product
    • Ith Cnvtl Free Air Therm Crrt : 10 A
    • Cap/Operator Or Lens Colour : Green
    • Operating Position : Any position
    • Cad Overall Width : 2.13 in (54 mm)
    • Tightening Torque : 7.08 lbf.in (0.8 N.m) IEC 60947-1
    • Cad Overall Depth : 1.65 in (42 mm)
    • [Us] Rated Supply Voltage : 48 V AC/DC
    • Cad Overall Height : 2.76 in (70 mm)
    • Mounting Diameter : 1.18 in (30 mm)
    • Bulb Base : BA 9s
    • Shape Of Signaling Unit Head : Round
    • Ui Rated Insulation Voltage : 250 V 2)IEC 60947-1
    • Bezel Material : Chromium plated metal
    • Short-Circuit Protection : 10 A cartridge fuse IEC 60947-5-1
    • Uimp Rated Imp Wstd Voltage : 2.5 kV IEC 60947-1
    • Light Source : Green LED
    • Connections - Terminals : Screw clamp terminals, 1 x 0.22...2 x 1.5 mm² IEC 60947-1
    • Lens Type : Domed plastic
    • Light Source : High luminosity LED
    • Shape Of Screw Head : Cross slotted
    • Product Weight : 0.30 lb(US) (0.134 kg)
  • Main
    • Range Of Product : Harmony 9001K
    • Product Or Component Type : Pilot light
    • Device Short Name : 9001K
  • Contractual Warranty
    • Warranty : 18 months
  • Offer Sustainability
    • Mercury Free : Yes
    • Green Premium Status : Green Premium product
    • WEEE : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • EU RoHs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
