PILOT LIGHT 480VAC 30MM TYPE K +OPTIONS

PILOT LIGHT 480VAC 30MM TYPE K

SQD9001KP5R9 9001KP5R9 785901820543
153.00 / EACH
  • Bezel Material: Chromium Plated Metal
  • Certifications: NEMA, UL 508
  • Country of Origin: Mexico
  • Lens Type: Domed Plastic
  • Standard: CSA C22.2 No 14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, JIS C 852, JIS C8201-1, JIS C8201-5-1, UL 508
  • Warranty Length: 18 mth
  • Weight: 0.21 kg, 0.46 lb

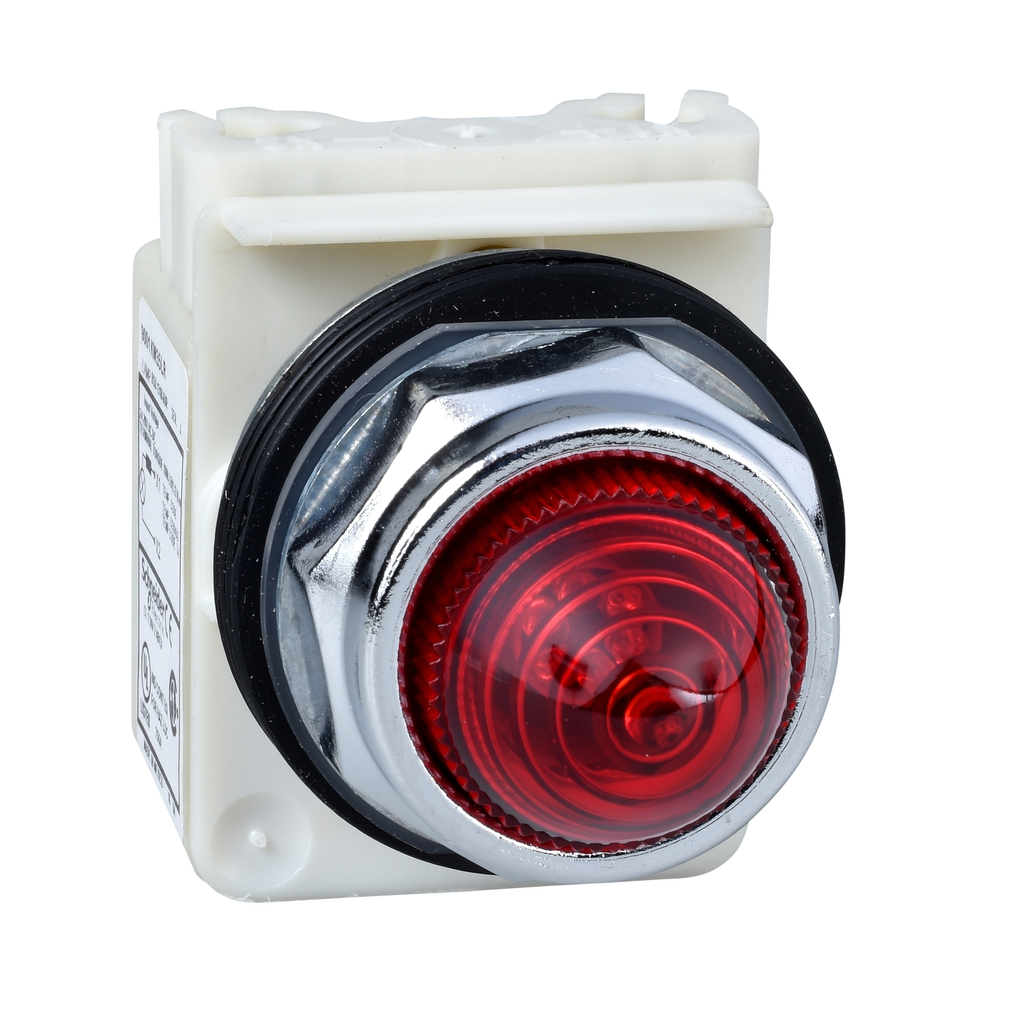

This Harmony 9001K, red pilot light with transformer and plastic dome is supplied with 380V to 480V AC. It has a chromium-plated metal bezel. This single component pilot light with transformer provides clear visual feedback on the status of your machines. It is easily installed into a standard 30mm diameter panel cut-outs and connected with simple screw-clamp connections. It is clearly distinguishable visually at a distance due to clear colors and illumination via integral LED, enabling complex machine statuses to be read at a glance. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Impact and corrosion resistant metal bezel and body ensures product continues to operate even after severe accidents.
  • Product Description
  • Specifications
This Harmony 9001K, red pilot light with transformer and plastic dome is supplied with 380V to 480V AC. It has a chromium-plated metal bezel. This single component pilot light with transformer provides clear visual feedback on the status of your machines. It is easily installed into a standard 30mm diameter panel cut-outs and connected with simple screw-clamp connections. It is clearly distinguishable visually at a distance due to clear colors and illumination via integral LED, enabling complex machine statuses to be read at a glance. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Impact and corrosion resistant metal bezel and body ensures product continues to operate even after severe accidents.
  • Ordering And Shipping Details
    • Nbr. Of Units In Pkg. : 1
    • GTIN : 00785901820543
    • Country Of Origin : MX
    • Category : 21426 - 9001 K (NOT KA,KM,KX)
    • Returnability : No
    • Discount Schedule : CS1
  • Offer Sustainability
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Mercury Free : Yes
    • EU RoHs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • WEEE : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • Green Premium Status : Green Premium product
  • Main
    • Device Short Name : 9001K
    • Product Or Component Type : Pilot light
    • Range Of Product : Harmony 9001K
  • Contractual Warranty
    • Warranty : 18 months
  • Complementary
    • Cad Overall Width : 2.13 in (54 mm)
    • Light Source : incandescent
    • Uimp Rated Imp Wstd Voltage : 2.5 kV IEC 60947-1
    • Mounting Diameter : 1.18 in (30 mm)
    • Light Block Supply : Via integral transformer 380...480 V AC 50/60 Hz 6 V)
    • Shape Of Screw Head : Cross slotted
    • Cad Overall Height : 2.76 in (70 mm)
    • Shape Of Signaling Unit Head : Round
    • Ui Rated Insulation Voltage : 250 V 2)IEC 60947-1
    • Tightening Torque : 7.08 lbf.in (0.8 N.m) IEC 60947-1
    • Cap/Operator Or Lens Colour : Red
    • Device Presentation : Complete product
    • Operating Position : Any position
    • Short-Circuit Protection : 10 A cartridge fuse IEC 60947-5-1
    • Lens Type : Domed plastic
    • Light Source : Incandescent
    • Ith Cnvtl Free Air Therm Crrt : 10 A
    • Cad Overall Depth : 1.65 in (42 mm)
    • Product Weight : 0.46 lb(US) (0.21 kg)
    • Bezel Material : Chromium plated metal
    • Bulb Base : BA 9s
    • [Us] Rated Supply Voltage : 380...480 V AC
    • Connections - Terminals : Screw clamp terminals, 1 x 0.22...2 x 1.5 mm² IEC 60947-1
  • Environment
    • IP Degree Of Protection : IP66 IEC 60529
    • Vibration Resistance : 7 gn 2…500 Hz)IEC 60068-2-6
    • Ambient Air Temp For Op : -13…158 °F (-25…70 °C)
    • Ambient Air Temp For Storage : -40…158 °F (-40…70 °C)
    • Overvoltage Category : Class II conforming to IEC 61140
    • Nema Degree Of Protection : NEMA 1 || NEMA 12 || NEMA 13 || NEMA 2 || NEMA 3 || NEMA 3R || NEMA 4 || NEMA 6
    • Product Certifications : NEMA || UL 508
    • Protective Treatment : TC
    • Shock Resistance : 50 gn IEC 60068-2-27
    • Standards : EN/IEC 60947-1 || EN/IEC 60947-5-4 || UL 508 || JIS C 852 || JIS C8201-5-1 || CSA C22.2 No 14 || EN/IEC 60947-5-1 || JIS C8201-1
