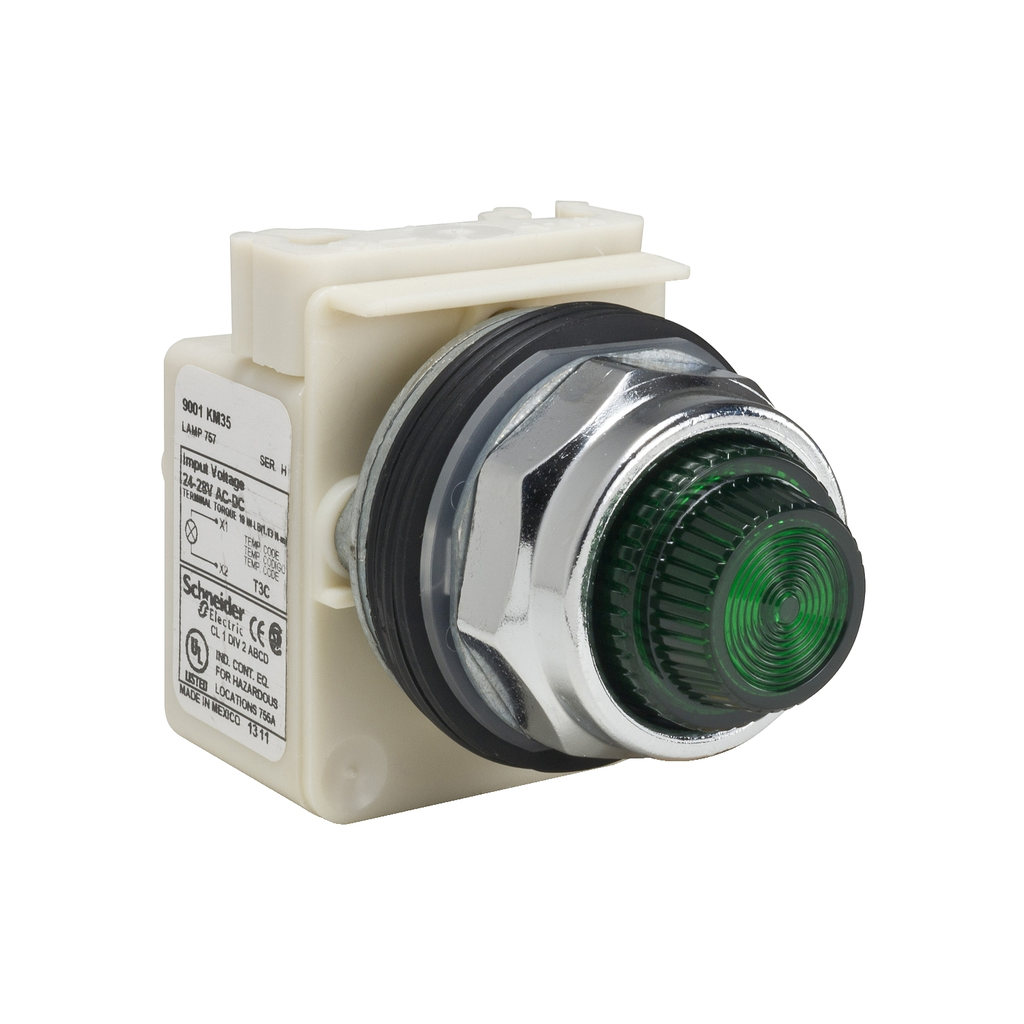

This Harmony 9001K, green pilot light with plastic fresnel is supplied with 24V AC/DC. It has a chromium-plated metal bezel. This single component pilot light provides clear visual feedback on the status of your machines. It is easily installed into a standard 30mm diameter panel cut-outs and connected with simple screw-clamp connections. It is clearly distinguishable visually at a distance due to clear colors and illumination via integral LED, enabling complex machine statuses to be read at a glance. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Impact and corrosion resistant metal bezel and body ensures product continues to operate even after severe accidents.

• Features
• Improved security thanks to finger-safe contact blocks and light modules
• Robustness to withstand the harshest environments
• Easy, secure mounting system
• Automatic self-grounding operators without additional wiring
• A large metal set of accessories to customize your product
• Single screw Contact Block Fastening
• Prop 65
• WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

• Physical Attributes
• Cap Operator Or Lens Color : green
• Size : 30 mm
• Conformance Attributes
• Product Certifications : CSA LR25490 class 3211 03, CE, UL listed file E42259 CCN NKCR
• Important Information Attributes
• Lens Type : fresnel, fresnel plastic
• Light Block Supply : full voltage 28 V, direct 24 V, full voltage
• Light Source : incandescent bulb, incandescent
• Us Rated Supply Voltage2 : 24...28 V, 24...28 V AC/DC
• Local Data Status : Publishable
• Local Publishable Date : 2026-01-12
• Manufacturer : Square D
• Legacy WEEE Scope : In
• Scope Perimeter : At least in Europe
• EOLI Availability Display : Yes
• End Of Life Doc Ref : ENVEOLI2503027EN
• Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : CONTAINS_SVHC
• Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
• ROHS EUR In Scope : No
• ROHS EUR Status : Compliant with Exemptions
• ROHS EUR Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
• ROHS EUR Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
• China ROHS In Scope : Yes
• With Recycled Cardboard : Yes
• Without Single Use Plastic : Yes
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : Y
• Bezel Material : metal
• Bulb Base : BA 9s
• Cap Operator Or Lens Color : green
• Device Short Name : K
• Lens Material : polycarbonate
• Mounting Diameter : 30 mm
• Operating Mode : normal
• Operating Position : any position
• Package Weight Lbs : 140.614 g
• Product Availability : Stock - Normally stocked in distribution facility
• Product Or Component Type : pilot light
• Range Of Product : Harmony 9001K
• Returnability : Yes
• Shape Of Screw Head : round
• Sustainable Packaging : Yes
• Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• Connections Terminals : screw clamp terminals, 1 x 0.22...2 x 1.5 mm² IEC 60947-1
• Medium Desc : Pilot light, Harmony 9001K, metal, polycarbonate, fresnel lens, green, 30mm, 24...28V
• Stocking Flag : N
• Product Kit Identifier : N
• Pep Code : ENVPEP2503027EN
• Global Commercial Status : Commercialised
• Connections Terminals3 : screw clamp terminals, 1 x 0.22...2 x 1.5 mm² IEC 60947-1
• Us Rated Supply Voltage5 : 24...28 V AC/DC
• Environment Attributes Main
• Take Back : No, Nej
• EU ROHS Directive : Compliant By Exemption , Pro-active compliance (Product out of EU RoHS legal scope)
• ROHS Exemption Information : Yes
• Recycled Metal Content At Cr Level : 0 %
• China ROHS Regulation : X
• Mercury Free : Yes
• Circularity Profile : ENVEOLI2503027EN
• Environmental Disclosure : ENVPEP2503027EN
• Nema Degree Of Protection : NEMA 3R/6/13
• Packaging Made With Recycled Cardboard : Yes
• Packaging Without Single Use Plastic : Yes
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• Pep Code : ENVPEP2503027EN
• General Attributes
• Product Or Component Type : pilot light
• Range Of Product : Harmony 9001K
• Contractual Warranty Attributes
• Warranty Period : 18 months
• Warranty : 18 months
• Overview Attributes
• Device Presentation : complete product
