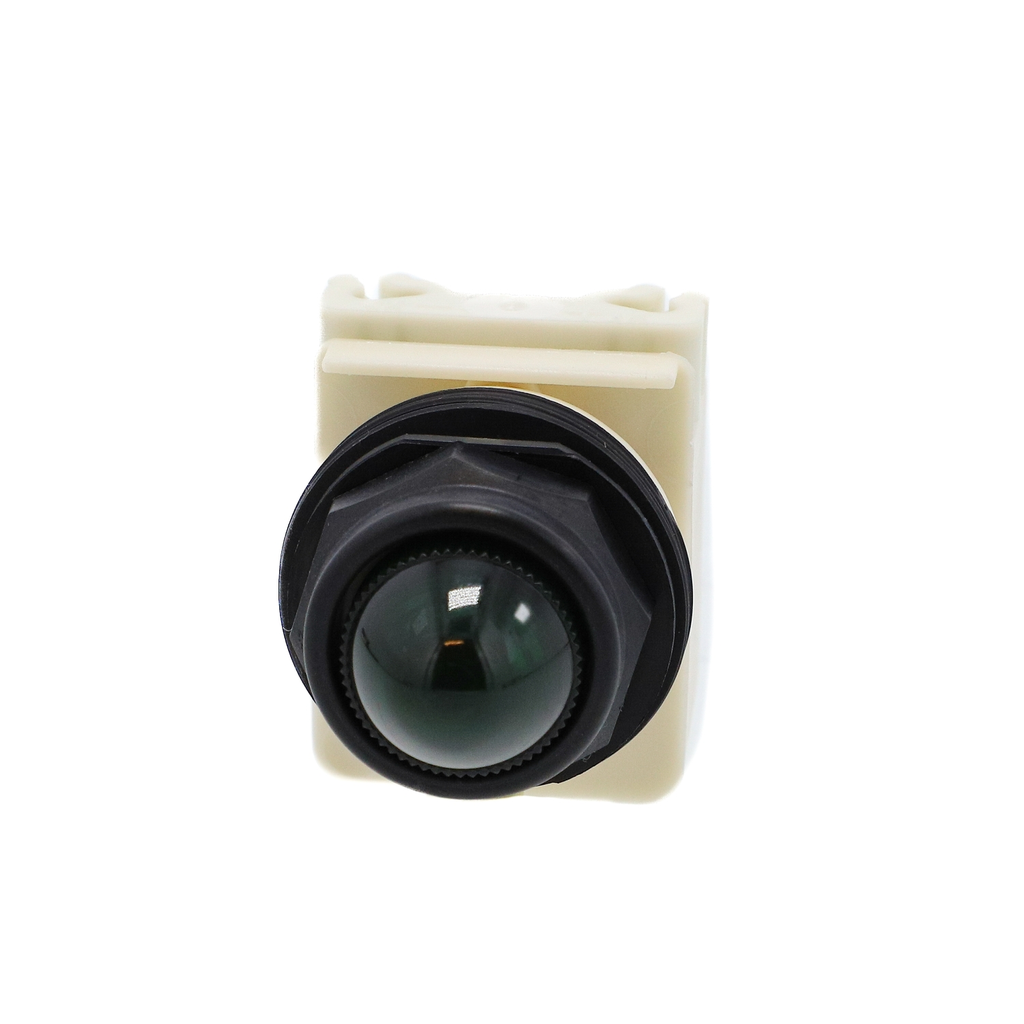

PILOT LIGHT 28V 30MM SK +OPTIONS

PILOT LIGHT 28V 30MM SK +OPTIONS

SQD9001SKP35LGG9 9001SKP35LGG9 785901669135
160.28 / EACH
  • Bezel Material: Plastic
  • Certifications: NEMA, UL 508
  • Color: Green
  • Lens Type: Domed Plastic
  • Standard: CSA C22.2 No 14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, JIS C 852, JIS C8201-1, JIS C8201-5-1, UL 508
  • Weight: 0.082 kg, 0.18 lbs
This single component pilot light provides clear visual feedback on the status of your machines. It is easily installed into a standard 30mm diameter panel cut-outs and connected with simple screw-clamp connections. It is clearly distinguishable visually at a distance due to clear colors and illumination via integral LED. It enables complex machine statuses to be read at a glance. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It makes it ideal for operation in harsh environments.
  • Product Description
  • Additional Information
This single component pilot light provides clear visual feedback on the status of your machines. It is easily installed into a standard 30mm diameter panel cut-outs and connected with simple screw-clamp connections. It is clearly distinguishable visually at a distance due to clear colors and illumination via integral LED. It enables complex machine statuses to be read at a glance. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It makes it ideal for operation in harsh environments.
  • Specifications
    • Main
      • Range Of Product : Harmony 9001SK
      • Product Or Component Type : Pilot light
      • Device Short Name : 9001SK
      • Lens Type : Domed plastic
      • Light Block Supply : Direct 24 V AC/DC
    • Complementary
      • Bezel Material : Plastic
      • Mounting Diameter : 1.18 in (30 mm)
      • Shape Of Signaling Unit Head : Round
      • Cap/Operator Or Lens Colour : Green
      • Light Source : LED
      • Bulb Base : BA 9s
      • [Us] Rated Supply Voltage : 24...28 V AC/DC
      • Tightening Torque : 7.08 lbf.in (0.8 N.m) EN/IEC 60947-1
      • Shape Of Screw Head : Cross slotted
      • Connections - Terminals : Screw clamp terminals, 1 x 0.22...2 x 1.5 mm² EN/IEC 60947-1
      • Ith Cnvtl Free Air Therm Crrt : 10 A
      • Short-Circuit Protection : 10 A cartridge fuse EN/IEC 60947-5-1
      • Ui Rated Insulation Voltage : 250 V 2)EN/IEC 60947-1
      • Uimp Rated Imp Wstd Voltage : 2.5 kV EN/IEC 60947-1
      • Operating Position : Any position
      • Cad Overall Width : 2.13 in (54 mm)
      • Cad Overall Height : 2.76 in (70 mm)
      • Cad Overall Depth : 1.65 in (42 mm)
      • Product Weight : 0.18 lb(US) (0.082 kg)
      • Device Presentation : Complete product
    • Environment
      • Electrical Shock Protect Class : Class II IEC 61140
      • Protective Treatment : TC
      • IP Degree Of Protection : IP66 IEC 60529
      • Nema Degree Of Protection : NEMA 1 || NEMA 12 || NEMA 13 || NEMA 2 || NEMA 3 || NEMA 3R || NEMA 4 || NEMA 4X
      • Vibration Resistance : 7 gn 2…500 Hz)IEC 60068-2-6
      • Shock Resistance : 50 gn IEC 60068-2-27
      • Ambient Air Temp For Op : -13…158 °F (-25…70 °C)
      • Ambient Air Temp For Storage : -40…158 °F (-40…70 °C)
      • Standards : UL 508 || EN/IEC 60947-5-4 || CSA C22.2 No 14 || JIS C 852 || JIS C8201-5-1 || EN/IEC 60947-5-1 || EN/IEC 60947-1 || JIS C8201-1
      • Product Certifications : NEMA || UL 508
    • Ordering And Shipping Details
      • Category : 21429 - 9001 SK,SKY
      • Discount Schedule : CS1
      • GTIN : 00785901669135
      • Nbr. Of Units In Pkg. : 1
      • Returnability : Yes
      • Country Of Origin : MX
    • Offer Sustainability
      • Green Premium Status : Green Premium product
      • REACh Free Of SVHC : Yes
      • EU RoHs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
      • Toxic Heavy Metal Free : Yes
      • Mercury Free : Yes
      • WEEE : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • Contractual Warranty
      • Warranty : 18 months
