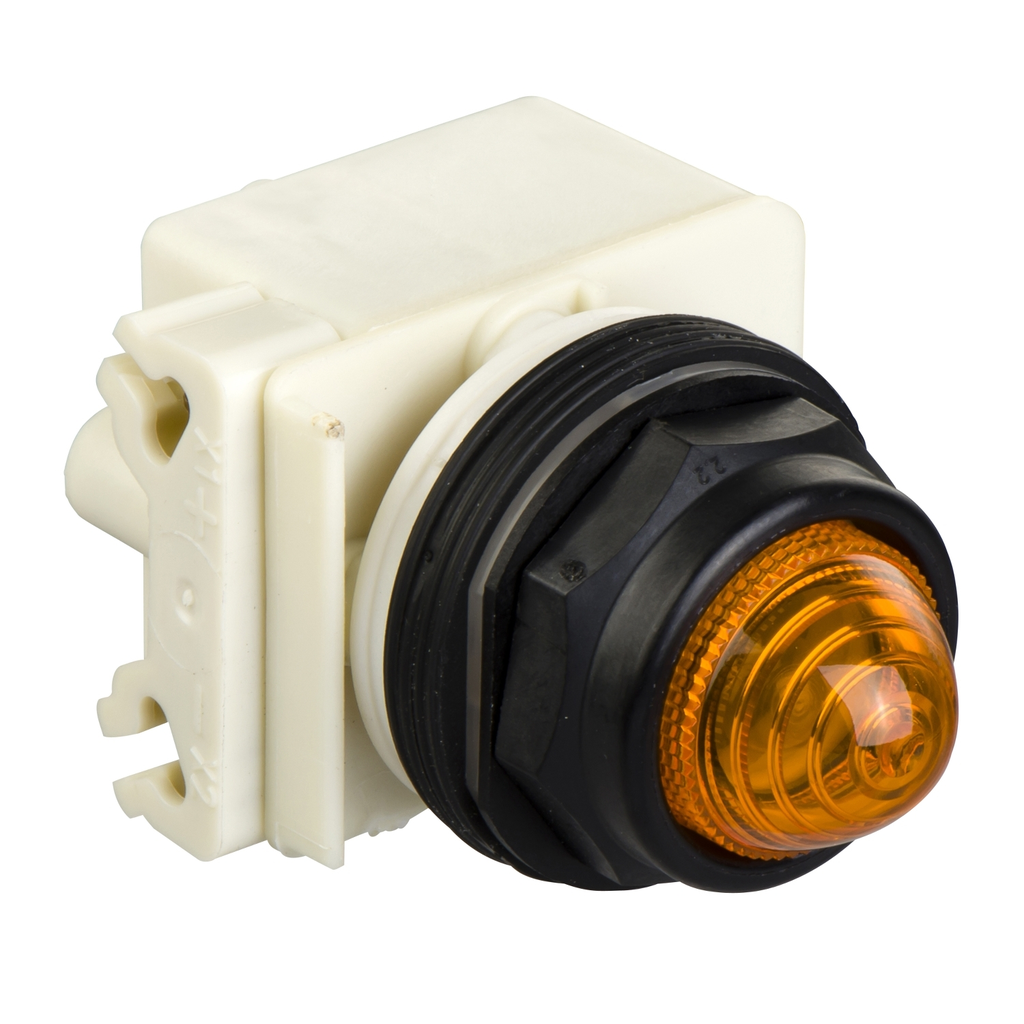

PILOT LIGHT 28V 30MM SK +OPTIONS

PILOT LIGHT 28V 30MM SK +OPTIONS

SQD9001SKP35LYA9 9001SKP35LYA9 785901503880
160.28 / EACH
  • Bezel Material: Plastic
  • Certifications: NEMA, UL 508
  • Country of Origin: Mexico
  • Lens Type: Domed Plastic
  • Standard: CSA C22.2 No 14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, JIS C 852, JIS C8201-1, JIS C8201-5-1, UL 508
  • Warranty Length: 18 mth
  • Weight: 0.082 kg, 0.18 lb
This single component pilot light provides clear visual feedback on the status of your machines. It is easily installed into a standard 30mm diameter panel cut-outs and connected with simple screw-clamp connections. It is clearly distinguishable visually at a distance due to clear colors and illumination via integral LED. It enables complex machine statuses to be read at a glance. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It makes it ideal for operation in harsh environments. It weighs 82g. The 30 mm Harmony range offers a large choice of robust and reliable products to meet a great number of applications in heavy industries such as petrochemy, metallurgy, mining oil and gas wastewater treatment, automobile manufacturing. It is UL listed and CSA certified, CE declaration of conformity and RoHS compliant.
  • Product Description
  • Specifications
This single component pilot light provides clear visual feedback on the status of your machines. It is easily installed into a standard 30mm diameter panel cut-outs and connected with simple screw-clamp connections. It is clearly distinguishable visually at a distance due to clear colors and illumination via integral LED. It enables complex machine statuses to be read at a glance. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It makes it ideal for operation in harsh environments. It weighs 82g. The 30 mm Harmony range offers a large choice of robust and reliable products to meet a great number of applications in heavy industries such as petrochemy, metallurgy, mining oil and gas wastewater treatment, automobile manufacturing. It is UL listed and CSA certified, CE declaration of conformity and RoHS compliant.
  • Environment
    • Vibration Resistance : 7 gn 2…500 Hz)IEC 60068-2-6
    • IP Degree Of Protection : IP66 conforming to IEC 60529
    • Product Certifications : NEMA || UL 508
    • Ambient Air Temp For Op : -13…158 °F (-25…70 °C)
    • Protective Treatment : TC
    • Nema Degree Of Protection : NEMA 1 || NEMA 12 || NEMA 13 || NEMA 2 || NEMA 3 || NEMA 3R || NEMA 4 || NEMA 4X
    • Shock Resistance : 50 gn IEC 60068-2-27
    • Ambient Air Temp For Storage : -40…158 °F (-40…70 °C)
    • Electrical Shock Protect Class : Class II IEC 61140
    • Standards : CSA C22.2 No 14 || EN/IEC 60947-1 || JIS C8201-5-1 || EN/IEC 60947-5-1 || UL 508 || JIS C 852 || EN/IEC 60947-5-4 || JIS C8201-1
  • Complementary
    • Cad Overall Height : 2.76 in (70 mm)
    • Bezel Material : Plastic
    • Operating Position : Any position
    • Product Weight : 0.18 lb(US) (0.082 kg)
    • Connections - Terminals : Screw clamp terminals, 1 x 0.22...2 x 1.5 mm² EN/IEC 60947-1
    • Uimp Rated Imp Wstd Voltage : 2.5 kV EN/IEC 60947-1
    • Ui Rated Insulation Voltage : 250 V 2)EN/IEC 60947-1
    • Short-Circuit Protection : 10 A cartridge fuse EN/IEC 60947-5-1
    • Device Presentation : Complete product
    • [Us] Rated Supply Voltage : 24...28 V AC/DC
    • Shape Of Screw Head : Cross slotted
    • Bulb Base : BA 9s
    • Light Source : LED
    • Mounting Diameter : 1.18 in (30 mm)
    • Shape Of Signaling Unit Head : Round
    • Cap/Operator Or Lens Colour : Amber
    • Ith Cnvtl Free Air Therm Crrt : 10 A
    • Tightening Torque : 7.08 lbf.in (0.8 N.m) EN/IEC 60947-1
    • Cad Overall Depth : 1.65 in (42 mm)
    • Cad Overall Width : 2.13 in (54 mm)
  • Main
    • Light Block Supply : Direct 24 V AC/DC
    • Lens Type : Domed plastic
    • Range Of Product : Harmony 9001SK
    • Product Or Component Type : Pilot light
    • Device Short Name : 9001SK
  • Ordering And Shipping Details
    • Country Of Origin : MX
    • Discount Schedule : CS1
    • GTIN : 00785901503880
    • Nbr. Of Units In Pkg. : 1
    • Category : 21429 - 9001 SK,SKY
    • Returnability : No
  • Offer Sustainability
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Green Premium Status : Green Premium product
    • Toxic Heavy Metal Free : Yes
    • Mercury Free : Yes
    • WEEE : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • EU RoHs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • REACh Free Of SVHC : Yes
  • Contractual Warranty
    • Warranty : 18 months
