PILOT LIGHT 28V 30MM SK +OPTIONS

PILOT LIGHT 28V 30MM SK +OPTIONS

SQD9001SKT35LRR31 9001SKT35LRR31 785901159803
132.00 / EACH
  • Bezel Material: Plastic
  • Certifications: NEMA, UL 508
  • Contact Material: Silver Alloy
  • Standard: CSA C22.2 No 14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, JIS C 852, JIS C8201-1, JIS C8201-5-1, UL 508
  • Weight: 0.195 kg, 0.43 lbs

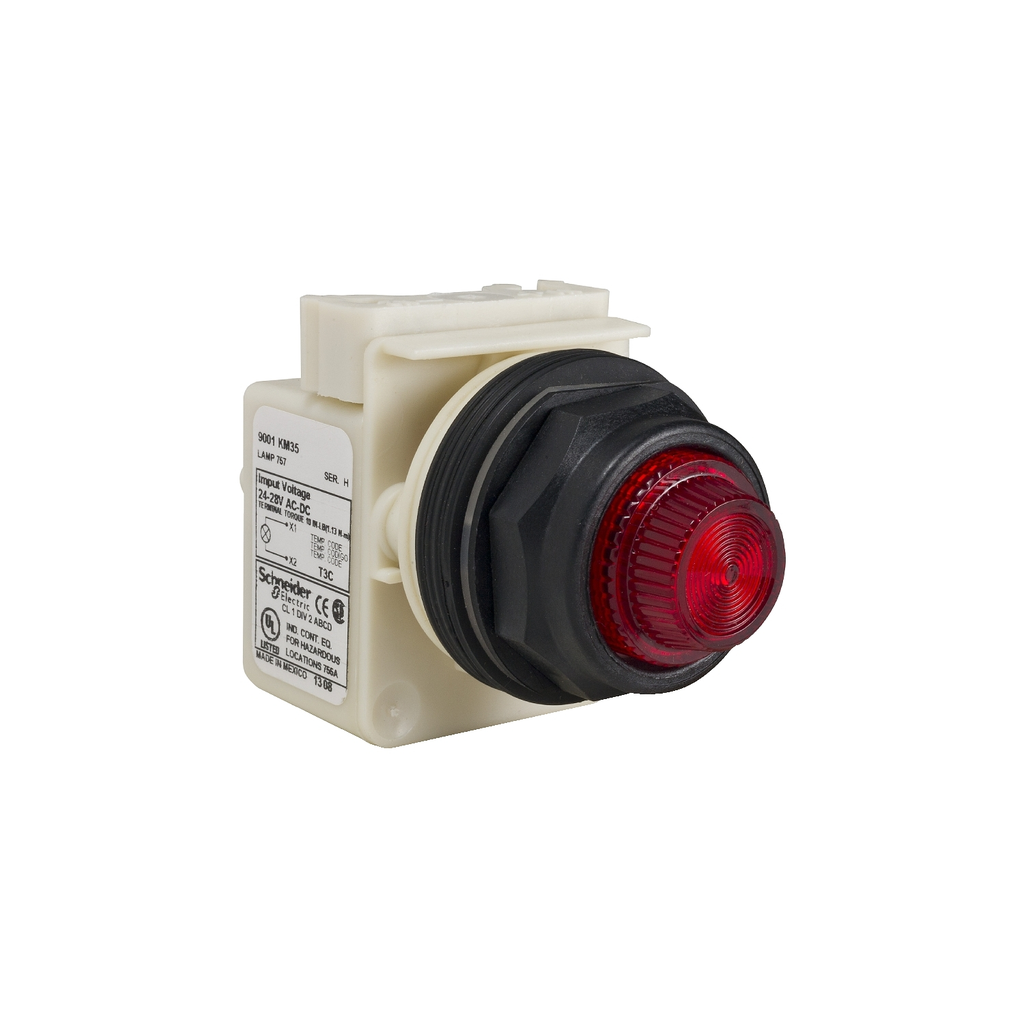

This Harmony 9001SK, push-to-test illuminated red pilot light with integral LED and plastic fresnel is supplied with 24V AC/DC. It has a double insulated plastic bezel. This illuminated red push-to-test pilot light with integral LED provides an ergonomic and visual interface for your machines. It is easily installed into a standard 30mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections. It is clearly distinguishable visually at a distance thanks to its illuminated head and clear color. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Impact and corrosion resistant plastic body ensures product continues to operate even after severe accidents.
  • Product Description
  • Additional Information
This Harmony 9001SK, push-to-test illuminated red pilot light with integral LED and plastic fresnel is supplied with 24V AC/DC. It has a double insulated plastic bezel. This illuminated red push-to-test pilot light with integral LED provides an ergonomic and visual interface for your machines. It is easily installed into a standard 30mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections. It is clearly distinguishable visually at a distance thanks to its illuminated head and clear color. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Impact and corrosion resistant plastic body ensures product continues to operate even after severe accidents.
  • Specifications
    • Main
      • Range Of Product : Harmony 9001SK
      • Product Or Component Type : Illuminated push to test push-button
      • Device Short Name : 9001SK
      • Type Of Operator : spring return
      • Operator Profile : Red projecting, unmarked
    • Complementary
      • Bezel Material : Plastic
      • Mounting Diameter : 1.18 in (30 mm)
      • Shape Of Signaling Unit Head : Octagonal
      • Light Source : LED
      • Bulb Base : BA 9s
      • Light Block Supply : Direct
      • Us Rated Supply Voltage : 24 V AC/DC
      • [Us] Rated Supply Voltage : 24...28 V AC/DC
      • Connections - Terminals : Screw clamp terminals 1 x 0.22...2 x 1.5 mm² EN/IEC 60947-1
      • Tightening Torque : 7.08 lbf.in (0.8 N.m) EN/IEC 60947-1
      • Shape Of Screw Head : Cross slotted
      • Mechanical Durability : 5000000 cycles
      • Operating Position : Any position
      • Ui Rated Insulation Voltage : 250 V 3)EN/IEC 60947-1
      • Uimp Rated Imp Wstd Voltage : 2.5 kV EN/IEC 60947-1
      • Contacts Material : Silver alloy contacts
      • Positive Opening : Without
      • Short-Circuit Protection : 10 A cartridge fuse EN/IEC 60947-5-1
      • Ith Cnvtl Free Air Therm Crrt : 10 A
      • Icm Rated Sc Making Cap : 12 kA 600 V AC-15, 7200 VA || 15 kA 480 V AC-15, 7200 VA || 30 kA 240 V AC-15, 7200 VA || 60 kA 120 V AC-15, 7200 VA
      • Rated Breaking Capacity : 1.2 kA 600 V AC-15, 720 VA || 1.5 kA 480 V AC-15, 720 VA || 3 kA 240 V AC-15, 720 VA || 6 kA 120 V AC-15, 720 VA || 0.1 kA 600 V DC-13 || 0.27 kA 250 V DC-13 || 0.55 kA 125 V DC-13
      • Product Weight : 0.43 lb(US) (0.195 kg)
      • Device Presentation : Complete product
    • Environment
      • Standards : JIS C 852 || UL 508 || JIS C8201-5-1 || EN/IEC 60947-1 || EN/IEC 60947-5-4 || EN/IEC 60947-5-1 || CSA C22.2 No 14 || JIS C8201-1
      • Product Certifications : NEMA || UL 508
      • Protective Treatment : TC
      • Ambient Air Temp For Storage : -40…158 °F (-40…70 °C)
      • Ambient Air Temp For Op : -13…158 °F (-25…70 °C)
      • Vibration Resistance : 7 gn 2…500 Hz)IEC 60068-2-6
      • Shock Resistance : 50 gn IEC 60068-2-27
      • Electrical Shock Protect Class : Class II IEC 61140
      • IP Degree Of Protection : IP66 IEC 60529
      • Nema Degree Of Protection : NEMA 1 || NEMA 12 || NEMA 13 || NEMA 2 || NEMA 3 || NEMA 3R || NEMA 4 || NEMA 4X
    • Ordering And Shipping Details
      • Category : 21429 - 9001 SK,SKY
      • Discount Schedule : CS1
      • GTIN : 00785901159803
      • Nbr. Of Units In Pkg. : 1
      • Returnability : Yes
      • Country Of Origin : MX
    • Offer Sustainability
      • Green Premium Status : Green Premium product
      • REACh Free Of SVHC : Yes
      • EU RoHs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
      • Toxic Heavy Metal Free : Yes
      • Mercury Free : Yes
      • WEEE : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • Contractual Warranty
      • Warranty : 18 months
