PILOT LIGHT 28V 30MM SK +OPTIONS

PILOT LIGHT 28V 30MM SK +OPTIONS

SQD9001SKP35G9 9001SKP35G9 785901048381
130.95 / EACH
  • Bezel Material: Plastic
  • Certifications: NEMA, UL 508
  • Country of Origin: Mexico
  • Lens Type: Domed Plastic
  • Standard: CSA C22.2 No 14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, JIS C 852, JIS C8201-1, JIS C8201-5-1, UL 508
  • Warranty Length: 18 mth
  • Weight: 0.082 kg, 0.18 lb

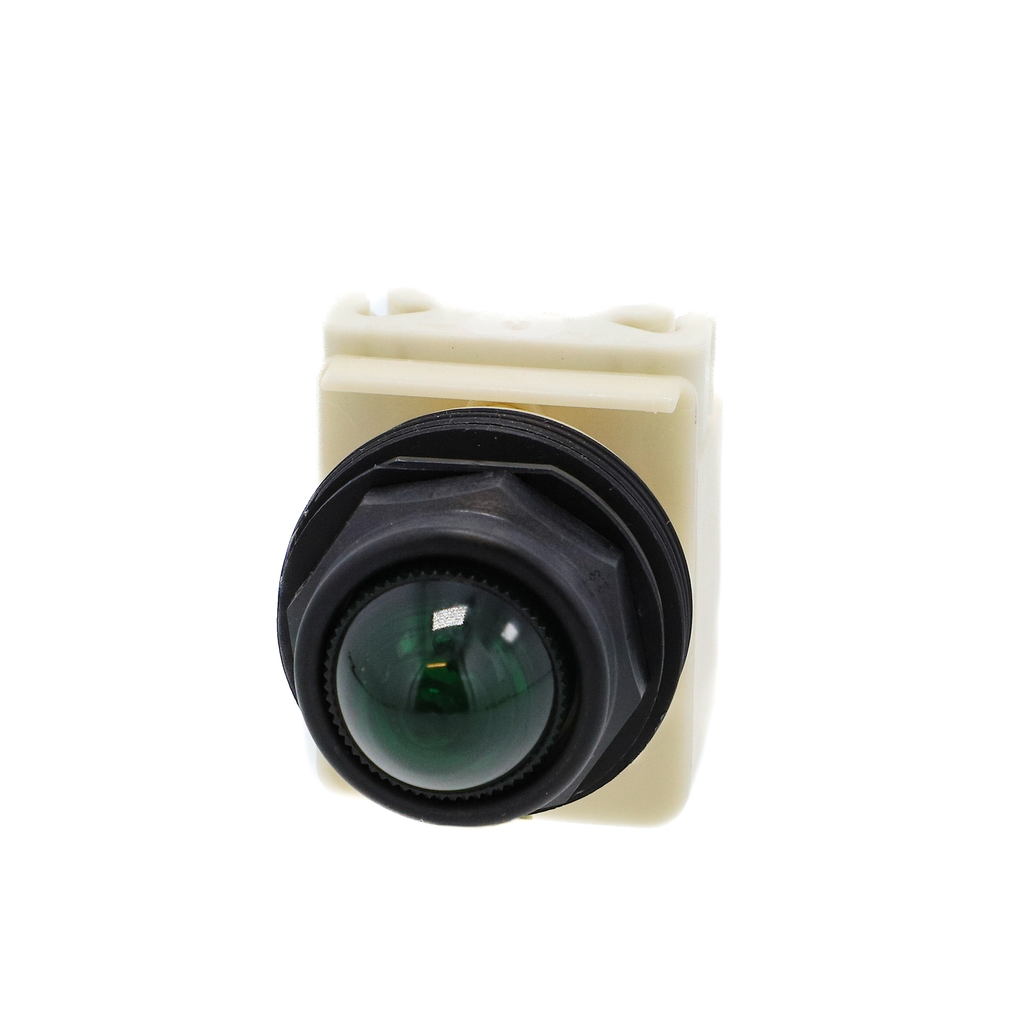

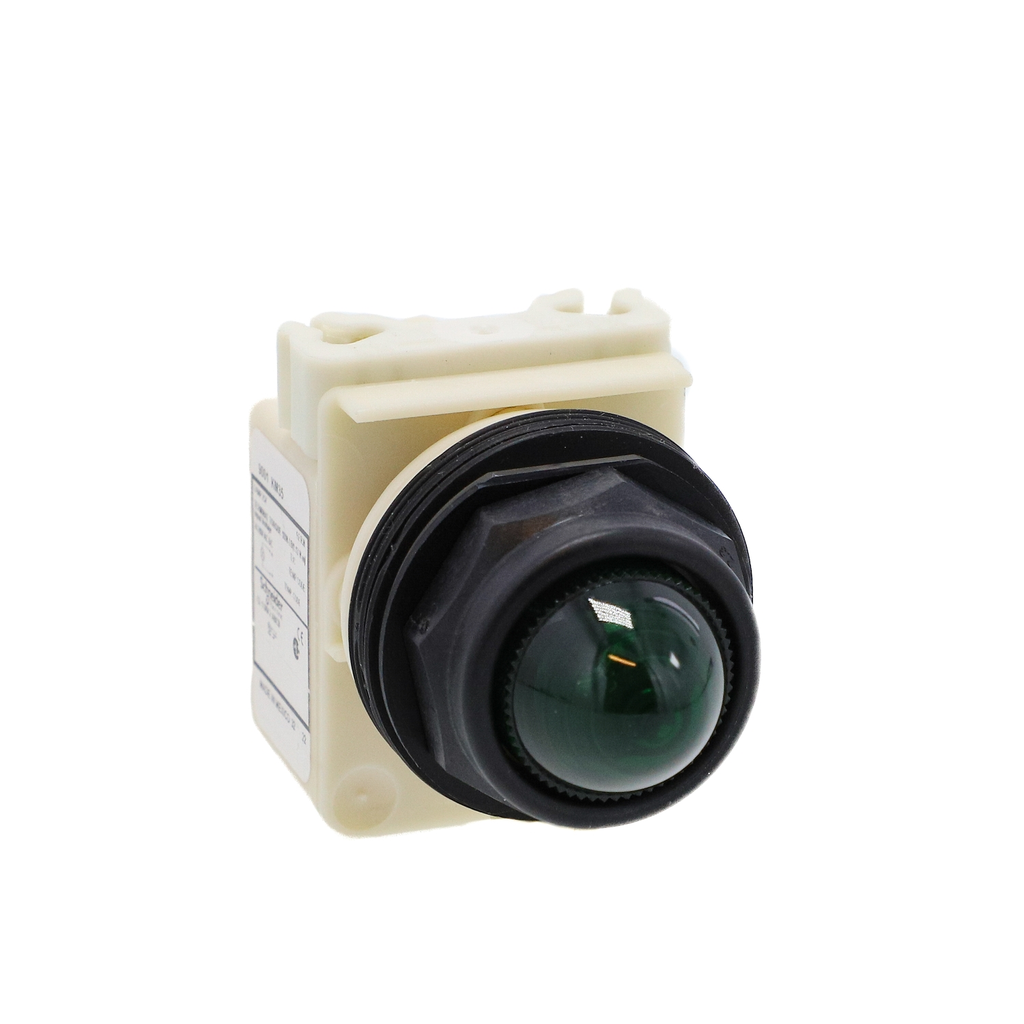

This Harmony 9001SK, green pilot light with plastic dome is supplied with 24V AC/DC. It has a double insulated plastic bezel. It is easily installed into a standard 30mm diameter panel cut-outs and connected with simple screw-clamp connections. It is clearly distinguishable visually at a distance due to clear colors and illumination via integral LED, enabling complex machine statuses to be read at a glance. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Impact and corrosion resistant plastic body ensures product continues to operate even after severe accidents.
  • Product Description
  • Specifications
This Harmony 9001SK, green pilot light with plastic dome is supplied with 24V AC/DC. It has a double insulated plastic bezel. It is easily installed into a standard 30mm diameter panel cut-outs and connected with simple screw-clamp connections. It is clearly distinguishable visually at a distance due to clear colors and illumination via integral LED, enabling complex machine statuses to be read at a glance. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Impact and corrosion resistant plastic body ensures product continues to operate even after severe accidents.
  • Ordering And Shipping Details
    • Returnability : No
    • GTIN : 00785901048381
    • Discount Schedule : CS1
    • Country Of Origin : MX
    • Nbr. Of Units In Pkg. : 1
    • Category : 21429 - 9001 SK,SKY
  • Environment
    • Nema Degree Of Protection : NEMA 1 || NEMA 12 || NEMA 13 || NEMA 2 || NEMA 3 || NEMA 3R || NEMA 4 || NEMA 4X
    • Standards : EN/IEC 60947-1 || EN/IEC 60947-5-4 || JIS C 852 || JIS C8201-5-1 || UL 508 || EN/IEC 60947-5-1 || CSA C22.2 No 14 || JIS C8201-1
    • Ambient Air Temp For Op : -13…158 °F (-25…70 °C)
    • Vibration Resistance : 7 gn 2…500 Hz)IEC 60068-2-6
    • IP Degree Of Protection : IP66 IEC 60529
    • Product Certifications : UL 508 || NEMA
    • Electrical Shock Protect Class : Class II IEC 61140
    • Shock Resistance : 50 gn IEC 60068-2-27
    • Ambient Air Temp For Storage : -40…158 °F (-40…70 °C)
    • Protective Treatment : TC
  • Main
    • Range Of Product : Harmony 9001SK
    • Product Or Component Type : Pilot light
    • Device Short Name : 9001SK
    • Lens Type : Domed plastic
    • Light Block Supply : Direct 24 V AC/DC
  • Complementary
    • Cad Overall Depth : 1.65 in (42 mm)
    • Short-Circuit Protection : 10 A cartridge fuse EN/IEC 60947-5-1
    • Cad Overall Width : 2.13 in (54 mm)
    • Bezel Material : Plastic
    • Shape Of Screw Head : Cross slotted
    • Cad Overall Height : 2.76 in (70 mm)
    • Ith Cnvtl Free Air Therm Crrt : 10 A
    • Bulb Base : BA 9s
    • Shape Of Signaling Unit Head : Round
    • Mounting Diameter : 1.18 in (30 mm)
    • Tightening Torque : 7.08 lbf.in (0.8 N.m) EN/IEC 60947-1
    • Light Source : incandescent
    • Device Presentation : Complete product
    • Product Weight : 0.18 lb(US) (0.082 kg)
    • [Us] Rated Supply Voltage : 24...28 V AC/DC
    • Operating Position : Any position
    • Connections - Terminals : Screw clamp terminals, 1 x 0.22...2 x 1.5 mm² EN/IEC 60947-1
    • Cap/Operator Or Lens Colour : Green
    • Uimp Rated Imp Wstd Voltage : 2.5 kV EN/IEC 60947-1
    • Ui Rated Insulation Voltage : 250 V 2)EN/IEC 60947-1
  • Contractual Warranty
    • Warranty : 18 months
  • Offer Sustainability
    • Green Premium Status : Green Premium product
    • REACh Free Of SVHC : Yes
    • Mercury Free : Yes
    • Toxic Heavy Metal Free : Yes
    • EU RoHs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • WEEE : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
