PILOT LIGHT 240VAC 30MM SK +OPTIONS

PILOT LIGHT 240VAC 30MM SK +OPTIONS

SQD9001SKP7R9 9001SKP7R9 785901857570
160.28 / EACH
  • Bezel Material: Plastic
  • Certifications: NEMA, UL 508
  • Country of Origin: Mexico
  • Lens Type: Domed Plastic
  • Standard: CSA C22.2 No 14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, JIS C 852, JIS C8201-1, JIS C8201-5-1, UL 508
  • Warranty Length: 18 mth
  • Weight: 0.181 kg, 0.40 lb

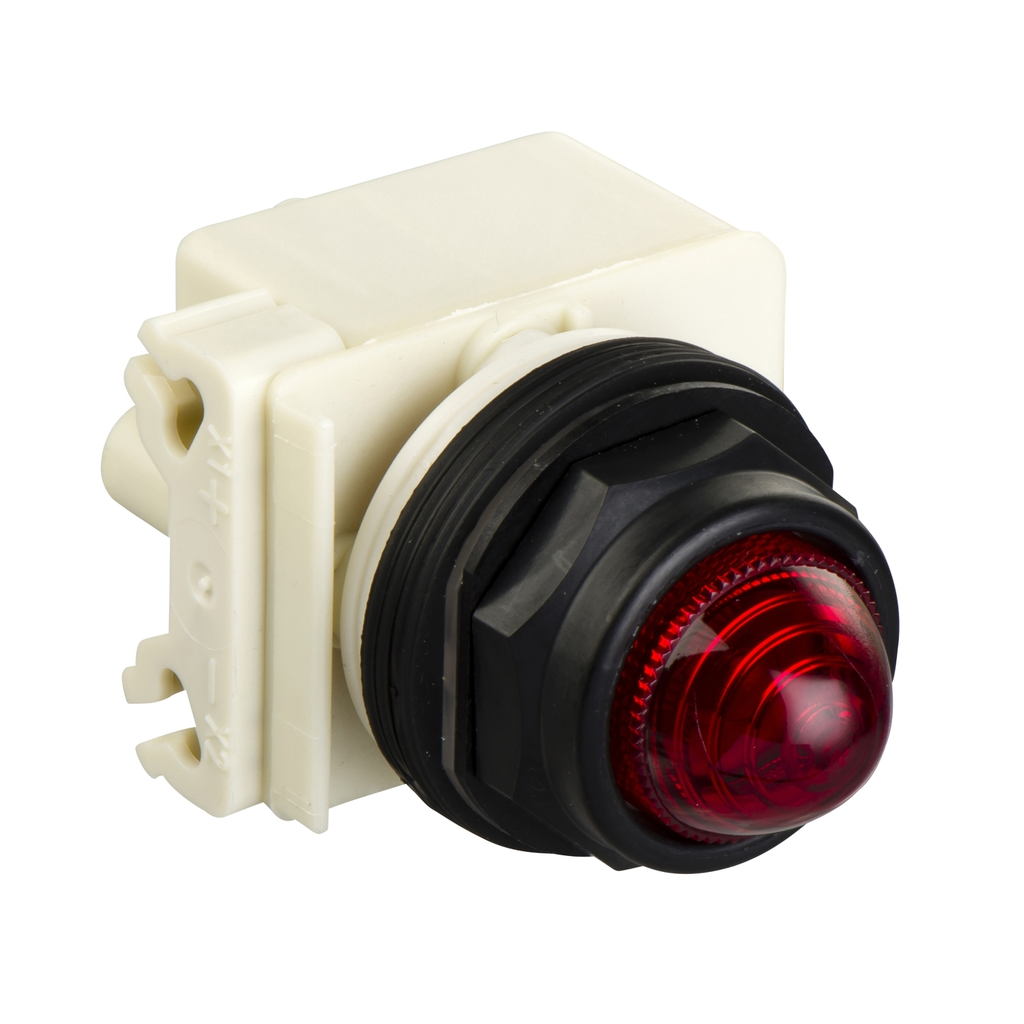

This Harmony 9001SK, red pilot light with transformer and plastic dome is supplied with 240V AC. It has a double insulated plastic bezel. It is easily installed into a standard 30mm diameter panel cut-outs and connected with simple screw-clamp connections. It is clearly distinguishable visually at a distance due to clear colors and illumination via integral LED, enabling complex machine statuses to be read at a glance. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Impact and corrosion resistant plastic body ensures product continues to operate even after severe accidents.
  • Product Description
  • Specifications
This Harmony 9001SK, red pilot light with transformer and plastic dome is supplied with 240V AC. It has a double insulated plastic bezel. It is easily installed into a standard 30mm diameter panel cut-outs and connected with simple screw-clamp connections. It is clearly distinguishable visually at a distance due to clear colors and illumination via integral LED, enabling complex machine statuses to be read at a glance. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Impact and corrosion resistant plastic body ensures product continues to operate even after severe accidents.
  • Contractual Warranty
    • Warranty : 18 months
  • Main
    • Lens Type : Domed plastic
    • Light Block Supply : Via integral transformer 230 V AC 50/60 Hz 6 V)
    • Device Short Name : 9001SK
    • Range Of Product : Harmony 9001SK
    • Product Or Component Type : Pilot light
  • Environment
    • IP Degree Of Protection : IP66 IEC 60529
    • Vibration Resistance : 7 gn 2…500 Hz)IEC 60068-2-6
    • Electrical Shock Protect Class : Class II IEC 61140
    • Ambient Air Temp For Storage : -40…158 °F (-40…70 °C)
    • Nema Degree Of Protection : NEMA 1 || NEMA 12 || NEMA 13 || NEMA 2 || NEMA 3 || NEMA 3R || NEMA 4 || NEMA 4X
    • Product Certifications : NEMA || UL 508
    • Standards : JIS C 852 || EN/IEC 60947-5-1 || UL 508 || EN/IEC 60947-1 || EN/IEC 60947-5-4 || CSA C22.2 No 14 || JIS C8201-5-1 || JIS C8201-1
    • Ambient Air Temp For Op : -13…158 °F (-25…70 °C)
    • Protective Treatment : TC
    • Shock Resistance : 50 gn IEC 60068-2-27
  • Offer Sustainability
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Toxic Heavy Metal Free : Yes
    • EU RoHs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • REACh Free Of SVHC : Yes
    • Green Premium Status : Green Premium product
    • Mercury Free : Yes
    • WEEE : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
  • Ordering And Shipping Details
    • Nbr. Of Units In Pkg. : 1
    • Country Of Origin : MX
    • GTIN : 00785901857570
    • Category : 21429 - 9001 SK,SKY
    • Discount Schedule : CS1
    • Returnability : No
  • Complementary
    • Tightening Torque : 7.08 lbf.in (0.8 N.m) EN/IEC 60947-1
    • Bezel Material : Plastic
    • Device Presentation : Complete product
    • Shape Of Screw Head : Cross slotted
    • Product Weight : 0.40 lb(US) (0.181 kg)
    • Uimp Rated Imp Wstd Voltage : 2.5 kV EN/IEC 60947-1
    • Connections - Terminals : Screw clamp terminals, 1 x 0.22...2 x 1.5 mm² EN/IEC 60947-1
    • Cad Overall Height : 2.76 in (70 mm)
    • Mounting Diameter : 1.18 in (30 mm)
    • Bulb Base : BA 9s
    • Operating Position : Any position
    • Cap/Operator Or Lens Colour : Red
    • Shape Of Signaling Unit Head : Round
    • Light Source : incandescent
    • Ui Rated Insulation Voltage : 250 V 2)EN/IEC 60947-1
    • Cad Overall Width : 2.13 in (54 mm)
    • [Us] Rated Supply Voltage : 220...240 V AC 50/60 Hz
    • Cad Overall Depth : 1.65 in (42 mm)
    • Ith Cnvtl Free Air Therm Crrt : 10 A
    • Short-Circuit Protection : 10 A cartridge fuse EN/IEC 60947-5-1
