PILOT LIGHT 14V 30MM SK +OPTIONS

PILOT LIGHT 14V 30MM SK +OPTIONS

SQD9001SKP32G9 9001SKP32G9 785901175667
130.95 / EACH
  • Bezel Material: Plastic
  • Certifications: NEMA, UL 508
  • Country of Origin: Mexico
  • Lens Type: Domed Plastic
  • Standard: CSA C22.2 No 14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, JIS C 852, JIS C8201-1, JIS C8201-5-1, UL 508
  • Warranty Length: 18 mth
  • Weight: 0.082 kg, 0.18 lb

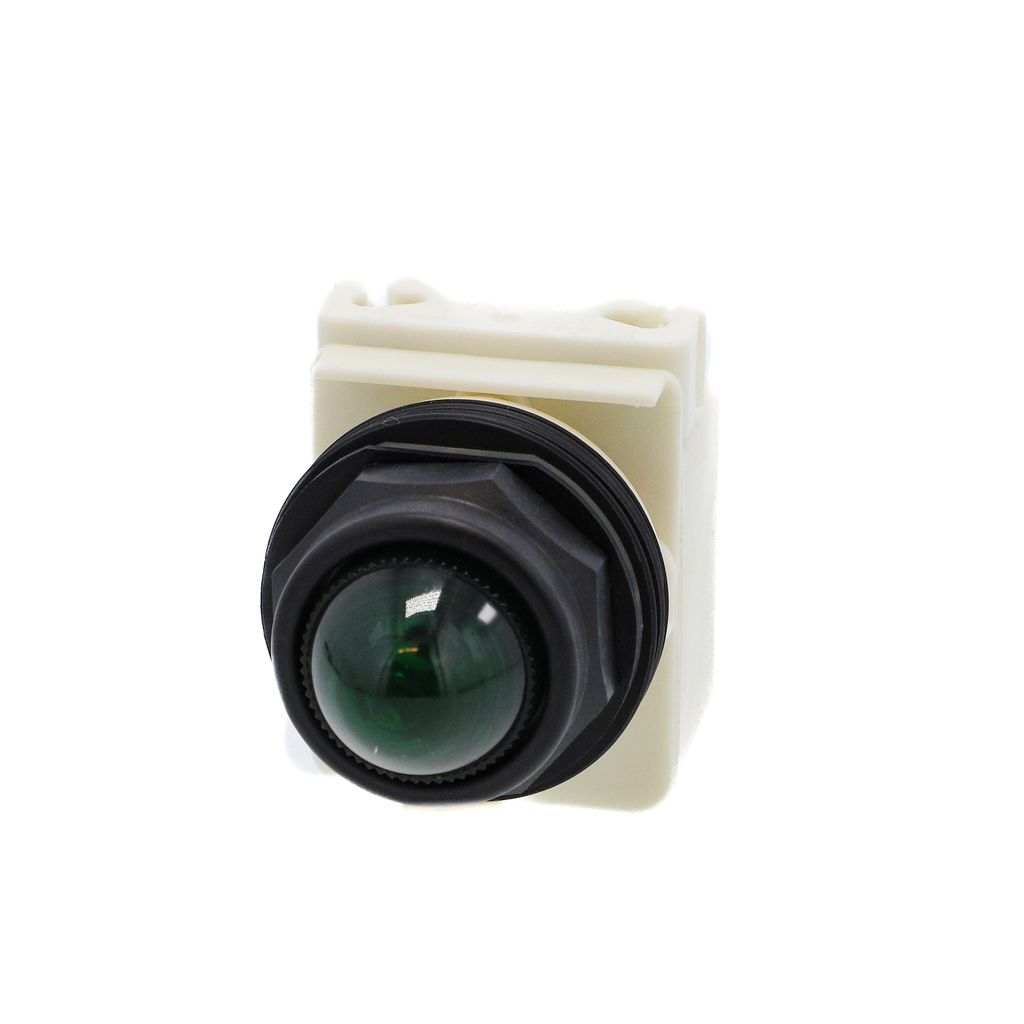

This Harmony 9001SK, green pilot light with plastic dome is supplied with 12V AC/DC. It has a double insulated plastic bezel. It is easily installed into a standard 30mm diameter panel cut-outs and connected with simple screw-clamp connections. It is clearly distinguishable visually at a distance due to clear colors and illumination via integral LED, enabling complex machine statuses to be read at a glance. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Impact and corrosion resistant plastic body ensures product continues to operate even after severe accidents.
  • Product Description
  • Specifications
This Harmony 9001SK, green pilot light with plastic dome is supplied with 12V AC/DC. It has a double insulated plastic bezel. It is easily installed into a standard 30mm diameter panel cut-outs and connected with simple screw-clamp connections. It is clearly distinguishable visually at a distance due to clear colors and illumination via integral LED, enabling complex machine statuses to be read at a glance. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Impact and corrosion resistant plastic body ensures product continues to operate even after severe accidents.
  • Ordering And Shipping Details
    • Nbr. Of Units In Pkg. : 1
    • GTIN : 00785901175667
    • Returnability : No
    • Discount Schedule : CS1
    • Category : 21429 - 9001 SK,SKY
    • Country Of Origin : MX
  • Complementary
    • Cad Overall Depth : 1.65 in (42 mm)
    • Uimp Rated Imp Wstd Voltage : 2.5 kV EN/IEC 60947-1
    • Shape Of Screw Head : Cross slotted
    • Connections - Terminals : Screw clamp terminals, 1 x 0.22...2 x 1.5 mm² EN/IEC 60947-1
    • Ui Rated Insulation Voltage : 250 V 2)EN/IEC 60947-1
    • Cad Overall Width : 2.13 in (54 mm)
    • Shape Of Signaling Unit Head : Round
    • Mounting Diameter : 1.18 in (30 mm)
    • Short-Circuit Protection : 10 A cartridge fuse EN/IEC 60947-5-1
    • Cad Overall Height : 2.76 in (70 mm)
    • Device Presentation : Complete product
    • Cap/Operator Or Lens Colour : Green
    • Operating Position : Any position
    • Light Source : incandescent
    • Bezel Material : Plastic
    • Bulb Base : BA 9s
    • [Us] Rated Supply Voltage : 12...14 V AC/DC
    • Ith Cnvtl Free Air Therm Crrt : 10 A
    • Product Weight : 0.18 lb(US) (0.082 kg)
    • Tightening Torque : 7.08 lbf.in (0.8 N.m) EN/IEC 60947-1
  • Environment
    • Vibration Resistance : 7 gn 2…500 Hz)IEC 60068-2-6
    • Nema Degree Of Protection : NEMA 1 || NEMA 12 || NEMA 13 || NEMA 2 || NEMA 3 || NEMA 3R || NEMA 4 || NEMA 4X
    • Standards : UL 508 || EN/IEC 60947-5-4 || JIS C8201-5-1 || EN/IEC 60947-1 || CSA C22.2 No 14 || EN/IEC 60947-5-1 || JIS C 852 || JIS C8201-1
    • Product Certifications : NEMA || UL 508
    • IP Degree Of Protection : IP66 IEC 60529
    • Ambient Air Temp For Storage : -40…158 °F (-40…70 °C)
    • Protective Treatment : TC
    • Electrical Shock Protect Class : Class II IEC 61140
    • Ambient Air Temp For Op : -13…158 °F (-25…70 °C)
    • Shock Resistance : 50 gn IEC 60068-2-27
  • Offer Sustainability
    • Toxic Heavy Metal Free : Yes
    • EU RoHs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • Mercury Free : Yes
    • REACh Free Of SVHC : Yes
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Green Premium Status : Green Premium product
    • WEEE : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
  • Contractual Warranty
    • Warranty : 18 months
  • Main
    • Light Block Supply : Direct 12 V AC/DC
    • Range Of Product : Harmony 9001SK
    • Device Short Name : 9001SK
    • Lens Type : Domed plastic
    • Product Or Component Type : Pilot light
