Push-to-test pilot light, Harmony 9001K, metal, polycarbonate, fresnel, amber, 30mm, LED yellow, 24-28V

PILOT LIGHT 120VAC 30MM TYPE K

SQD9001KT35LYA31 9001KT35LYA31 785901539032
227.76 / EACH
http://schema.org/OutOfStock
Mayer-DDS-Push-to-test pilot light, Harmony 9001K, metal, polycarbonate, fresnel, amber, 30mm, LED yellow, 24-28V-1
  • Bezel Material: Metal
  • Country of Origin: Mexico
  • Lens Material: Polycarbonate
  • Light Source: LED
  • Warranty Length: 18 mth

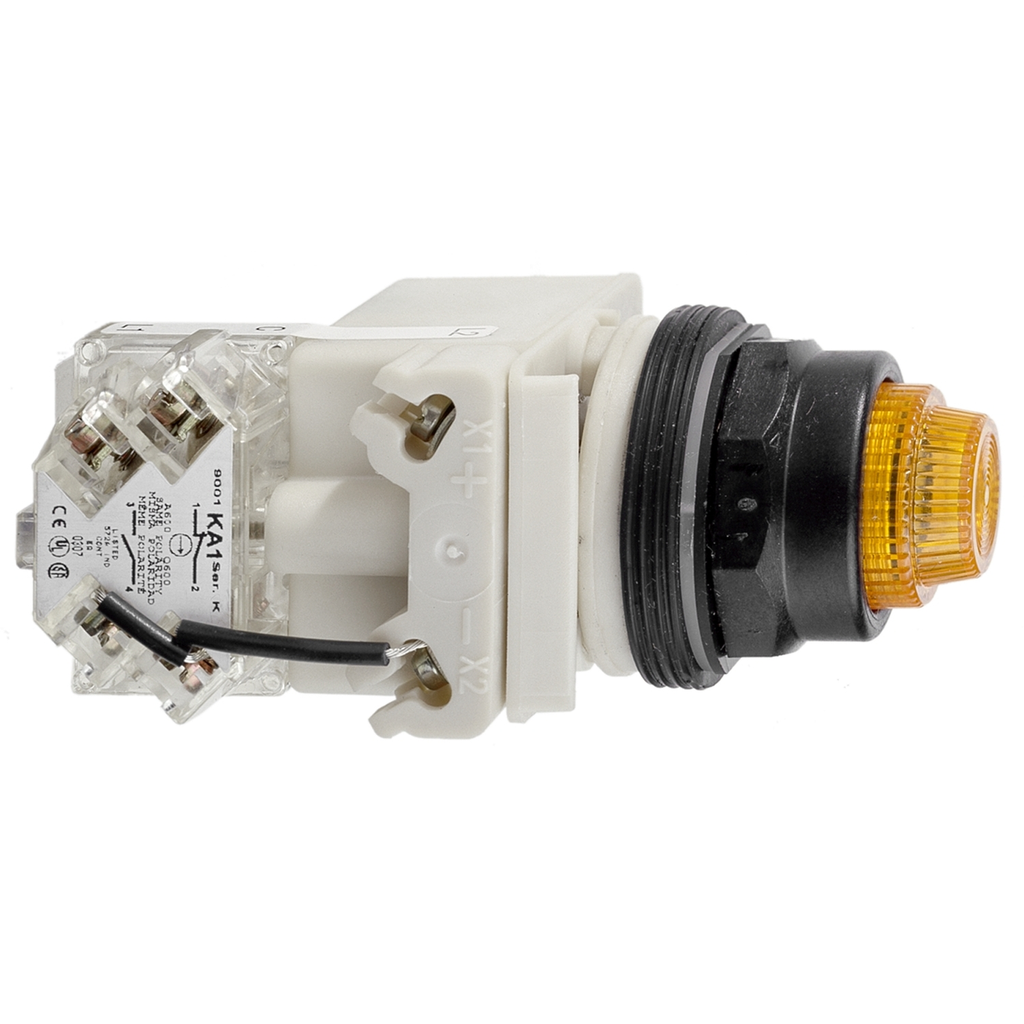

This Harmony 9001K, push-to-test illuminated amber pilot light with integral LED and plastic fresnel is supplied with 24V AC/DC. It has a chromium-plated metal bezel. This illuminated push-to-test pilot light with integral LED provides an ergonomic and visual interface for your machines. It is easily installed into a standard 30mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections. It is clearly distinguishable visually at a distance thanks to its illuminated head and clear color. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Impact and corrosion resistant metal bezel and body ensures product continues to operate even after severe accidents.
QTY
  • Product Description
  • Features
  • Specifications
This Harmony 9001K, push-to-test illuminated amber pilot light with integral LED and plastic fresnel is supplied with 24V AC/DC. It has a chromium-plated metal bezel. This illuminated push-to-test pilot light with integral LED provides an ergonomic and visual interface for your machines. It is easily installed into a standard 30mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections. It is clearly distinguishable visually at a distance thanks to its illuminated head and clear color. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Impact and corrosion resistant metal bezel and body ensures product continues to operate even after severe accidents.
  • US Rated Supply Voltage
    • 24...28 V AC/DC
    • 24 V AC/DC
  • Connections Terminals
    • screw clamp terminals 1 x 0.22...2 x 1.5 mm² IEC 60947-1
  • CAD
    • https://download.schneider-electric.com/files?p_Doc_Ref=9001KT35LYA31_CAD&p_File_name=9001KT35LYA31_3D.stp
    • https://download.schneider-electric.com/files?p_Doc_Ref=9001KT35LYA31_CAD&p_File_name=9001KT35LYA31_2D Front View.dwg
    • https://download.schneider-electric.com/files?p_Doc_Ref=9001KT35LYA31_CAD&p_File_name=9001KT35LYA31_2D Front View.dxf
    • https://download.schneider-electric.com/files?p_Doc_Ref=9001KT35LYA31_CAD&p_File_name=9001KT35LYA31_2D Right Side View.dwg
    • https://download.schneider-electric.com/files?p_Doc_Ref=9001KT35LYA31_CAD&p_File_name=9001KT35LYA31_2D Right Side View.dxf
  • IP Degree Of Protection
    • IP66 IEC 60529
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • ICM Rated Short Circuit Making Capacity
    • 0.55 kA 125 V DC-13, 7200 VA
    • 12 kA 600 V AC-15, 7200 VA
    • 15 kA 480 V AC-15, 7200 VA
    • 30 kA 240 V AC-15, 7200 VA
    • 60 kA 120 V AC-15, 7200 VA
  • Electrical Shock Protection Class
    • class II conforming to IEC 61140
  • Nema Degree Of Protection
    • NEMA 1
    • NEMA 12
    • NEMA 13
    • NEMA 2
    • NEMA 3
    • NEMA 3R
    • NEMA 4
  • UI Rated Insulation Voltage
    • 250 V 3)IEC 60947-1
  • Accessories
    • 9001KA1
    • 9001KA2
    • 9001KA3
    • 9001KA5
  • Vibration Resistance
    • 7 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
  • Market Segmentation
    • Commercial
    • Industrial
  • Persona Type Names
    • Charge Point Operator
    • End User
    • Contractor
    • Original Equipment Manufacturer
    • OEM - Control Panelbuilder
    • Panel Builder
    • Electrician
    • System Integrator
    • IT Channel Partner
  • Persona Type Ids
    • BM9
    • EU
    • LC
    • OM
    • OM8
    • PB
    • SC
    • SI
    • VR
  • Tightening Torque
    • 0.8-0.8 N.m IEC 60947-1
  • Short Circuit Protection
    • 10 A cartridge fuse IEC 60947-5-1
  • Market Segmentation Id
    • COMMERCIAL
    • INDUSTRIAL
  • Operator Profile
    • amber projecting, unmarked
  • Shock Resistance
    • 50 gn IEC 60068-2-27
  • Rated Breaking Capacity
    • 1.2 kA 600 V AC-15, 720 VA
    • 1.5 kA 480 V AC-15, 720 VA
    • 3 kA 240 V AC-15, 720 VA
    • 6 kA 120 V AC-15, 720 VA
    • 0.1 kA 600 V DC-13
    • 0.27 kA 250 V DC-13
    • 0.55 kA 125 V DC-13
  • UIMP Rated Impulse Withstand Voltage
    • 2.5 kV IEC 60947-1
  • Important Information Attributes
    • Local Data Status : Publishable
    • Local Publishable Date : 2025-07-09
    • HTML Description : PILOT LIGHT 120VAC 30MM TYPE K +OPTIONS
    • Manufacturer : Schneider Electric
    • Legacy WEEE Scope : In
    • WEEE Product Category : 5
    • Scope Perimeter : At least in Europe
    • EOLI Availability Display : Yes
    • End Of Life Doc Ref : ENVEOLI2503027EN
    • Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : CONTAINS_SVHC
    • Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
    • ROHS EUR In Scope : No
    • ROHS EUR Status : Compliant with Exemptions
    • ROHS EUR Conformity Date : 1930
    • ROHS EUR Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
    • ROHS EUR Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
    • China ROHS In Scope : Yes
    • China ROHS Label : 7
    • Green Premium Status For Reporting : Green Premium product
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : Yes
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : Y
    • WD Status : 5 - INITIALIZED WITH DataSCAN OK (Migration)
    • Tier Id : 2
    • Tier : 2
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Bezel Material : metal
    • Bulb Base : BA 9s
    • Compatibility Code : 9001K
    • Device Short Name : 9001K
    • Lens Material : polycarbonate
    • Light Block Supply : direct
    • Light Source : LED
    • Mounting Diameter : 30 mm
    • Package Weight Lbs : 181.437 g
    • Positive Opening : without
    • Product Availability : Stock - Normally stocked in distribution facility
    • Product Or Component Type : push-to-test pilot light
    • Range Of Product : Harmony 9001K
    • Returnability : Yes
    • Shape Of Signaling Unit Head : octagonal
    • Sustainable Packaging : Yes
    • Type Of Operator : spring return
    • Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • ITH Conventional Free Air Thermal Current : 10 A
    • Relationship Type : Compatible relationship
    • Pep Code : ENVPEP2503027EN
    • Nbr Of Units In Pkg : 1
    • Warranty In Months : 18
  • General Attributes
    • Product Or Component Type : push-to-test pilot light
    • Range Of Product : Harmony 9001K
  • Environment Attributes
    • ROHS Exemption Information : Yes
    • China ROHS url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=680130&lang=en-us
    • Take Back : No
    • Recycled Metal Content At Cr Level : 0 %
    • China ROHS Regulation : X
    • Mercury Free : Yes
    • Circularity Profile : ENVEOLI2503027EN
    • Environmental Disclosure : ENVPEP2503027EN
    • EU ROHS Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : Yes
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • Pep Code : ENVPEP2503027EN
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
  • Specifications
    • Country of Origin : Mexico
  • Overview Attributes
    • Device Presentation : complete product
