Schneider Electric at Mayer

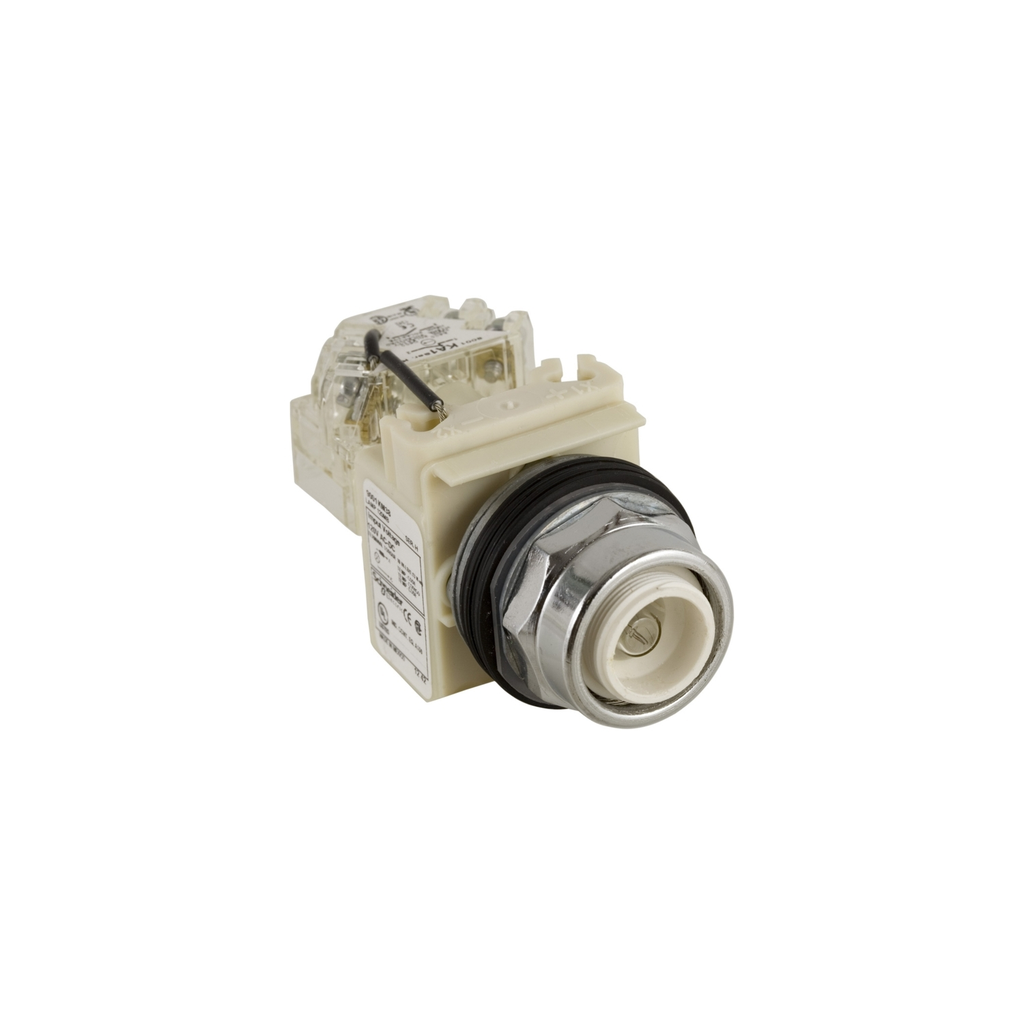

Push-to-test pilot light head, Harmony 9001K, metal, without cap, 30mm, 120V

PILOT LIGHT 120VAC 30MM TYPE K

SQD9001KT38 9001KT38 785901178521
165.31 / EACH
http://schema.org/OutOfStock
Mayer-DDS-Push-to-test pilot light head, Harmony 9001K, metal, without cap, 30mm, 120V-1
  • Bezel Material: Metal
  • Certifications: CE, CSA LR25490 Class 3211 03, UL Listed File E42259 CCN NKCR
  • Warranty Length: 18 mth
30 mm heavy duty chromium plated metal push buttons, selector switches, pilot lights, and specialty operators
QTY
  • Specifications
  • Environment
    • Product Certifications : UL listed file E42259 CCN NKCR || CSA LR25490 class 3211 03 || CE
    • Nema Degree Of Protection : NEMA 1/2/3/3R/4/6/12/13
  • Contractual warranty
    • Warranty : 18 months
  • Offer Sustainability
    • China Rohs Regulation : X
    • Circularity Profile : N/A
    • Rohs Exemption Information : Yes
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP121006EN
    • Sustainable Offer Status : Green Premium product
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Weee : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
  • Complementary
    • [Us] Rated Supply Voltage : 120 V
    • Contacts Type And Composition : 1 C/O
    • Bezel Material : metal
    • Light Source : incandescent bulb
    • Light Block Supply : full voltage 120 V
    • Mounting Diameter : 30 mm
    • Light Block Supply : full voltage or resistor
    • Operating Mode : push-to-test
    • Cap/Operator Or Lens Colour : without cap
    • Shape Of Screw Head : round
    • Size : 30 mm
    • Bulb Base : BA 9s
  • Specifications
    • Range Of Product : Harmony 9001K
    • Product Or Component Type : head for push-to-test pilot light
    • Device Short Name : K
