PILOT LIGHT 120VAC 30MM TYPE K +OPTIONS

PILOT LIGHT 120VAC 30MM TYPE K

SQD9001KT35LGG31 9001KT35LGG31 785901036104
197.00 / EACH
  • Bezel Material: Chromium Plated Metal
  • Certifications: NEMA, UL 508
  • Contact Material: Silver Alloy
  • Country of Origin: Mexico
  • Standard: CSA C22.2 No 14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, JIS C 852, JIS C8201-1, JIS C8201-5-1, UL 508
  • Warranty Length: 18 mth
  • Weight: 0.235 kg, 0.52 lb

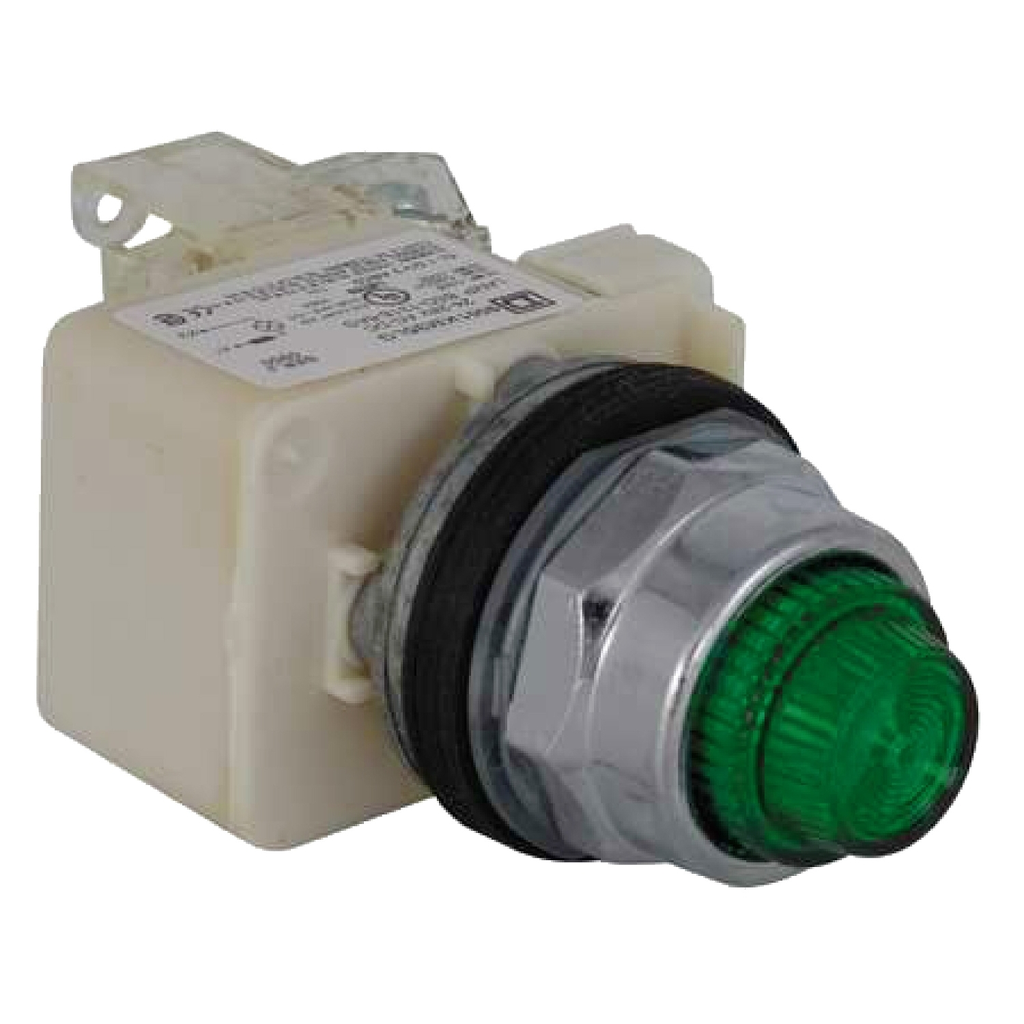

This Harmony 9001K, push-to-test illuminated green pilot light with integral LED and plastic fresnel is supplied with 24V AC/DC. It has a chromium-plated metal bezel. This illuminated push-to-test pilot light with integral LED provides an ergonomic and visual interface for your machines. It is easily installed into a standard 30mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections. It is clearly distinguishable visually at a distance thanks to its illuminated head and clear color. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Impact and corrosion resistant metal bezel and body ensures product continues to operate even after severe accidents.
  • Product Description
  • Specifications
This Harmony 9001K, push-to-test illuminated green pilot light with integral LED and plastic fresnel is supplied with 24V AC/DC. It has a chromium-plated metal bezel. This illuminated push-to-test pilot light with integral LED provides an ergonomic and visual interface for your machines. It is easily installed into a standard 30mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections. It is clearly distinguishable visually at a distance thanks to its illuminated head and clear color. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Impact and corrosion resistant metal bezel and body ensures product continues to operate even after severe accidents.
  • Ordering And Shipping Details
    • Country Of Origin : MX
    • Returnability : Yes
    • GTIN : 00785901036104
    • Category : 21426 - 9001 K (NOT KA,KM,KX)
    • Nbr. Of Units In Pkg. : 1
    • Discount Schedule : CS1
  • Offer Sustainability
    • WEEE : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • Green Premium Status : Green Premium product
    • Mercury Free : Yes
    • EU RoHs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Main
    • Type Of Operator : spring return
    • Device Short Name : 9001K
    • Range Of Product : Harmony 9001K
    • Operator Profile : Green projecting, unmarked
    • Product Or Component Type : Illuminated push to test push-button
  • Environment
    • Electrical Shock Protect Class : Class II IEC 61140
    • IP Degree Of Protection : IP66 IEC 60529
    • Ambient Air Temp For Storage : -40…158 °F (-40…70 °C)
    • Vibration Resistance : 7 gn 2…500 Hz)IEC 60068-2-6
    • Product Certifications : NEMA || UL 508
    • Standards : JIS C8201-5-1 || EN/IEC 60947-1 || UL 508 || JIS C 852 || EN/IEC 60947-5-1 || EN/IEC 60947-5-4 || CSA C22.2 No 14 || JIS C8201-1
    • Protective Treatment : TC
    • Ambient Air Temp For Op : -13…158 °F (-25…70 °C)
    • Nema Degree Of Protection : NEMA 1 || NEMA 12 || NEMA 13 || NEMA 2 || NEMA 3 || NEMA 3R || NEMA 4
    • Shock Resistance : 50 gn IEC 60068-2-27
  • Contractual Warranty
    • Warranty : 18 months
  • Complementary
    • Light Source : LED
    • Mounting Diameter : 1.18 in (30 mm)
    • Mechanical Durability : 5000000 cycles
    • Positive Opening : Without
    • Tightening Torque : 7.08 lbf.in (0.8 N.m) IEC 60947-1
    • Shape Of Screw Head : Cross slotted
    • Bulb Base : BA 9s
    • Short-Circuit Protection : 10 A cartridge fuse IEC 60947-5-1
    • Connections - Terminals : Screw clamp terminals 1 x 0.22...2 x 1.5 mm² IEC 60947-1
    • Ui Rated Insulation Voltage : 250 V 3)IEC 60947-1
    • Device Presentation : Complete product
    • Bezel Material : Chromium plated metal
    • Contact Operation : Standard
    • Operating Position : Any position
    • Us Rated Supply Voltage : 24 V AC/DC
    • [Us] Rated Supply Voltage : 24...28 V AC/DC
    • Uimp Rated Imp Wstd Voltage : 2.5 kV IEC 60947-1
    • Light Block Supply : Direct
    • Rated Breaking Capacity : 1.2 kA 600 V AC-15, 720 VA || 1.5 kA 480 V AC-15, 720 VA || 3 kA 240 V AC-15, 720 VA || 6 kA 120 V AC-15, 720 VA || 0.1 kA 600 V DC-13 || 0.27 kA 250 V DC-13 || 0.55 kA 125 V DC-13
    • Ith Cnvtl Free Air Therm Crrt : 10 A
    • Icm Rated Sc Making Cap : 0.27 kA 250 V DC-13, 7200 VA || 0.55 kA 125 V DC-13, 7200 VA || 12 kA 600 V AC-15, 7200 VA || 15 kA 480 V AC-15, 7200 VA || 30 kA 240 V AC-15, 7200 VA || 60 kA 120 V AC-15, 7200 VA
    • Contacts Material : Silver alloy contacts
    • Shape Of Signaling Unit Head : Octagonal
    • Contacts Type And Composition : 1 NO
    • Product Weight : 0.52 lb(US) (0.235 kg)
