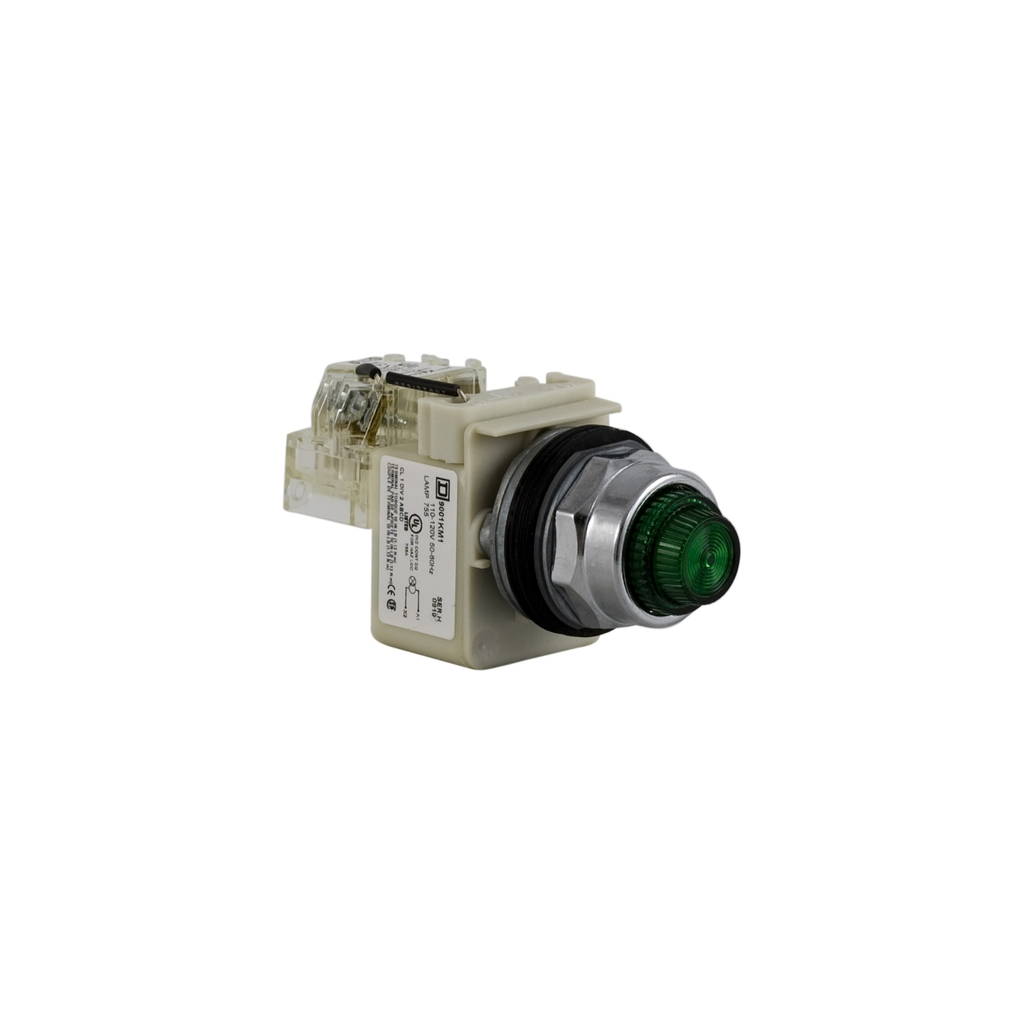

Push to test pilot light, Harmony 9001K, metal, polycarbonate, fresnel lens, green, 30mm, 110...120V

PILOT LIGHT 120VAC 30MM TYPE K

SQD9001KT1G31 9001KT1G31 785901035763
236.13 / EACH
http://schema.org/OutOfStock
Mayer-DDS-Push to test pilot light, Harmony 9001K, metal, polycarbonate, fresnel lens, green, 30mm, 110...120V-1
  • Bezel Material: Metal
  • Lens Material: Polycarbonate
  • Light Source: Incandescent Bulb
  • Warranty Length: 18 mth
This Harmony 9001KT1G31 is a pilot light 120VAC. It is part of the range Harmony 9001 K diameter 30mm metal push buttons, switches, pilot lights.
QTY
  • Product Description
  • Features
  • Specifications
This Harmony 9001KT1G31 is a pilot light 120VAC. It is part of the range Harmony 9001 K diameter 30mm metal push buttons, switches, pilot lights.
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Assets
    • Cad : https://download.schneider-electric.com/files?p_Doc_Ref=9001KT1G31_CAD&p_File_name=9001KT1G31_3D.stp, https://download.schneider-electric.com/files?p_Doc_Ref=9001KT1G31_CAD&p_File_name=9001KT1G31_2D Front View.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=9001KT1G31_CAD&p_File_name=9001KT1G31_2D Front View.dxf, https://download.schneider-electric.com/files?p_Doc_Ref=9001KT1G31_CAD&p_File_name=9001KT1G31_2D Right Side View.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=9001KT1G31_CAD&p_File_name=9001KT1G31_2D Right Side View.dxf
  • Physical Attributes
    • Size : 30 mm
    • Cap Operator Or Lens Color : green
  • Conformance Attributes
    • Product Certifications : CSA LR25490 class 3211 03, CE, UL listed file E42259 CCN NKCR
  • Complementary Attributes
    • Us Rated Supply Voltage : 110...120 V
  • Important Information Attributes
    • Lens Type : fresnel, fresnel plastic
    • Light Block Supply : via transformer 110 V AC 50/60 Hz, via transformer 120 V AC 50/60 Hz, via integral transformer
    • Medium Desc : Push to test pilot light, Harmony 9001K, metal, polycarbonate, fresnel lens, green, 30mm, 110...120V
    • Local Data Status : Publishable
    • Local Publishable Date : 2026-01-12
    • Global Commercial Status : Commercialised
    • Html Descr : PILOT LIGHT 120VAC 30MM TYPE K +OPTIONS
    • Return Indicator : Y
    • Stocking Flag : Y
    • Manufacturer : Schneider Electric
    • Legacy Weee Scope : In
    • Scope Perimeter : At least in Europe
    • Eoli Availability Display : Yes
    • End Of Life Doc Ref : ENVEOLI2503027EN
    • Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : CONTAINS_SVHC
    • Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
    • Rohs Eur In Scope : No
    • Rohs Eur Status : Compliant By Exemption
    • Rohs Eur Full Compliance Status : Compliant By Exemption
    • China Rohs In Scope : Yes
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : Yes
    • Product Contributes To Saved And Avoided Emissions : No
    • Product Kit Identifier : N
    • Bezel Material : metal
    • Bulb Base : BA 9s
    • Contacts Type And Composition : 1 C/O
    • Device Short Name : K
    • Lens Material : polycarbonate
    • Light Source : incandescent bulb
    • Mounting Diameter : 30 mm
    • Operating Mode : push-to-test
    • Product Availability : Non-Stock - Not normally stocked in distribution facility
    • Product Or Component Type : push-to-test pilot light
    • Range Of Product : Harmony 9001K
    • Returnability : Yes
    • Shape Of Screw Head : round
    • Supply Frequency : 50...60 Hz
    • Sustainable Packaging : Yes
    • Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • Cap Operator Or Lens Color : green
    • Pep Code : ENVPEP2503027EN
  • Environment Attributes Main
    • Take Back : Nej
    • Recycled Metal Content At Cr Level : 0 %
    • China Rohs Regulation : X
    • Mercury Free : Yes
    • Circularity Profile : ENVEOLI2503027EN
    • Environmental Disclosure : ENVPEP2503027EN
    • Eu Rohs Directive : Compliant By Exemption
    • Nema Degree Of Protection : NEMA 3R/6/13
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : Yes
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • Pep Code : ENVPEP2503027EN
  • General Attributes
    • Product Or Component Type : push-to-test pilot light
    • Range Of Product : Harmony 9001K
  • ETIM
    • ETIM 8 : EC000272
    • ETIM 9 : EC000272
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
