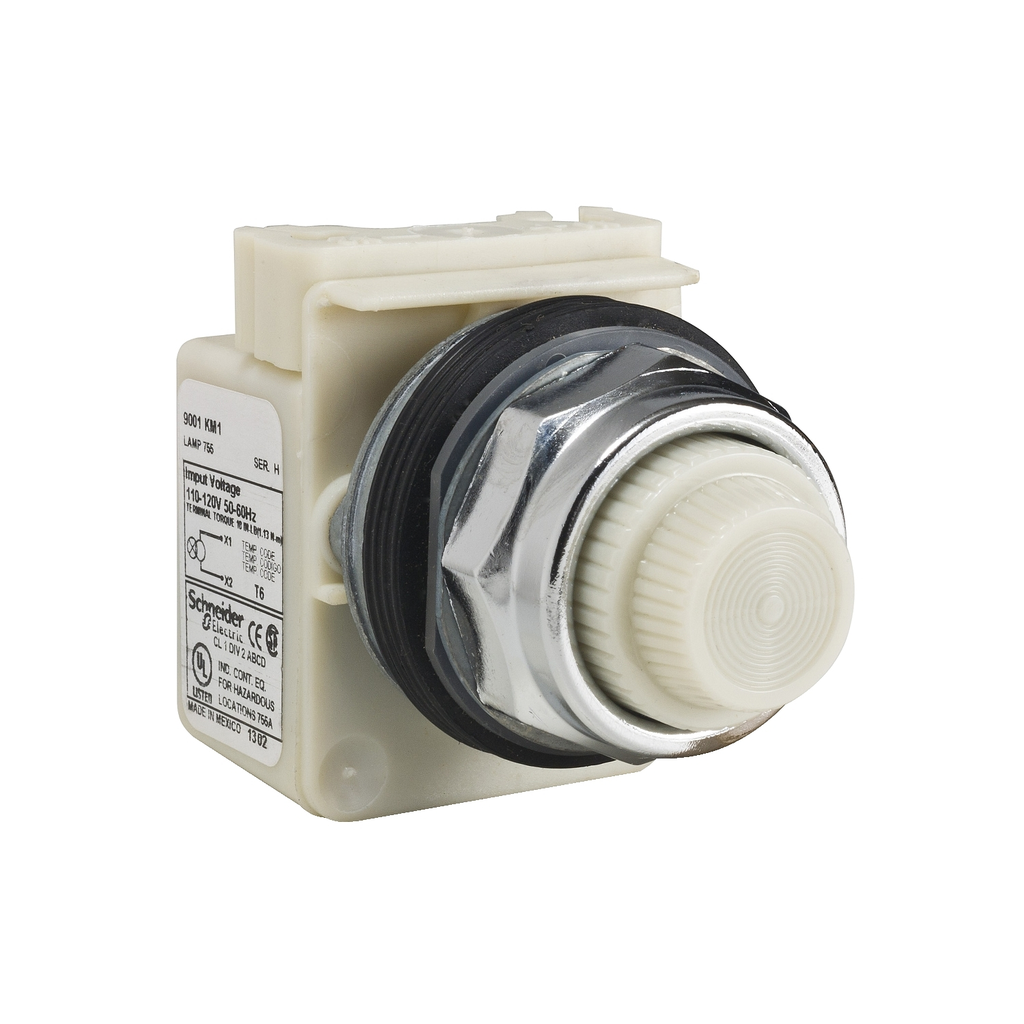

Pilot light, Harmony 9001K, metal, polycarbonate, fresnel, white, 30mm, 110-120V

SQD 9001KP1W31 PILOT LIGHT 120

SQD9001KP1W31 9001KP1W31 785901032076
160.08 / EACH
http://schema.org/OutOfStock
Mayer-DDS-Pilot light, Harmony 9001K, metal, polycarbonate, fresnel, white, 30mm, 110-120V-1
  • Bezel Material: Metal
  • Certifications: CE, CSA LR25490 Class 3211 03, UL Listed File E42259 CCN NKCR
  • Lens Type: Fresnel, Fresnel Plastic
  • Warranty Length: 18 mth
This Harmony 9001K, white pilot light with transformer and plastic fresnel is supplied with 110V AC. It has a chromium-plated metal bezel. This single component pilot light with transformer provides clear visual feedback on the status of your machines. It is easily installed into a standard 30mm diameter panel cut-outs and connected with simple screw-clamp connections. It is clearly distinguishable visually at a distance due to clear colors and illumination via integral LED, enabling complex machine statuses to be read at a glance. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Impact and corrosion resistant metal bezel and body ensures product continues to operate even after severe accidents.
QTY
  • Product Description
  • Specifications
This Harmony 9001K, white pilot light with transformer and plastic fresnel is supplied with 110V AC. It has a chromium-plated metal bezel. This single component pilot light with transformer provides clear visual feedback on the status of your machines. It is easily installed into a standard 30mm diameter panel cut-outs and connected with simple screw-clamp connections. It is clearly distinguishable visually at a distance due to clear colors and illumination via integral LED, enabling complex machine statuses to be read at a glance. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Impact and corrosion resistant metal bezel and body ensures product continues to operate even after severe accidents.
  • Environment
    • Product Certifications : CSA LR25490 class 3211 03 || CE || UL listed file E42259 CCN NKCR
    • Nema Degree Of Protection : NEMA 1/2/3/3R/4/6/12/13
  • Contractual warranty
    • Warranty : 18 months
  • Offer Sustainability
    • China Rohs Regulation : X
    • Circularity Profile : N/A
    • Rohs Exemption Information : Yes
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP121006EN
    • Sustainable Offer Status : Green Premium product
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Weee : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
  • Complementary
    • [Us] Rated Supply Voltage : 110...120 V
    • Connections - Terminals : screw clamp terminals, 1 x 0.22...2 x 1.5 mm² IEC 60947-1
    • [Us] Rated Supply Voltage : 110...120 V AC
    • Light Source : incandescent
    • Bezel Material : metal
    • Lens Material : polycarbonate
    • Light Source : incandescent bulb
    • Light Block Supply : via transformer 120 V AC 50/60 Hz || via integral transformer 110 V AC 50/60 Hz
    • Mounting Diameter : 30 mm
    • Light Block Supply : via integral transformer
    • Operating Position : any position
    • Operating Mode : normal
    • Cap/Operator Or Lens Colour : white
    • Lens Type : fresnel plastic
    • Shape Of Screw Head : round
    • Size : 30 mm
    • Supply Frequency : 50...60 Hz
    • Bulb Base : BA 9s
    • Device Presentation : complete product
    • Lens Type : fresnel
  • Specifications
    • Range Of Product : Harmony 9001K
    • Product Or Component Type : pilot light
    • Device Short Name : K
