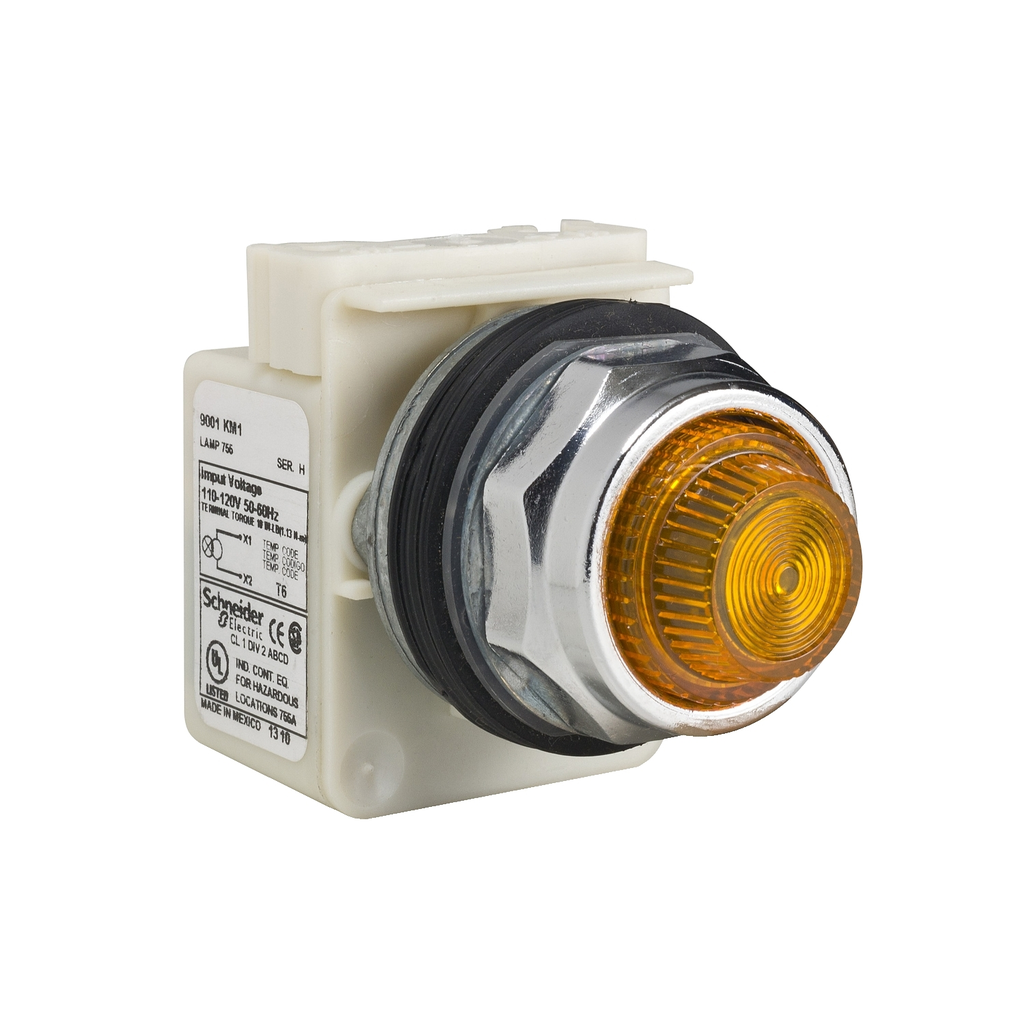

Pilot light, Harmony 9001K, metal, polycarbonate, fresnel lens, amber, 30mm, 110...120V

SQD 9001KP1A31 PILOT LIGHT 120

SQD9001KP1A31 9001KP1A31 785901032038
195.01 / EACH
http://schema.org/OutOfStock
Mayer-DDS-Pilot light, Harmony 9001K, metal, polycarbonate, fresnel lens, amber, 30mm, 110...120V-1
  • Bezel Material: Metal
  • Country of Origin: Mexico
  • Lens Material: Polycarbonate
  • Light Source: Incandescent
  • Warranty Length: 18 mth
This Harmony 9001K, amber pilot light with transformer and plastic fresnel is supplied with 110V AC. It has a chromium-plated metal bezel. This single component pilot light with transformer provides clear visual feedback on the status of your machines. It is easily installed into a standard 30mm diameter panel cut-outs and connected with simple screw-clamp connections. It is clearly distinguishable visually at a distance due to clear colors and illumination via integral LED, enabling complex machine statuses to be read at a glance. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Impact and corrosion resistant metal bezel and body ensures product continues to operate even after severe accidents.
QTY
  • Product Description
  • Features
  • Specifications
This Harmony 9001K, amber pilot light with transformer and plastic fresnel is supplied with 110V AC. It has a chromium-plated metal bezel. This single component pilot light with transformer provides clear visual feedback on the status of your machines. It is easily installed into a standard 30mm diameter panel cut-outs and connected with simple screw-clamp connections. It is clearly distinguishable visually at a distance due to clear colors and illumination via integral LED, enabling complex machine statuses to be read at a glance. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Impact and corrosion resistant metal bezel and body ensures product continues to operate even after severe accidents.
  • US Rated Supply Voltage
    • 110...120 V AC
  • Connections Terminals
    • screw clamp terminals, 1 x 0.22...2 x 1.5 mm² IEC 60947-1
  • Light Block Supply
    • via transformer 120 V AC 50/60 Hz
    • via integral transformer 110 V AC 50/60 Hz
  • CAD
    • https://download.schneider-electric.com/files?p_Doc_Ref=9001KP1A31_CAD&p_File_name=9001KP1A31_3D.stp
    • https://download.schneider-electric.com/files?p_Doc_Ref=9001KP1A31_CAD&p_File_name=9001KP1A31_2D Front View.dwg
    • https://download.schneider-electric.com/files?p_Doc_Ref=9001KP1A31_CAD&p_File_name=9001KP1A31_2D Front View.dxf
    • https://download.schneider-electric.com/files?p_Doc_Ref=9001KP1A31_CAD&p_File_name=9001KP1A31_2D Right Side View.dwg
    • https://download.schneider-electric.com/files?p_Doc_Ref=9001KP1A31_CAD&p_File_name=9001KP1A31_2D Right Side View.dxf
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Accessories
    • 9001KN201
    • 9001KN202
  • Lens Type
    • fresnel plastic
  • Important Information Attributes
    • Local Data Status : Publishable
    • Local Publishable Date : 2025-08-18
    • Legacy WEEE Scope : In
    • WEEE Product Category : 5
    • Scope Perimeter : At least in Europe
    • EOLI Availability Display : Yes
    • End Of Life Doc Ref : ENVEOLI2503027EN
    • Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : CONTAINS_SVHC
    • Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
    • ROHS EUR In Scope : No
    • ROHS EUR Status : Compliant with Exemptions
    • ROHS EUR Conformity Date : 1930
    • ROHS EUR Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
    • ROHS EUR Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
    • China ROHS In Scope : Yes
    • China ROHS Label : 7
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : Yes
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : N
    • WD Status : 1 - GSC certified
    • Bezel Material : metal
    • Bulb Base : BA 9s
    • Device Short Name : K
    • Lens Material : polycarbonate
    • Light Source : incandescent
    • Mounting Diameter : 30 mm
    • Package Weight Lbs : 226.800 g
    • Product Availability : Non-Stock - Not normally stocked in distribution facility
    • Product Or Component Type : pilot light
    • Range Of Product : Harmony 9001K
    • Returnability : No
    • Shape Of Screw Head : round
    • Sustainable Packaging : Yes
    • Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • Relationship Type : Compatible relationship
    • Pep Code : ENVPEP2503027EN
    • Nbr Of Units In Pkg : 1
    • Warranty In Months : 18
  • General Attributes
    • Product Or Component Type : pilot light
    • Range Of Product : Harmony 9001K
  • Environment Attributes
    • ROHS Exemption Information : Yes
    • China ROHS url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=680580&lang=en-us
    • Take Back : No
    • Recycled Metal Content At Cr Level : 0 %
    • China ROHS Regulation : X
    • Mercury Free : Yes
    • Circularity Profile : ENVEOLI2503027EN
    • Environmental Disclosure : ENVPEP2503027EN
    • EU ROHS Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • Nema Degree Of Protection : NEMA 1/2/3/3R/4/6/12/13
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : Yes
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • Pep Code : ENVPEP2503027EN
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
  • Specifications
    • Country of Origin : Mexico
  • Overview Attributes
    • Device Presentation : complete product
