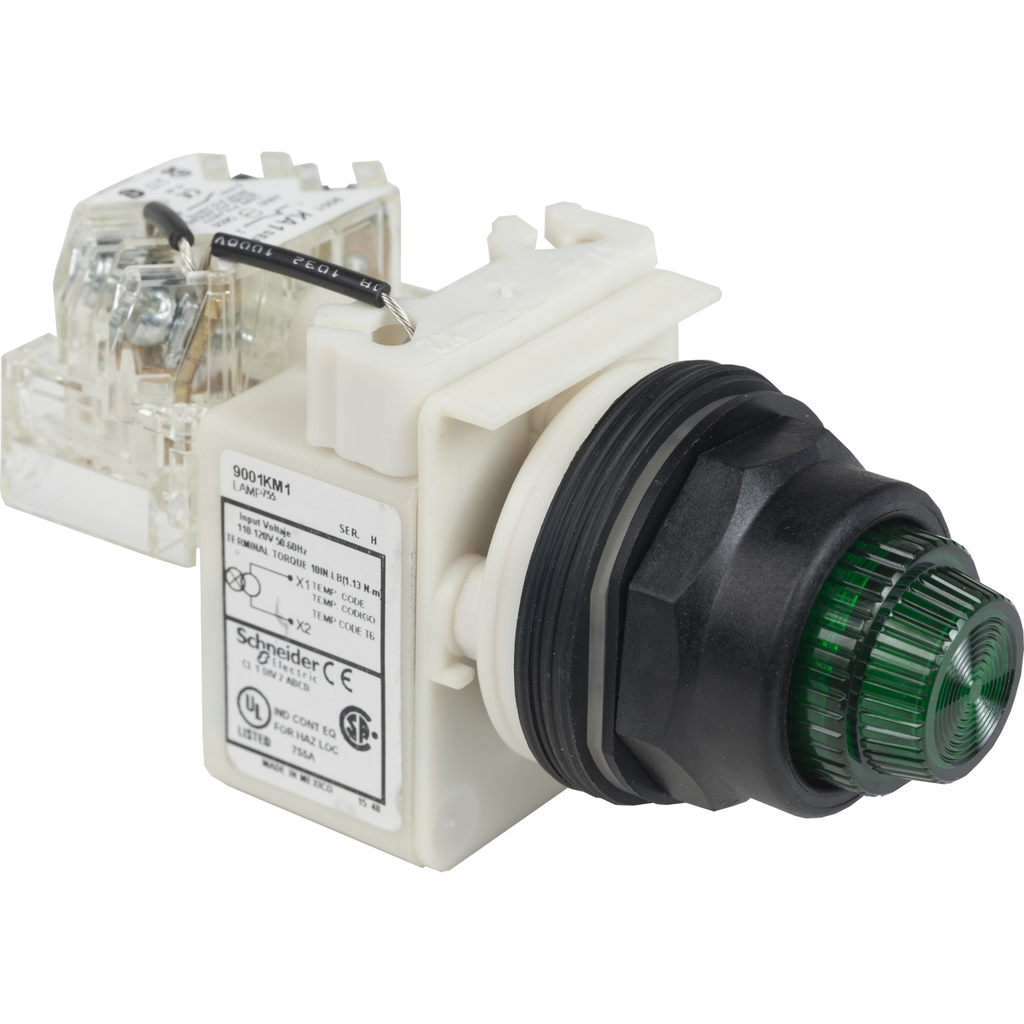

Push-to-test pilot light, Harmony 9001SK, plastic, polycarbonate, fresnel, green, 30mm, 110-120V

PILOT LIGHT 120VAC 30MM SK +OP

SQD9001SKT1G31 9001SKT1G31 785901044406
234.22 / EACH
http://schema.org/OutOfStock
  • Bezel Material: Plastic
  • Lens Material: Polycarbonate
  • Light Source: Incandescent Bulb
  • Warranty Length: 18 mth
This illuminated green push-to-test pilot light with integral LED provides an ergonomic and visual interface for your machines It is clearly distinguishable visually at a distance thanks to its illuminated head and clear color It is impact resistant, dust resistant, water resistant and vibration resistant, making it ideal for operation in harsh environments It is easily installed into a standard 30mm diameter panel cut-outs and connected to control circuits with classic High performance International standards & certifications (Marine ABS certification, IP66, Type 1, 2, 3, 3R, 4, 4X, 12 and 13)
QTY
  • Product Description
  • Features
  • Specifications
This illuminated green push-to-test pilot light with integral LED provides an ergonomic and visual interface for your machines It is clearly distinguishable visually at a distance thanks to its illuminated head and clear color It is impact resistant, dust resistant, water resistant and vibration resistant, making it ideal for operation in harsh environments It is easily installed into a standard 30mm diameter panel cut-outs and connected to control circuits with classic High performance International standards & certifications (Marine ABS certification, IP66, Type 1, 2, 3, 3R, 4, 4X, 12 and 13)
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Environment
    • Ip Degree Of Protection : IP66
    • Protective Treatment : TC
  • Contractual warranty
    • Warranty : 18 months
  • Environmental data
    • Rohs Exemption Information : Yes
    • Packaging Made With Recycled Cardboard : Yes
    • Mercury Free : Yes
    • Packaging Without Single Use Plastic : Yes
    • Toxic Heavy Metal Free : Yes
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Weee : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • Minimum Percentage Of Recycled Plastic Content : 0
    • Take-Back : No
    • Sustainable Packaging : Yes
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
  • Complementary
    • [Us] Rated Supply Voltage : 110...120 V
    • Lens Material : polycarbonate
    • Light Source : incandescent bulb
    • Mounting Diameter : 30 mm
    • Light Block Supply : via integral transformer
    • Operating Mode : push-to-test
    • Shape Of Signaling Unit Head : round
    • Cap/Operator Or Lens Colour : green
    • Size : 30 mm
    • Lens Type : fresnel
    • Contacts Type And Composition : 1 C/O
    • Bezel Material : plastic
    • Supply Frequency : 50...60 Hz
    • Bulb Base : BA 9s
  • Specifications
    • Country of Origin : Mexico
    • Range Of Product : Harmony 9001SK
    • Light Block Supply : via transformer 110 V AC 50/60 Hz || via transformer 120 V AC 50/60 Hz
    • Product Or Component Type : push-to-test pilot light
    • Lens Type : fresnel plastic
