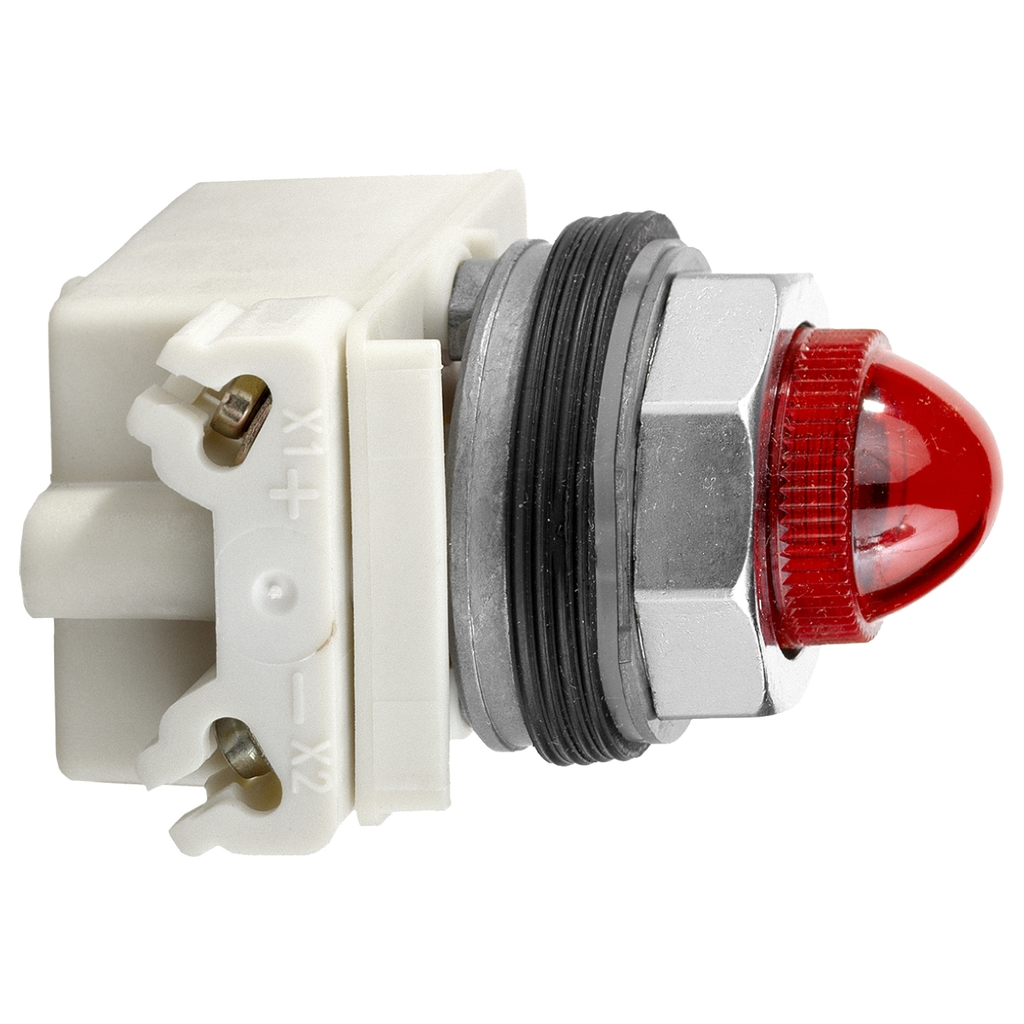

This Harmony 9001K red pilot light with a plastic dome is supplied with 120V AC/DC and features an incandescent BA 9s bulb. It has a chromium-plated metal bezel. This single component pilot light provides clear visual feedback on the status of your machines. It is easily installed into standard 30mm diameter panel cut-outs and connected with simple screw-clamp connections. Due to its clear color, it is distinguishable visually at a distance, enabling complex machine statuses to be read at a glance. Thanks to its IP66, it is impact-resistant, dust-resistant, water-resistant, and vibration-resistant, making it ideal for operation in harsh environments. Impact and corrosion-resistant metal bezel and body ensure the product continues to operate even after severe accidents. Its wide range of operating temperatures from -25°C to 70°C allows versatility in the usage of the product. High performance international standards & certifications (UL 508, NEMA, CSA C22.2 No 14, JIS C 852, EN/IEC 60947-5-4, etc.). The Harmony 9001K of Ø 30 mm metal control and signaling provides robust and reliable solutions for various heavy industry applications.

• Prop 65
• WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

• Physical Attributes
• Cad Overall Depth : 42 mm
• Cad Overall Height : 70 mm
• Cad Overall Width : 54 mm
• Complementary Attributes
• UI Rated Insulation Voltage : 250 V 2)IEC 60947-1, 250 V 2)IEC 60947-1, 250 V 2)IEC 60947-1
• UIMP Rated Impulse Withstand Voltage : 2.5 kV IEC 60947-1, 2.5 kV IEC 60947-1
• US Rated Supply Voltage : 120 V AC/DC, 120 V AC/DC
• Important Information Attributes
• Lens Type : domed plastic, domed plastic
• Light Block Supply : direct 120 V AC/DC, direct 120 V AC/DC, direct 120 V AC/DC
• Overvoltage Category : class II conforming to IEC 61140, class II conforming to IEC 61140
• Shock Resistance : 50 gn IEC 60068-2-27, 50 gn IEC 60068-2-27
• Short Circuit Protection : 10 A cartridge fuse IEC 60947-5-1, 10 A cartridge fuse IEC 60947-5-1, 10 A cartridge fuse IEC 60947-5-1
• Tightening Torque : 0.8-0.8 N.m IEC 60947-1, 0.8-0.8 N.m IEC 60947-1
• Vibration Resistance : 7 gn (f= 2-500 Hz) conforming to IEC 60068-2-6, 7 gn (f= 2-500 Hz) conforming to IEC 60068-2-6, 7 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
• Connections Terminals : screw clamp terminals, 1 x 0.22...2 x 1.5 mm² IEC 60947-1, screw clamp terminals, 1 x 0.22...2 x 1.5 mm² IEC 60947-1, screw clamp terminals, 1 x 0.22...2 x 1.5 mm² IEC 60947-1
• Local Data Status : Publishable
• Local Publishable Date : 2025-09-16
• Legacy WEEE Scope : In
• Scope Perimeter : At least in Europe
• EOLI Availability Display : Yes
• End Of Life Doc Ref : ENVEOLI2503027EN
• Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : CONTAINS_SVHC
• Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
• ROHS EUR In Scope : No
• ROHS EUR Status : Compliant with Exemptions
• ROHS EUR Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
• ROHS EUR Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
• China ROHS In Scope : Yes
• With Recycled Cardboard : Yes
• Without Single Use Plastic : Yes
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : Y
• WD Status : 5 - INITIALIZED WITH DataSCAN OK (Migration)
• Bezel Material : metal
• Bulb Base : BA 9s
• Compatibility Code : 9001K
• Device Short Name : 9001K
• Lens Material : polycarbonate
• Light Source : incandescent
• Mounting Diameter : 30 mm
• Package Weight Lbs : 140.614 g
• Product Availability : Non-Stock - Not normally stocked in distribution facility
• Product Or Component Type : pilot light
• Range Of Product : Harmony 9001K
• Returnability : Yes
• Shape Of Screw Head : cross slotted
• Shape Of Signaling Unit Head : round
• Sustainable Packaging : Yes
• Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• ITH Conventional Free Air Thermal Current : 10 A
• Relationship Type : Compatible relationship
• Pep Code : ENVPEP2503027EN
• Product Kit Identifier : N
• Environment Attributes Main
• EU ROHS Directive : Compliant By Exemption​, Pro-active compliance (Product out of EU RoHS legal scope)
• IP Degree Of Protection : IP66 IEC 60529, IP66 IEC 60529
• Nema Degree Of Protection : NEMA 1, NEMA 12, NEMA 13, NEMA 2, NEMA 3, NEMA 3R, NEMA 4, NEMA 6
• ROHS Exemption Information : Yes
• Take Back : No
• Recycled Metal Content At Cr Level : 0 %
• China ROHS Regulation : X
• Mercury Free : Yes
• Circularity Profile : ENVEOLI2503027EN
• Environmental Disclosure : ENVPEP2503027EN
• Packaging Made With Recycled Cardboard : Yes
• Packaging Without Single Use Plastic : Yes
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• Pep Code : ENVPEP2503027EN
• General Attributes
• Product Or Component Type : pilot light
• Range Of Product : Harmony 9001K
• Contractual Warranty Attributes
• Warranty Period : 18 months
• Warranty : 18 months
• Overview Attributes
• Device Presentation : complete product
