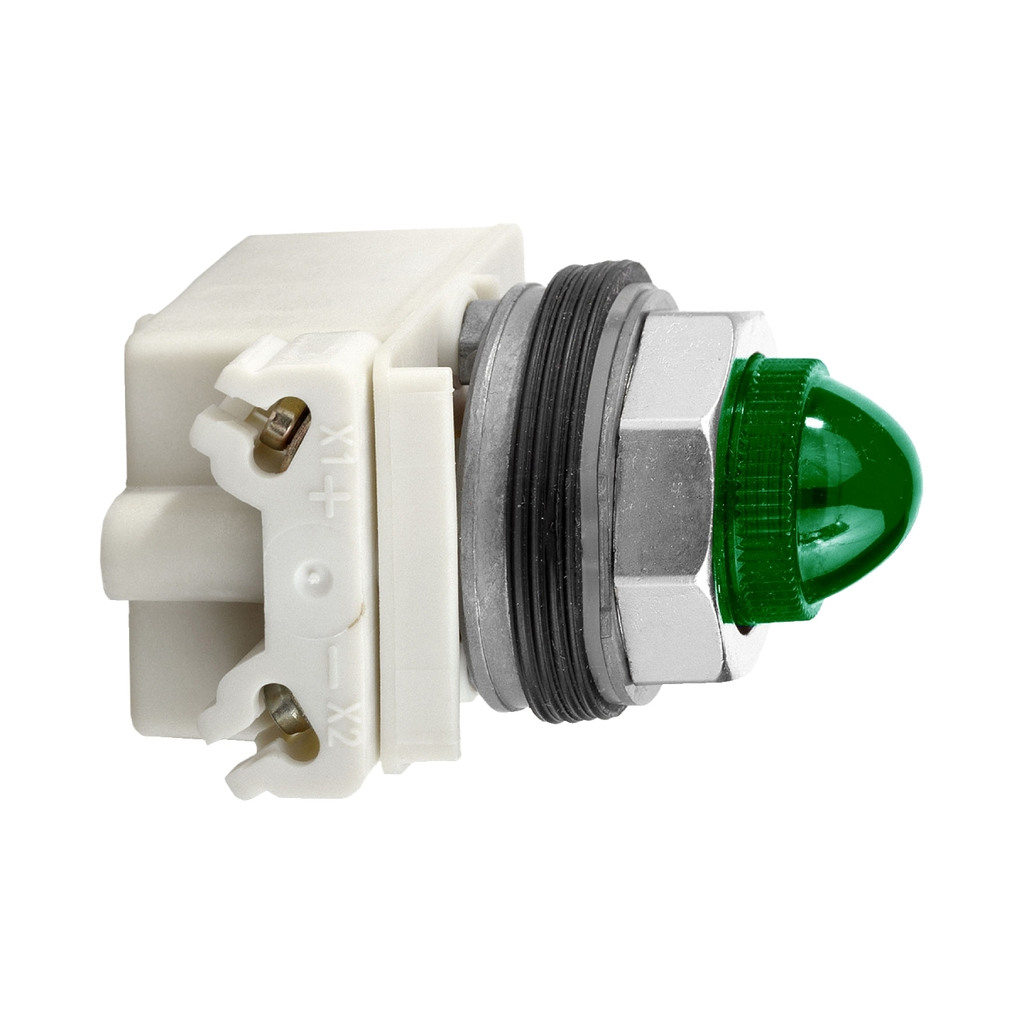

Pilot light, Harmony 9001K, metal, polycarbonate, domed, green, 30mm, 120V

PILOT LIGHT 120V 30MM TYPE K +

SQD9001KP38G9 9001KP38G9 785901794394
144.51 / EACH
http://schema.org/OutOfStock
Mayer-DDS-Pilot light, Harmony 9001K, metal, polycarbonate, domed, green, 30mm, 120V-1
  • Bezel Material: Metal
  • Country of Origin: Mexico
  • Lens Material: Polycarbonate
  • Light Source: Incandescent
  • Warranty Length: 18 mth
This Harmony 9001K green pilot light with a plastic dome is supplied with 120V AC/DC and features an incandescent BA 9s bulb. It has a chromium-plated metal bezel. This single component pilot light provides clear visual feedback on the status of your machines. It is easily installed into standard 30mm diameter panel cut-outs and connected with simple screw-clamp connections. Due to its clear color, it is distinguishable visually at a distance, enabling complex machine statuses to be read at a glance. Thanks to its IP66, it is impact-resistant, dust-resistant, water-resistant, and vibration-resistant, making it ideal for operation in harsh environments. Impact and corrosion-resistant metal bezel and body ensure the product continues to operate even after severe accidents. Its wide range of operating temperatures from -25°C to 70°C allows versatility in the usage of the product. High performance international standards & certifications (UL 508, NEMA, CSA C22.2 No 14, JIS C 852, EN/IEC 60947-5-4, etc.). The Harmony 9001K of Ø 30 mm metal control and signaling provides robust and reliable solutions for various heavy industry applications.
QTY
  • Product Description
  • Features
  • Specifications
This Harmony 9001K green pilot light with a plastic dome is supplied with 120V AC/DC and features an incandescent BA 9s bulb. It has a chromium-plated metal bezel. This single component pilot light provides clear visual feedback on the status of your machines. It is easily installed into standard 30mm diameter panel cut-outs and connected with simple screw-clamp connections. Due to its clear color, it is distinguishable visually at a distance, enabling complex machine statuses to be read at a glance. Thanks to its IP66, it is impact-resistant, dust-resistant, water-resistant, and vibration-resistant, making it ideal for operation in harsh environments. Impact and corrosion-resistant metal bezel and body ensure the product continues to operate even after severe accidents. Its wide range of operating temperatures from -25°C to 70°C allows versatility in the usage of the product. High performance international standards & certifications (UL 508, NEMA, CSA C22.2 No 14, JIS C 852, EN/IEC 60947-5-4, etc.). The Harmony 9001K of Ø 30 mm metal control and signaling provides robust and reliable solutions for various heavy industry applications.
  • US Rated Supply Voltage
    • 120 V AC/DC
  • Connections Terminals
    • screw clamp terminals, 1 x 0.22...2 x 1.5 mm² IEC 60947-1
  • Overvoltage Category
    • class II conforming to IEC 61140
  • Light Block Supply
    • direct 120 V AC/DC
  • CAD
    • https://download.schneider-electric.com/files?p_Doc_Ref=9001KP38G9_CAD&p_File_name=9001KP38G9_3D.stp
    • https://download.schneider-electric.com/files?p_Doc_Ref=9001KP38G9_CAD&p_File_name=9001KP38G9_2D Front View.dwg
    • https://download.schneider-electric.com/files?p_Doc_Ref=9001KP38G9_CAD&p_File_name=9001KP38G9_2D Front View.dxf
    • https://download.schneider-electric.com/files?p_Doc_Ref=9001KP38G9_CAD&p_File_name=9001KP38G9_2D Right Side View.dwg
    • https://download.schneider-electric.com/files?p_Doc_Ref=9001KP38G9_CAD&p_File_name=9001KP38G9_2D Right Side View.dxf
  • IP Degree Of Protection
    • IP66 IEC 60529
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Nema Degree Of Protection
    • NEMA 1
    • NEMA 12
    • NEMA 13
    • NEMA 2
    • NEMA 3
    • NEMA 3R
    • NEMA 4
    • NEMA 6
  • UI Rated Insulation Voltage
    • 250 V 2)IEC 60947-1
  • Accessories
    • 9001KA1
    • 9001KA2
    • 9001KA3
    • 9001KA5
  • Vibration Resistance
    • 7 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
  • Tightening Torque
    • 0.8-0.8 N.m IEC 60947-1
  • Short Circuit Protection
    • 10 A cartridge fuse IEC 60947-5-1
  • Lens Type
    • domed plastic
  • Shock Resistance
    • 50 gn IEC 60068-2-27
  • UIMP Rated Impulse Withstand Voltage
    • 2.5 kV IEC 60947-1
  • Physical Attributes
    • Cad Overall Depth : 42 mm
    • Cad Overall Height : 70 mm
    • Cad Overall Width : 54 mm
  • Important Information Attributes
    • Local Data Status : Publishable
    • Local Publishable Date : 2025-09-16
    • Legacy WEEE Scope : In
    • WEEE Product Category : 5
    • Scope Perimeter : At least in Europe
    • EOLI Availability Display : Yes
    • End Of Life Doc Ref : ENVEOLI2503027EN
    • Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : CONTAINS_SVHC
    • Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
    • ROHS EUR In Scope : No
    • ROHS EUR Status : Compliant with Exemptions
    • ROHS EUR Conformity Date : 1930
    • ROHS EUR Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
    • ROHS EUR Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
    • China ROHS In Scope : Yes
    • China ROHS Label : 7
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : Yes
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : Y
    • WD Status : 5 - INITIALIZED WITH DataSCAN OK (Migration)
    • Bezel Material : metal
    • Bulb Base : BA 9s
    • Compatibility Code : 9001K
    • Device Short Name : 9001K
    • Lens Material : polycarbonate
    • Light Source : incandescent
    • Mounting Diameter : 30 mm
    • Package Weight Lbs : 145.15 g
    • Product Availability : Non-Stock - Not normally stocked in distribution facility
    • Product Or Component Type : pilot light
    • Range Of Product : Harmony 9001K
    • Returnability : Yes
    • Shape Of Screw Head : cross slotted
    • Shape Of Signaling Unit Head : round
    • Sustainable Packaging : Yes
    • Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • ITH Conventional Free Air Thermal Current : 10 A
    • Relationship Type : Compatible relationship
    • Pep Code : ENVPEP2503027EN
    • Nbr Of Units In Pkg : 1
    • Warranty In Months : 18
  • General Attributes
    • Product Or Component Type : pilot light
    • Range Of Product : Harmony 9001K
  • Environment Attributes
    • ROHS Exemption Information : Yes
    • China ROHS url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=680508&lang=en-us
    • Take Back : No
    • Recycled Metal Content At Cr Level : 0 %
    • China ROHS Regulation : X
    • Mercury Free : Yes
    • Circularity Profile : ENVEOLI2503027EN
    • Environmental Disclosure : ENVPEP2503027EN
    • EU ROHS Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : Yes
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • Pep Code : ENVPEP2503027EN
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
  • Specifications
    • Country of Origin : Mexico
  • Overview Attributes
    • Device Presentation : complete product
