PILOT LIGHT 120V 30MM TYPE K +OPTIONS

PILOT LIGHT 120V 30MM TYPE K +OPTIONS

SQD9001KP38LLL9 9001KP38LLL9 785901413028
143.97 / EACH
  • Bezel Material: Chromium Plated Metal
  • Certifications: NEMA, UL 508
  • Country of Origin: Mexico
  • Lens Type: Domed Plastic
  • Standard: CSA C22.2 No 14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, JIS C 852, JIS C8201-1, JIS C8201-5-1, UL 508
  • Warranty Length: 18 mth
  • Weight: 0.134 kg, 0.30 lb

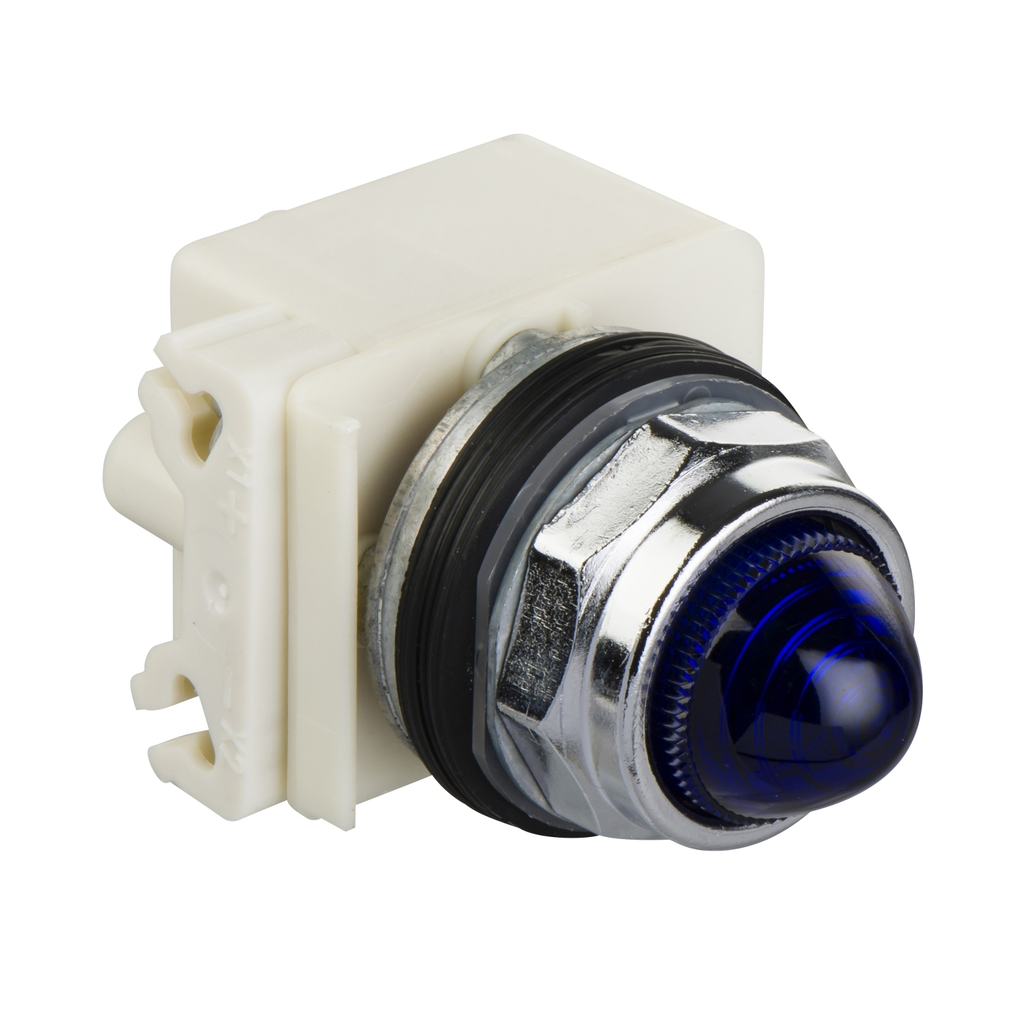

This Harmony 9001K, blue pilot light with integral LED and plastic dome is supplied with 110V AC/DC. It has a chromium-plated metal bezel. This single component pilot light provides clear visual feedback on the status of your machines. It is easily installed into a standard 30mm diameter panel cut-outs and connected with simple screw-clamp connections. It is clearly distinguishable visually at a distance due to clear colors and illumination via integral LED, enabling complex machine statuses to be read at a glance. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Impact and corrosion resistant metal bezel and body ensures product continues to operate even after severe accidents.
  • Product Description
  • Specifications
This Harmony 9001K, blue pilot light with integral LED and plastic dome is supplied with 110V AC/DC. It has a chromium-plated metal bezel. This single component pilot light provides clear visual feedback on the status of your machines. It is easily installed into a standard 30mm diameter panel cut-outs and connected with simple screw-clamp connections. It is clearly distinguishable visually at a distance due to clear colors and illumination via integral LED, enabling complex machine statuses to be read at a glance. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Impact and corrosion resistant metal bezel and body ensures product continues to operate even after severe accidents.
  • Main
    • Range Of Product : Harmony 9001K
    • Device Short Name : 9001K
    • Product Or Component Type : Pilot light
  • Environment
    • Ambient Air Temp For Storage : -40…158 °F (-40…70 °C)
    • Shock Resistance : 50 gn IEC 60068-2-27
    • Vibration Resistance : 7 gn 2…500 Hz)IEC 60068-2-6
    • Nema Degree Of Protection : NEMA 1 || NEMA 12 || NEMA 13 || NEMA 2 || NEMA 3 || NEMA 3R || NEMA 4 || NEMA 6
    • Protective Treatment : TC
    • Ambient Air Temp For Op : -13…158 °F (-25…70 °C)
    • Standards : EN/IEC 60947-1 || CSA C22.2 No 14 || EN/IEC 60947-5-1 || EN/IEC 60947-5-4 || UL 508 || JIS C 852 || JIS C8201-5-1 || JIS C8201-1
    • Product Certifications : NEMA || UL 508
    • Overvoltage Category : Class II conforming to IEC 61140
    • IP Degree Of Protection : IP66 IEC 60529
  • Ordering And Shipping Details
    • Country Of Origin : MX
    • GTIN : 00785901413028
    • Discount Schedule : CS1
    • Nbr. Of Units In Pkg. : 1
    • Category : 21426 - 9001 K (NOT KA,KM,KX)
    • Returnability : No
  • Contractual Warranty
    • Warranty : 18 months
  • Complementary
    • Lens Type : Domed plastic
    • Light Source : High luminosity LED
    • Shape Of Screw Head : Cross slotted
    • Short-Circuit Protection : 10 A cartridge fuse IEC 60947-5-1
    • Light Source : Blue LED
    • Tightening Torque : 7.08 lbf.in (0.8 N.m) IEC 60947-1
    • Bezel Material : Chromium plated metal
    • Cap/Operator Or Lens Colour : Blue
    • Operating Position : Any position
    • [Us] Rated Supply Voltage : 120 V AC/DC
    • Ith Cnvtl Free Air Therm Crrt : 10 A
    • Ui Rated Insulation Voltage : 250 V 2)IEC 60947-1
    • Mounting Diameter : 1.18 in (30 mm)
    • Connections - Terminals : Screw clamp terminals, 1 x 0.22...2 x 1.5 mm² IEC 60947-1
    • Cad Overall Depth : 1.65 in (42 mm)
    • Light Block Supply : Direct 120 V AC/DC
    • Uimp Rated Imp Wstd Voltage : 2.5 kV IEC 60947-1
    • Device Presentation : Complete product
    • Cad Overall Height : 2.76 in (70 mm)
    • Product Weight : 0.30 lb(US) (0.134 kg)
    • Shape Of Signaling Unit Head : Round
    • Bulb Base : BA 9s
    • Cad Overall Width : 2.13 in (54 mm)
  • Offer Sustainability
    • Green Premium Status : Green Premium product
    • Mercury Free : Yes
    • EU RoHs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • WEEE : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
