PILOT LIGHT 120V 30MM SK +OPTIONS

PILOT LIGHT 120V 30MM SK +OPTIONS

SQD9001SKP38LGG9 9001SKP38LGG9 785901751793
160.28 / EACH
  • Bezel Material: Plastic
  • Certifications: NEMA, UL 508
  • Country of Origin: Mexico
  • Lens Type: Domed Plastic
  • Standard: CSA C22.2 No 14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, JIS C 852, JIS C8201-1, JIS C8201-5-1, UL 508
  • Warranty Length: 18 mth
  • Weight: 0.082 kg, 0.18 lb

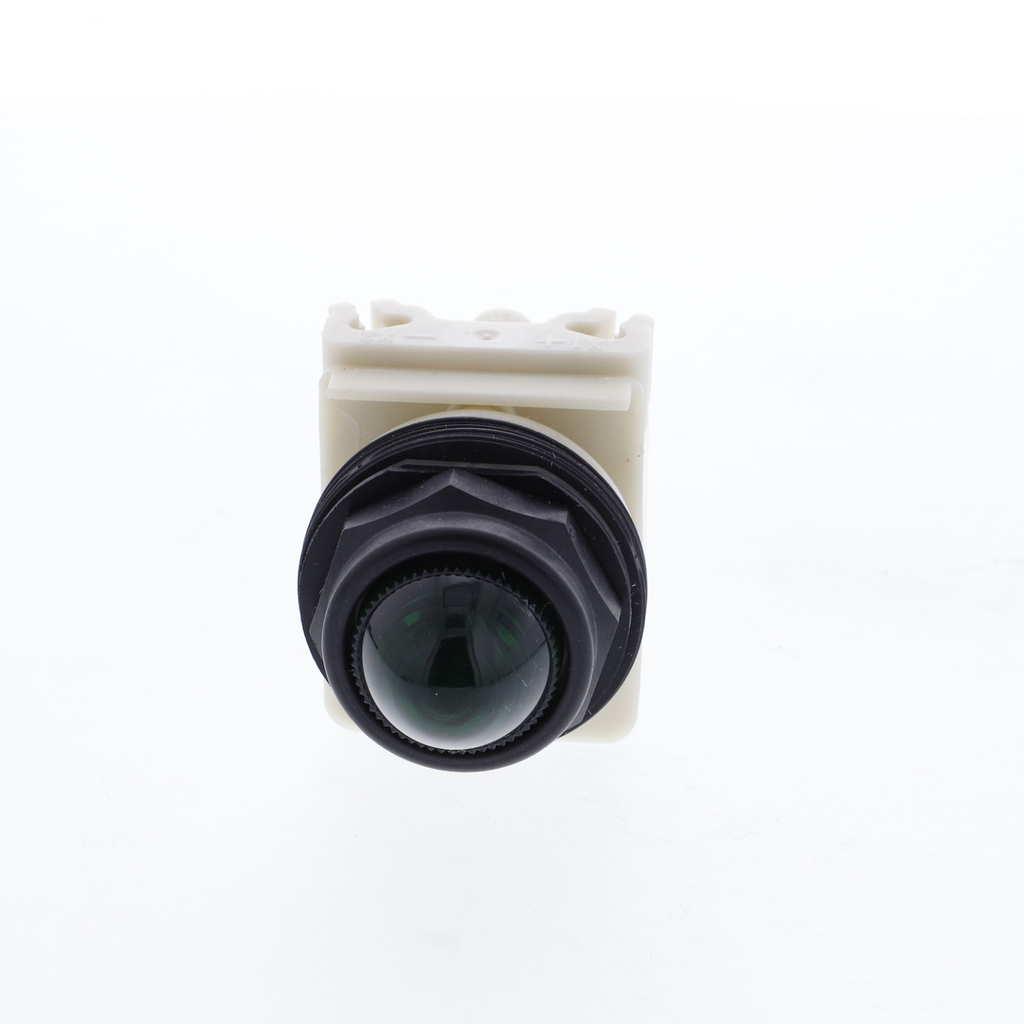

This Harmony 9001SK, green pilot light with integral LED and plastic dome is supplied with 110V AC/DC. It has a double insulated plastic bezel. It is easily installed into a standard 30mm diameter panel cut-outs and connected with simple screw-clamp connections. It is clearly distinguishable visually at a distance due to clear colors and illumination via integral LED, enabling complex machine statuses to be read at a glance. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Impact and corrosion resistant plastic body ensures product continues to operate even after severe accidents.
  • Product Description
  • Specifications
This Harmony 9001SK, green pilot light with integral LED and plastic dome is supplied with 110V AC/DC. It has a double insulated plastic bezel. It is easily installed into a standard 30mm diameter panel cut-outs and connected with simple screw-clamp connections. It is clearly distinguishable visually at a distance due to clear colors and illumination via integral LED, enabling complex machine statuses to be read at a glance. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Impact and corrosion resistant plastic body ensures product continues to operate even after severe accidents.
  • Environment
    • Ambient Air Temp For Op : -13…158 °F (-25…70 °C)
    • IP Degree Of Protection : IP66 IEC 60529
    • Product Certifications : UL 508 || NEMA
    • Standards : JIS C 852 || UL 508 || JIS C8201-5-1 || EN/IEC 60947-5-1 || CSA C22.2 No 14 || EN/IEC 60947-1 || EN/IEC 60947-5-4 || JIS C8201-1
    • Ambient Air Temp For Storage : -40…158 °F (-40…70 °C)
    • Protective Treatment : TC
    • Shock Resistance : 50 gn IEC 60068-2-27
    • Electrical Shock Protect Class : Class II IEC 61140
    • Nema Degree Of Protection : NEMA 1 || NEMA 12 || NEMA 13 || NEMA 2 || NEMA 3 || NEMA 3R || NEMA 4 || NEMA 4X
    • Vibration Resistance : 7 gn 2…500 Hz)IEC 60068-2-6
  • Ordering And Shipping Details
    • Returnability : Yes
    • GTIN : 00785901751793
    • Category : 21429 - 9001 SK,SKY
    • Nbr. Of Units In Pkg. : 1
    • Country Of Origin : MX
    • Discount Schedule : CS1
  • Offer Sustainability
    • Green Premium Status : Green Premium product
    • Toxic Heavy Metal Free : Yes
    • Mercury Free : Yes
    • REACh Free Of SVHC : Yes
    • WEEE : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • EU RoHs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
  • Contractual Warranty
    • Warranty : 18 months
  • Complementary
    • Bezel Material : Plastic
    • Operating Position : Any position
    • Product Weight : 0.18 lb(US) (0.082 kg)
    • Light Source : LED
    • Tightening Torque : 7.08 lbf.in (0.8 N.m) EN/IEC 60947-1
    • Shape Of Signaling Unit Head : Round
    • Cad Overall Height : 2.76 in (70 mm)
    • Cad Overall Width : 2.13 in (54 mm)
    • Cad Overall Depth : 1.65 in (42 mm)
    • Device Presentation : Complete product
    • Shape Of Screw Head : Cross slotted
    • Connections - Terminals : Screw clamp terminals, 1 x 0.22...2 x 1.5 mm² EN/IEC 60947-1
    • Cap/Operator Or Lens Colour : Green
    • Ith Cnvtl Free Air Therm Crrt : 10 A
    • Bulb Base : BA 9s
    • Mounting Diameter : 1.18 in (30 mm)
    • Uimp Rated Imp Wstd Voltage : 2.5 kV EN/IEC 60947-1
    • Short-Circuit Protection : 10 A cartridge fuse EN/IEC 60947-5-1
    • [Us] Rated Supply Voltage : 120 V AC/DC
    • Ui Rated Insulation Voltage : 250 V 2)EN/IEC 60947-1
  • Main
    • Product Or Component Type : Pilot light
    • Device Short Name : 9001SK
    • Light Block Supply : Direct 120 V AC/DC
    • Range Of Product : Harmony 9001SK
    • Lens Type : Domed plastic
