PILOT LIGHT 120V 30MM SK +OPTIONS

PILOT LIGHT 120V 30MM SK +OPTIONS

SQD9001SKT38LYA31 9001SKT38LYA31 785901500582
206.39 / EACH
  • Bezel Material: Plastic
  • Certifications: NEMA, UL 508
  • Contact Material: Silver Alloy
  • Country of Origin: Mexico
  • Standard: CSA C22.2 No 14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, JIS C 852, JIS C8201-1, JIS C8201-5-1, UL 508
  • Warranty Length: 18 mth
  • Weight: 0.195 kg, 0.43 lb

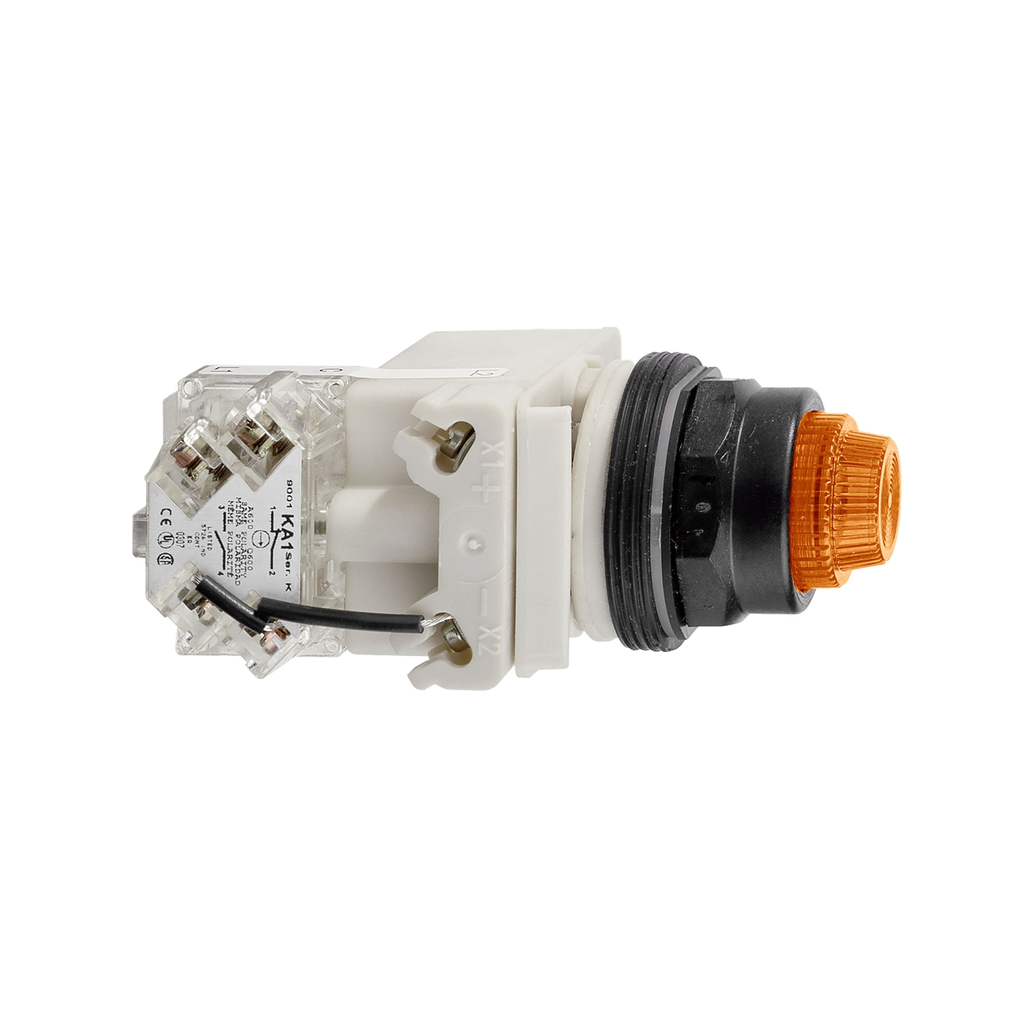

This Harmony 9001SK, push-to-test illuminated amber pilot light with integral LED and plastic fresnel is supplied with 110 V AC/DC. It has a double insulated plastic bezel. This illuminated amber push-to-test pilot light with integral LED provides an ergonomic and visual interface for your machines. It is easily installed into a standard 30mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections. It is clearly distinguishable visually at a distance thanks to its illuminated head and clear color. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Impact and corrosion resistant plastic body ensures product continues to operate even after severe accidents.
  • Product Description
  • Specifications
This Harmony 9001SK, push-to-test illuminated amber pilot light with integral LED and plastic fresnel is supplied with 110 V AC/DC. It has a double insulated plastic bezel. This illuminated amber push-to-test pilot light with integral LED provides an ergonomic and visual interface for your machines. It is easily installed into a standard 30mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections. It is clearly distinguishable visually at a distance thanks to its illuminated head and clear color. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Impact and corrosion resistant plastic body ensures product continues to operate even after severe accidents.
  • Ordering And Shipping Details
    • Country Of Origin : MX
    • Nbr. Of Units In Pkg. : 1
    • Discount Schedule : CS1
    • Returnability : Yes
    • Category : 21429 - 9001 SK,SKY
    • GTIN : 00785901500582
  • Environment
    • Ambient Air Temp For Op : -13…158 °F (-25…70 °C)
    • IP Degree Of Protection : IP66 IEC 60529
    • Shock Resistance : 50 gn IEC 60068-2-27
    • Ambient Air Temp For Storage : -40…158 °F (-40…70 °C)
    • Product Certifications : NEMA || UL 508
    • Protective Treatment : TC
    • Nema Degree Of Protection : NEMA 1 || NEMA 12 || NEMA 13 || NEMA 2 || NEMA 3 || NEMA 3R || NEMA 4 || NEMA 4X
    • Standards : JIS C8201-5-1 || CSA C22.2 No 14 || EN/IEC 60947-5-1 || EN/IEC 60947-5-4 || EN/IEC 60947-1 || UL 508 || JIS C 852 || JIS C8201-1
    • Vibration Resistance : 7 gn 2…500 Hz)IEC 60068-2-6
    • Electrical Shock Protect Class : Class II IEC 61140
  • Complementary
    • Shape Of Screw Head : Cross slotted
    • Icm Rated Sc Making Cap : 12 kA 600 V AC-15, 7200 VA || 30 kA 480 V AC-15, 7200 VA || 60 kA 120 V AC-15, 7200 VA
    • Light Source : LED
    • Ith Cnvtl Free Air Therm Crrt : 10 A
    • Shape Of Signaling Unit Head : Octagonal
    • Short-Circuit Protection : 10 A cartridge fuse EN/IEC 60947-5-1
    • Device Presentation : Complete product
    • Ie Rated Operational Current : 0.55 A 125 V, DC-13, A600-Q600 NEMA
    • Rated Breaking Capacity : 1.2 kA 600 V AC-15, 720 VA || 3 kA 480 V AC-15, 720 VA || 6 kA 120 V AC-15, 720 VA || 0.27 kA 250 V DC-13 || 0.55 kA 125 V DC-13
    • Bulb Base : BA 9s
    • Mechanical Durability : 5000000 cycles
    • Product Weight : 0.43 lb(US) (0.195 kg)
    • Tightening Torque : 7.08 lbf.in (0.8 N.m) EN/IEC 60947-1
    • Connections - Terminals : Screw clamp terminals 1 x 0.22...2 x 1.5 mm² EN/IEC 60947-1
    • Bezel Material : Plastic
    • [Us] Rated Supply Voltage : 120 V AC/DC
    • Operating Position : Any position
    • Ui Rated Insulation Voltage : 250 V 3)EN/IEC 60947-1
    • Uimp Rated Imp Wstd Voltage : 2.5 kV EN/IEC 60947-1
    • Us Rated Supply Voltage : 120 V AC/DC
    • Positive Opening : Without
    • Contacts Material : Silver alloy contacts
    • Light Block Supply : Direct
    • Mounting Diameter : 1.18 in (30 mm)
  • Offer Sustainability
    • EU RoHs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • REACh Free Of SVHC : Yes
    • Mercury Free : Yes
    • Toxic Heavy Metal Free : Yes
    • WEEE : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Green Premium Status : Green Premium product
  • Contractual Warranty
    • Warranty : 18 months
  • Main
    • Device Short Name : 9001SK
    • Type Of Operator : spring return
    • Range Of Product : Harmony 9001SK
    • Operator Profile : Amber projecting, unmarked
    • Product Or Component Type : Illuminated push to test push-button
