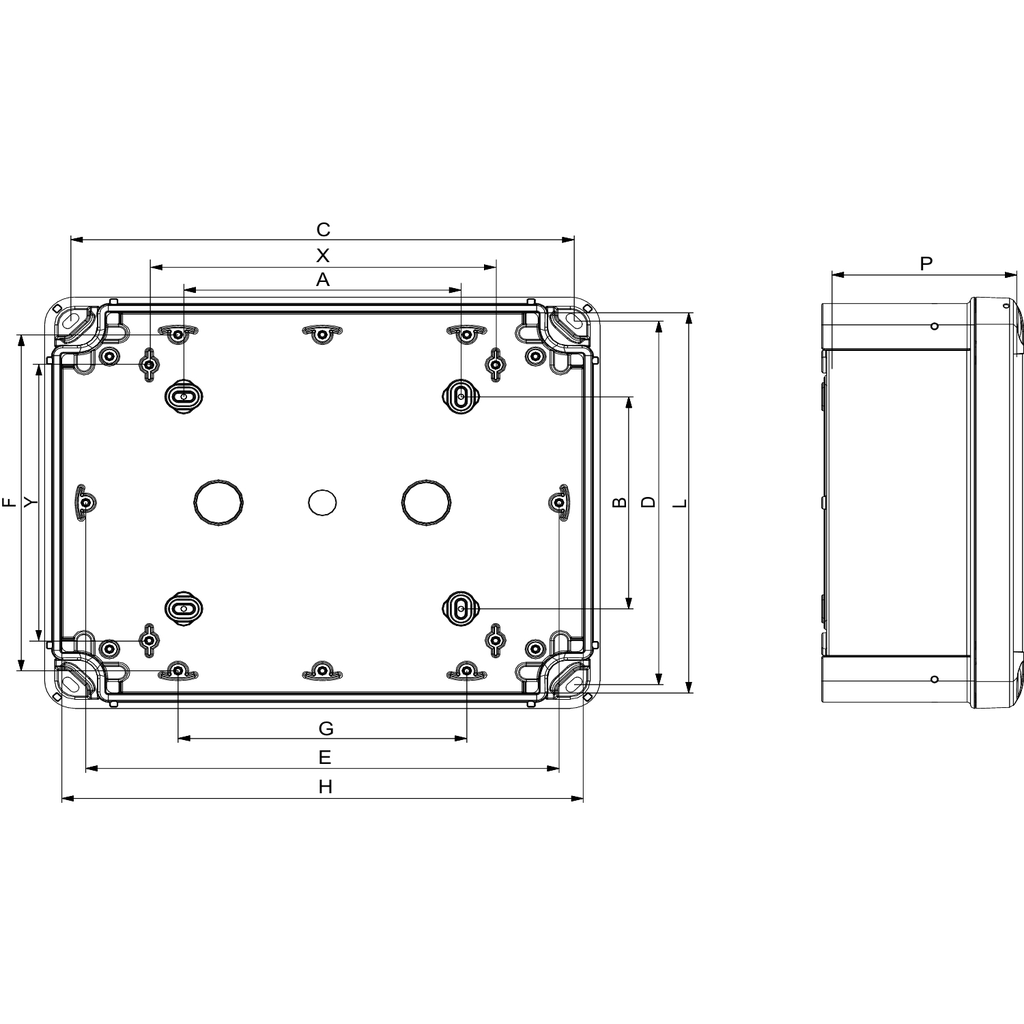

This TBP is a wall-mounted box made of polycarbonate that is suitable for multi-purpose applications. The box has a height, width, and depth of 291 mm, 241 mm, and 128 mm, respectively. The internal dimensions of the box are 275 mm x 225 mm x 120 mm. The box is made of PC (polycarbonate), which offers resistance to impact, corrosion and low and high temperatures. It can be installed in outdoor. The box comes in a grey (RAL 7035) color. The cover is fixed with captive flat screws located outside sealed area and easily openable with a flat screwdriver. The box can be used for junction, shunting, protection of electronical cards, push button support, industrial automation and other applications. The box can be used for junction, shunting, protection of electronical cards, push button support, industrial automation and other applications. The box offers high protection against dust and water with an IP66 rating (NEMA 4.4X) and is impact resistant with an IK08 rating (IEC 62262). It can be used in ambient air temperature ranging from -25 to 80°C without affecting its performance. The product is UL certified and is class II insulated.

• Physical Attributes
• Color : Gray RAL 7035), Gray RAL 7035)
• Internal Depth : 120 mm
• Internal Height : 275 mm
• Internal Width : 225 mm
• Important Information Attributes
• Persona Type Ids : LC, OM, OM8, PB, SI
• Persona Type Names : Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
• Market Segmentation Id : COMMERCIAL, INDUSTRIAL
• Market Segmentation : Commercial, Industrial
• Device Composition : 1 body, 1 body, 1 cover, 1 cover, 4 cover screw, 4 cover screw
• Lock Type : captive screw flat outside sealed area, captive screw flat outside sealed area, captive screw flat outside sealed area
• Mounting Location : outdoor (with canopy or shelter and anticondensation valve), outdoor (with canopy or shelter and anticondensation valve)
• Removable Parts : cover by captive screws, cover by captive screws
• Carbon Footprint Of The Distribution Phase A4 : 2.3784165749688606, 2 kg CO2 eq.
• Carbon Footprint Of The End Of Life Phase C1 To C4 : 2 kg CO2 eq., 1.5538353965435643
• Carbon Footprint Of The Installation Phase A5 : 0.23661435635698405, 0.2 kg CO2 eq.
• Carbon Footprint Of The Manufacturing Phase A1 To A3 : 7 kg CO2 eq., 6.827242521220725
• Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 0 kg CO2 eq., 0
• Local Data Status : Publishable
• Local Publishable Date : 2025-09-16
• Legacy WEEE Scope : Out
• Scope Perimeter : At least in Europe
• EOLI Availability Display : Yes
• End Of Life Doc Ref : ENVEOLI2012016EN
• Reach Full Compliance Status : Free of Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : NOT_CONTAINING_SVHC
• Reach Compliance Directive : Free of Substances of Very High Concern above the threshold
• ROHS EUR In Scope : No
• ROHS EUR Status : Compliant
• ROHS EUR Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
• ROHS EUR Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
• China ROHS In Scope : No
• Green Premium Status For Reporting : Green Premium product
• With Recycled Cardboard : No
• Without Single Use Plastic : No
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : N
• WD Status : 1 - GSC certified
• Function Option Id : STANDARD
• Function Option : Standard
• Cover Fixing : plastic screws
• Enclosure Mounting : wall mounted
• Energy Efficiency Optimized : False
• Fire Resistance : 960 °C
• Material : polycarbonate
• Package Weight Lbs : 1.198 kg
• Product Availability : Non-Stock - Not normally stocked in distribution facility
• Product Or Component Type : industrial box
• Range : PanelSeT
• Returnability : No
• Sustainable Packaging : No
• Total Lifecycle Carbon Footprint : 11 kg CO2 eq.
• Type Of Front Cover : high plain cover
• Relationship Type : Compatible relationship
• Pep Code : ENVPEP2012016EN
• Pep Verification Date : 2024-08-01
• PCR Version : PCR-4-ed4-EN-2021 09 06
• PSR Version : PSR-0005-ed3.1-EN-2023 12 08
• Type Of Verification For The Pep : Independent external review
• Functional Unit Description : Protect people from direct contact with live active parts and ensure the grouping of control, command and protection devices in a single enclosure or cabinet having the following dimensions H x L x D or an assembly of X enclosures or cabinets having the following dimensions H x L x D, with rated current In, while protecting them against mechanical impacts (IK) and the penetration of solid objects and liquids (IP), according to the appropriate use scenario, and for the reference service life of the product of 20 years.
• Functional Unit Unit : Unit
• Product Kit Identifier : N
• Environment Attributes Main
• EU ROHS Directive : Compliant​, Pro-active compliance (Product out of EU RoHS legal scope)
• IP Degree Of Protection : IP66 conforming to NEMA 4.4X, IP66 conforming to NEMA 4.4X
• Reach Regulation : Free of Substances of Very High Concern above the threshold, Free of Substances of Very High Concern above the threshold
• ROHS Exemption Information : Yes
• Take Back : No
• Reach Free SHVC : Yes
• Recycled Metal Content At Cr Level : 0 %
• China ROHS Regulation : Pro-active China RoHS declaration (out of China RoHS legal scope)
• Toxic Heavy Metal Free : Yes
• Mercury Free : Yes
• Carbon Footprint : 10.996108849090133
• Circularity Profile : ENVEOLI2012016EN
• Environmental Disclosure : ENVPEP2012016EN
• Packaging Made With Recycled Cardboard : No
• Packaging Without Single Use Plastic : No
• Reach Free Of SVHC : Yes
• Pep Code : ENVPEP2012016EN
• Pep Verification Date : 2024-08-01
• PCR Version : PCR-4-ed4-EN-2021 09 06
• PSR Version : PSR-0005-ed3.1-EN-2023 12 08
• Type Of Verification For The Pep : Independent external review
• General Attributes
• Product Or Component Type : industrial box
• Contractual Warranty Attributes
• Warranty Period : 18 months
• Warranty : 18 months
