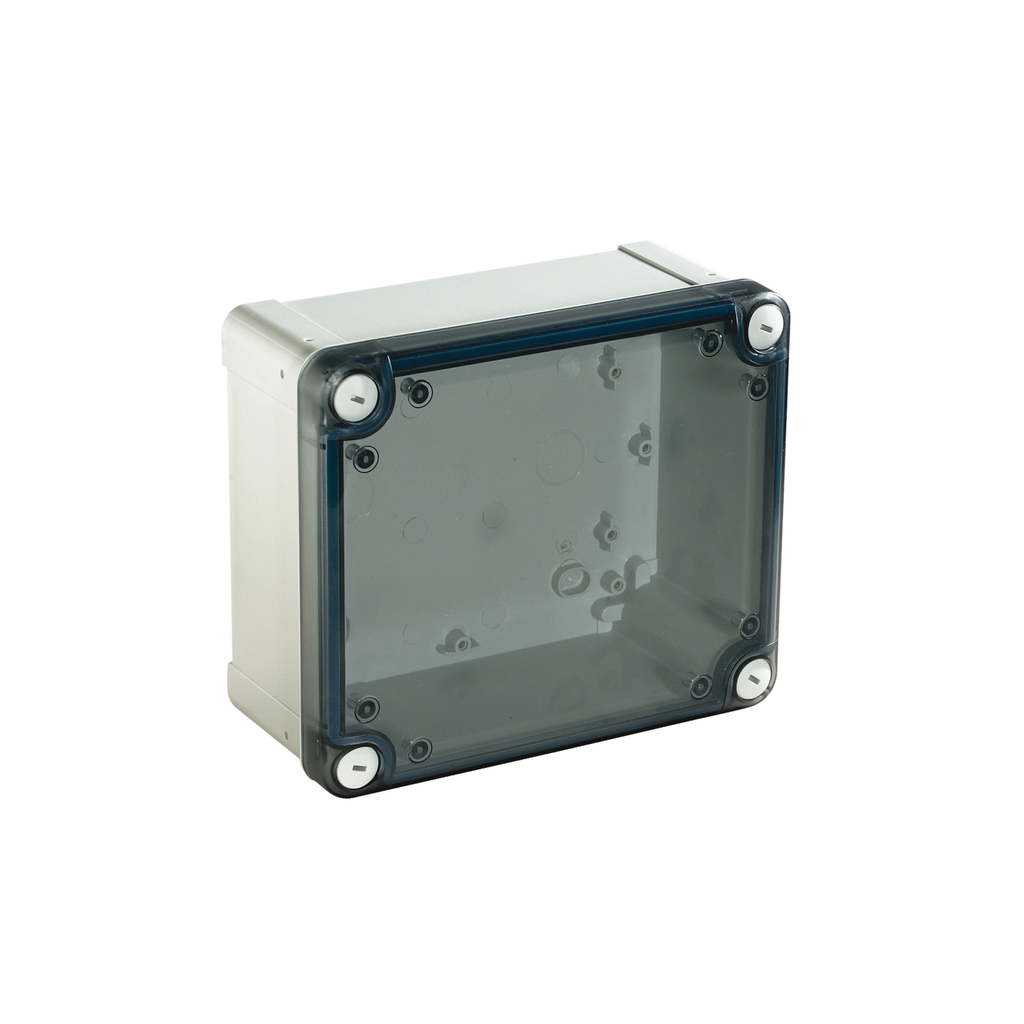

This TBP is a wall-mounted box made of polycarbonate that is suitable for multi-purpose applications. The box has a height, width, and depth of 241 mm, 194 mm, and 107 mm, respectively. The internal dimensions of the box are 225 mm x 175 mm x 100 mm. The

• Carbon Footprint Of The Installation Phase A5
• 0.1580062479846304
• 0.2 kg CO2 eq.
• Carbon Footprint Of The End Of Life Phase C1 To C4
• 1 kg CO2 eq.
• 1.0376196304130647
• Standards
• UL 508 A
• IEC 62208
• Ip Degree Of Protection
• IP66 conforming to NEMA 4.4X
• Carbon Footprint Of The Manufacturing Phase A1 To A3
• 5 kg CO2 eq.
• 4.559093503319349
• Removable Parts
• cover by captive screws
• Lock Type
• captive screw flat outside sealed area
• Accessories
• NSYAMPM2419TB
• 13934
• NSYCAG12LPH2
• NSYAEDS20TB
• NSYAEDH40TB
• NSYAEFTB
• NSYECPC15
• IMT36179
• NSYCGSP16
• Mounting Location
• outdoor (with canopy or shelter and anticondensation valve)
• Market Segmentation
• Commercial
• Industrial
• Persona Type Names
• Contractor
• Original Equipment Manufacturer
• OEM - Control Panelbuilder
• Panel Builder
• System Integrator
• Device Composition
• 1 body
• 1 cover
• 4 cover screw
• Carbon Footprint Of The Use Phase B2 B3 B4 B6
• 0 kg CO2 eq.
• 0
• Persona Type Ids
• LC
• OM
• OM8
• PB
• SI
• Carbon Footprint Of The Distribution Phase A4
• 1.5882581468907249
• 2 kg CO2 eq.
• Market Segmentation Id
• COMMERCIAL
• INDUSTRIAL
• Color
• Gray RAL 7035)
• Transparent
• Product Certifications
• TÜV
• UL

• Physical Attributes
• Internal Depth : 100 mm
• Internal Height : 225 mm
• Internal Width : 175 mm
• Important Information Attributes
• Country Id : US
• Local Data Status : Publishable
• Local Publishable Date : 2025-09-16
• ETIM 10 : EC000058
• Manufacturing Carbon Footprint : 4.55909350331935
• Distribution Carbon Footprint : 1.58825814689072
• Installation Carbon Footprint : 0.15800624798463
• Use Carbon Footprint : 0
• End Of Life Carbon Footprint : 1.03761963041306
• Legacy WEEE Scope : Out
• Scope Perimeter : At least in Europe
• EOLI Availability Display : Yes
• End Of Life Doc Ref : ENVEOLI2012016EN
• Reach Full Compliance Status : Free of Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : NOT_CONTAINING_SVHC
• Reach Compliance Directive : Free of Substances of Very High Concern above the threshold
• ROHS Eur In Scope : No
• ROHS Eur Status : Compliant
• ROHS Eur Conformity Date : 1926
• ROHS Eur Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
• ROHS Eur Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
• China ROHS In Scope : No
• China ROHS Label : 1
• Green Premium Status For Reporting : Green Premium product
• With Recycled Cardboard : No
• Without Single Use Plastic : No
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : Y
• WD Status : 1 - GSC certified
• Tier Id : 2
• Tier : 2
• Function Option Id : STANDARD
• Function Option : Standard
• Body Type : one piece moulded
• Cover Fixing : plastic screws
• Device Application : multi-purpose
• Electrical Insulation Class : class II
• Enclosure Mounting : wall mounted
• Energy Efficiency Optimized : False
• Fire Resistance : 960 °C
• Material : polycarbonate
• Package Weight Lbs : 800.000 g
• Product Availability : Stock - Normally stocked in distribution facility
• Product Or Component Type : industrial box
• Range : PanelSeT
• Returnability : Yes
• Sustainable Packaging : No
• Total Lifecycle Carbon Footprint : 7 kg CO2 eq.
• Type Of Front Cover : low transparent cover
• Carbon Footprint Kg Co2 Eq Total Life Cycle : 7.3429775286077685
• Relationshiptype : Compatible relationship
• General Attributes
• Product Or Component Type : industrial box
• Environment Attributes
• ROHS Exemption Information : Yes
• China ROHS Url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=10177245&lang=en-us
• Take Back : No
• Reach Free Shvc : Yes
• Recycled Metal Content At Cr Level : 0 %
• China ROHS Regulation : Pro-active China RoHS declaration (out of China RoHS legal scope)
• Toxic Heavy Metal Free : Yes
• Mercury Free : Yes
• Carbon Footprint : 7.34297752860777
• Ambient Air Temperature For Operation : -25-80 °C
• Ambient Air Temperature For Storage : -15-60 °C
• Circularity Profile : ENVEOLI2012016EN
• Environmental Disclosure : ENVPEP2012016EN
• Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
• Packaging Made With Recycled Cardboard : No
• Packaging Without Single Use Plastic : No
• Reach Free Of Svhc : Yes
• Reach Regulation : Free of Substances of Very High Concern above the threshold
• Contractual Warranty Attributes
• Warranty Period : 18 months
• Warranty : 18 months
• Specifications
• Country of Origin : Hungary
• Height : 9.49 in
• Width : 7.64 in
• Depth : 4.21 in
