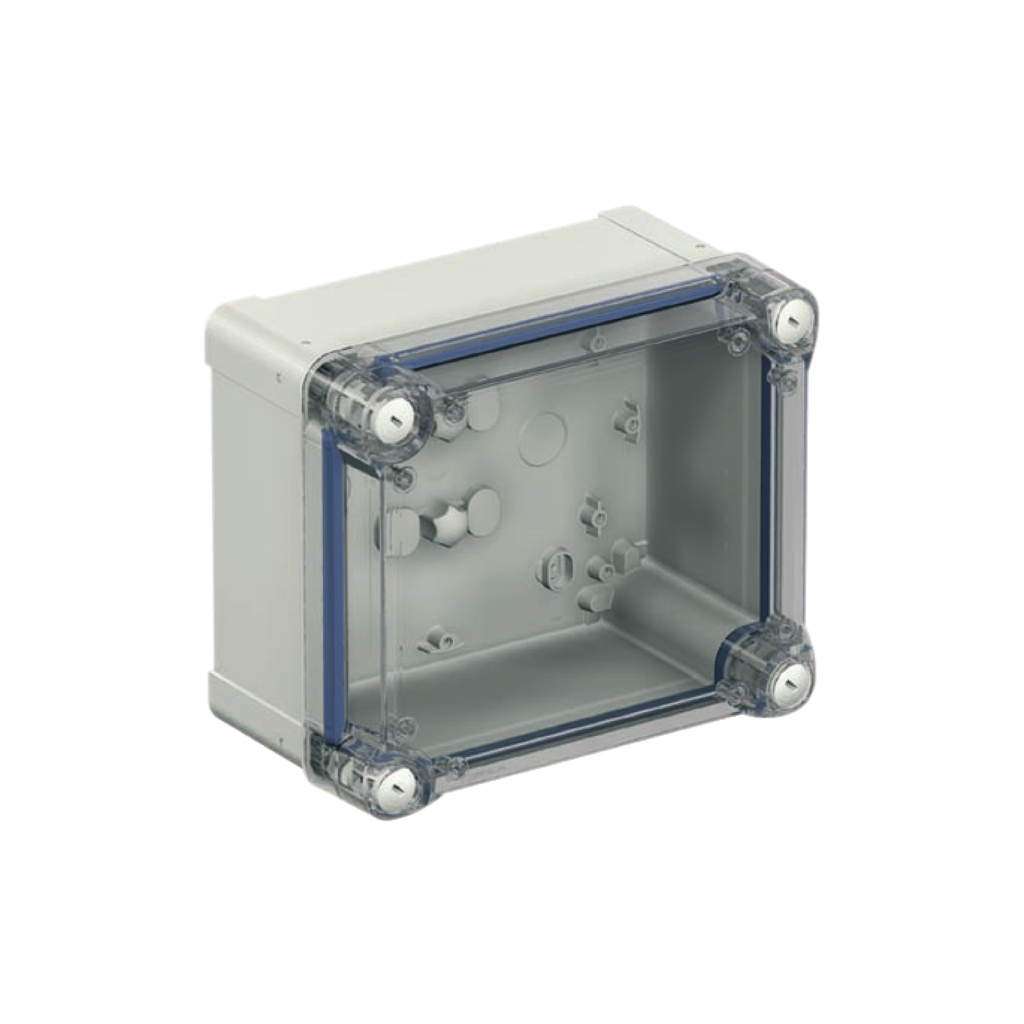

PC box IP66 IK08 RAL7035 Int.H175W105D100 Ext.H192W121D105 Transp.cover H40

INDUSTRIAL BOXES IBP1912/10T

SQDNSYTBP191210HT NSYTBP191210HT 3606480165818
29.20 / EA
http://schema.org/OutOfStock
Mayer-DDS-PC box IP66 IK08 RAL7035 Int.H175W105D100 Ext.H192W121D105 Transp.cover H40-2
  • Country of Origin: Hungary
  • Material: Polycarbonate
  • Warranty Length: 18 mth
This TBP is a wall-mounted box made of polycarbonate that is suitable for multi-purpose applications. The box has a height, width, and depth of 192 mm, 121 mm, and 105 mm, respectively. The internal dimensions of the box are 175 mm x 105 mm x 100 mm. The
QTY
  • Product Description
  • Features
  • Specifications
This TBP is a wall-mounted box made of polycarbonate that is suitable for multi-purpose applications. The box has a height, width, and depth of 192 mm, 121 mm, and 105 mm, respectively. The internal dimensions of the box are 175 mm x 105 mm x 100 mm. The
  • CAD
    • https://download.schneider-electric.com/files?p_Doc_Ref=MCADUE0001991_3D-CAD&p_File_name=MCADUE0001991_3D-simplified.stp
    • https://download.schneider-electric.com/files?p_Doc_Ref=MCADUE0001991_3D-CAD&p_File_name=MCADUE0001991_2D-back.dwg
    • https://downlo
  • IP Degree Of Protection
    • IP66 conforming to NEMA 4.4X
  • Carbon Footprint Of The Installation Phase A5
    • 0.09658131908060533
    • 0.1 kg CO2 eq.
  • Carbon Footprint Of The End Of Life Phase C1 To C4
    • 0.6 kg CO2 eq.
    • 0.6342449990899858
  • Carbon Footprint Of The Manufacturing Phase A1 To A3
    • 3 kg CO2 eq.
    • 2.786745903903952
  • Removable Parts
    • cover by captive screws
  • Lock Type
    • captive screw flat outside sealed area
  • Accessories
    • 13934
    • NSYCAG12LPH2
    • NSYAEDS20TB
    • NSYAEDH40TB
    • NSYAEFTB
    • NSYAMRD19357TB
    • NSYECPC15
    • IMT36179
    • NSYCGSP16
  • Mounting Location
    • outdoor (with canopy or shelter and anticondensation valve)
  • Market Segmentation
    • Commercial
    • Industrial
  • Persona Type Names
    • Contractor
    • Original Equipment Manufacturer
    • OEM - Control Panelbuilder
    • Panel Builder
    • System Integrator
  • Device Composition
    • 1 body
    • 1 cover
    • 4 cover screw
  • Carbon Footprint Of The Use Phase B2 B3 B4 B6
    • 0 kg CO2 eq.
    • 0
  • Persona Type Ids
    • LC
    • OM
    • OM8
    • PB
    • SI
  • Carbon Footprint Of The Distribution Phase A4
    • 0.9708227922869556
    • 1 kg CO2 eq.
  • Market Segmentation Id
    • COMMERCIAL
    • INDUSTRIAL
  • Color
    • Gray RAL 7035)
    • Transparent
  • Physical Attributes
    • Internal Depth : 100 mm
    • Internal Height : 175 mm
    • Internal Width : 105 mm
  • Important Information Attributes
    • Local Data Status : Publishable
    • Local Publishable Date : 2025-09-16
    • Manufacturing Carbon Footprint : 2.78674590390395
    • Distribution Carbon Footprint : 0.970822792286956
    • Installation Carbon Footprint : 9.65813190806053e-02
    • Use Carbon Footprint : 0
    • End Of Life Carbon Footprint : 0.634244999089986
    • Legacy WEEE Scope : Out
    • Scope Perimeter : At least in Europe
    • EOLI Availability Display : Yes
    • End Of Life Doc Ref : ENVEOLI2012016EN
    • Reach Full Compliance Status : Free of Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : NOT_CONTAINING_SVHC
    • Reach Compliance Directive : Free of Substances of Very High Concern above the threshold
    • ROHS EUR In Scope : No
    • ROHS EUR Status : Compliant
    • ROHS EUR Conformity Date : 1926
    • ROHS EUR Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
    • ROHS EUR Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
    • China ROHS In Scope : No
    • China ROHS Label : 1
    • Green Premium Status For Reporting : Green Premium product
    • With Recycled Cardboard : No
    • Without Single Use Plastic : No
    • Return Indicator : N
    • WD Status : 1 - GSC certified
    • Tier Id : 2
    • Tier : 2
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Cover Fixing : plastic screws
    • Enclosure Mounting : wall mounted
    • Energy Efficiency Optimized : False
    • Fire Resistance : 960 °C
    • Material : polycarbonate
    • Package Weight Lbs : 489.000 g
    • Product Availability : Non-Stock - Not normally stocked in distribution facility
    • Product Or Component Type : industrial box
    • Range : PanelSeT
    • Returnability : No
    • Sustainable Packaging : No
    • Total Lifecycle Carbon Footprint : 4 kg CO2 eq.
    • Type Of Front Cover : high transparent cover
    • Carbon Footprint Kg Co2 Eq Total Life Cycle : 4.488395014361499
    • Relationship Type : Compatible relationship
    • Pep Code : ENVPEP2012016EN
    • Pep Verification Date : 2024-08-01
    • PCR Version : PCR-4-ed4-EN-2021 09 06
    • PSR Version : PSR-0005-ed3.1-EN-2023 12 08
    • Type Of Verification For The Pep : Independent external review
    • Product Weight In G : 489
    • Functional Unit Description : Protect people from direct contact with live active parts and ensure the grouping of control, command and protection devices in a single enclosure or cabinet having the following dimensions H x L x D or an assembly of X enclosures or cabinets having the
    • Functional Unit Quantity : 1
    • Functional Unit Unit : Unit
    • Reference Lifetime In Y : 20
    • Energy Consumption On Product Lifetime In Kwh : 0
    • Energy Model Manufacturing A1 A3 : Hungary, HU
    • Energy Model Installation A5 : Electricity Mix; Low voltage; 2018; Europe, EU-27
    • Energy Model Use B6 : Electricity Mix; Low voltage; 2018; Europe, EU-27
    • Energy Model End Of Life C1 C4 : Electricity Mix; Low voltage; 2018; Europe, EU-27
    • Acidification Ap Mole Of H Equiv Total Life Cycle : 0.013767081211478297
    • Acidification Ap Mole Of H Equiv Manufacturing A1 A3 : 0.00802829450033314
    • Acidification Ap Mole Of H Equiv Distribution A4 : 0.003986965734466747
    • Acidification Ap Mole Of H Equiv Installation A5 : 0.000255752309479449
    • Acidification Ap Mole Of H Equiv Maintenance B2 : 0
    • Acidification Ap Mole Of H Equiv Repair B3 : 0
    • Acidification Ap Mole Of H Equiv Replacement B4 : 0
    • Acidification Ap Mole Of H Equiv Operational Energy Use B6 : 0
    • Acidification Ap Mole Of H Equiv End Of Life C1 C4 : 0.0014960686671989614
    • Acidification Ap Mole Of H Equiv Benefits Loads Beyond System Boundaries D : -0.0004757108605948618
    • Biogenic Carbon Content Of The Associated Packaging Kg Of C Total Life Cycle : 0
    • Biogenic Carbon Content Of The Associated Packaging Kg Of C Manufacturing A1 A3 : 0
    • Biogenic Carbon Content Of The Associated Packaging Kg Of C Distribution A4 : 0
    • Biogenic Carbon Content Of The Associated Packaging Kg Of C Installation A5 : 0
    • Biogenic Carbon Content Of The Associated Packaging Kg Of C Maintenance B2 : 0
    • Biogenic Carbon Content Of The Associated Packaging Kg Of C Repair B3 : 0
    • Biogenic Carbon Content Of The Associated Packaging Kg Of C Replacement B4 : 0
    • Biogenic Carbon Content Of The Associated Packaging Kg Of C Operational Energy Use B6 : 0
    • Biogenic Carbon Content Of The Associated Packaging Kg Of C End Of Life C1 C4 : 0
    • Biogenic Carbon Content Of The Associated Packaging Kg Of C Benefits Loads Beyond System Boundaries D : 0
    • Biogenic Carbon Content Of The Product Kg Of C Total Life Cycle : 0
    • Biogenic Carbon Content Of The Product Kg Of C Manufacturing A1 A3 : 0
    • Biogenic Carbon Content Of The Product Kg Of C Distribution A4 : 0
    • Biogenic Carbon Content Of The Product Kg Of C Installation A5 : 0
    • Biogenic Carbon Content Of The Product Kg Of C Maintenance B2 : 0
    • Biogenic Carbon Content Of The Product Kg Of C Repair B3 : 0
    • Biogenic Carbon Content Of The Product Kg Of C Replacement B4 : 0
    • Biogenic Carbon Content Of The Product Kg Of C Operational Energy Use B6 : 0
    • Biogenic Carbon Content Of The Product Kg Of C End Of Life C1 C4 : 0
    • Biogenic Carbon Content Of The Product Kg Of C Benefits Loads Beyond System Boundaries D : 0
    • Climate Change Biogenics Kg Co2 Eq Total Life Cycle : 0.15485083535969701
    • Climate Change Biogenics Kg Co2 Eq Manufacturing A1 A3 : 0.14543061817407765
    • Climate Change Biogenics Kg Co2 Eq Distribution A4 : 0
    • Climate Change Biogenics Kg Co2 Eq Installation A5 : 0.004082321014105024
    • Climate Change Biogenics Kg Co2 Eq Maintenance B2 : 0
    • Climate Change Biogenics Kg Co2 Eq Repair B3 : 0
    • Climate Change Biogenics Kg Co2 Eq Replacement B4 : 0
    • Climate Change Biogenics Kg Co2 Eq Operational Energy Use B6 : 0
    • Climate Change Biogenics Kg Co2 Eq End Of Life C1 C4 : 0.005337896171514343
    • Climate Change Biogenics Kg Co2 Eq Benefits Loads Beyond System Boundaries D : -0.01036751871616176
    • Climate Change Fossil Fuels Kg Co2 Eq Total Life Cycle : 4.3330318815335005
    • Climate Change Fossil Fuels Kg Co2 Eq Manufacturing A1 A3 : 2.640802985267194
    • Climate Change Fossil Fuels Kg Co2 Eq Distribution A4 : 0.9708227922869556
    • Climate Change Fossil Fuels Kg Co2 Eq Installation A5 : 0.09249900106088008
    • Climate Change Fossil Fuels Kg Co2 Eq Maintenance B2 : 0
    • Climate Change Fossil Fuels Kg Co2 Eq Repair B3 : 0
    • Climate Change Fossil Fuels Kg Co2 Eq Replacement B4 : 0
    • Climate Change Fossil Fuels Kg Co2 Eq Operational Energy Use B6 : 0
    • Climate Change Fossil Fuels Kg Co2 Eq End Of Life C1 C4 : 0.6289071029184713
    • Climate Change Fossil Fuels Kg Co2 Eq Benefits Loads Beyond System Boundaries D : -0.0927061046203242
    • Climate Change Total Kg Co2 Eq Total Life Cycle : 4.488395014361499
    • Climate Change Total Kg Co2 Eq Manufacturing A1 A3 : 2.786745903903952
    • Climate Change Total Kg Co2 Eq Distribution A4 : 0.9708227922869556
    • Climate Change Total Kg Co2 Eq Installation A5 : 0.09658131908060533
    • Climate Change Total Kg Co2 Eq Maintenance B2 : 0
    • Climate Change Total Kg Co2 Eq Repair B3 : 0
    • Climate Change Total Kg Co2 Eq Replacement B4 : 0
    • Climate Change Total Kg Co2 Eq Operational Energy Use B6 : 0
    • Climate Change Total Kg Co2 Eq End Of Life C1 C4 : 0.6342449990899858
    • Climate Change Total Kg Co2 Eq Benefits Loads Beyond System Boundaries D : -0.10307362333648597
    • Components For Re Use Kg Total Life Cycle : 0
    • Components For Re Use Kg Manufacturing A1 A3 : 0
    • Components For Re Use Kg Distribution A4 : 0
    • Components For Re Use Kg Installation A5 : 0
    • Components For Re Use Kg Maintenance B2 : 0
    • Components For Re Use Kg Repair B3 : 0
    • Components For Re Use Kg Replacement B4 : 0
    • Components For Re Use Kg Operational Energy Use B6 : 0
    • Components For Re Use Kg End Of Life C1 C4 : 0
    • Components For Re Use Kg Benefits Loads Beyond System Boundaries D : 0
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Total Life Cycle : 0.00000063014051625362
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Manufacturing A1 A3 : 0.00000052755221122396
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Distribution A4 : 0.00000000008305018323
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Installation A5 : 0.00000000305699799325
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Maintenance B2 : 0
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Repair B3 : 0
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Replacement B4 : 0
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Operational Energy Use B6 : 0
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb End Of Life C1 C4 : 0.00000009944825685319
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Benefits Loads Beyond System Boundaries D : -0.00000148310394997575
    • Depletion Of Abiotic Resources Fossil Fuels Mj Total Life Cycle : 70.73440752394448
    • Depletion Of Abiotic Resources Fossil Fuels Mj Manufacturing A1 A3 : 55.02789688626088
    • Depletion Of Abiotic Resources Fossil Fuels Mj Distribution A4 : 12.021732876580343
    • Depletion Of Abiotic Resources Fossil Fuels Mj Installation A5 : 0.8528342018820813
    • Depletion Of Abiotic Resources Fossil Fuels Mj Maintenance B2 : 0
    • Depletion Of Abiotic Resources Fossil Fuels Mj Repair B3 : 0
    • Depletion Of Abiotic Resources Fossil Fuels Mj Replacement B4 : 0
    • Depletion Of Abiotic Resources Fossil Fuels Mj Operational Energy Use B6 : 0
    • Depletion Of Abiotic Resources Fossil Fuels Mj End Of Life C1 C4 : 2.831943559221187
    • Depletion Of Abiotic Resources Fossil Fuels Mj Benefits Loads Beyond System Boundaries D : -1.362448151339178
    • Ecotoxicity Fresh Water Ctue Total Life Cycle : 177.2391786324663
    • Ecotoxicity Fresh Water Ctue Manufacturing A1 A3 : 157.50459280338
    • Ecotoxicity Fresh Water Ctue Distribution A4 : 3.959606821787967
    • Ecotoxicity Fresh Water Ctue Installation A5 : 1.0659709574387715
    • Ecotoxicity Fresh Water Ctue Maintenance B2 : 0
    • Ecotoxicity Fresh Water Ctue Repair B3 : 0
    • Ecotoxicity Fresh Water Ctue Replacement B4 : 0
    • Ecotoxicity Fresh Water Ctue Operational Energy Use B6 : 0
    • Ecotoxicity Fresh Water Ctue End Of Life C1 C4 : 14.709008049859573
    • Ecotoxicity Fresh Water Ctue Benefits Loads Beyond System Boundaries D : -1.8287692953490582
    • Emission Of Fine Particles Incidence Of Diseases Total Life Cycle : 0.00000008347834913307
    • Emission Of Fine Particles Incidence Of Diseases Manufacturing A1 A3 : 0.0000000596783142459
    • Emission Of Fine Particles Incidence Of Diseases Distribution A4 : 0.00000001097721348153
    • Emission Of Fine Particles Incidence Of Diseases Installation A5 : 0.00000000159006097914
    • Emission Of Fine Particles Incidence Of Diseases Maintenance B2 : 0
    • Emission Of Fine Particles Incidence Of Diseases Repair B3 : 0
    • Emission Of Fine Particles Incidence Of Diseases Replacement B4 : 0
    • Emission Of Fine Particles Incidence Of Diseases Operational Energy Use B6 : 0
    • Emission Of Fine Particles Incidence Of Diseases End Of Life C1 C4 : 0.00000001123276042649
    • Emission Of Fine Particles Incidence Of Diseases Benefits Loads Beyond System Boundaries D : -0.00000000536512929106
    • Exported Energy Mj By Energy Vector Total Life Cycle : 0.003567409321474985
    • Exported Energy Mj By Energy Vector Manufacturing A1 A3 : 0.00006322093118921717
    • Exported Energy Mj By Energy Vector Distribution A4 : 0
    • Exported Energy Mj By Energy Vector Installation A5 : 0.0034922698428291473
    • Exported Energy Mj By Energy Vector Maintenance B2 : 0
    • Exported Energy Mj By Energy Vector Repair B3 : 0
    • Exported Energy Mj By Energy Vector Replacement B4 : 0
    • Exported Energy Mj By Energy Vector Operational Energy Use B6 : 0
    • Exported Energy Mj By Energy Vector End Of Life C1 C4 : 0.00001191854745662072
    • Exported Energy Mj By Energy Vector Benefits Loads Beyond System Boundaries D : 0
    • Freshwater Eutrophication Kg P Eq Total Life Cycle : 0.00001779053969316977
    • Freshwater Eutrophication Kg P Eq Manufacturing A1 A3 : 0.00001507234656359608
    • Freshwater Eutrophication Kg P Eq Distribution A4 : 0.00000011313396195264
    • Freshwater Eutrophication Kg P Eq Installation A5 : 0.00000209835073197915
    • Freshwater Eutrophication Kg P Eq Maintenance B2 : 0
    • Freshwater Eutrophication Kg P Eq Repair B3 : 0
    • Freshwater Eutrophication Kg P Eq Replacement B4 : 0
    • Freshwater Eutrophication Kg P Eq Operational Energy Use B6 : 0
    • Freshwater Eutrophication Kg P Eq End Of Life C1 C4 : 0.0000005067084356419
    • Freshwater Eutrophication Kg P Eq Benefits Loads Beyond System Boundaries D : -0.00000150963351918649
    • Hazardous Waste Disposed Of Kg Total Life Cycle : 0.42793466167582134
    • Hazardous Waste Disposed Of Kg Manufacturing A1 A3 : 0.03812601978235498
    • Hazardous Waste Disposed Of Kg Distribution A4 : 0.0008004827603673359
    • Hazardous Waste Disposed Of Kg Installation A5 : 0.0021347086355267583
    • Hazardous Waste Disposed Of Kg Maintenance B2 : 0
    • Hazardous Waste Disposed Of Kg Repair B3 : 0
    • Hazardous Waste Disposed Of Kg Replacement B4 : 0
    • Hazardous Waste Disposed Of Kg Operational Energy Use B6 : 0
    • Hazardous Waste Disposed Of Kg End Of Life C1 C4 : 0.38687345049757227
    • Hazardous Waste Disposed Of Kg Benefits Loads Beyond System Boundaries D : -0.11886162322732019
    • Human Toxicity Carcinogenic Effects Ctuh Total Life Cycle : 0.00000005483369774619
    • Human Toxicity Carcinogenic Effects Ctuh Manufacturing A1 A3 : 0.00000004513321289678
    • Human Toxicity Carcinogenic Effects Ctuh Distribution A4 : 0.0000000000142303555
    • Human Toxicity Carcinogenic Effects Ctuh Installation A5 : 0.00000000966249594996
    • Human Toxicity Carcinogenic Effects Ctuh Maintenance B2 : 0
    • Human Toxicity Carcinogenic Effects Ctuh Repair B3 : 0
    • Human Toxicity Carcinogenic Effects Ctuh Replacement B4 : 0
    • Human Toxicity Carcinogenic Effects Ctuh Operational Energy Use B6 : 0
    • Human Toxicity Carcinogenic Effects Ctuh End Of Life C1 C4 : 0.00000000002375854395
    • Human Toxicity Carcinogenic Effects Ctuh Benefits Loads Beyond System Boundaries D : -0.00000002831100304696
    • Human Toxicity Non Carcinogenic Effects Ctuh Total Life Cycle : 0.00000002933730792709
    • Human Toxicity Non Carcinogenic Effects Ctuh Manufacturing A1 A3 : 0.00000002515226315742
    • Human Toxicity Non Carcinogenic Effects Ctuh Distribution A4 : 0.00000000224407697676
    • Human Toxicity Non Carcinogenic Effects Ctuh Installation A5 : 0.00000000037905210305
    • Human Toxicity Non Carcinogenic Effects Ctuh Maintenance B2 : 0
    • Human Toxicity Non Carcinogenic Effects Ctuh Repair B3 : 0
    • Human Toxicity Non Carcinogenic Effects Ctuh Replacement B4 : 0
    • Human Toxicity Non Carcinogenic Effects Ctuh Operational Energy Use B6 : 0
    • Human Toxicity Non Carcinogenic Effects Ctuh End Of Life C1 C4 : 0.00000000156191568987
    • Human Toxicity Non Carcinogenic Effects Ctuh Benefits Loads Beyond System Boundaries D : -0.00000000091246126092
    • Impacts Related To Land Use Soil Quality Total Life Cycle : 1.584321477469222
    • Impacts Related To Land Use Soil Quality Manufacturing A1 A3 : 1.526473492140942
    • Impacts Related To Land Use Soil Quality Distribution A4 : 0
    • Impacts Related To Land Use Soil Quality Installation A5 : 0.039146773296605486
    • Impacts Related To Land Use Soil Quality Maintenance B2 : 0
    • Impacts Related To Land Use Soil Quality Repair B3 : 0
    • Impacts Related To Land Use Soil Quality Replacement B4 : 0
    • Impacts Related To Land Use Soil Quality Operational Energy Use B6 : 0
    • Impacts Related To Land Use Soil Quality End Of Life C1 C4 : 0.018701212031674432
    • Impacts Related To Land Use Soil Quality Benefits Loads Beyond System Boundaries D : -0.003481313389793241
    • Ionizing Radiation Human Health Kbq Of U235 Equiv Total Life Cycle : 0.6836609843123365
    • Ionizing Radiation Human Health Kbq Of U235 Equiv Manufacturing A1 A3 : 0.6560440774478012
    • Ionizing Radiation Human Health Kbq Of U235 Equiv Distribution A4 : 0.0021421164045737503
    • Ionizing Radiation Human Health Kbq Of U235 Equiv Installation A5 : 0.014465403261864134
    • Ionizing Radiation Human Health Kbq Of U235 Equiv Maintenance B2 : 0
    • Ionizing Radiation Human Health Kbq Of U235 Equiv Repair B3 : 0
    • Ionizing Radiation Human Health Kbq Of U235 Equiv Replacement B4 : 0
    • Ionizing Radiation Human Health Kbq Of U235 Equiv Operational Energy Use B6 : 0
    • Ionizing Radiation Human Health Kbq Of U235 Equiv End Of Life C1 C4 : 0.011009387198097352
    • Ionizing Radiation Human Health Kbq Of U235 Equiv Benefits Loads Beyond System Boundaries D : -0.13809810835610334
    • Marine Aquatic Eutrophication Kg Of N Equiv Total Life Cycle : 0.004578672627281331
    • Marine Aquatic Eutrophication Kg Of N Equiv Manufacturing A1 A3 : 0.00206643519756219
    • Marine Aquatic Eutrophication Kg Of N Equiv Distribution A4 : 0.0018141981205792377
    • Marine Aquatic Eutrophication Kg Of N Equiv Installation A5 : 0.00011028270493661157
    • Marine Aquatic Eutrophication Kg Of N Equiv Maintenance B2 : 0
    • Marine Aquatic Eutrophication Kg Of N Equiv Repair B3 : 0
    • Marine Aquatic Eutrophication Kg Of N Equiv Replacement B4 : 0
    • Marine Aquatic Eutrophication Kg Of N Equiv Operational Energy Use B6 : 0
    • Marine Aquatic Eutrophication Kg Of N Equiv End Of Life C1 C4 : 0.0005877566042032913
    • Marine Aquatic Eutrophication Kg Of N Equiv Benefits Loads Beyond System Boundaries D : -0.00013771123818399745
    • Materials For Energy Recovery Kg Total Life Cycle : 0
    • Materials For Energy Recovery Kg Manufacturing A1 A3 : 0
    • Materials For Energy Recovery Kg Distribution A4 : 0
    • Materials For Energy Recovery Kg Installation A5 : 0
    • Materials For Energy Recovery Kg Maintenance B2 : 0
    • Materials For Energy Recovery Kg Repair B3 : 0
    • Materials For Energy Recovery Kg Replacement B4 : 0
    • Materials For Energy Recovery Kg Operational Energy Use B6 : 0
    • Materials For Energy Recovery Kg End Of Life C1 C4 : 0
    • Materials For Energy Recovery Kg Benefits Loads Beyond System Boundaries D : 0
    • Materials For Recycling Kg Total Life Cycle : 0.004824921865864886
    • Materials For Recycling Kg Manufacturing A1 A3 : 0.00018305443729345713
    • Materials For Recycling Kg Distribution A4 : 0
    • Materials For Recycling Kg Installation A5 : 0.0034369714285714284
    • Materials For Recycling Kg Maintenance B2 : 0
    • Materials For Recycling Kg Repair B3 : 0
    • Materials For Recycling Kg Replacement B4 : 0
    • Materials For Recycling Kg Operational Energy Use B6 : 0
    • Materials For Recycling Kg End Of Life C1 C4 : 0.001204896
    • Materials For Recycling Kg Benefits Loads Beyond System Boundaries D : 0
    • Net Use Of Fresh Water M3 Total Life Cycle : 0.13480576328179344
    • Net Use Of Fresh Water M3 Manufacturing A1 A3 : 0.010693776080672547
    • Net Use Of Fresh Water M3 Distribution A4 : 0.0011412822720896526
    • Net Use Of Fresh Water M3 Installation A5 : 0.00034820411771967533
    • Net Use Of Fresh Water M3 Maintenance B2 : 0
    • Net Use Of Fresh Water M3 Repair B3 : 0
    • Net Use Of Fresh Water M3 Replacement B4 : 0
    • Net Use Of Fresh Water M3 Operational Energy Use B6 : 0
    • Net Use Of Fresh Water M3 End Of Life C1 C4 : 0.12262250081131158
    • Net Use Of Fresh Water M3 Benefits Loads Beyond System Boundaries D : -0.000715552033892702
    • Non Hazardous Waste Disposed Of Kg Total Life Cycle : 2.6219050613728445
    • Non Hazardous Waste Disposed Of Kg Manufacturing A1 A3 : 2.5604419108454946
    • Non Hazardous Waste Disposed Of Kg Distribution A4 : 0.0009833813803399123
    • Non Hazardous Waste Disposed Of Kg Installation A5 : 0.04243318198550162
    • Non Hazardous Waste Disposed Of Kg Maintenance B2 : 0
    • Non Hazardous Waste Disposed Of Kg Repair B3 : 0
    • Non Hazardous Waste Disposed Of Kg Replacement B4 : 0
    • Non Hazardous Waste Disposed Of Kg Operational Energy Use B6 : 0
    • Non Hazardous Waste Disposed Of Kg End Of Life C1 C4 : 0.018046587161508348
    • Non Hazardous Waste Disposed Of Kg Benefits Loads Beyond System Boundaries D : -0.05275867939802606
    • Ozone Depletion Kg Equivalent Cfc 11 Total Life Cycle : 0.00000097051033544516
    • Ozone Depletion Kg Equivalent Cfc 11 Manufacturing A1 A3 : 0.00000010294434363964
    • Ozone Depletion Kg Equivalent Cfc 11 Distribution A4 : 0.00000085261217818297
    • Ozone Depletion Kg Equivalent Cfc 11 Installation A5 : 0.00000000127218472698
    • Ozone Depletion Kg Equivalent Cfc 11 Maintenance B2 : 0
    • Ozone Depletion Kg Equivalent Cfc 11 Repair B3 : 0
    • Ozone Depletion Kg Equivalent Cfc 11 Replacement B4 : 0
    • Ozone Depletion Kg Equivalent Cfc 11 Operational Energy Use B6 : 0
    • Ozone Depletion Kg Equivalent Cfc 11 End Of Life C1 C4 : 0.00000001368162889557
    • Ozone Depletion Kg Equivalent Cfc 11 Benefits Loads Beyond System Boundaries D : -0.00000000393943835576
    • Photochemical Ozone Formation Kg Of Nmvoc Equiv Total Life Cycle : 0.015647621727283074
    • Photochemical Ozone Formation Kg Of Nmvoc Equiv Manufacturing A1 A3 : 0.007277754629112641
    • Photochemical Ozone Formation Kg Of Nmvoc Equiv Distribution A4 : 0.0065602989831419125
    • Photochemical Ozone Formation Kg Of Nmvoc Equiv Installation A5 : 0.00017768986295803768
    • Photochemical Ozone Formation Kg Of Nmvoc Equiv Maintenance B2 : 0
    • Photochemical Ozone Formation Kg Of Nmvoc Equiv Repair B3 : 0
    • Photochemical Ozone Formation Kg Of Nmvoc Equiv Replacement B4 : 0
    • Photochemical Ozone Formation Kg Of Nmvoc Equiv Operational Energy Use B6 : 0
    • Photochemical Ozone Formation Kg Of Nmvoc Equiv End Of Life C1 C4 : 0.0016318782520704817
    • Photochemical Ozone Formation Kg Of Nmvoc Equiv Benefits Loads Beyond System Boundaries D : -0.00031780494484172047
    • Radioactive Waste Disposed Of Kg Total Life Cycle : 0.0016373595339472533
    • Radioactive Waste Disposed Of Kg Manufacturing A1 A3 : 0.0014355980486567316
    • Radioactive Waste Disposed Of Kg Distribution A4 : 0.0001920937551737236
    • Radioactive Waste Disposed Of Kg Installation A5 : 0.00000511805949176852
    • Radioactive Waste Disposed Of Kg Maintenance B2 : 0
    • Radioactive Waste Disposed Of Kg Repair B3 : 0
    • Radioactive Waste Disposed Of Kg Replacement B4 : 0
    • Radioactive Waste Disposed Of Kg Operational Energy Use B6 : 0
    • Radioactive Waste Disposed Of Kg End Of Life C1 C4 : 0.00000454967062502959
    • Radioactive Waste Disposed Of Kg Benefits Loads Beyond System Boundaries D : -0.00002411906875161223
    • Terrestrial Eutrophication Mole Of N Equiv Total Life Cycle : 0.04908900368602599
    • Terrestrial Eutrophication Mole Of N Equiv Manufacturing A1 A3 : 0.021848098493754197
    • Terrestrial Eutrophication Mole Of N Equiv Distribution A4 : 0.01967864875537529
    • Terrestrial Eutrophication Mole Of N Equiv Installation A5 : 0.000775269416228613
    • Terrestrial Eutrophication Mole Of N Equiv Maintenance B2 : 0
    • Terrestrial Eutrophication Mole Of N Equiv Repair B3 : 0
    • Terrestrial Eutrophication Mole Of N Equiv Replacement B4 : 0
    • Terrestrial Eutrophication Mole Of N Equiv Operational Energy Use B6 : 0
    • Terrestrial Eutrophication Mole Of N Equiv End Of Life C1 C4 : 0.006786987020667895
    • Terrestrial Eutrophication Mole Of N Equiv Benefits Loads Beyond System Boundaries D : -0.0011570365551942558
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 12.963848930916253
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 12.963848930916253
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : -0.16153765714285712
    • Total Use Of Primary Energy During The Life Cycle Mj Total Life Cycle : 75.37794289801532
    • Total Use Of Primary Energy During The Life Cycle Mj Manufacturing A1 A3 : 59.53726094535416
    • Total Use Of Primary Energy During The Life Cycle Mj Distribution A4 : 12.021811472624846
    • Total Use Of Primary Energy During The Life Cycle Mj Installation A5 : 0.9654469070259983
    • Total Use Of Primary Energy During The Life Cycle Mj Maintenance B2 : 0
    • Total Use Of Primary Energy During The Life Cycle Mj Repair B3 : 0
    • Total Use Of Primary Energy During The Life Cycle Mj Replacement B4 : 0
    • Total Use Of Primary Energy During The Life Cycle Mj Operational Energy Use B6 : 0
    • Total Use Of Primary Energy During The Life Cycle Mj End Of Life C1 C4 : 2.8534235730103186
    • Total Use Of Primary Energy During The Life Cycle Mj Benefits Loads Beyond System Boundaries D : -2.2751153215610187
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 4.643535374070839
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 4.509364059093288
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0.00007859604450162126
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0.11261270514391716
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0.02148001378913163
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : -0.9126671702218403
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 12.963848930916253
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 12.963848930916253
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : -0.16153765714285712
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 57.77055859302824
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 42.06404795534463
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 12.021732876580343
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0.8528342018820813
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 2.831943559221187
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : -1.2009104941963207
    • Use Of Non Renewable Secondary Fuels Mj Total Life Cycle : 0
    • Use Of Non Renewable Secondary Fuels Mj Manufacturing A1 A3 : 0
    • Use Of Non Renewable Secondary Fuels Mj Distribution A4 : 0
    • Use Of Non Renewable Secondary Fuels Mj Installation A5 : 0
    • Use Of Non Renewable Secondary Fuels Mj Maintenance B2 : 0
    • Use Of Non Renewable Secondary Fuels Mj Repair B3 : 0
    • Use Of Non Renewable Secondary Fuels Mj Replacement B4 : 0
    • Use Of Non Renewable Secondary Fuels Mj Operational Energy Use B6 : 0
    • Use Of Non Renewable Secondary Fuels Mj End Of Life C1 C4 : 0
    • Use Of Non Renewable Secondary Fuels Mj Benefits Loads Beyond System Boundaries D : 0
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 1.6716252216748768
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 1.6716252216748768
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : -1.1816307771428567
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 2.971910152395963
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 2.8377388374184127
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0.00007859604450162126
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0.11261270514391716
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0.02148001378913163
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : 0.26896360692101606
    • Use Of Renewable Secondary Fuels Mj Total Life Cycle : 0
    • Use Of Renewable Secondary Fuels Mj Manufacturing A1 A3 : 0
    • Use Of Renewable Secondary Fuels Mj Distribution A4 : 0
    • Use Of Renewable Secondary Fuels Mj Installation A5 : 0
    • Use Of Renewable Secondary Fuels Mj Maintenance B2 : 0
    • Use Of Renewable Secondary Fuels Mj Repair B3 : 0
    • Use Of Renewable Secondary Fuels Mj Replacement B4 : 0
    • Use Of Renewable Secondary Fuels Mj Operational Energy Use B6 : 0
    • Use Of Renewable Secondary Fuels Mj End Of Life C1 C4 : 0
    • Use Of Renewable Secondary Fuels Mj Benefits Loads Beyond System Boundaries D : 0
    • Use Of Secondary Materials Kg Total Life Cycle : 0
    • Use Of Secondary Materials Kg Manufacturing A1 A3 : 0
    • Use Of Secondary Materials Kg Distribution A4 : 0
    • Use Of Secondary Materials Kg Installation A5 : 0
    • Use Of Secondary Materials Kg Maintenance B2 : 0
    • Use Of Secondary Materials Kg Repair B3 : 0
    • Use Of Secondary Materials Kg Replacement B4 : 0
    • Use Of Secondary Materials Kg Operational Energy Use B6 : 0
    • Use Of Secondary Materials Kg End Of Life C1 C4 : 0
    • Use Of Secondary Materials Kg Benefits Loads Beyond System Boundaries D : 0
    • Water Use M3 Eq Total Life Cycle : 2.626111930823842
    • Water Use M3 Eq Manufacturing A1 A3 : 0.2000416480286374
    • Water Use M3 Eq Distribution A4 : 0.04901807358625058
    • Water Use M3 Eq Installation A5 : 0.014953427797962956
    • Water Use M3 Eq Maintenance B2 : 0
    • Water Use M3 Eq Repair B3 : 0
    • Water Use M3 Eq Replacement B4 : 0
    • Water Use M3 Eq Operational Energy Use B6 : 0
    • Water Use M3 Eq End Of Life C1 C4 : 2.362098781410991
    • Water Use M3 Eq Benefits Loads Beyond System Boundaries D : -0.030721867902987032
    • Air Pollution M3 Total Life Cycle : 0
    • Air Pollution M3 Manufacturing A1 A3 : 0
    • Air Pollution M3 Distribution A4 : 0
    • Air Pollution M3 Installation A5 : 0
    • Air Pollution M3 Maintenance B2 : 0
    • Air Pollution M3 Repair B3 : 0
    • Air Pollution M3 Replacement B4 : 0
    • Air Pollution M3 Operational Energy Use B6 : 0
    • Air Pollution M3 End Of Life C1 C4 : 0
    • Air Pollution M3 Benefits Loads Beyond System Boundaries D : 0
    • Water Pollution M3 Total Life Cycle : 0
    • Water Pollution M3 Manufacturing A1 A3 : 0
    • Water Pollution M3 Distribution A4 : 0
    • Water Pollution M3 Installation A5 : 0
    • Water Pollution M3 Maintenance B2 : 0
    • Water Pollution M3 Repair B3 : 0
    • Water Pollution M3 Replacement B4 : 0
    • Water Pollution M3 Operational Energy Use B6 : 0
    • Water Pollution M3 End Of Life C1 C4 : 0
    • Water Pollution M3 Benefits Loads Beyond System Boundaries D : 0
  • General Attributes
    • Product Or Component Type : industrial box
  • Environment Attributes
    • ROHS Exemption Information : Yes
    • China ROHS url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=10177241&lang=en-us
    • Take Back : No
    • Reach Free SHVC : Yes
    • China ROHS Regulation : Pro-active China RoHS declaration (out of China RoHS legal scope)
    • Toxic Heavy Metal Free : Yes
    • Mercury Free : Yes
    • Carbon Footprint : 4.4883950143615
    • Circularity Profile : ENVEOLI2012016EN
    • Environmental Disclosure : ENVPEP2012016EN
    • EU ROHS Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • Packaging Made With Recycled Cardboard : No
    • Packaging Without Single Use Plastic : No
    • Reach Free Of SVHC : Yes
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
    • Pep Code : ENVPEP2012016EN
    • Pep Verification Date : 2024-08-01
    • PCR Version : PCR-4-ed4-EN-2021 09 06
    • PSR Version : PSR-0005-ed3.1-EN-2023 12 08
    • Type Of Verification For The Pep : Independent external review
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
  • Specifications
    • Country of Origin : Hungary
