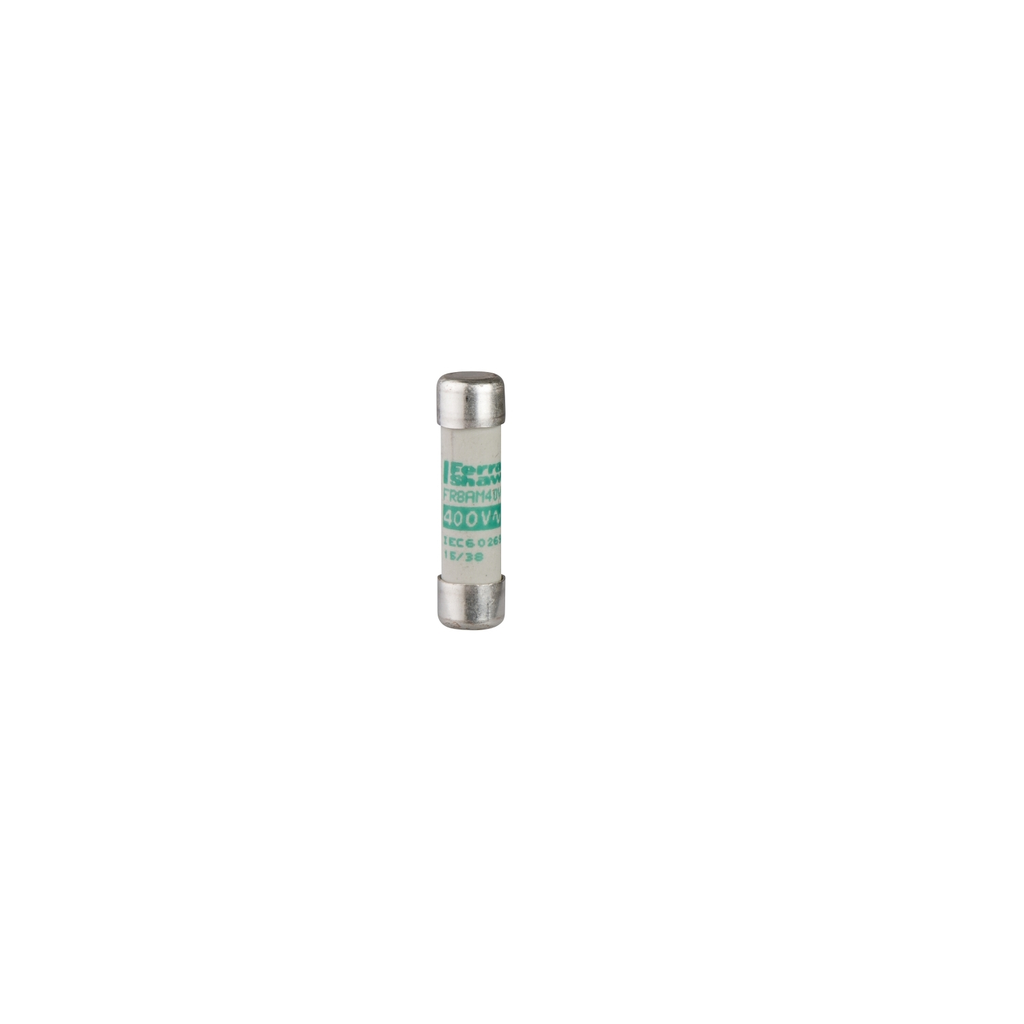

This is a NFC fuse cartridge for TeSys GS switch-disconnector fuses devices. It is a aM fuse-link that protects against magnetic over currents only, adapted for motor protection. Its current rating is 12 A and the maximum rated voltage is 500 VAC. It is a cylindrical fuse (NFC type), the dimensions are 10mm x 38mm. It has no striker to indicate when the fuse is blown. This fuse is sold by set of 10 parts.

• Specifications
• Fuse Size : 10 x 38 mm
• [Ue] Rated Operational Voltage : 500 V AC
• Range Of Product : TeSys fuse-disconnector
• Product Or Component Type : cartridge fuse
• Fuse Type : NFC
• Quantity Per Set : set of 10
• Device Short Name : DF2
• Contractual warranty
• Warranty : 18 months
• Offer Sustainability
• Rohs Exemption Information : Yes
• Mercury Free : Yes
• Pvc Free : Yes
• Toxic Heavy Metal Free : Yes
• Reach Regulation : Free of Substances of Very High Concern above the threshold
• California Proposition 65 : WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
• Reach Free Of Svhc : Yes
• Weee : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• China Rohs Regulation : Pro-active China RoHS declaration (out of China RoHS legal scope)
• Eu Rohs Directive : Compliant
• Complementary
• Line Rated Current : 12 A 500 V
• Net Weight : 0.01 kg
• Fuse Curve : aM
