Multi9 - undervoltage release - MNx - 400 V AC

MULTI9 MNX 400VAC UNDERVOLTAGE

SQDM9A26971 M9A26971 3606480639159
174.69 / EA
http://schema.org/OutOfStock
  • Country of Origin: Belgium
  • Depth: 68 mm
  • Height: 82.5 mm
  • Net Weight: 0.073 kg
  • Weight: 0.073 kg
  • Width: 18 mm

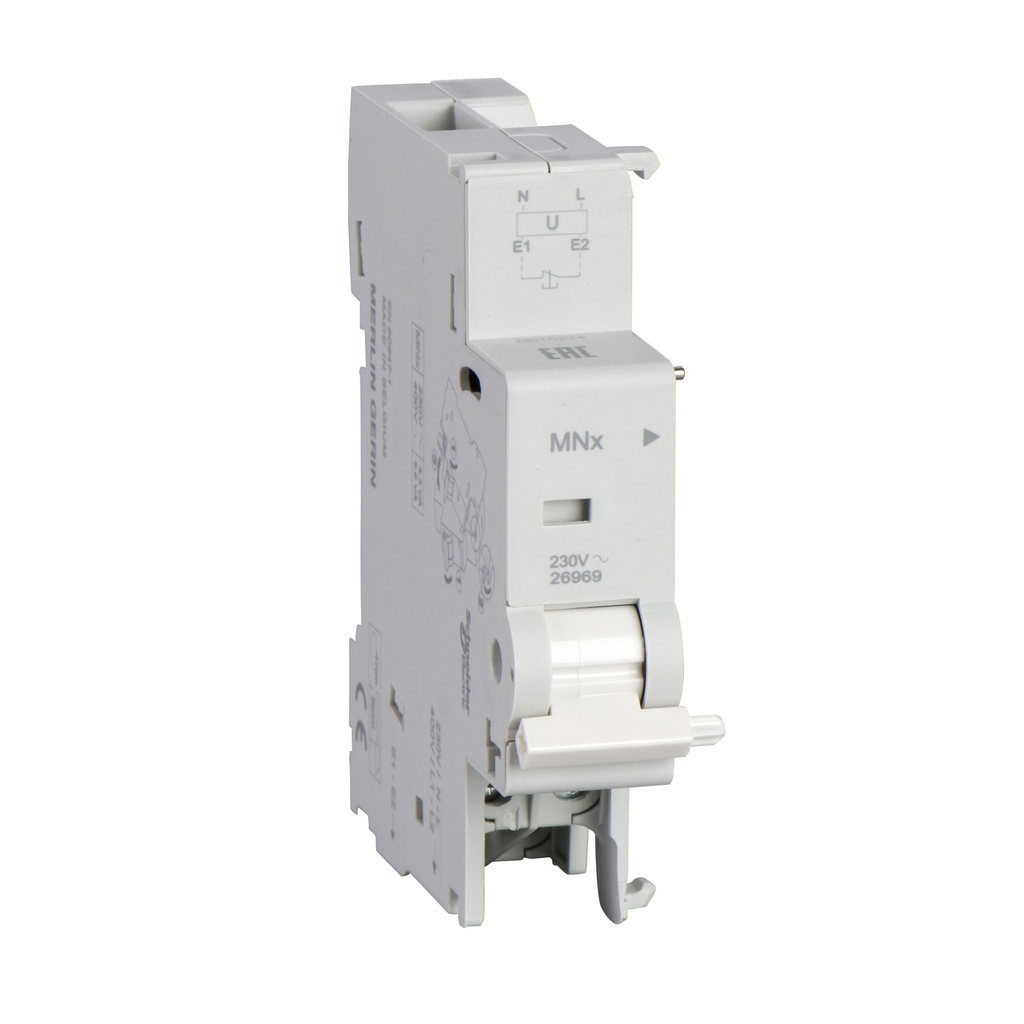

This Multi9 MNx electrical auxiliary is an undervoltage release. It is dedicated to Multi9 GFP, C60BP, C60SP, C60BPR. The width in 9mm pitches is 2. The Uc control circuit voltage is 400VAC. It can be mounted on a DIN rail for modular installation. The operating temperature is -25°C to 50°C. The storage temperature is -40°C to 85°C. This product complies with EN/IEC 60947-1 standard.
QTY
  • Product Description
  • Specifications
This Multi9 MNx electrical auxiliary is an undervoltage release. It is dedicated to Multi9 GFP, C60BP, C60SP, C60BPR. The width in 9mm pitches is 2. The Uc control circuit voltage is 400VAC. It can be mounted on a DIN rail for modular installation. The operating temperature is -25°C to 50°C. The storage temperature is -40°C to 85°C. This product complies with EN/IEC 60947-1 standard.
  • Specifications
    • Country of Origin : Belgium
    • Width : 18 mm
    • Height : 82.5 mm
    • Weight : 0.073 kg
    • [Uc] Control Circuit Voltage : 400 V AC 50/60 Hz
    • 9 Mm Pitches : 2
    • Product Or Component Type : undervoltage release
    • Range : Multi9
    • Control Type : with external feeding
    • Device Short Name : MNx
  • Environmental data
    • Rohs Exemption Information : Yes
    • Packaging Made With Recycled Cardboard : No
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP1305023
    • Packaging Without Single Use Plastic : Yes
    • Scip Number : 4b388a65-e83b-469c-8b17-b7966b6c6c9f
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • Weee : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • Minimum Percentage Of Recycled Plastic Content : 0
    • Circularity Profile : ENVEOLI1305023
    • Take-Back : No
    • Eu Rohs Directive : Compliant with Exemptions
  • Complementary
    • Height : 82.5 mm
    • Mounting Support : DIN rail
    • Range Compatibility : Multi9 C60BP || Multi9 C60BPR || Multi9 C60SP || Multi9 GFP || Multi9 C60H-DC
    • Comb Busbar And Distribution Block Compatibility : top YES
    • Net Weight : 0.073 kg
    • Wire Stripping Length : 9 mm for bottom connection
    • Connections - Terminals : clamp terminal bottom) - 1 2.5-2.5 mm² AWG 14) - rigid || clamp terminal bottom) - 2 1.5-1.5 mm² AWG 16) - rigid
    • Mounting Mode : fixed
    • Local Signalling : action indicator
    • Width : 18 mm
    • Depth : 68 mm
    • Tightening Torque : 1-1 N.m bottom
  • Environment
    • Product Certifications : UR || PCT || UL
    • Ambient Air Temperature For Operation : -25-50 °C
    • Standards : EN/IEC 60947-1
    • Pollution Degree : 3
    • Ambient Air Temperature For Storage : -40-85 °C
