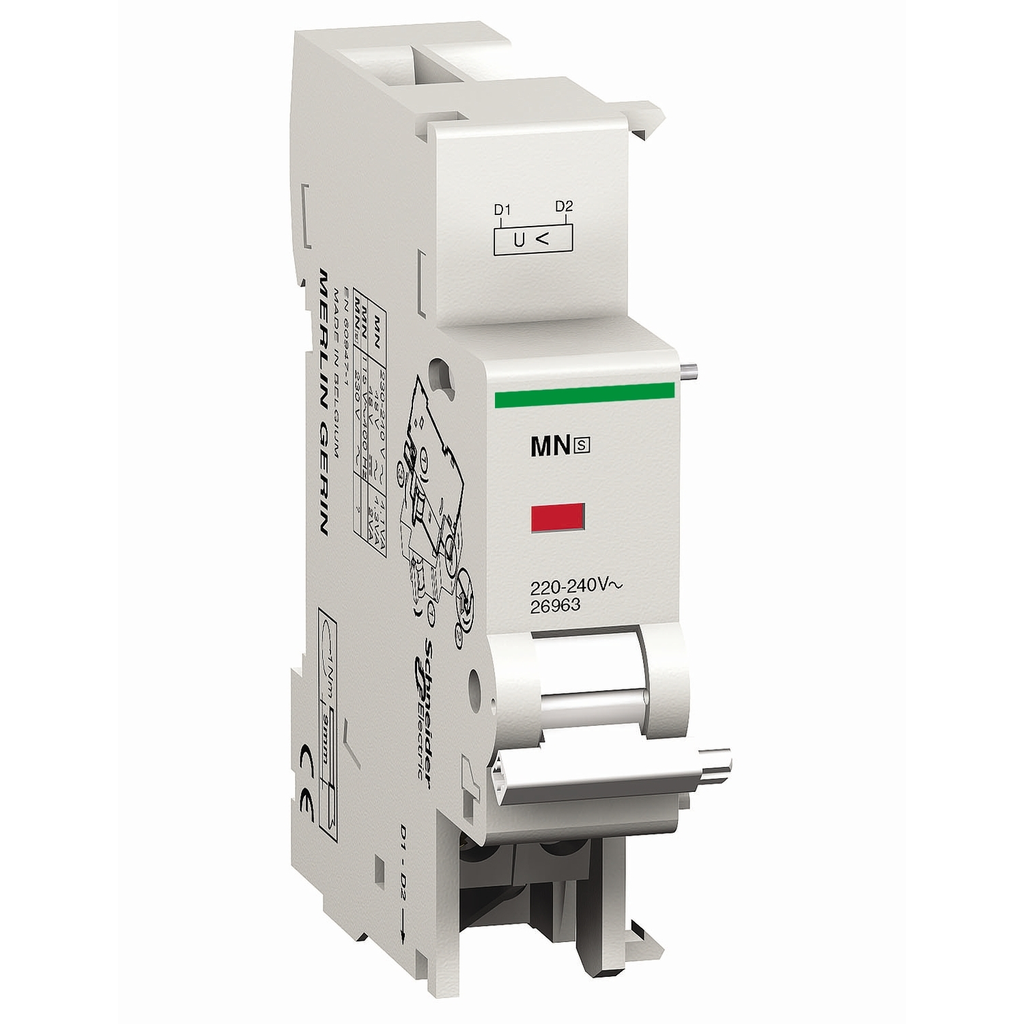

This Multi9 MNs electrical auxiliary is an undervoltage release device. It is dedicated to Multi9 GFP, C60 and C60H-DC. It prevents device closing again until its input voltage has been restored.

• Physical Attributes
• Wire Stripping Length : 9 mm for bottom connection
• Conformance Attributes
• Product Certifications : PCT, UR, UL
• Standards : EN/IEC 60947-2
• Important Information Attributes
• Persona Type Ids : EU, OM, OM8
• Persona Type Names : End User, Original Equipment Manufacturer, OEM - Control Panelbuilder
• Range Of Product : C60SP, C60BP, GFP, C60BPR
• Carbon Footprint Of The Distribution Phase A4 : 0.012703595920366675, 0 kg CO2 eq.
• Carbon Footprint Of The End Of Life Phase C1 To C4 : 0.1 kg CO2 eq., 0.09426152994546413
• Carbon Footprint Of The Installation Phase A5 : 0.01758594685742599, 0 kg CO2 eq.
• Carbon Footprint Of The Manufacturing Phase A1 To A3 : 0.3 kg CO2 eq., 0.34502287906785656
• Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 0.5 kg CO2 eq., 0.5311163929133567
• Connections Terminals : clamp terminal bottom) - 1 2.5-2.5 mm² AWG 14) - rigid, clamp terminal bottom) - 2 1.5-1.5 mm² AWG 16) - rigid
• Connections Terminals3 : clamp terminal bottom) - 1 2.5-2.5 mm² AWG 14) - rigid, clamp terminal bottom) - 2 1.5-1.5 mm² AWG 16) - rigid
• Local Data Status : Publishable
• Local Publishable Date : 2025-04-05
• Legacy WEEE Scope : In
• Scope Perimeter : At least in Europe
• EOLI Availability Display : No need of specific recycling operations
• Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : CONTAINS_SVHC
• Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
• ROHS EUR In Scope : Yes
• ROHS EUR Status : Compliant with Exemptions
• ROHS EUR Full Compliance Status : Compliant with Exemptions
• ROHS EUR Full Compliance Status Id : COMPLIANT_WITH_EXEMPTIONS
• China ROHS In Scope : Yes
• Green Premium Status For Reporting : Green Premium product
• With Recycled Cardboard : No
• Without Single Use Plastic : Yes
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : Y
• Function Option Id : STANDARD
• Function Option : Standard
• Market Segmentation Id : COMMERCIAL
• Market Segmentation : Commercial
• H And D Domain : Energy
• H And D Subrange : Multi9 OEM AUX & ACC
• H And D Enrichment Assignment : yes
• H And D Enrichment Function : M&C AUXILIARIES
• H And D Enrichment Class 3 : Monitoring & Control
• H And D Enrichment Class 4 : Undervoltage & overvoltage auxiliary
• H And Dod Responsibility : Multi9
• H And Dod Platform : Monitoring, Control, Auxiliaries, AFDD, SPD, Fuse, Active
• Control Type : delayed
• Device Short Name : MNs
• Energy Efficiency Optimized : False
• Local Signalling : action indicator
• Mounting Mode : fixed
• Mounting Support : DIN rail
• Package Weight Lbs : 76.000 g
• Product Availability : Stock - Normally stocked in distribution facility
• Product Or Component Type : undervoltage release
• Range : Multi9
• Returnability : Yes
• Sustainable Packaging : No
• Tightening Torque : 1-1 N.m bottom
• Total Lifecycle Carbon Footprint : 1 kg CO2 eq.
• Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• Uc Control Circuit Voltage2 : 220...240 V AC 50/60 Hz
• Medium Desc : Multi9 - undervoltage release - MNs - 220/240 V AC
• Stocking Flag : Y
• Product Kit Identifier : N
• Pep Code : ENVPEP2206015EN
• Database Version : 2024-01
• Pep Verification Date : 2025-12-01
• Pcr Version : PCR-4-ed4-EN-2021 09 06
• Psr Version : PSR-0005-ed3.1-EN-2023 12 08
• Type Of Verification For The Pep : Independent external review
• Data Source : extrapolated product
• Functional Unit Description : Indicate locally and remotely electrical protection device status for 20 years
• Functional Unit Unit : unit
• Energy Model Manufacturing A1 A3 2 : Electricity Mix; Low voltage; 2020; India, IN
• Energy Model Installation A5 2 : No energy used
• Energy Model Use B6 2 : Electricity Mix; Low voltage; 2020; Europe, EU-27
• Energy Model End Of Life C1 C4 2 : Global, European and French datasets are used.
• Comb Busbar And Distribution Block Compatibility : top YES
• Global Commercial Status : Commercialised
• Uc Control Circuit Voltage5 : 220...240 V AC 50/60 Hz
• Environment Attributes Main
• Take Back : No, Nej
• EU ROHS Directive : Compliant By Exemption , Compliant with Exemptions
• ROHS Exemption Information : Yes
• Recycled Metal Content At Cr Level : 0 %
• China ROHS Regulation : X
• Mercury Free : Yes
• Silicon Free : No
• Carbon Footprint : 1.00069034470447
• 9 MM Pitches : 2
• Ambient Air Temperature For Operation : -25-50 °C
• Ambient Air Temperature For Storage : -40-85 °C
• Environmental Disclosure : ENVPEP2206015EN
• Packaging Made With Recycled Cardboard : No
• Packaging Without Single Use Plastic : Yes
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• Pep Code : ENVPEP2206015EN
• Pep Verification Date : 2025-12-01
• Pcr Version : PCR-4-ed4-EN-2021 09 06
• Psr Version : PSR-0005-ed3.1-EN-2023 12 08
• Type Of Verification For The Pep : Independent external review
• General Attributes
• Range Of Product : C60SP, C60BP, GFP, C60BPR
• Product Or Component Type : undervoltage release
• Specifications
• Depth : 68 mm
